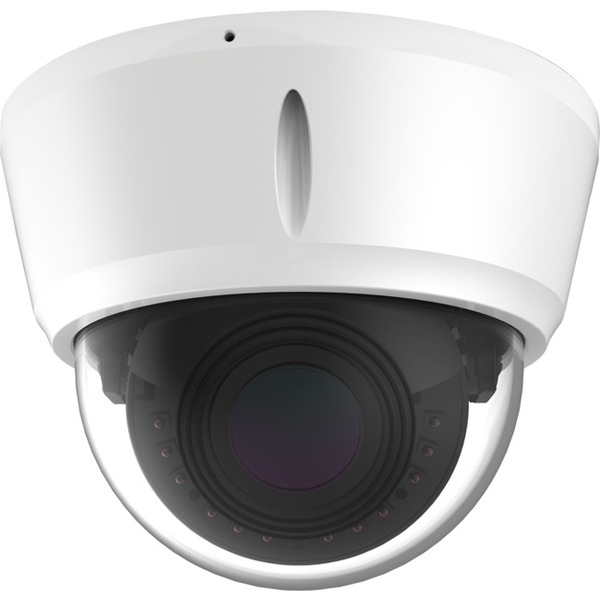

DOSS DMP30IPW3 Dome Starvis 2Mp IP Camera H.265 30M IR Moto Lens White Starvis Imx290 Cmos Sensor
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Features
- 1/2.8"SONY 2.07MP progressive Scan Exmor CMOS
- Max. resolution 2MP(1920x1080 @ 30fps)
- 2.8-12mm DC motorised lens, Angle: 92° to 28°
- Built-in intelligence
- H.265 encoding Compared to H.264, the new H.265 encoding on the Doss CCTV cameras provide 40-50% reduction in bit rate. Which means you get to store more footage without sacrificing video quality!
- Support Smart IR, prevent IR overexposure at night
- DSP: HI3516D+IMX290
- High effective IR led, long service life,IR distance can reach 20-30m
- Easy setup remote viewing for PC, Mac, iOS, and Android
- PoE (Power over Ethernet) &DC12V
- SNR: =35db
- Support corridor mode, increase the monitoring area in longitudinal strip environment
- Support Micro SD card (128G) local-storage
Built-in intelligence
The new Doss cameras are smarter. Real smart. Whether youwant to make sure a particular object has been removed or not or whether you need to know if a fire has started or not, the new Doss IQ range cameras have it all.
Here are some of the intelligent analysis baked into the cameras:
- Target counting
- Area detection
- Object detection
- Virtual Guard

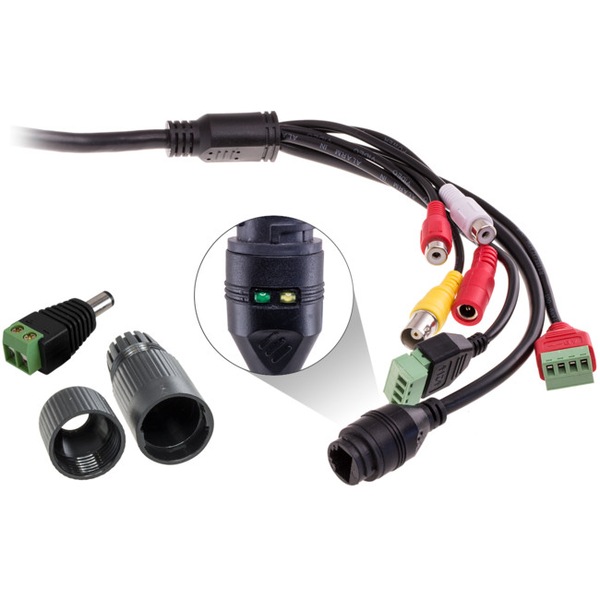

Connections
- [DC] 12V DC power input
- [RJ45] Ethernet port
- [BNC] Analogue video out
Specifications
| CAMERA | _ |
| Image sensor | 1/2.8"SONY 2.07MP progressive Scan Exmor CMOS |
| Min.illumination | Color: 0.02Lux/F1.4, B/W:0.002Lux/F1.4 |
| IR distance | 20-30M(12*IR leds ) |
| Electronic shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 2.8-12mm DC ICR lens |
| Lens interface | F14 |
| Auto IRIS | DC driver |
| S/N ratio | =50db (AGC OFF) |
| Output | PAL/NTSC adjustable |
| WDR | WDR(Off/Low/Middle/High) |
| Light board control | / |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180’Š rotation/ Corridor mode(90’Š rotation, 270’Š rotation) |
| Slow Shutter | Off/On |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | _ |
| Video compression | H.265/ H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: main stream: 1920x1080@30fps, sub-stream: D1@30fps PAL: main stream: 1920x1080@25fps, sub-stream: D1@25fps |
| Max. Resolution | 1920X1080 |
| Video bit rate | Constant bit rate, variable bit rate (16kbps~8000kbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/ output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| Watermark function | / |
| NETWORK | _ |
| Network protocol | TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP |
| Access protocol | ONVIF,GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/ modify/ delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Target Counting, Left/Loss, Area Detection, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support, match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encodingresolution |
| System update | Support remote update |
| Other | / |
| INTERFACE | _ |
| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite video output |
| Audio | Line input/ output |
| Alarm input | 2CH input |
| Alarm output | 1CH output |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| Other | / |
| GENERAL | _ |
| Operating temperature | -20°C ~ 55°C |
| Operating humidity | 0?-90? |
| Protection grade | IP66/ IK09 |
| Power supply | DC12V /PoE optional |
| PoE | Optional |
| Power consumption (max) | <7W |
| Dimensions(mm) | 86(H)*F117(L)mm |
| Weight/PCS(g) | _ |
