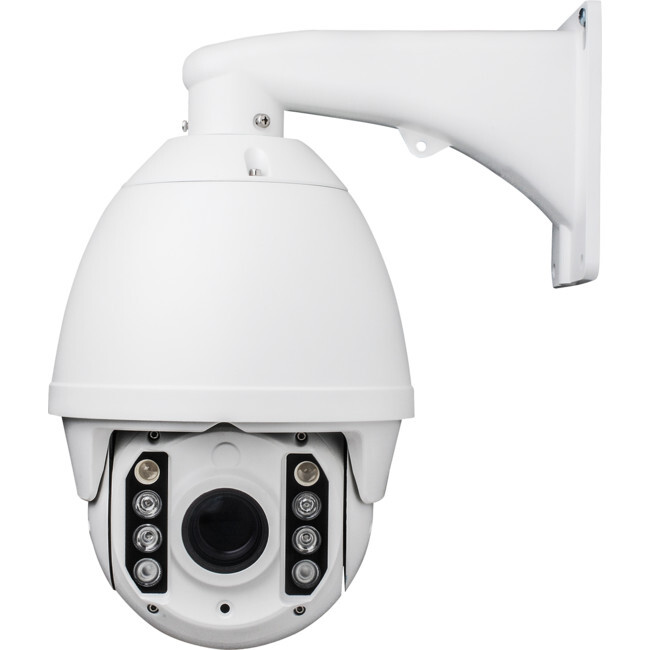

DMZ150IPW DOSS H.264 2Mp 6" Dome PTZ Camera 150M IR PoE 20X Starvis IP Starvis Imx290 Cmos Sensor
,gravity=Center,allowExpansion)
Features
DOSS DMZ150IPW camera enables you to keep an eye on your territory 24/7!!! It has 2MP camera for clear image taking or recording as well as tilt and zoom in functions. Area scan function provides routine scanning of the areas of yourchoice, non-stop unless you told it to. Easy set up and easycontrol, powered by POE means no more hassle for wiring power cable!
- 2MP HD IR network intelligent high speed dome
- 1/2.8" STARVIS IMX290 CMOS sensor
- Keyboard control the speed: 0.1-150°/S, preset speed: 200 ° / S
- Encoding system : H.264/MJPEG, dual stream output
- F= 4.7mm ~ 94mm provides with 47° to 4.7° view
- 20x optical zoom
- Full HD 1080P
- Horizontal 360° continuous rotation, 90° vertically auto rotation
- 150m IR distance / Intelligent IR group control
- Support ONVIF/ HTTP/ TCP/ DDNS/ NTP/ SMTP/ RTSP
- Up to 256 preset positions, 4 patterns, 8 cruise patterns
- Lightning-proof, IP66
- DC24V 1.5A, or AC 24V 2A, or POE+
- Comes with standard wall mounting bracket
Please note: This camera can use up to 30W via PoE+. If you're planning to usean NVR to supply PoE power for one or more of these cameras plus any other IP camera, make sure your NVR has enough PoE power to cope with the total load. If in doubt, please use an external PoE+ injector, PoE+ switch or take advantage of the AC/DC direct powering options.
Specifications
| ZOOM MODULE | |
| Image sensor | 1/2.8", 2.0MP CMOS sensor(Ambarella A5S66+IMX222) |
| Effective pixels | 2MP |
| Min. illumination | Colour: 0.06Lux@F1.6; B/W: 0.01Lux@F1.6, 0Lux(IR ON) |
| IR distance | 150m |
| White balance | Auto/ White low lamp/ 4000K/ 5000K/ Sunshine/ dark clouds/ flashlight/ fluorescent lamp/ high fluorescent lamp/water bottom/ customized/ |
| Gain control | Auto, manual |
| 3DNR | Supported |
| S/N Ratio | 50dB |
| BLC | Supported |
| WDR | DWDR |
| Electronic shutter | Max:1/15, Min: 1/5000 |
| Day & Night | B / W, colour, auto |
| Optical zoom | 20X optical zoom |
| Focus mode | Auto/ Manual |
| Focal length | f=4.7mm ~ 94mm |
| Iris | F1.6(W)-F3.0/(T) |
| FUNCTION | |
| Horizontal | 360° continuous rotation |
| Vertical | 0°~90° auto roration |
| Rotation speed | Manual: 0.1- 150°/sec, Preset: 200°/sec |
| Preset accuracy | 0.1° |
| Proportion zoom | Supported |
| Preset | 256 |
| Cruise | 8 |
| Pattern | 4 |
| Area scan | Supported |
| PTZ Watch | Preset/ zone/ cruise/ pattern /OFF |
| Smart alarm | Network disconnect, IP address conflict, Storage plena, Storage error, Access violation |
| Alarm function | Motion detection, network disconnect, IP address conflict, storage plena, storage error, access violation, video losing |
| NETWORK | |
| Max image dimensions | 1920*1080 |
| Dual stream | Supported |
| Video compression | H.264 |
| Audio compression | Not Supported |
| Network protocols | IPv4, HTTP, FTP, SMTP, UPnP, DDNS, NTP, RTSP, TCP, UDP, DHCP |
| Password protection | Supported |
| Character display | Supported (channel, date) |
| Mobile surveillance | Supported |
| SYSTEM INTEGRATION | |
| Alarm in | 2CH |
| Alarm out | 1CH, support alarm linkage |
| Alarm Linkage | Email, FTP, preset, cruise, video |
| Audio | 1CH bidirectional talk |
| Network interface | Built-in 10/100Mbps RJ45 network port, 802.3at/PoE+ capable |
| Analog video output | Supported |
| RS485 port | Not Supported |
| Browser | Support IE8, IE9, IE10 and based on the IE core browsers |
| GENERAL | |
| Operating temperature/ humidity | -20°C ~ 55°C/0%-90% (Can enable cold start and self-heating below -20°C, and running normally after 30 minutes) |
| IP rating | IP66 |
| Power supply | AC/DC24V/PoE+ |
| Power consumption (max) | 36W |
| Dimensions(mm) | 380(H)*216(D)mm |
| Weight/PCS(g) | 5.5kg |
