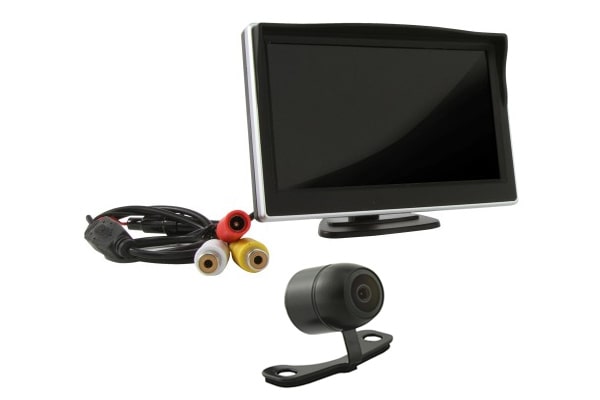

DNA RVS50P 5" Rearview LCD Monitor + Butterfly/Flush Camera

Image 1
Hurry! 1 items left!
$160.85

Collect 160 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
Pay in 4 interest-free payments of $40.21 with Learn More
5" Inch Rearview LCD Monitor With Butterfly/Flush Mount Camera DNA Audio RVS50P CMOS Reverse Camera Waterproof IP68 rating

5" Rearview LCD Monitor With Butterfly/Flush Mount Camera


This kit provides a complete safety package incorporating a 5 inch screen and reverse camera in a convenient pack.

5 Inch rearview LCD monitor - (RVS50)
This 5 Inch screen is compatible with all our cameras models and has a built-in sunvisor
Fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape.
Has two video inputs and includes 12V power cable.

Features:
High definition LCD display
360 Degree adjustable mount
2 x RCA Video inputs (AV2 (White) has priority over AV1 (Yellow)

Specifications:
Screen Size: 5 Inch LCD Display
Video System: PAL / NTSC
Mode: 4:3 or 16:9
Resolution: 800(H)*400(V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating temperature: -10°C - +50°C
Working Voltage: DC12V (+/-10%)
Consumption: 130mA±10%

CMOS Reverse Camera Butterfly Mount - (RCB170)
This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front or side mount applications.

Specifications:
Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution : 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68

GTIN: 9328974025197
