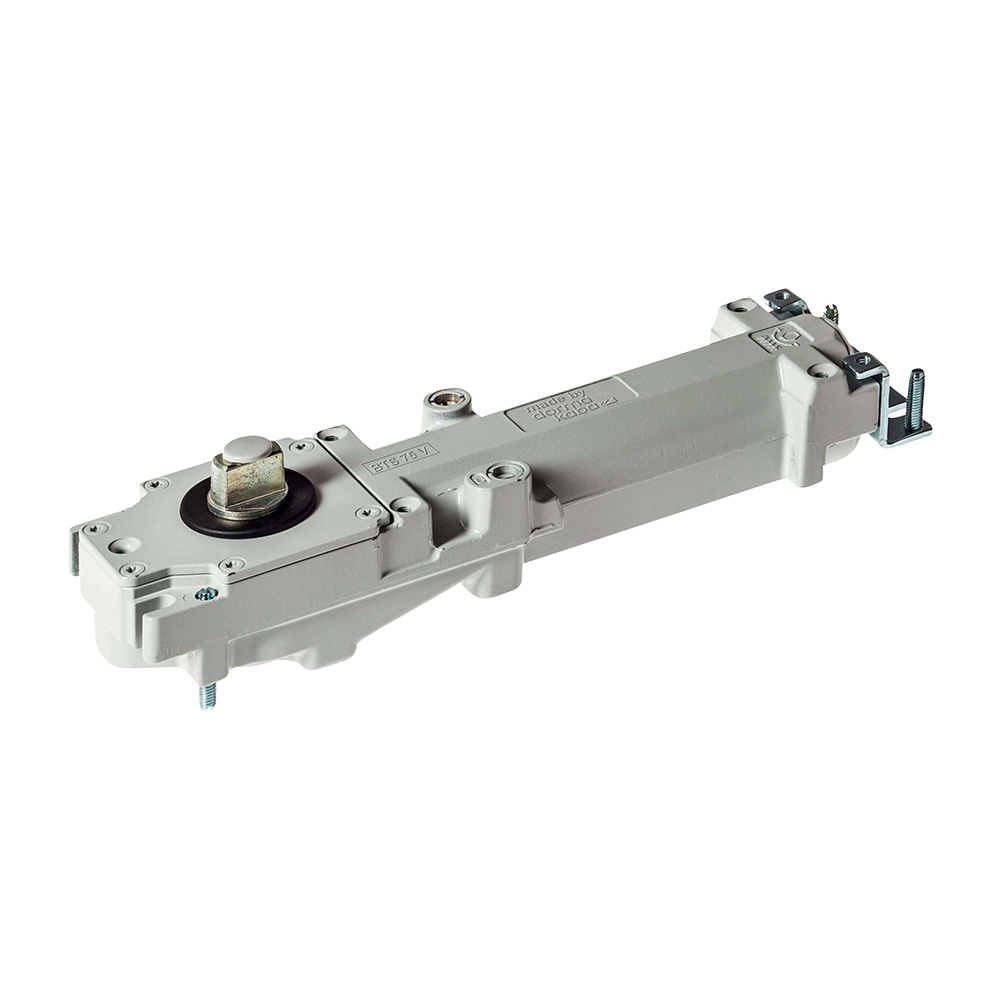

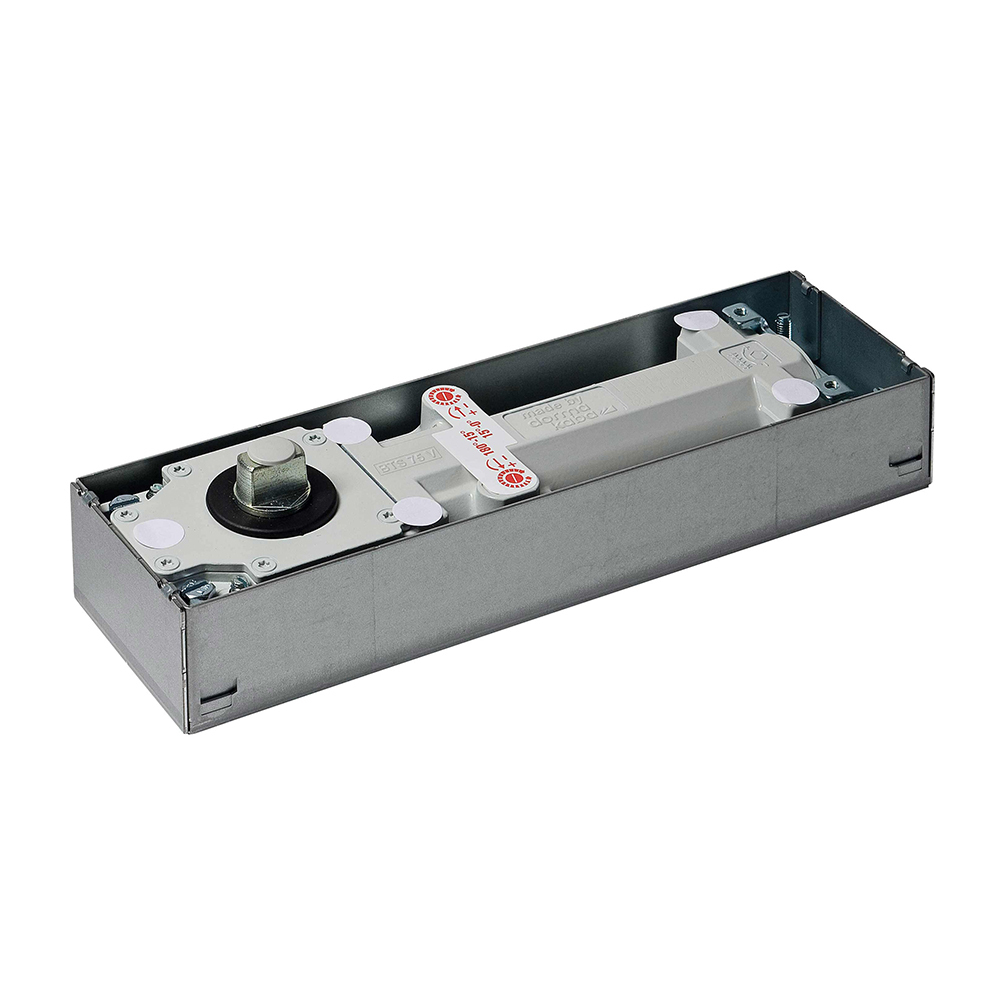

Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check 61701000

Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

Features:

• Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.

Specifications:

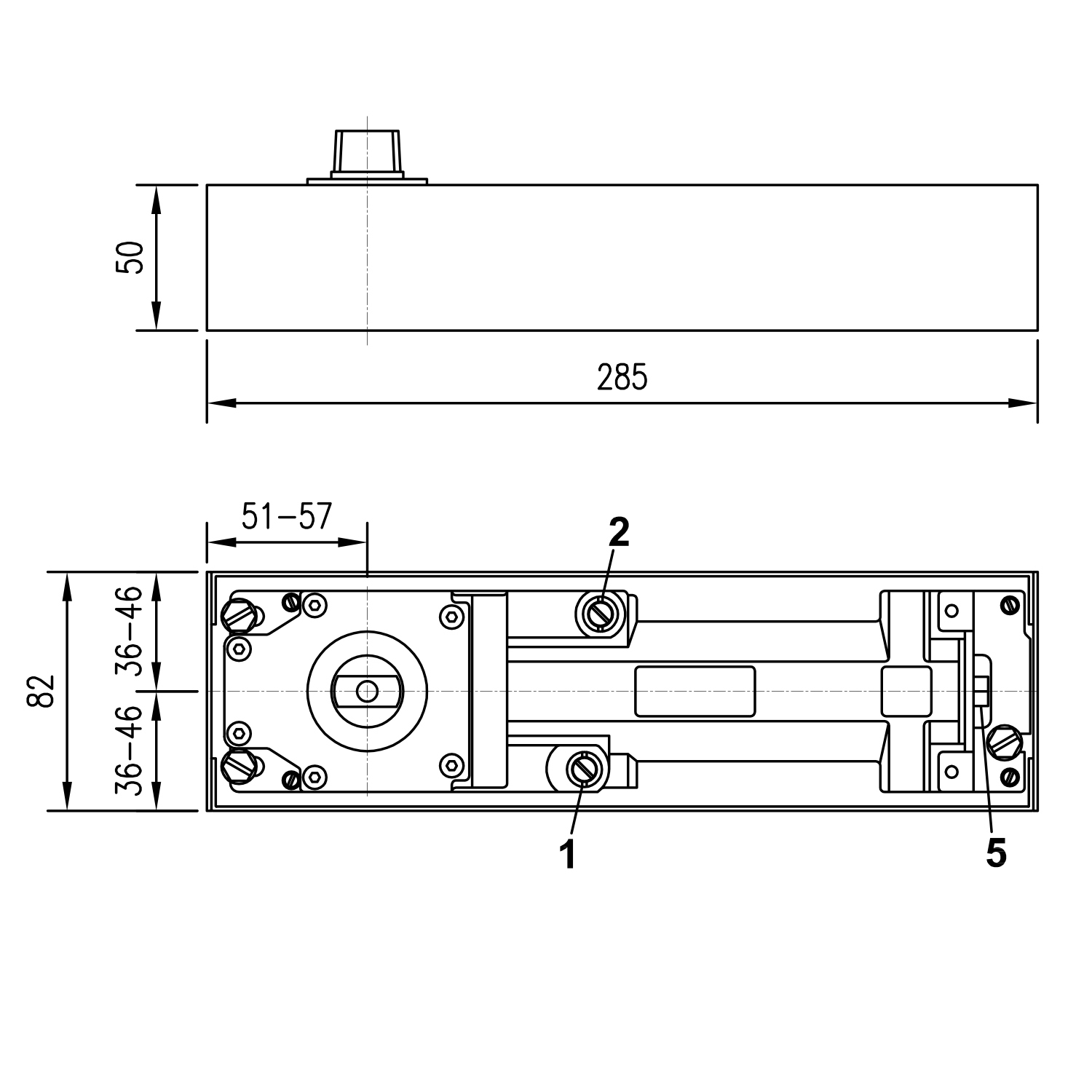

• Length: 285mm
• Width: 82mm
• Height: 50mm
• Weight: 3.0kg

Note: Cover plates are sold separately.
