Dorma EN-6 Door Closer Floor Spring Body Combi Pack For Timber Door BTS806T

Dorma EN-6 Door Closer Floor Spring Body Combi Pack For Timber Door
BTS806T

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

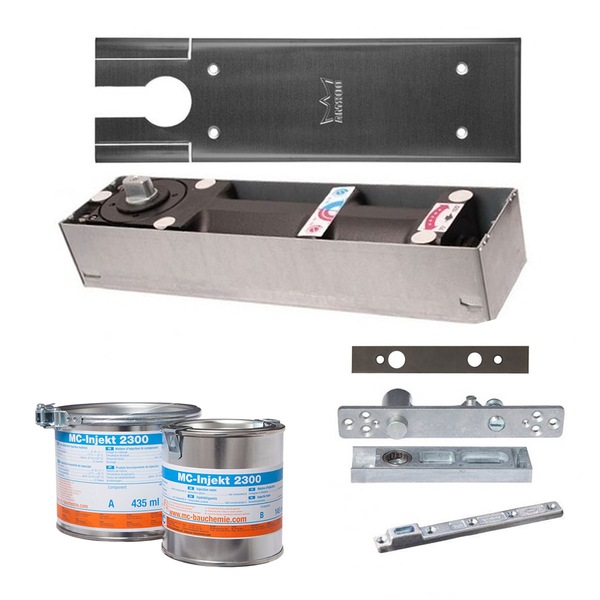

Includes:

• 1 x Dorma Door Closer Floor Spring EN6 (80130000)
• 1 x Dorma Top Centres 8062 (8062)
• 1 x Door Strap 7421 (46010001)
• 1 x Dorma Cover Plate 7410 (46700000)
• 1 x Dorma Top cover plate 8064 (46020044)
• 1 x Dorma Sealing Compound 2300 (45090086)

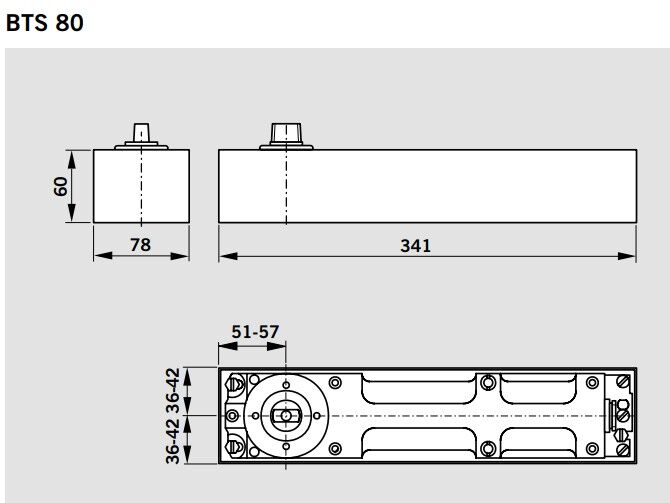

Dorma BTS80 EN-6 Door Closer Floor Spring Adjustable Hold Open
80130000

Features:

• With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck
• Allows for temperature-independent hold-open between 75 degrees and 175 degrees (removable)
• Hold-open start point and delayed action is easily adjustable by valve
• Concealed assembly
• Can be used on fire and smoke check doors
• Easy to install

Specifications:

• Length: 341mm
• Width: 78mm
• Height: 60mm
• Weight: 7.1kg
• Spring Strength: EN6
• Standard and External Doors: Up to 1400mm
• Max. Leaf Weight: 300kg
• Backcheck: Yes
• Delayed Action: Yes
• Max Opening: 175 Degress
• Hold Open: Adjustable

Protection:

• Successfully third party tested to BS EN1154
• CERTIFIRE Approved CF127

Dorma 8064 Cover Plate
46020044

Features:

• Cover plate for adjustable top centers
• Suits BTS series floor springs
• Supplied with screws

Specifications:

• Length: 165mm
• Width: 25mm
• Height: 1mm

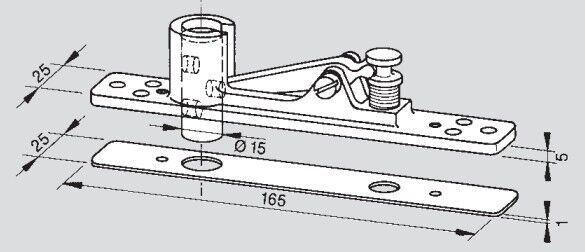

Dorma 8062 Top Center
46300003

Features:

• Suitable for double action steel, aluminum and timber doors
• Made of die-cast aluminum
• It comprises of a frame portion with adjustable pin for deep profiles up to a max. 20mm, and a door portion with needle bearing
• Suits BTS 75V

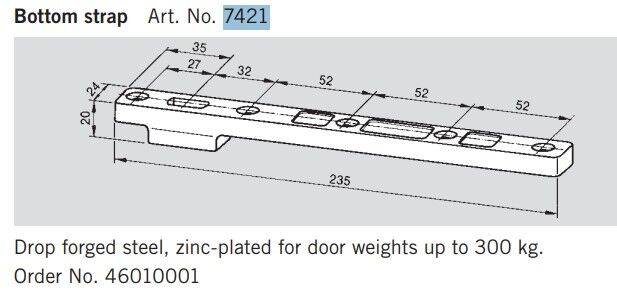

Dorma 7421 Bottom Strap for Double Action Doors
46010001

Features:

• Suitable for BTS floor springs for double action doors
• Drop forged steel, zinc-plated for door weights up to 300 kg.

Dorma Sealing Compound 2300
45090086

Features:

• Recommended for floor springs exposed to wet conditions
• For filling the cavities between the floor spring body and the cement box to prevent moisture penetration (mandatory according to e.g. VOB regulations for wet rooms).

Notes-icon:

• The contents of the two tins (the basic fluid and the accelerator) are sufficient for one floor spring.

Warning-icon:

• Use compound immediately after mixing. Hardening process takes place after 20 minutes. After 24 hours the sealing compound is fully hardened.

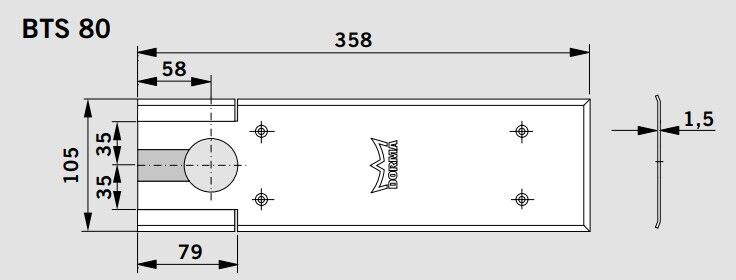

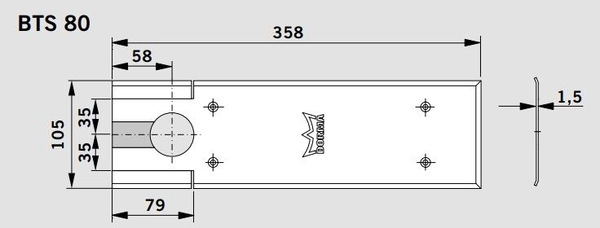

Dorma 7410 Cover Plate Satin Stainless Steel Suits BTS80
46700000

Features:

• Adaptable to right or left-hand single action applications by simply snapping off the appropriate pre-blanked corner sections. For double action doors, the corner sections remain in place.
• Supplied with fixing screws and plastic insert
• Suits the BTS 80 floor spring

Specifications:

• Length: 358mm
• Width: 105mm
• Thickness: 1.5mm
• Finish: Satin Stainless Steel
