Dorma Transom Closer For Timber Door Set Non Hold Open RTS85T

Dorma Transom Closer For Timber Door Set Non Hold Open
RTS85T

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

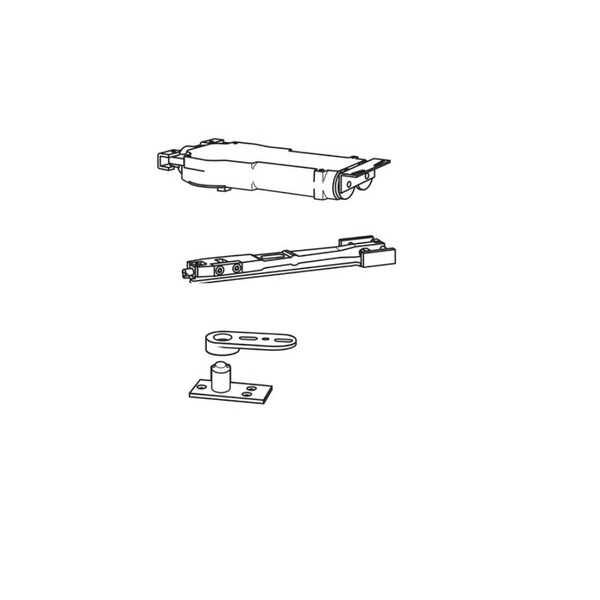

Includes:

• 1 x Dorma 85W Cover plate to suit steel and wooden door frames - satin stainless steel (10000051A)
• 1 x Dorma Transom Door Closer Body RTS 85 EN4 (85321101)
• 1 x Dorma Bottom Pivot 8550 (85210005)
• 1 x Dorma Closer Arm 8530 (65310300)

The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications.

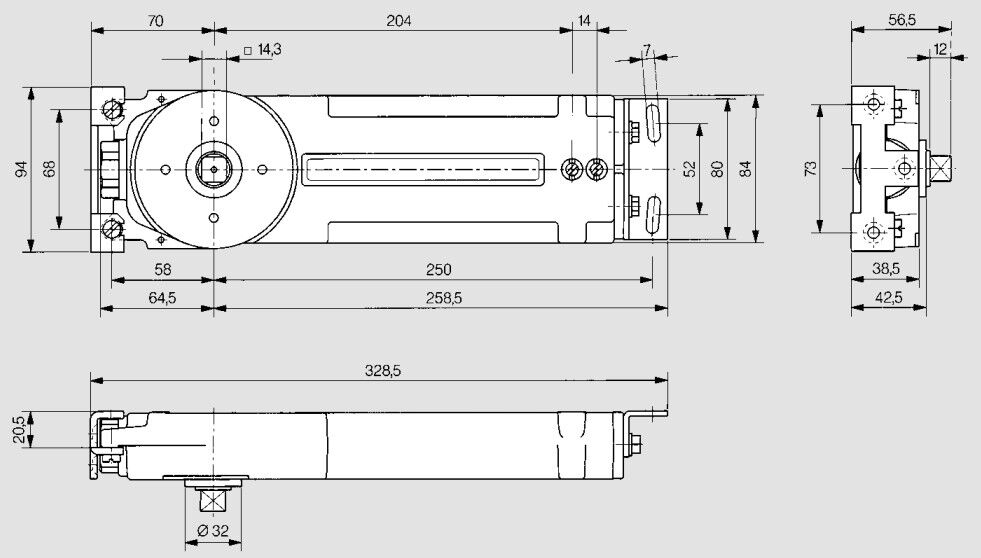

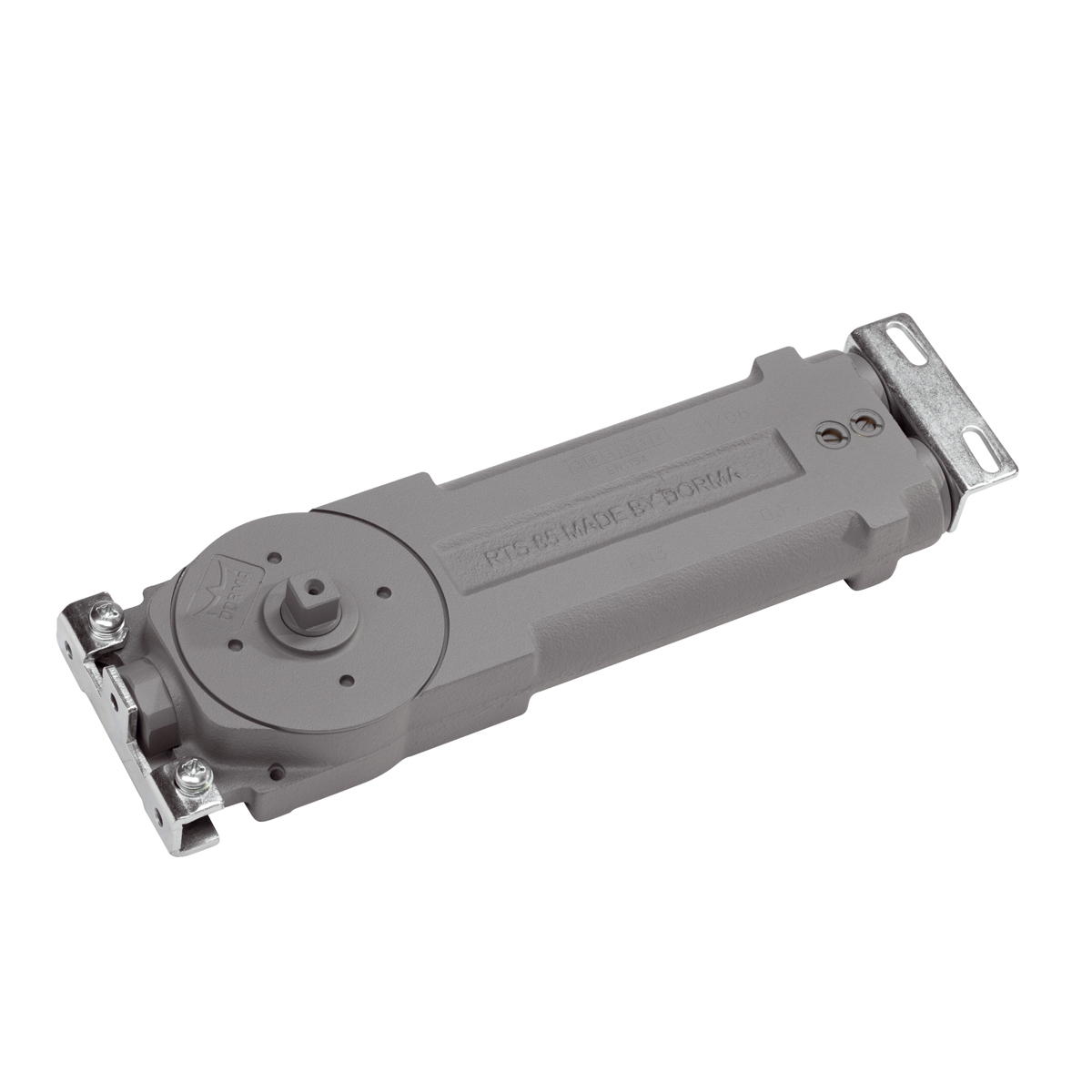

Dorma RTS85 EN4 Transom Closer
85321101

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

Specifications:

• Closing Force: EN4
• Internal doors up to and external doors: up to 1100mm
• Closing speed variable by valve adjustment: Yes
• Final closing speed variable by valve adjustment: Yes
• Backcheck: Yes
• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weigth: 4.8kg

Dorma RTS85W Transom Coverplate Satin Stainless Steel
10000051A

Specifications:

• Satin Stainless Steel Cover plate
• Suits Dorma TS85 transom closers
• To suit steel and wooden door frames

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dorma RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Specifications:

• Suits Bottom Rails with Channel:
  • Depth: 18-20mm
  • Height: 27mm

Dorma Transom Closer Arm w/ Bracket
85210005

A standard side load top arm for use with Dorma concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
