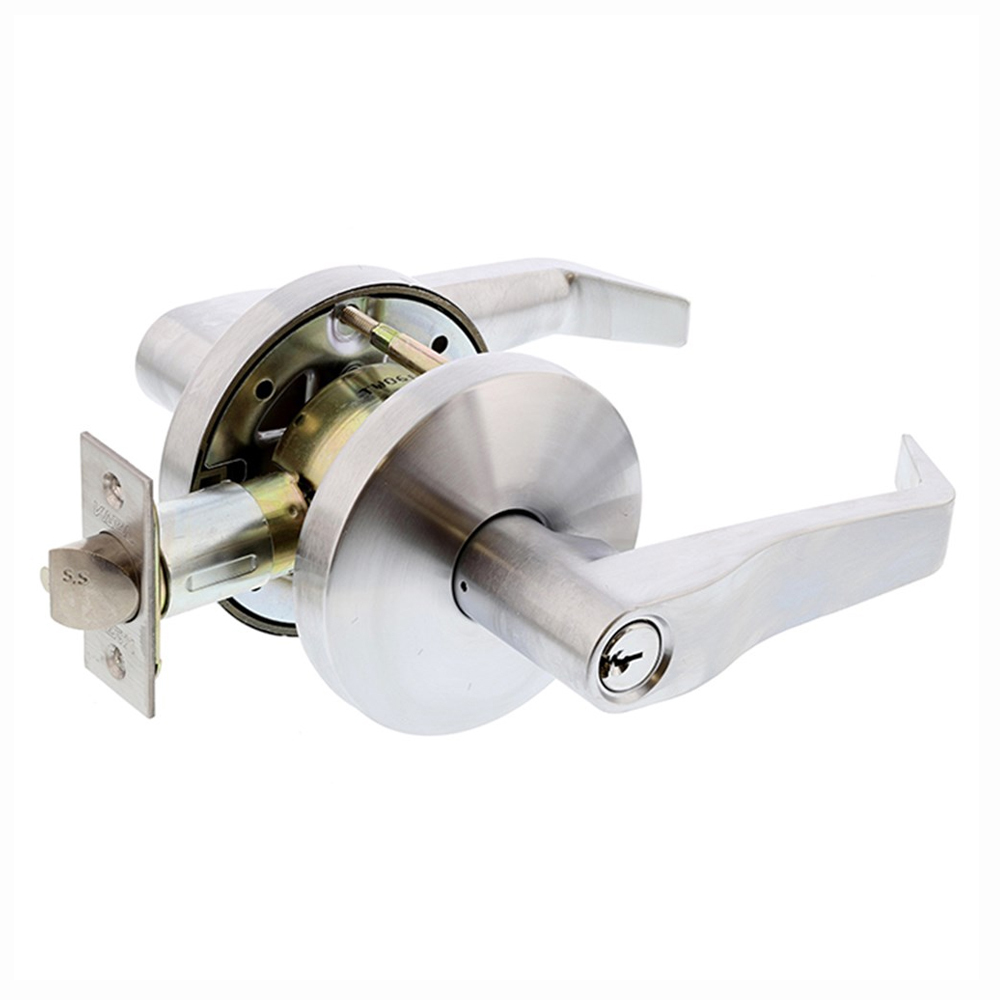

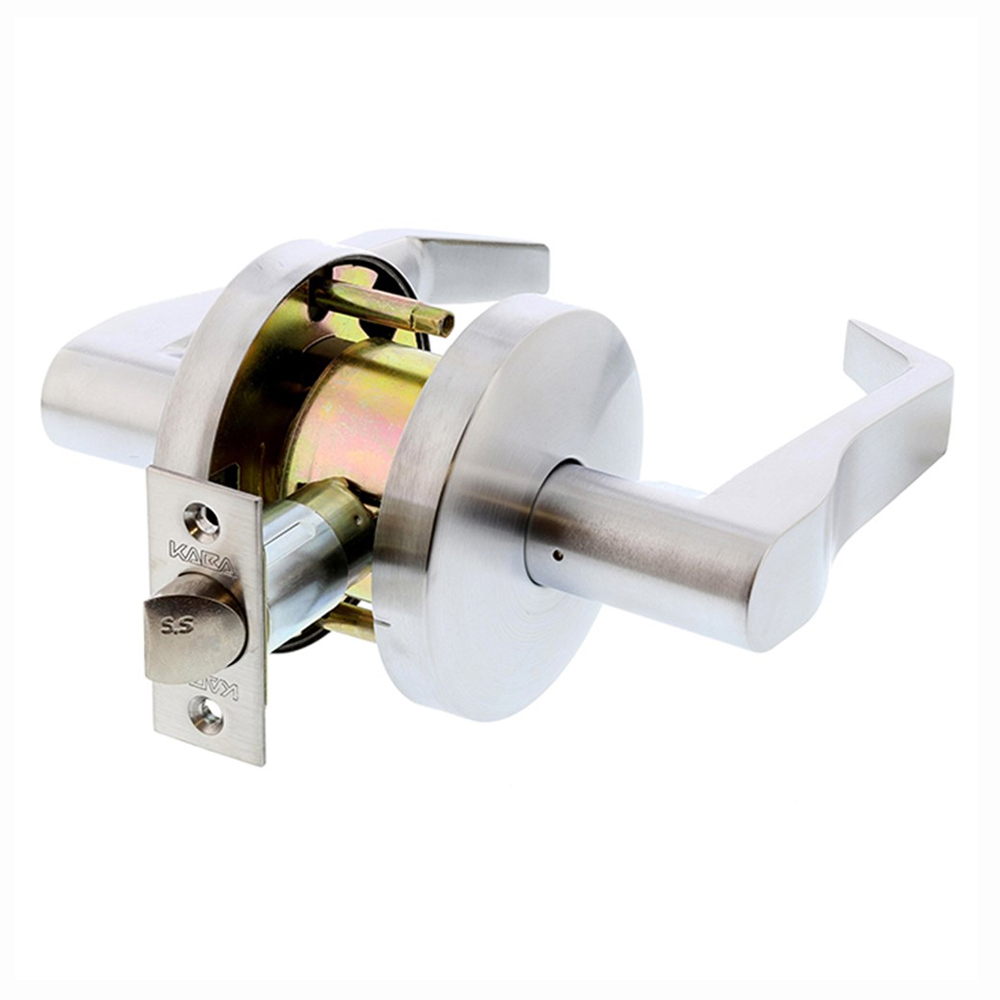

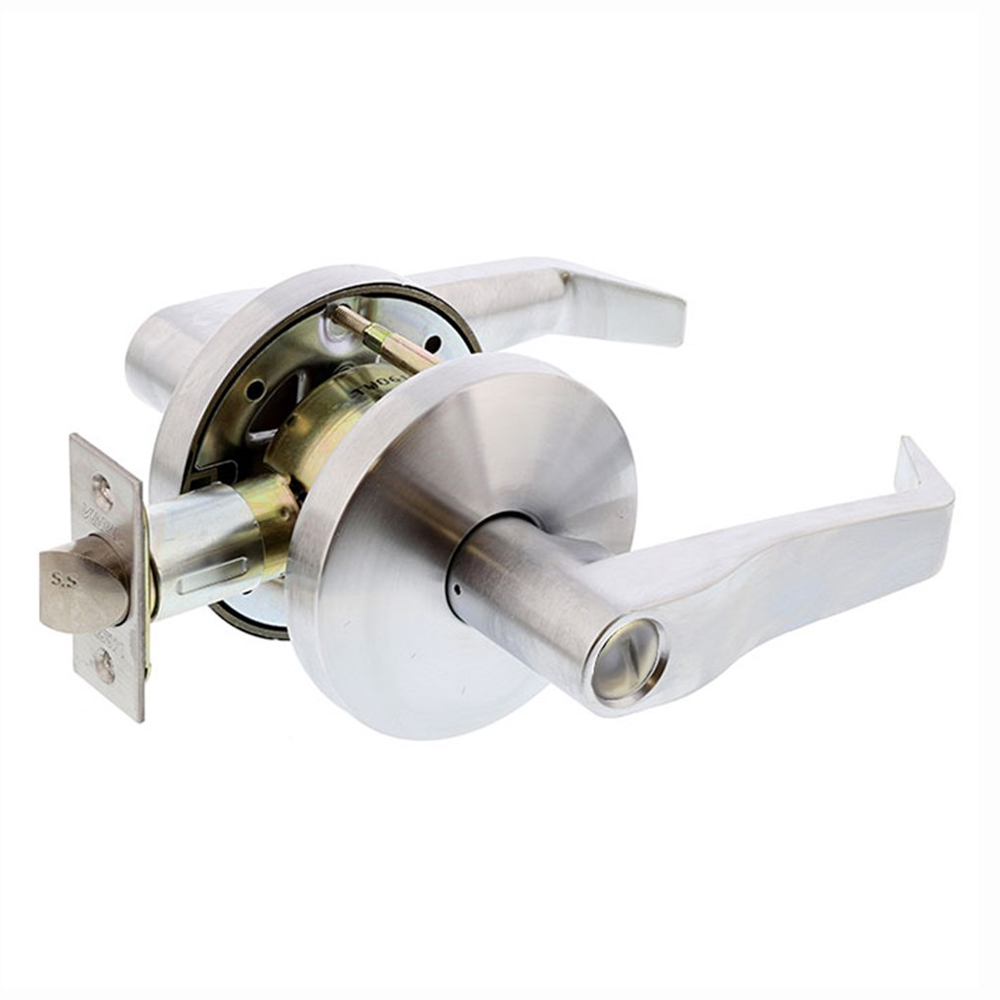

Dormakaba Door Lever Handle on Round Rose Storeroom Set
LC80ASCP70

Storeroom used when the outside lever should be locked at all times.

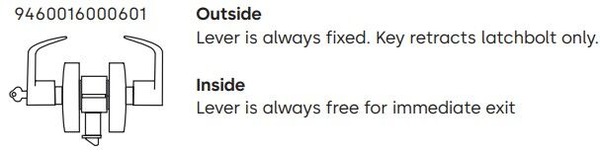

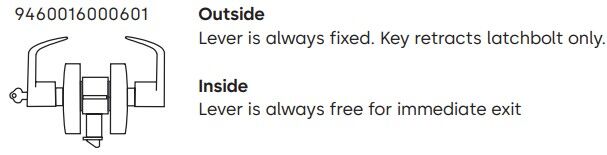

Storeroom Function: Inside lever is always unlocked. The outside lever is fixed. Entrance by key only.

Features:

• Dormakaba LC series storeroom leverset
• Commercial grade
• Screw post to prevent lock rotation are removable
• DDA compliant lever design
• Cylindrical fixing
• Silca LW5 profile 6 pin cylinder
• Incorporates the popular PD 8221 barrel
• Compatible with most restricted keying systems
• Boxed and bar coded
• 2 keys supplied

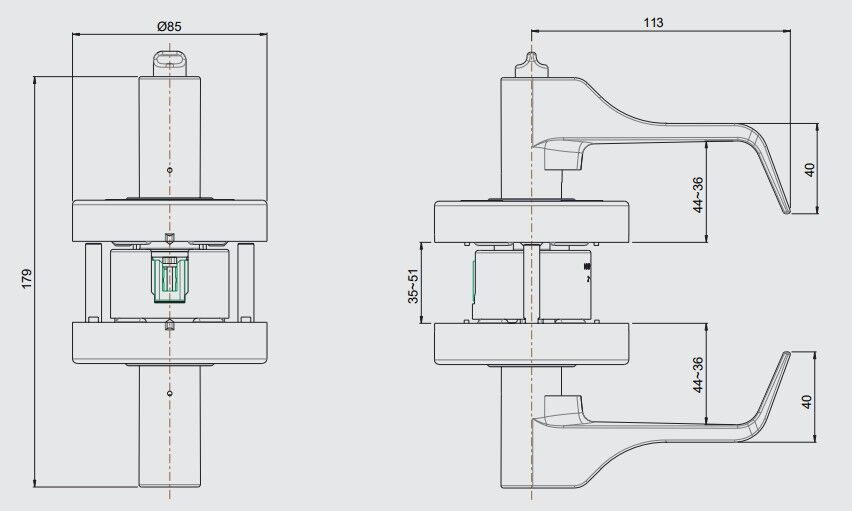

Specifications:

• Door Thickness: 35mm - 51mm
• Backset: 70mm
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW5 Profile
• Door Handing: Non-handed levers
• Rose Diameter: 85mm
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Has Storeroom Function: Yes
• Function: Storeroom
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Fire Rated: Yes
• Finish: Satin Chrome
