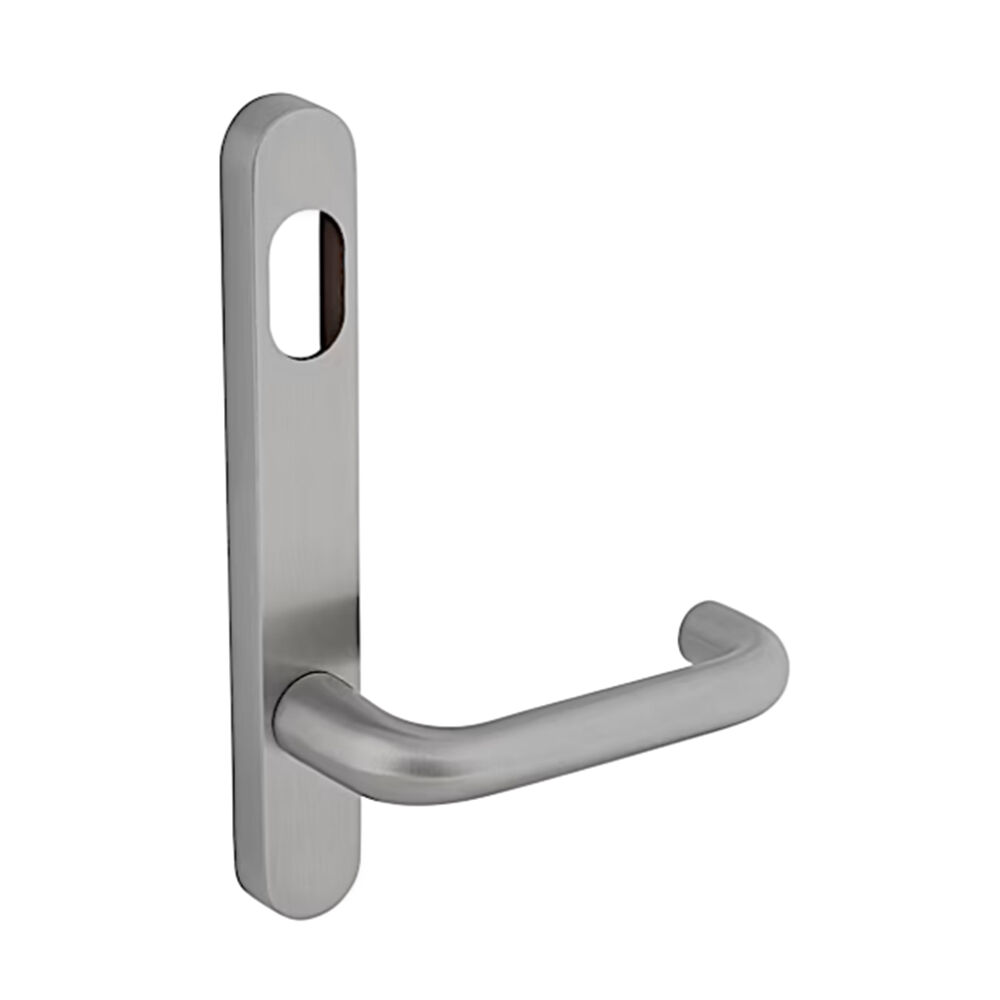

Dormakaba Door Handle Lever Narrow Stile Round End Plate Cylinder Hole Concealed Fix
6500/70SSS

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Round narrow plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through fixing for use with Australian narrow stile mortice locks and latches.
• Non handed plate with oscillating lever action for quick reversal of handing.
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon shim preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Certain Coastal Series lever designs are not compatible with all narrow backset mortice locks. Check your requirements against the suitability chart in this brochure
• Standard screws in 5/32 thread to suit door thickness of 32mm-45mm thick doors
• Fixing Screws included

Specifications:

• Fixing: Concealed Fixed
• Lever Type: Lever 70
• Material: 316 Grade Stainless Steel
• Plate Length: 26mm
• Plate Width: 12.7mm
• Plate Height: 185mm
• Fixing Centres: 164mm
• Door Thickness: 32mm-45mm
• Suitable for Door Type: Timber Doors
• Finish: Satin Stainless Steel

Ratings/Compliance:

• Fire Rating: The 6500 series plate furniture is fire rated and complies
  with AS1905.1-2005 Part 1
•  AS1905.1-2005 Part 1 compliant
