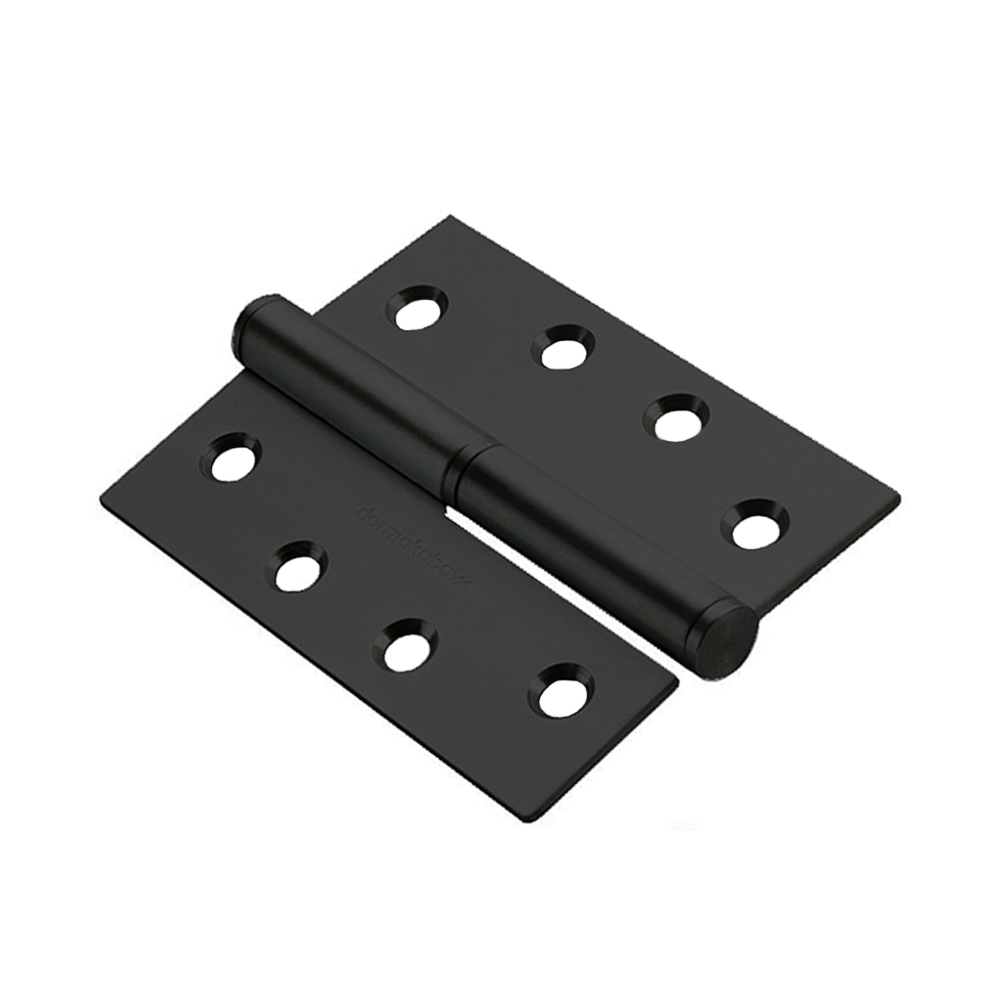

Dormakaba Lift Off Hinge 100mm x 75mm Black - Available in Various Handings

Dormakaba Lift Off Hinge
DKH100/75LO LH BLK

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function - a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.

Features:

• Suitable for Timber or Metal doors and Timber or Pressed Metal frame applications
• Lift off hinges allow a door to be removed by someone on the outside in the event of an emergency
• Doors require a gap between the top of the door and the underside of the head of the door frame to allow sufficient movement upwards for door release
• Includes fixing screws

Specifications:

• Material: 304 Grade Stainless Steel

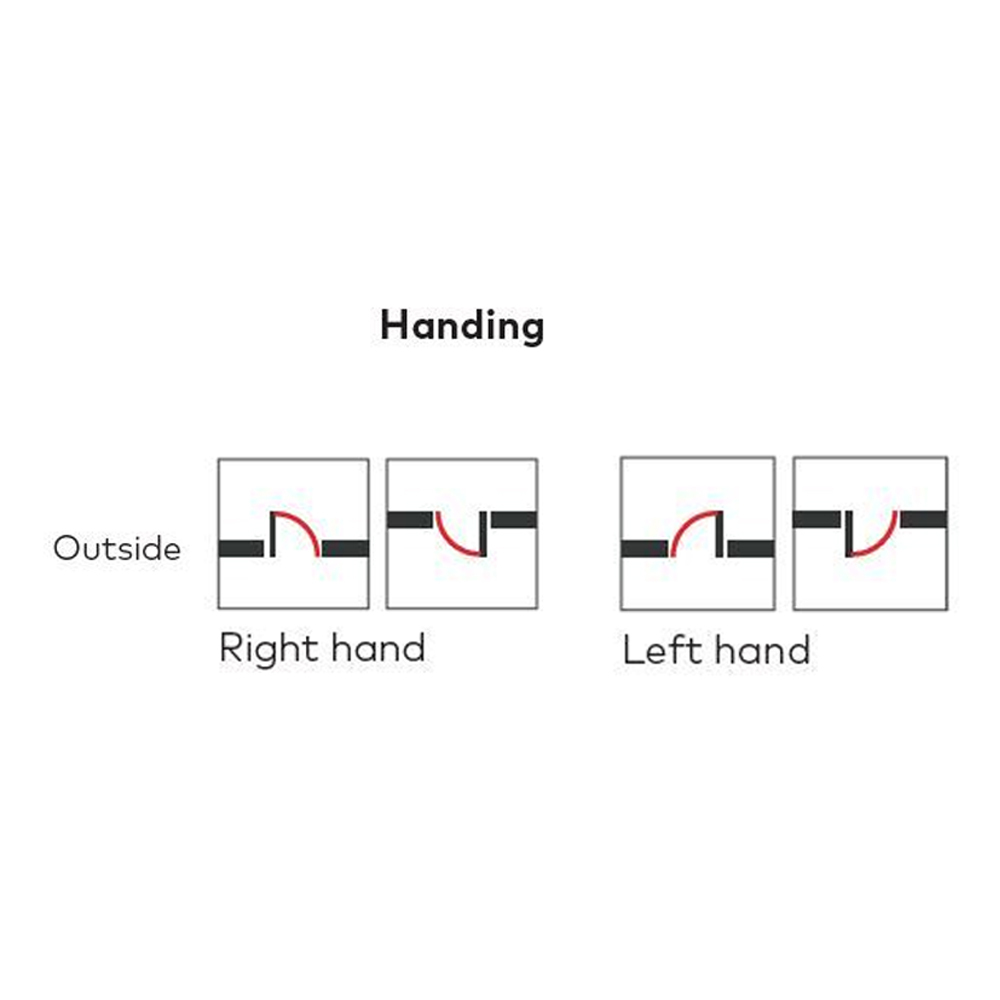

• Handing: Left Hand

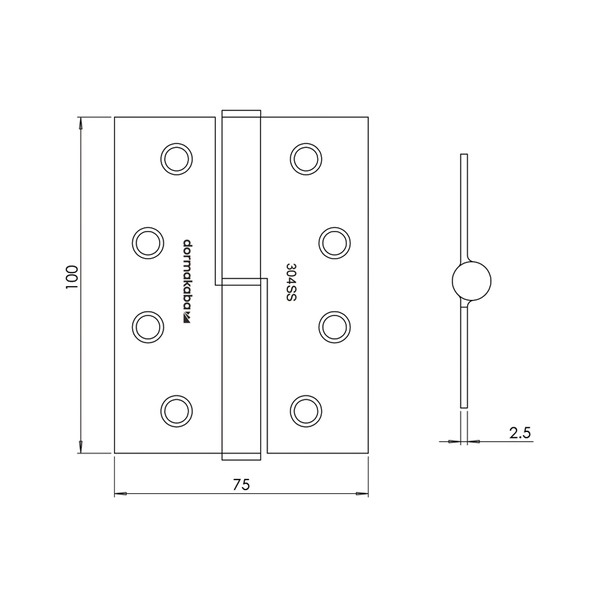

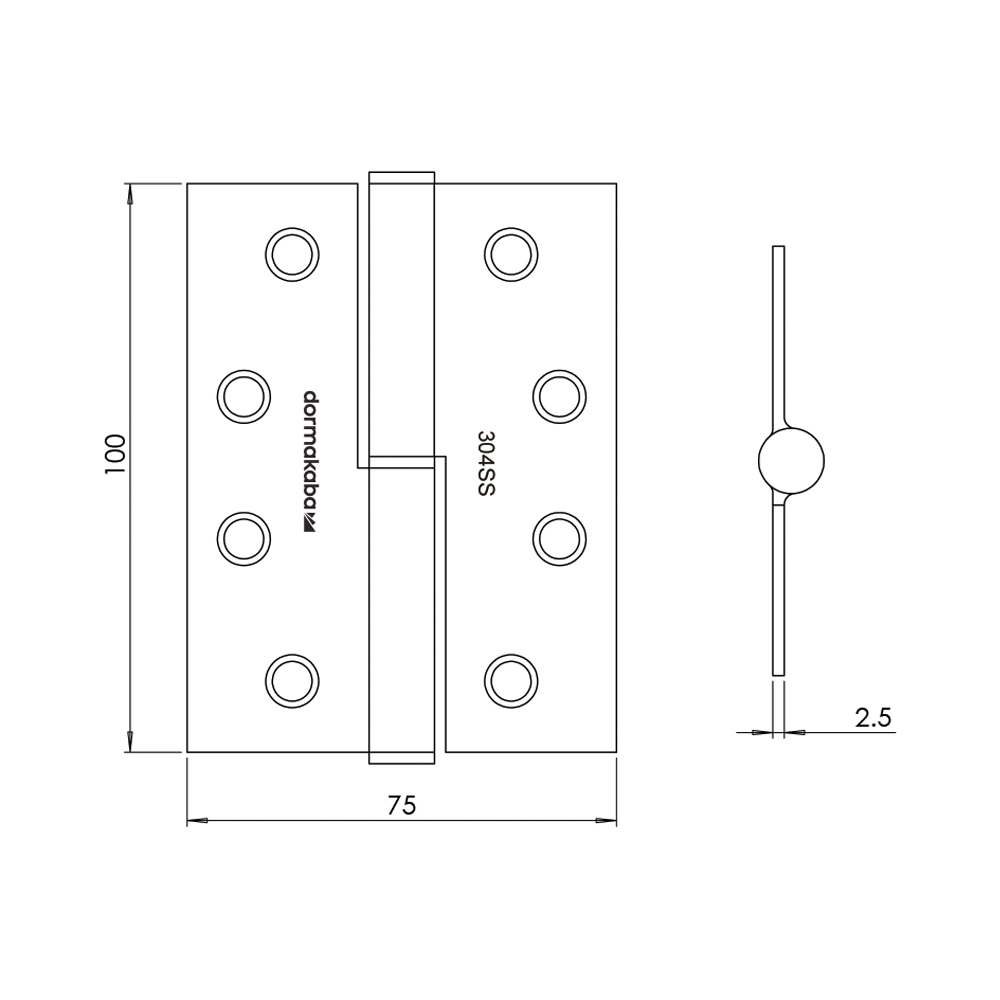

• Length: 100mm
• Width: 75mm
• Thickness: 2.5mm
• Finish: Black
