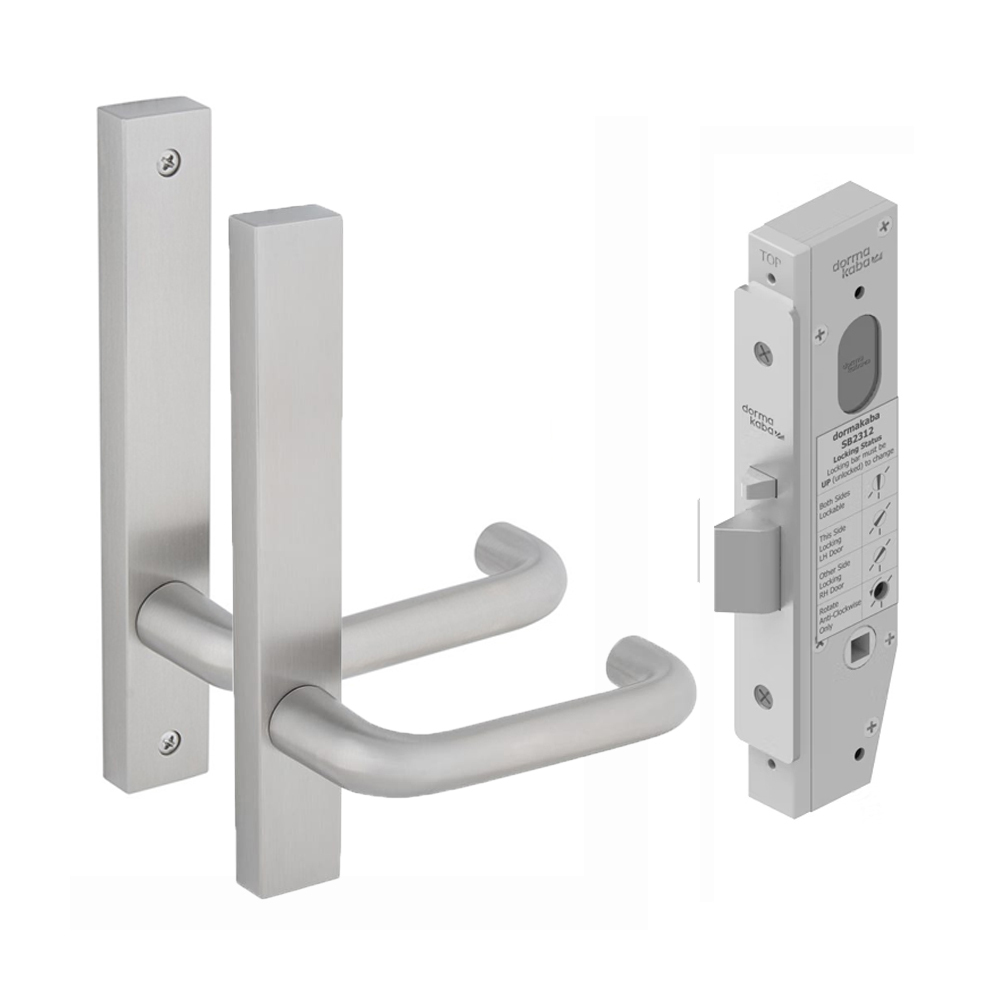

Dormakaba Passage Lockpack with Stainless Steel Furniture
SB2312KIT55SS

Passage ideal for interior hallways, closets, and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 1 x Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib (SB2312SSS)
• 1 x Dormakaba Lever on Narrow Style Square End Plate Visible Fix Satin Stainless Steel (6406/30G)
• 1 x Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed 316G Satin Stainless Steel (6405/30G)

Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib
SB2312SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Anti-lockout Function: No
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• Backset: 30mm
• Finish: Satin Stainless Steel

Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed 316G SS
6405/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks.
• BCA AS1428.1 -2009 compliant leversets
• Narrow exterior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 160mm
• Internal / External: External
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: No
• Finish: Satin Stainless Steel

Dormakaba Lever on Narrow Style Square End Plate
6406/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks
• BCA AS1428.1 -2009 compliant leversets
• Narrow interior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fxing Centres:160mm
• Internal / External: Internal
• Plate Type: Narrow Style Square End
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Finish: Satin Stainless Steel
