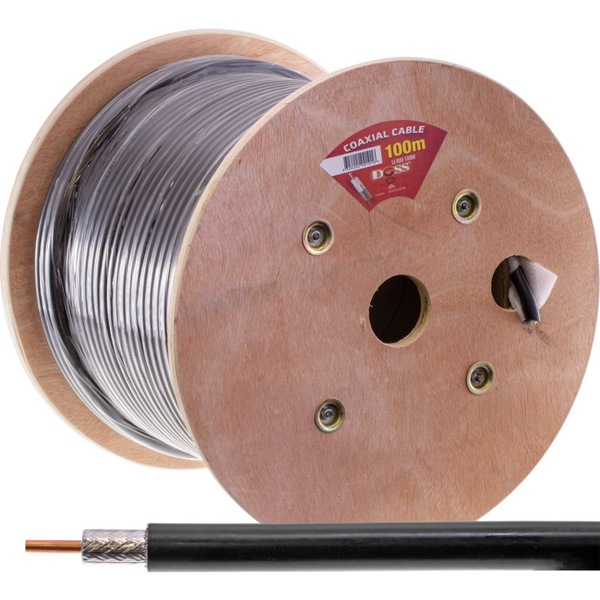

DOSS LL400-100M Ll400 50 Ohm Coax Cable-100M Low Loss 100M Roll 2.74Mm Copper Clad Aluminum

Image 1
Hurry! 1 items left!
$350.95

Collect 350 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
This item is sold as a 100m roll
Need a shorter length?

This cable is also available

LL400 - 50 OHM COAXIAL CABLE

A heavy-duty 50 coaxial cable, suitable for low-loss applications such as mobile phone booster systems.

Mechanical Characteristics

  • Impedance: 50 ± 2_
  • Velocity: 85%
  • Minimum bend radius: 51.5mm
  • Capacitance: 78.9pF/m
  • Jacket spark: 8000 VRMS

_

Construction

_ Material Dimensions
Inner conductor Copper-clad aluminium 2.74_± 0.02mm
Dielectric Foam PE 7.24_± 0.13mm
Outer conductor Bonded dual-aluminium foil + tinned copper 86% coverage, 24*7*0.16
Jacket Black PE 10.29_± 0.18mm

_

Attenuation Characteristics

Frequency (MHz) Typical (dB/30m) Max (dB/30m)
30 0.76 0.84
50 0.97 1.07
150 1.5 1.7
220 1.9 2.1
450 2.7 3.0
900 3.9 4.3
1500 5.1 5.6
1800 5.6 6.2
2000 5.9 6.5
2500 6.7 7.4
3000 7.5 8.3

Weight: 11.15
