Description:

It is widely used for cutting or sawing metal sheet, ,metal rods&slices, plastic, fiberglass, woods.

A must tool in your jobs of repairing, decoration and some other similar purpose.

Portable and convenient, excellent in cutting and sawing without any nurrs; changable in any cutting sawing direction within 360°;

available in cutting and sawing any curve, straight, round, square, oval and any other inregullar shapes.

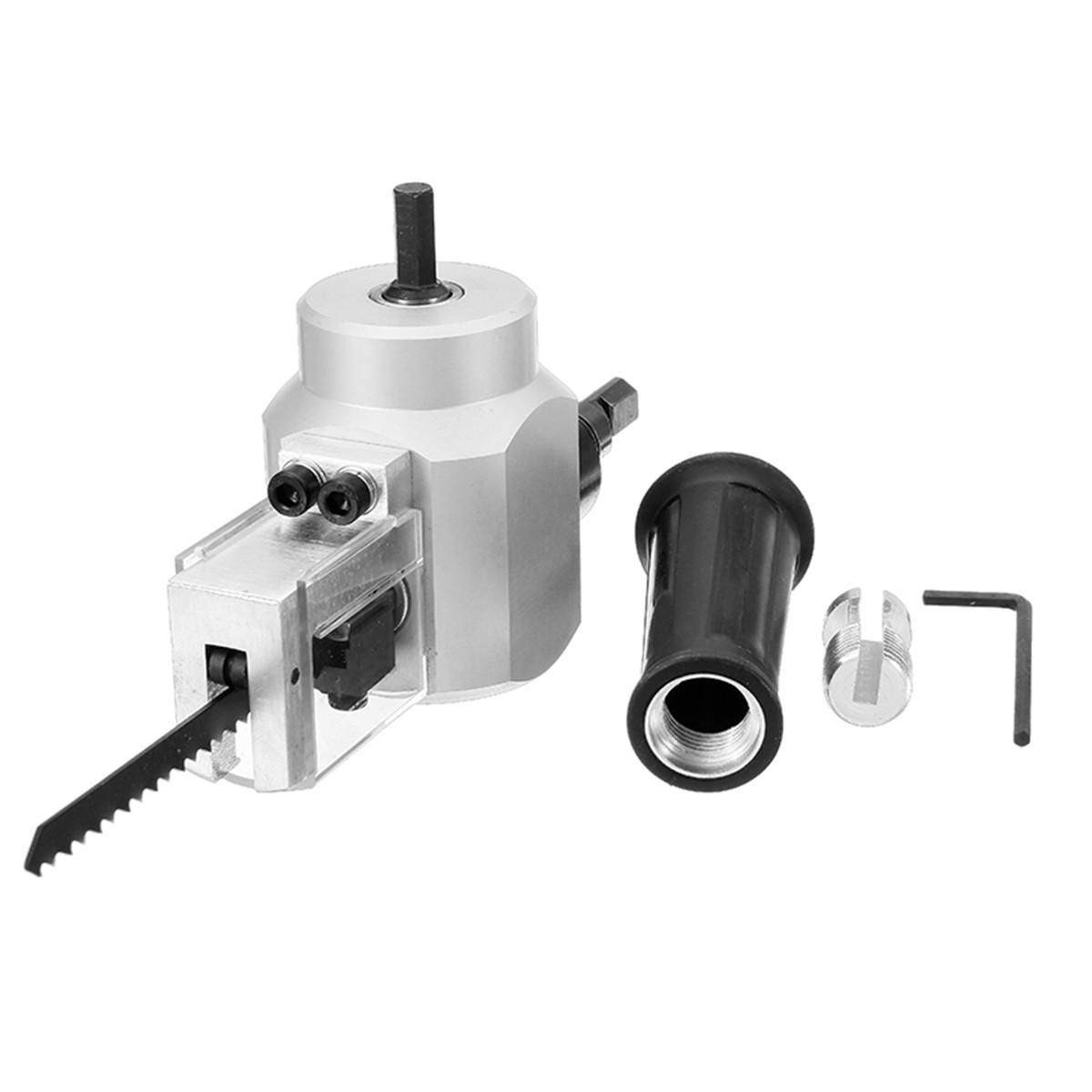

Specification:

Material : Metal, Plastic

Color : Black+Silver Tone

Overall Length: 210mm

Cutter diameter: 50mm

Metal Cutting Diameter: 25mm

Wood Saw Diameter: 35mm

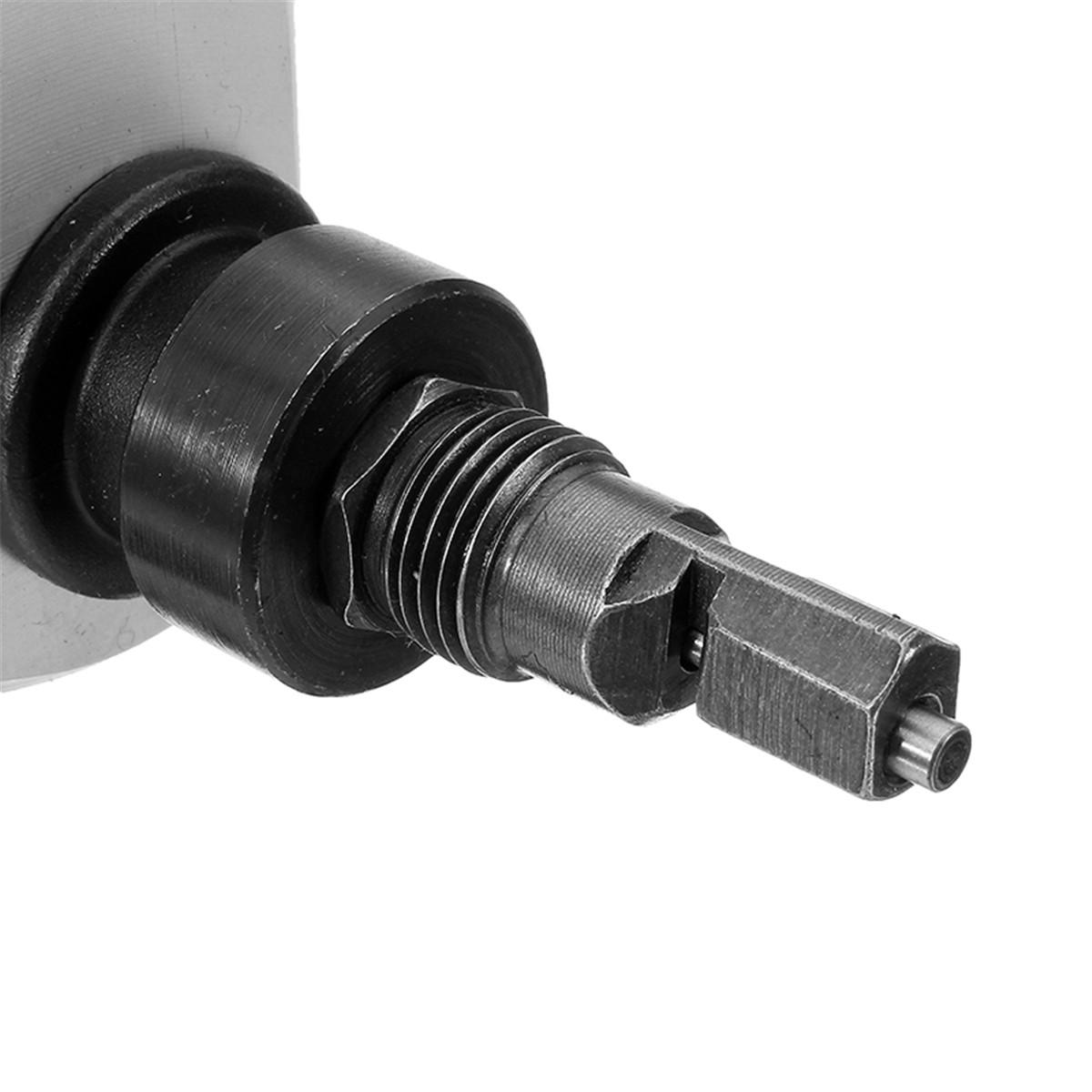

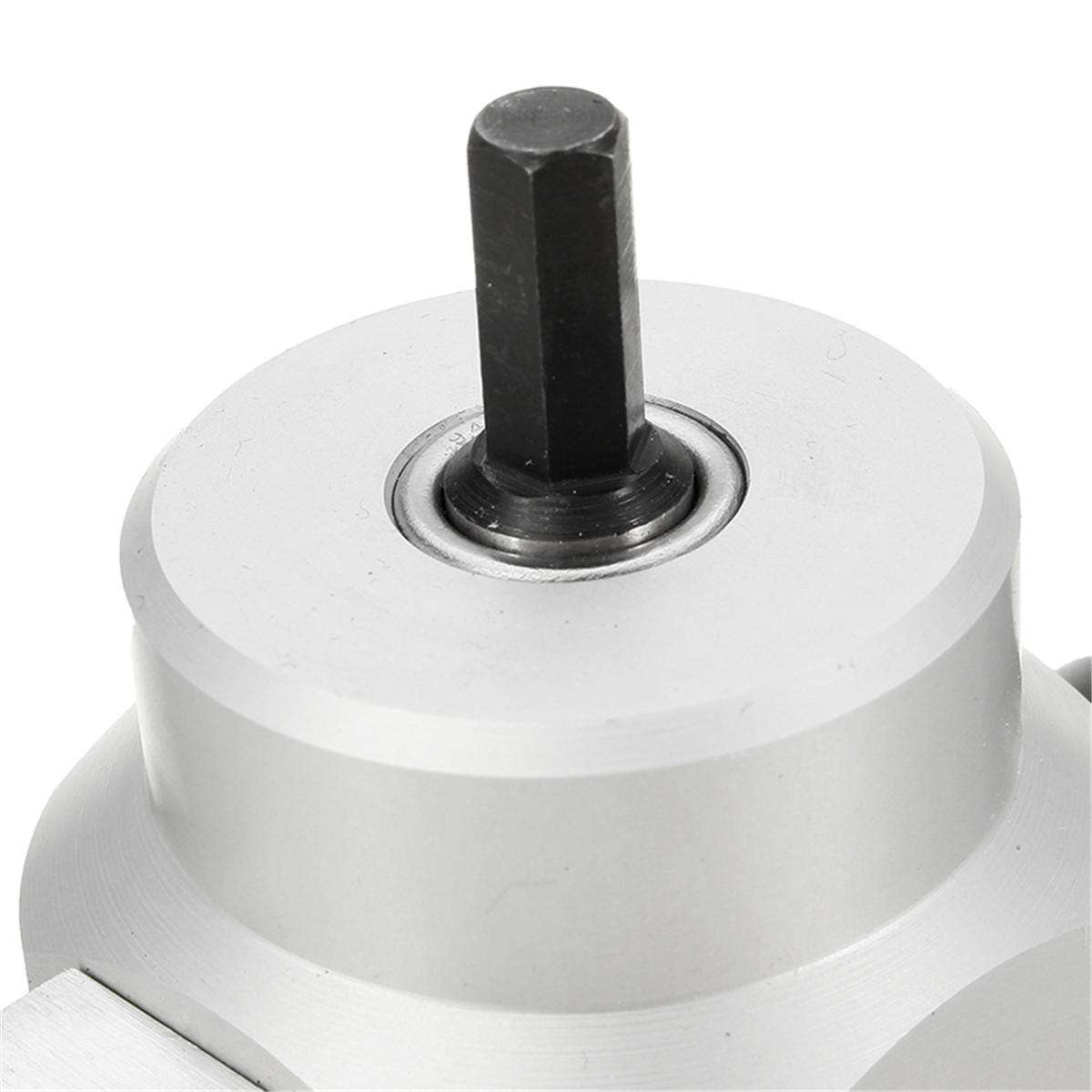

Connecting Shaft: 8mm

Quantity: 1pc

- Max. cutting thickness:

Steel Plate: 1.2mm

Stainless Steel: 1mm

Wood / plastic fiberboard / plexiglass / plywood: 5mm (3000rpm or 1m/min)

Iron / Copper: 5mm (300rpm or 0.05m/min)

Warning:

1. Close the plastic safety housing before usage.

2. Don't exceed the thickness of cutting materials stipulated herein.

3. Don't use this tool out of the usage ranges illustrated herein.

4. Switch off your drill before you install the tool or have any cutting rod and saw blade replacements.

Rod holder replacement:

Slowly loosen with a hex key the screw on the sliding case; release the ond rod holder, then put new rod holder into the same position and finally tighten the screw again.

It is better to drip some lubrication oil into the inner hole of the new rod holder.

Rod replacement:

Slowly loosen the screw on the basic body; release the silding case and rod holder, put some lubrication oil on the new rod and insert it into the right position of the reciprocating sliding block; then restall the sliding case and rod holder.

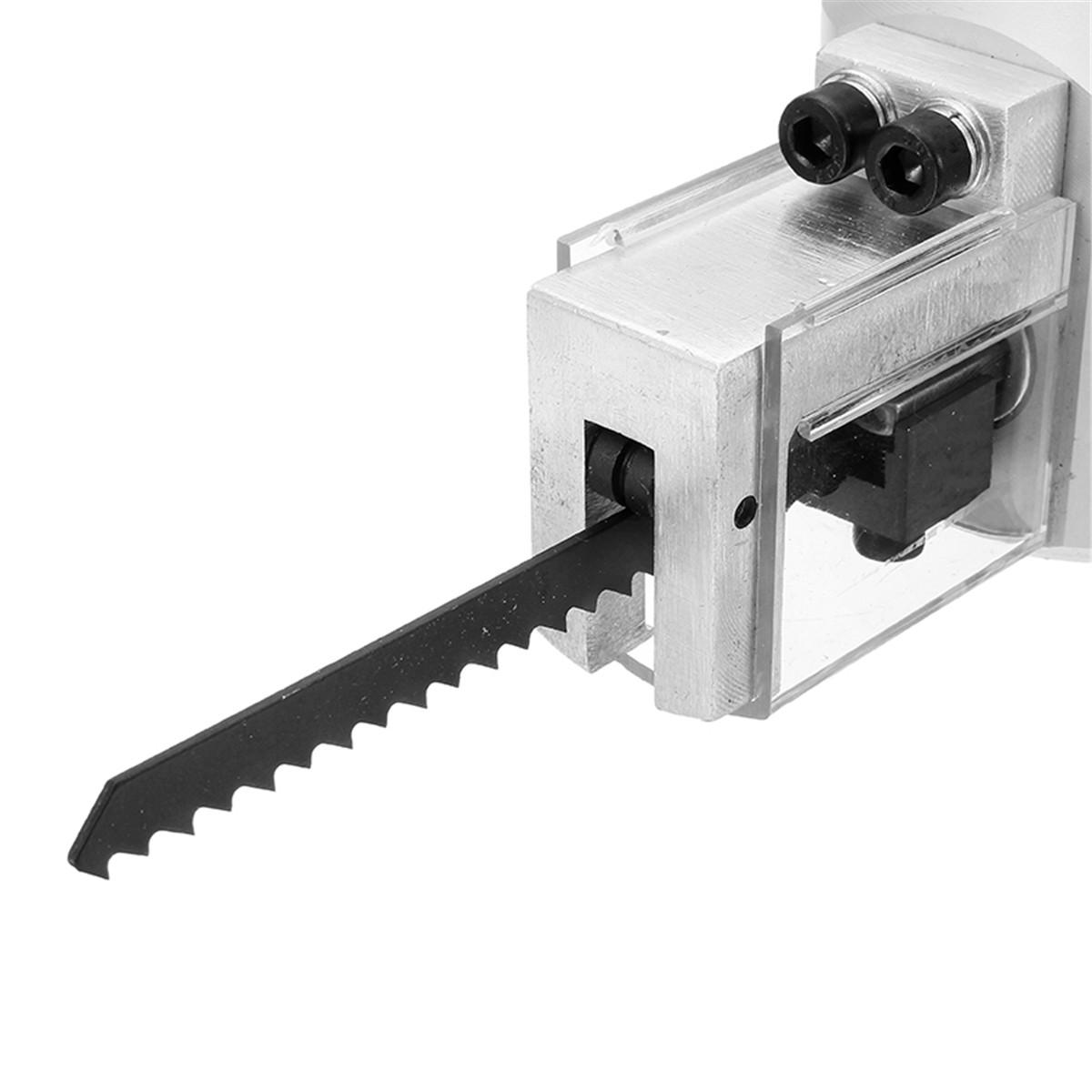

Saw blade replacement:

Release the plastic safety housing; loosen slowly with a hex key on the two screws on the saw blade holder; replace the new saw blade and then cover the plastic safety housing again.

How to use the cuttiong rod:

First replace the plastic safety housing; insert the bracket-handle connector into the bracket slot with the connector threads facing outwards; then screw tight the plastic handle and finally cover the plastic safety housing.

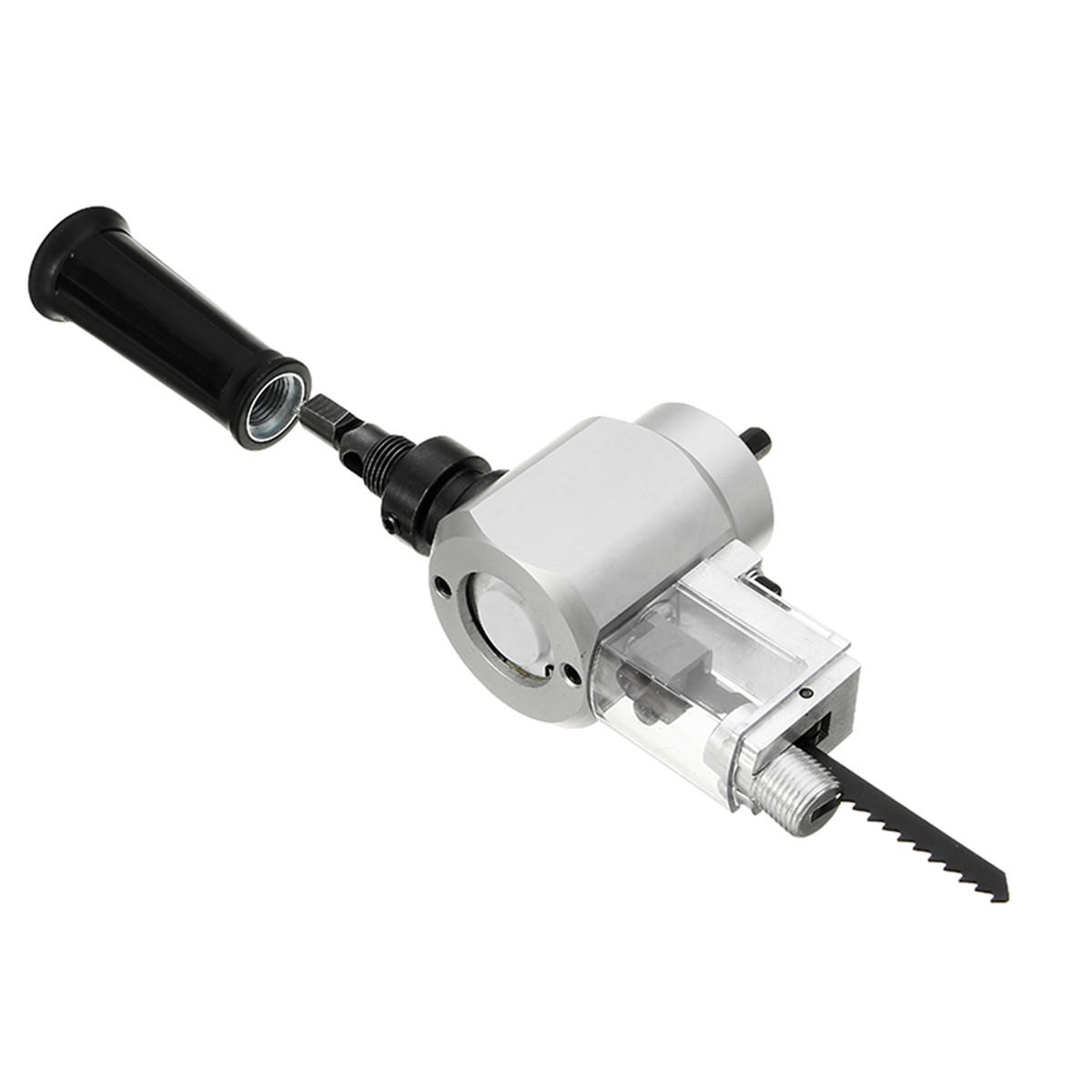

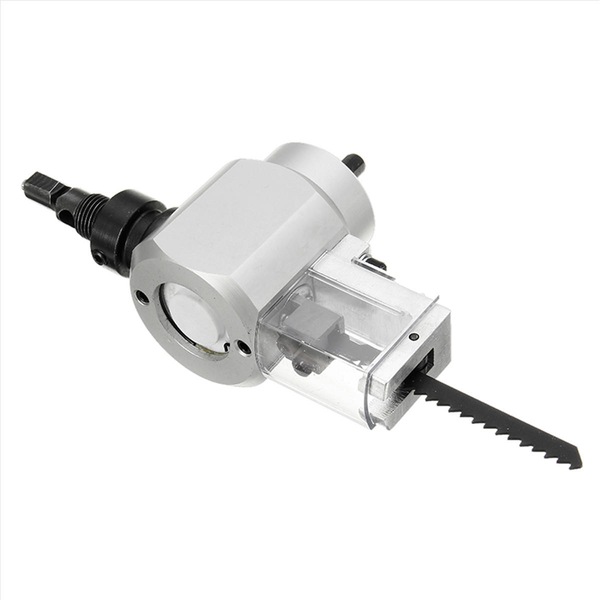

How to use the saw blade:

Screw tight the plastic handle into the threads of the rod holder. Release the plastic safety housing; install the right saw blade (for wood cutting or for metal cutting) and then cover the plastic safety housing again. Start your job by holding tight the plastic handle and running your drill.
