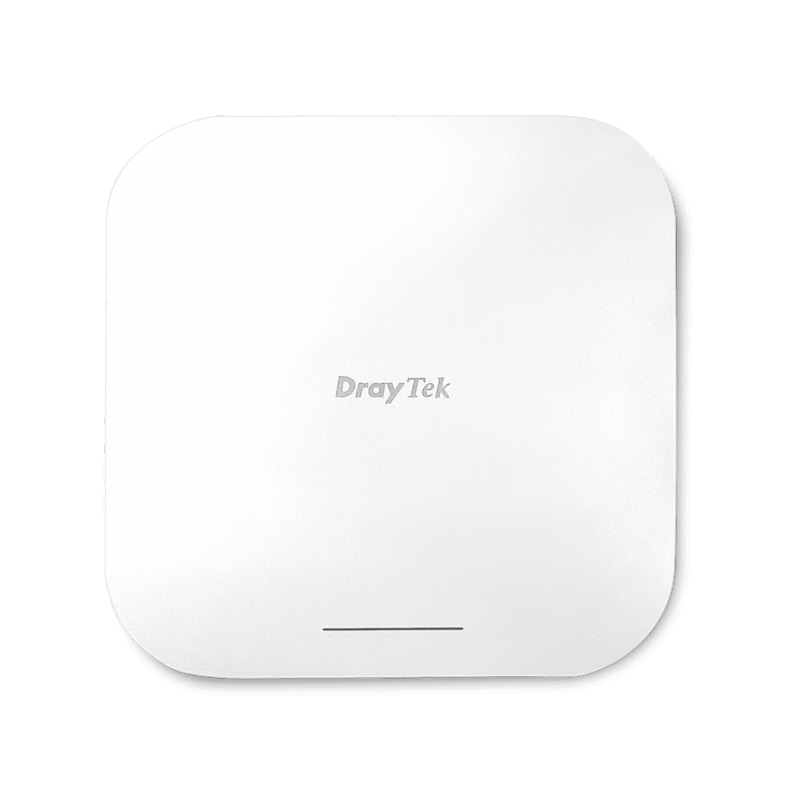

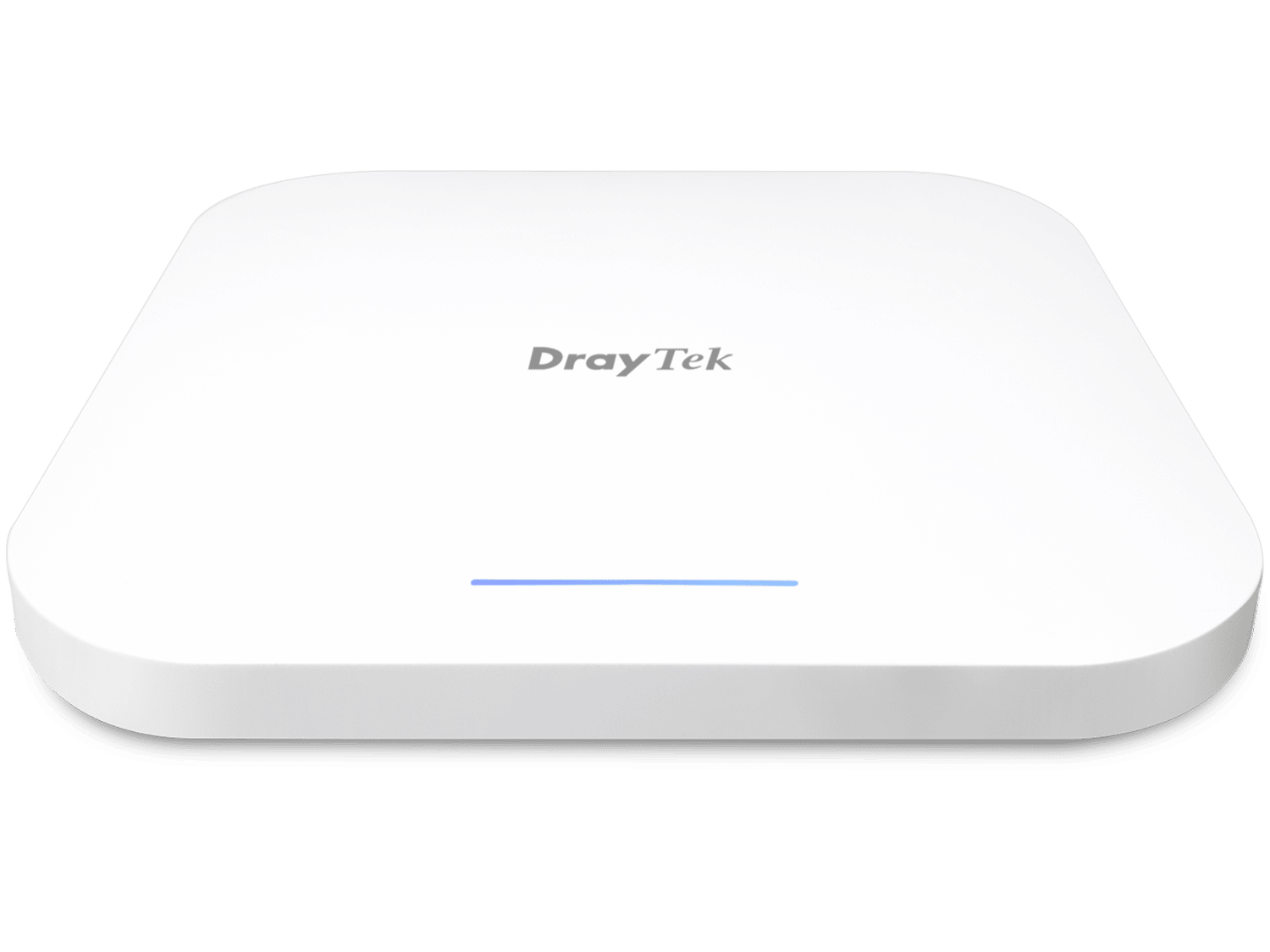

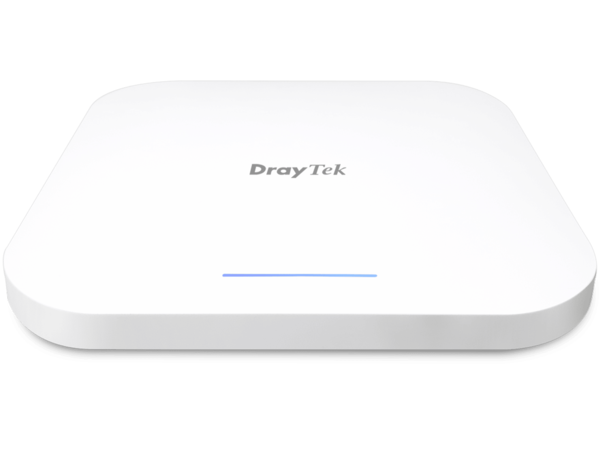

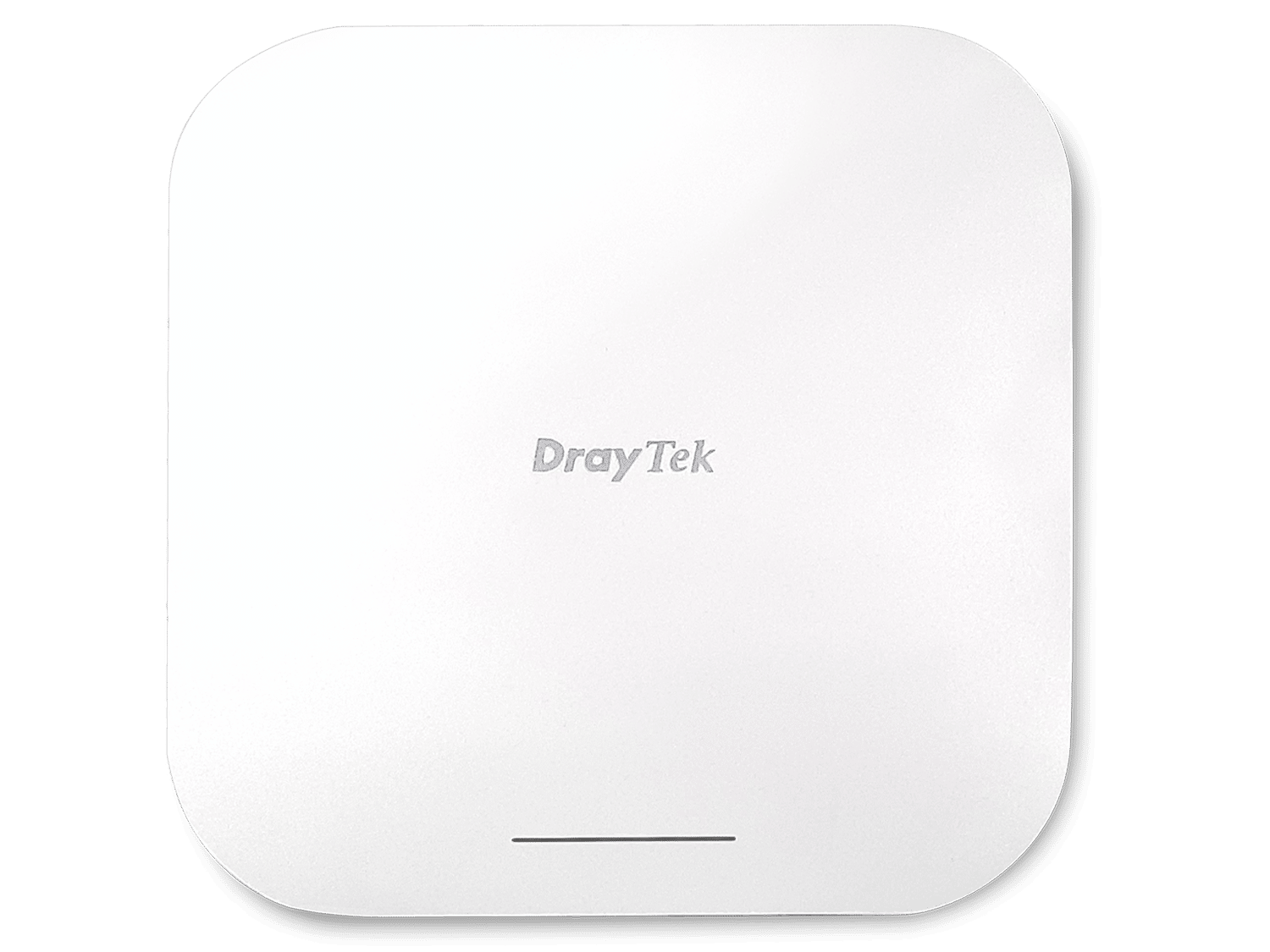

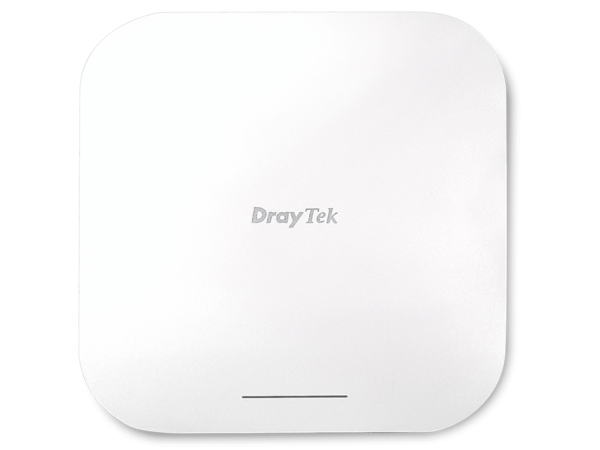

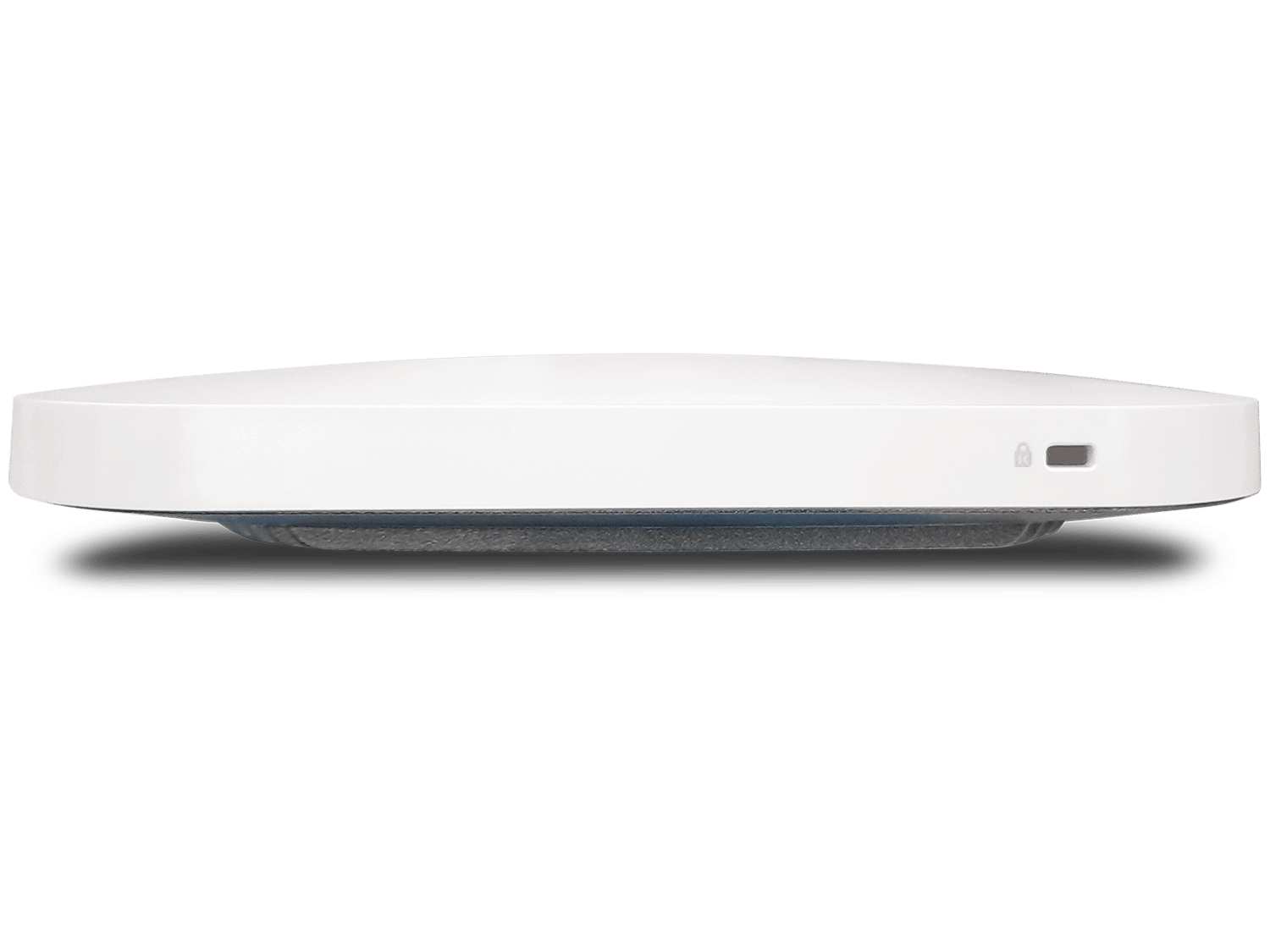

DrayTek DAP1060C - Indoor 4x4 Dual Band 802.11ax (AX3600) Ceiling AP with 2.5G PoE-PD port, Mesh Wi-Fi, and support VigorACS 2/3

DrayTek DAP1060C - Indoor 4x4 Dual Band 802.11ax (AX3600) Ceiling AP with 2.5G PoE-PD port, Mesh Wi-Fi, and support VigorACS 2/3

Be the first to review this product

Hurry! 8 items left!

Price	$563.61
	Earn 3x points and collect 1689 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

VigorAP 1060C 4x4 Dual Band 802.11ax Ceiling AP

VigorAP 1060C is the most powerful wireless AP we’ve ever made. With 3.6 Gbps aggregated max rate, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the master AP to manage up to 50 node VigorAPs in LAN.

Utilize Transmission Opportunity with OFDMA

OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.

Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.

OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.

Third Radio for RF Analytics & Security

RF Analytics & Auto Channel: VigorAP 1060C with a dedicated third radio is able to constantly monitor on all channels for airtime availability and channel utilization. It will always show the 3 best quality channels for Admin’s selection.

Wireless Security with WIDS:The radio can also keep monitoring on rouge AP. When detecting unknown AP broadcasting the same SSID, VigorAP 1060C can notify network admin for further action.

What’s in it for you?

Mesh(Wireless model only): Easily link to other VigorAP to expand the wireless network

PoE Power Supply:Simplify the infrastructure by getting data and power through a single cable.

Multiple SSID:Mapping Wi-Fi clients to different VLANs and have a different set of security standards

Airtime Fairness:Equalize the transmission time of each client so the legacy devices won't slow everyone down

Band Steering:Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.

Assisted Wi-Fi Roaming:Solve the sticky client problem and improve Wi-Fi roaming experience

Wi-Fi Scheduling:Schedule Wi-Fi On and Off to control wireless access and save energy

Local RADIUS Server:User profile database for local and external 802.1x authentication.

Hotspot Web Portal:Market your business and communicate with the guests while offering hospitality WLAN.

Central AP Management:Manage, maintain, and monitor VigorAP 1060C from the DrayTek routers.

Specifications:

Interface

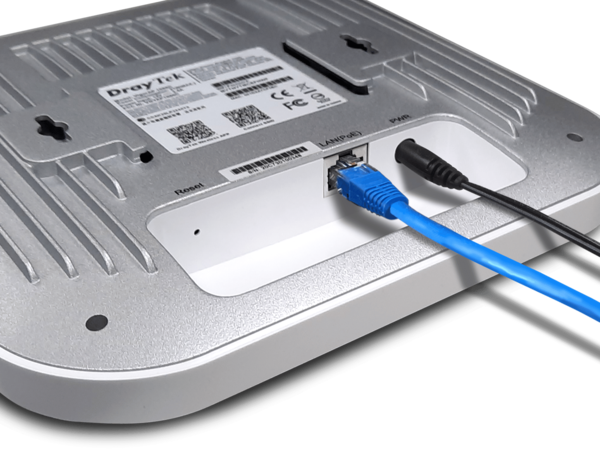

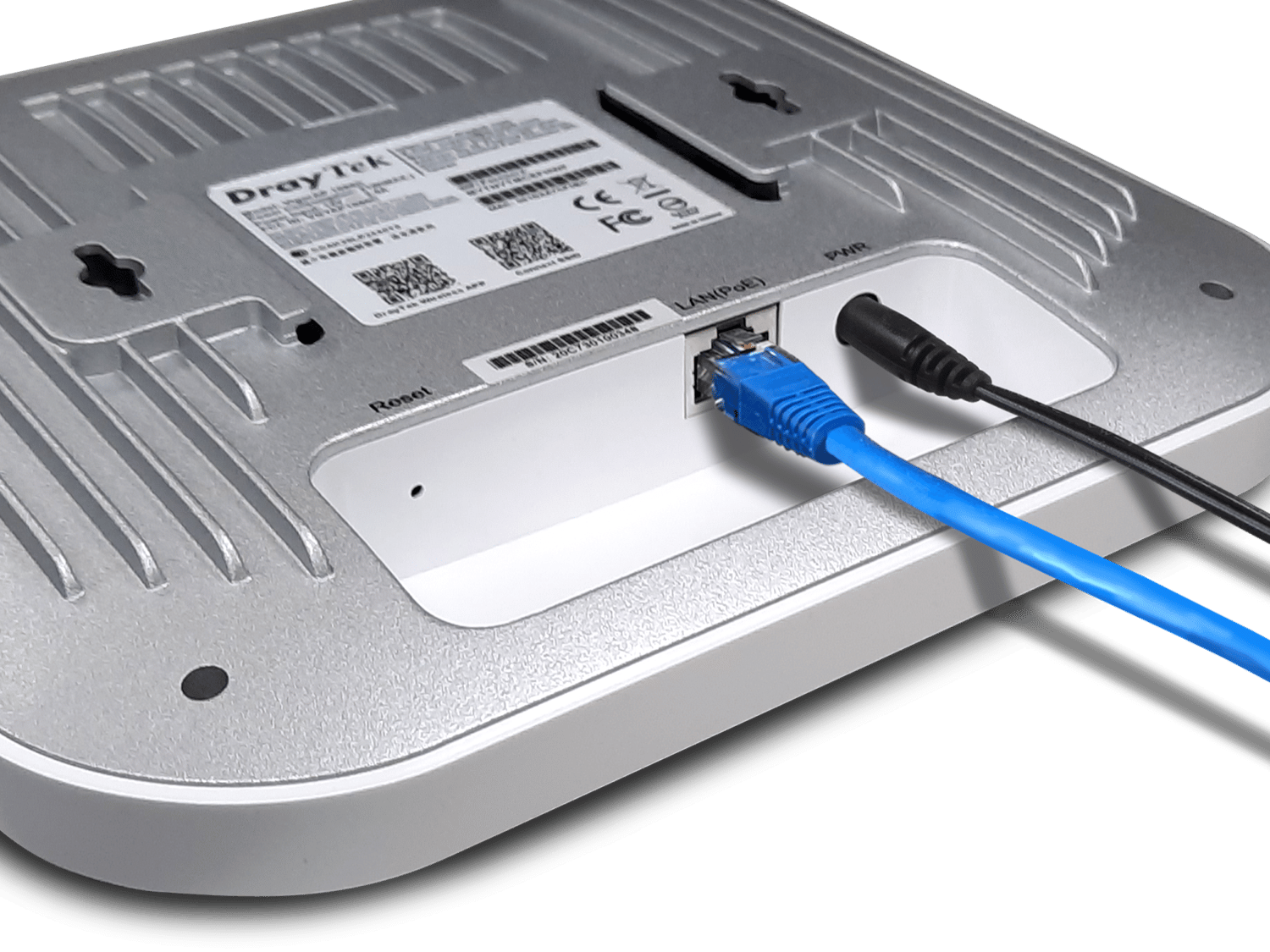

LAN Port	1x 2.5G/1G/100M/10M Ethernet, RJ-45 (PoE-PD Support)
Antenna	4x Internal PiFA Single-Band (2.4G) 4x Internal PiFA Single-Band (5G) Gain: 5.1 dBi for 5GHz, 5 dBi for 2.4GHz 1x Internal PCB DB (for scanning radio) Gain: 5.8 dBi for 5GHz, 4.3 dBi for 2.4GHz
Button	1x Factory Reset Button
DC Power Jack	1

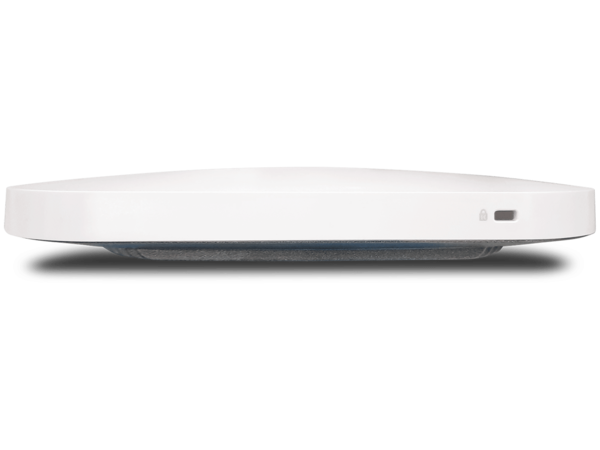

Security Lock	1
Capacity
2.4GHz Peak Speed	1200 Mbps
5GHz Peak Speed	2400 Mbps
Max. Number of Concurrent Active Clients	256 (128 per radio band)
WLAN
2.4GHz Standard	IEEE 802.11b/g/n/ax 4x4 MIMO
5GHz Standard	IEEE 802.11a/n/ac Wave 2/ax 4x4 MU-MIMO
Operating Mode	AP, Mesh Root, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r
AirTime Fairness	✔
Band Steering	✔
Auto Channel Selection	✔
Max. Number of SSID	16 (8 per radio band)
WDS	✔
Client Numer Limit	Per radio, Per SSID
Connection Time Control	✔
WMM	✔
IGMP Snooping	✔
Security
Security Mode	WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs	✔
MAC Address Filter	Up to 256 entries
Wireless Client Isolation	✔
Mobile Device Management	✔
Application
Built-in RADIUS Server	✔
RADIUS Proxy	PEAP, EAP-TLS
Hotspot Web Portal	✔
DHCP	DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP	✔
MAC Clone	✔
802.1q VLAN	✔
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics
Configuration Backup and Restore	✔
Syslog	✔
Mail Alert	✔
SNMP	v1, v2c, v3
Managed by VigorConnect	✔
Managed by VigorACS	✔
Central AP Management	50 VigorAP
Physical
Environment	Indoor
Mounting	Ceiling Mount, Wall Mount
Power Method	DC 12V @ 2.5A / 802.3af/at PoE
Max. Power Consumption	21 watts
Dimension	205 mm x 205 mm x 33.2 mm
Weight	809 g
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 70°C
Operating Humidity	5 to 90% non-condensing
Certificate

GTIN: 4710484743534
