Drive Gear Repair Kit for Kohler SV540 SV590 Courage Starter Motor 15 to 20 HP Models

HOW TO CHECK IF THIS STARTER MOTOR DRIVE GEAR REPAIR KIT IS THE ONE YOU NEED:

• Count the number of drive teeth on your starter motor’s drive gear. There should be 14 teeth.

• Check what the drive gear on your old starter motor is made from. If it is steel then this starter kit is suitable.

This is an aftermarket replacement starter motor drive gear repair kit.

Email or call us with any questions using below contact details.

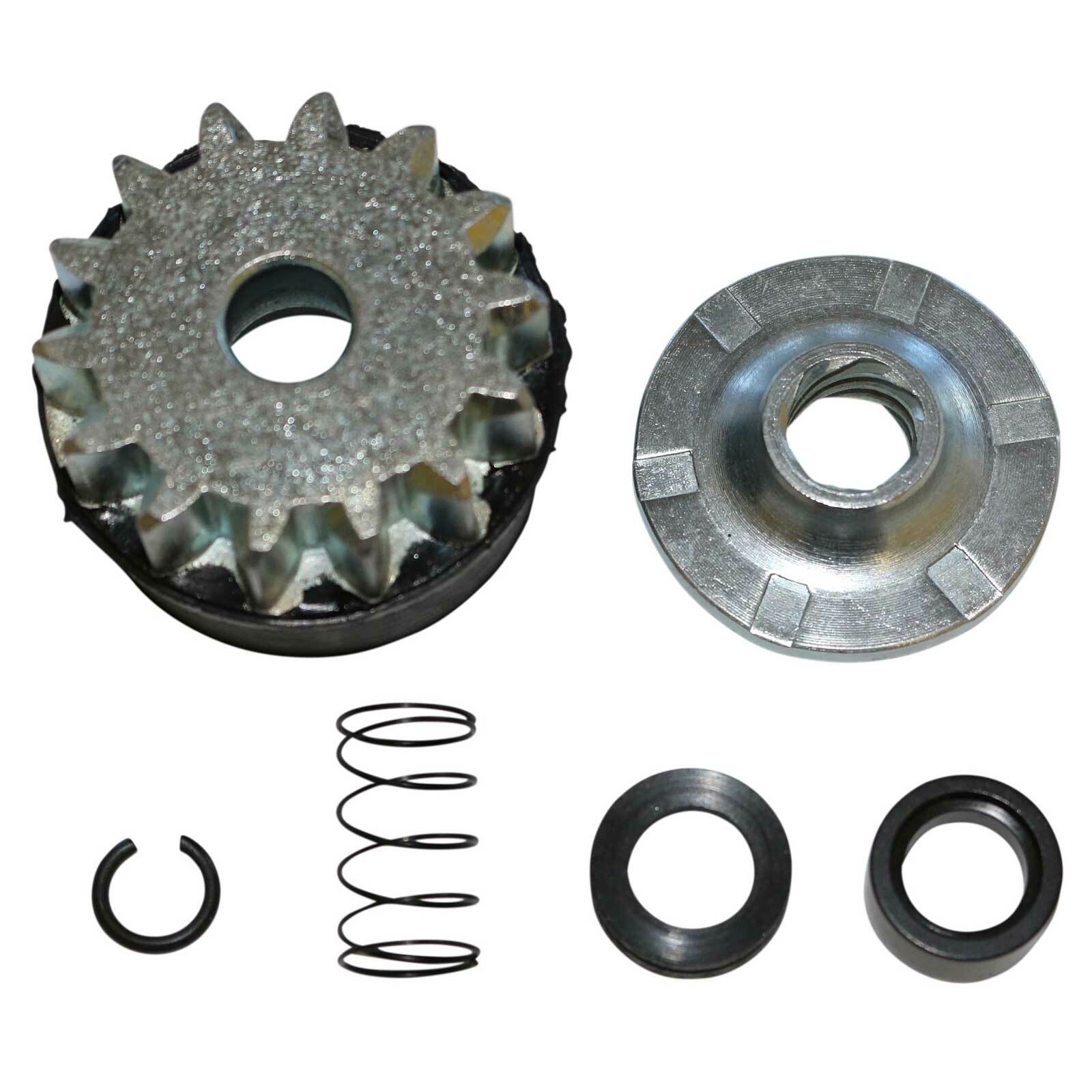

Kit includes:

• 14 teeth drive gear
• return spring
• retention plate
• 6mm wide washer
• 8mm wide washer
• C clip

Specifications:

• Drive 14 Teeth - Counter Clockwise Rotation.

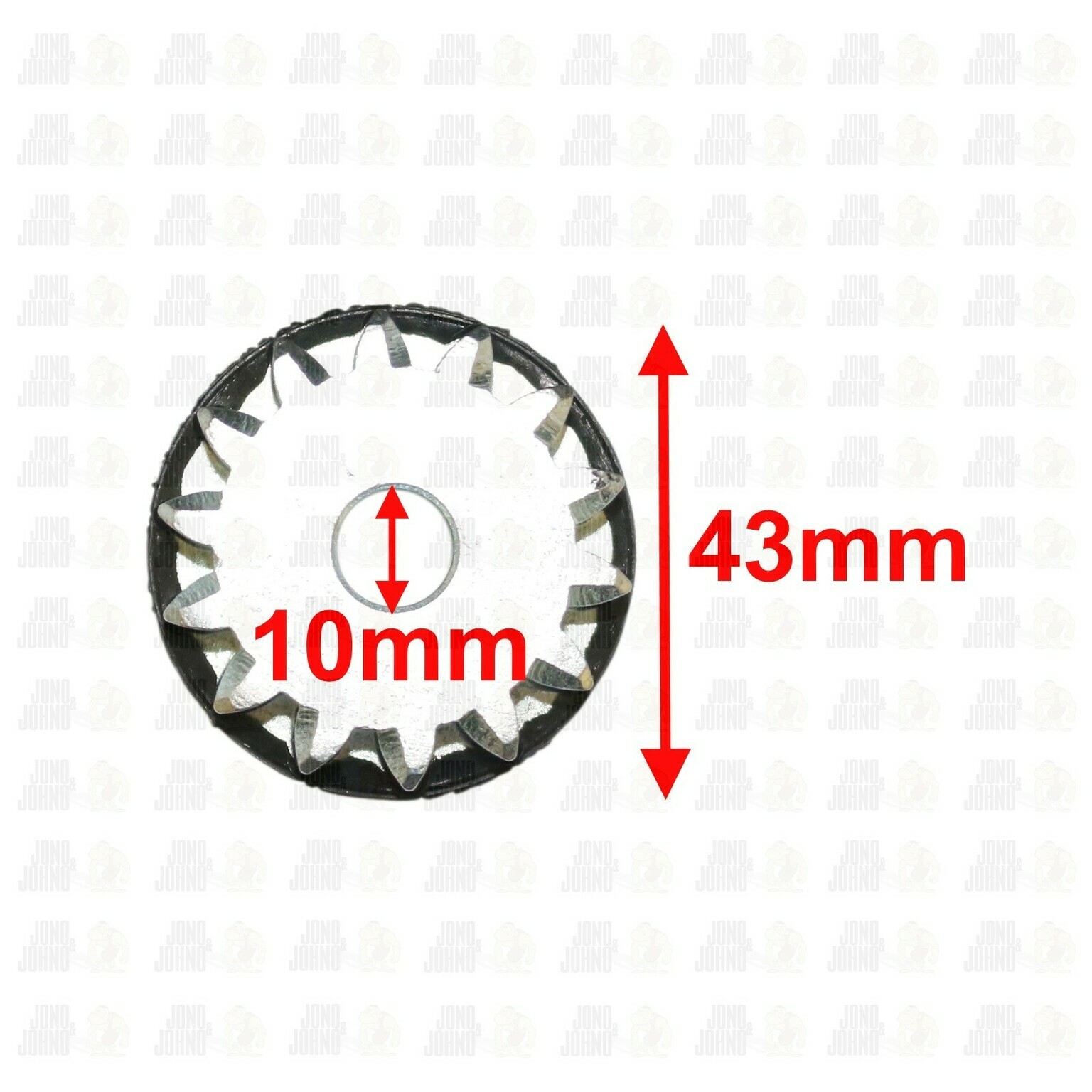

• Drive Pinion Dia. 43.6mm / 1.717"
• Quality Aftermarket Replacement Part

Suits starter motors with the following OEM numbers:

• Case/New Holland: K0H2009805S
• Cub Cadet: KH20-098-05S
• Kohler: 20-098-01 - 20-098-01S - 20-098-05 - 20-098-05S - 20-098-06 - 20-098-06S - 20-098-08 - 20-098-08S - 20-098-10 - 20-098-10S - 20-098-11 - 20-098-11S - K2009811S
• Lester: 5796

Suits the following models:

• SV470 15 HP
• SV470-0004 15 HP
• SV470-0005 15 HP
• SV470-0006 15 HP
• SV470-0011 15 HP
• SV470-0104 15 HP
• SV470-0105 15 HP
• SV470-0123 15 HP
• SV470-0213 15 HP
• SV470-3213 15 HP
• SV471-3211 15 HP
• SV530 17 HP
• SV530-0007 17 HP
• SV530-0008 17 HP
• SV530-0016 17 HP
• SV530-0017 17 HP
• SV530-0025 17 HP
• SV530-0034 17 HP
• SV530-0213 17 HP
• SV530-3213 17 HP
• SV530-3224 17 HP
• SV530-3225 17 HP
• SV540 18 HP
• SV540-0004 18 HP
• SV540-0009 18 HP
• SV540-0011TURFCARE 18 HP
• SV540-0024 18 HP
• SV540-0025 18 HP
• SV540-0026 TURFCARE 18 HP
• SV540-0212 18 HP
• SV540-0213 18 HP
• SV540-3032 KUBOTA 18 HP
• SV540-3202 RFI 18 HP
• SV540-3210 COX INDUSTRIES 18 HP
• SV540-3212 HUSQVARNA 18 HP
• SV540-3216 GGP ITALY 18 HP
• SV540-3217 GGP SWEDEN 18 HP
• SV540-3219 MTD 18 HP
• SV540-3220 MTD 18 HP
• SV540-3222 HOP 18 HP
• SV540-3223 KUBOTA 18 HP
• SV540-3225 SIMPLICITY 18 HP
• SV540-3226 MTD 18 HP
• SV540-3227 MTD 18 HP
• SV540-3228 MTD 18 HP
• SV540-3230 MTD 18 HP
• SV540-3231 SHIVVERS 18 HP
• SV540-3232 KUBOTA 18 HP
• SV540-3233 KUBOTA 18 HP
• SV540-3234 KUBOTA 18 HP
• SV541-3200 MARKETING 18 HP
• SV541-3210 HUSQVARNA 18 HP
• SV541-3212 MTD 18 HP
• SV541-3213 KUBOTA 18 HP
• SV541-3214 KUBOTA 18 HP
• SV541-3216 GGP ITALY 18 HP
• SV590-0001 ELECTROLUX HOME PRODUCTS 19 HP
• SV590-0002 EHP - SEARS 19 HP (2004)
• SV590-0003 MTD 19 HP
• SV590-0004 HUSQVARNA 19 HP
• SV590-0005 CUB CADET 19 HP
• SV590-0006 HUSQVARNA 19 HP
• SV590-0007 HUSQVARNA 19 HP
• SV590-0008 CUB CADET 19 HP
• SV590-0009 EHP 19 HP
• SV590-0010 SEARS 19 HP
• SV590-0011 MTD 19 HP
• SV590-0012 POULAN PRO 19 HP
• SV590-0013 MTD 19 HP
• SV590-0014 ARIENS 19 HP
• SV590-0015 BASIC 19 HP
• SV590-0016 MTD 19 HP
• SV590-0017 MTD 19 HP
• SV590-0018 YARDMAN/GUTBROD 19 HP
• SV590-0019 TORO 19 HP
• SV590-0020 HUSQVARNA 19 HP
• SV590-0021 HUSQVARNA 19 HP
• SV590-0022 EXCEL HUSTLER 19 HP
• SV590-0023 TORO 19 HP
• SV590-0024 MTD 19 HP
• SV590-0200 BASIC 19 HP
• SV590-0210 HUSQVARNA 19 HP
• SV590-0211 EXCEL HUSTLER 19 HP
• SV590-0212 TORO 19 HP
• SV590-0213 TORO 19 HP
• SV590-0218 HOP 19 HP
• SV590-0219 MTD 19 HP
• SV590-0220 MTD 19 HP
• SV590-0221 MTD 19 HP
• SV590-0223 MTD 19 HP
• SV590-0224 MTD 19 HP
