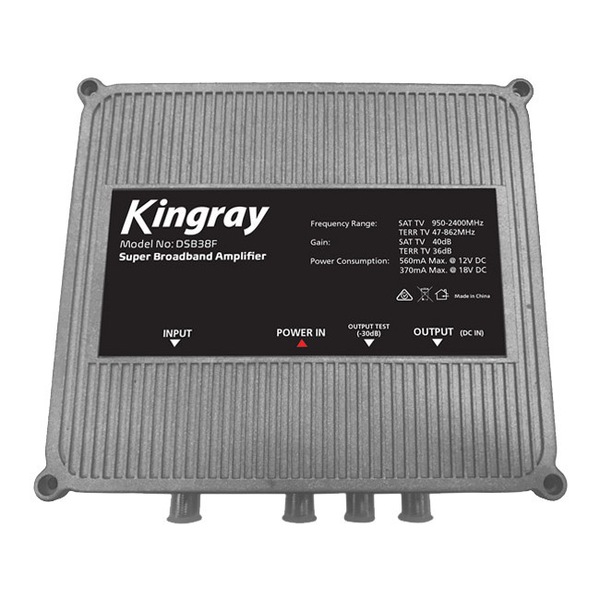

DSB38F SUPER BROADBAND AMPLIFIER - KINGRAY


Optimised for digital TV signal amplification.


The Kingray DSB38F is a high gain Free-to-Air & Satellite distribution amplifier for use in SMATV applications. It features a combined single input & single output connector, with adjustable gain and equalisation controls, as well as input attenuators.


Specifications;



  • Frequency Range Terrestrial FTA 47-862 MHz

  • Frequency Range Terrestrial Satellite 950-2400 MHz

  • Input/Outputs 1 x Input / 1 x Outputs

  • Test Port -30dB

  • Maximum Gain

    • FTA 36dB

    • Satellite 41dB Max.


  • Input 105dB Min. Input 70dB

  • Return Loss >10dB

  • Gain Control 10dB FTA

  • Equalisation 10dB Satellite Equalisation 10dB Satellite Input Attenuator -10dB FTA Input Attenuator -10dB

  • Maximum Output Level

    • FTA - IMB3 = 60dB (DIN450004B) 120dB

    • Satellite - IMB3 = 35dB (EN50083-3) 122dB


  • Supply Voltage 12V or 18V DC

  • Max. Current Consumption 560mA @ 12V DC 370mA @ 18V DC

  • Powering Options

    • Option 1 Locally via a PSK124F or PSK18F

    • Option 2 Remotely via the RF input (800mA max.)


  • Dimensions in mm 183 (L) x 150 (W) x 52 (H)

  • Weight 880g


CAUTION: This amplifier contains devices that are sensitive to Electrostatic Discharge (ESD).


GTIN: 9319493282819
