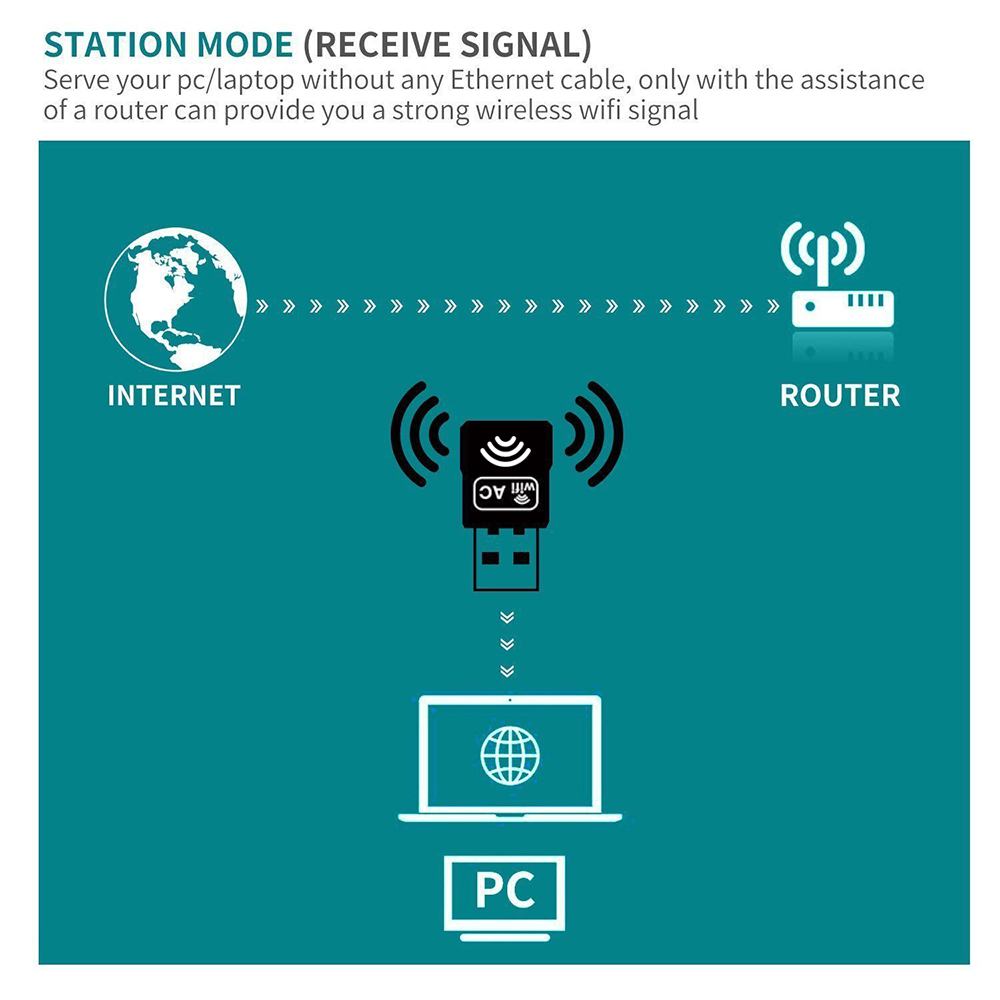

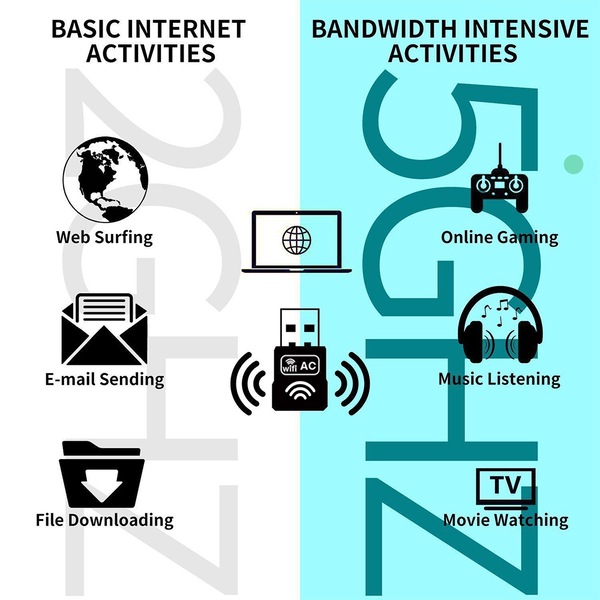

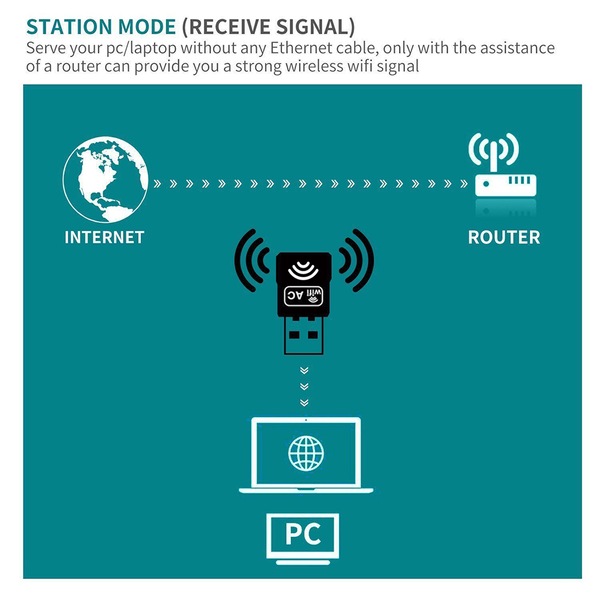

This Wireless USB Adapter connects your laptop or desktop computer to your wireless network. You can connect to either a 5.8GHz or 2.4GHz network. Enhance any USB equipped laptop or desktop with the power of Dual-Band Wireless Network. Most laptops and desktop computers only have the 2.4GHz wireless built in, dual band with the additional 5Ghz band will allow you to use a less congested 5GHz band. Please ensure that the router that you want to connect operates in the 5GHz band as not all do.

Dual band frequency and fully complies with IEEE 802.11a/b/g /n standards based on 2T2R MIMO technology. A wifi MAC/BBP, RF/PA/LNA single chip is used to deliver high-performance of the latest Wi-Fi technology.

Features

Support IEEE802.11ac

Compatible with IEEE 802.11b/g/n

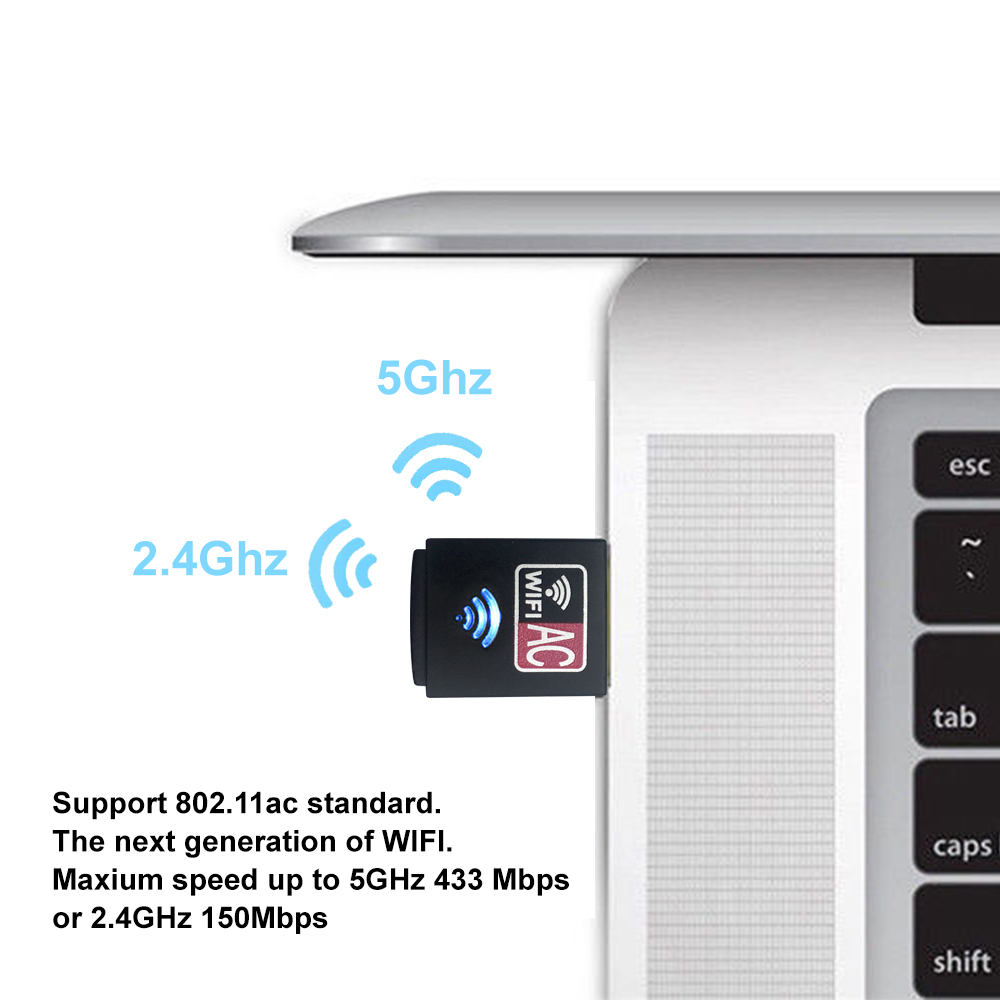

High speed wireless transmission, dual Band (2.4GHZ/150Mbps, 5.8GHZ/433Mbps)

Support WPA/WPA2/WEP/802.1X/WMM

Compatible with Windows XP/Vista/7/8/10, Linx2.6X, Mac OS X (up to 10.12.1)

Strong anti-interference ability

Support the latest wireless standards

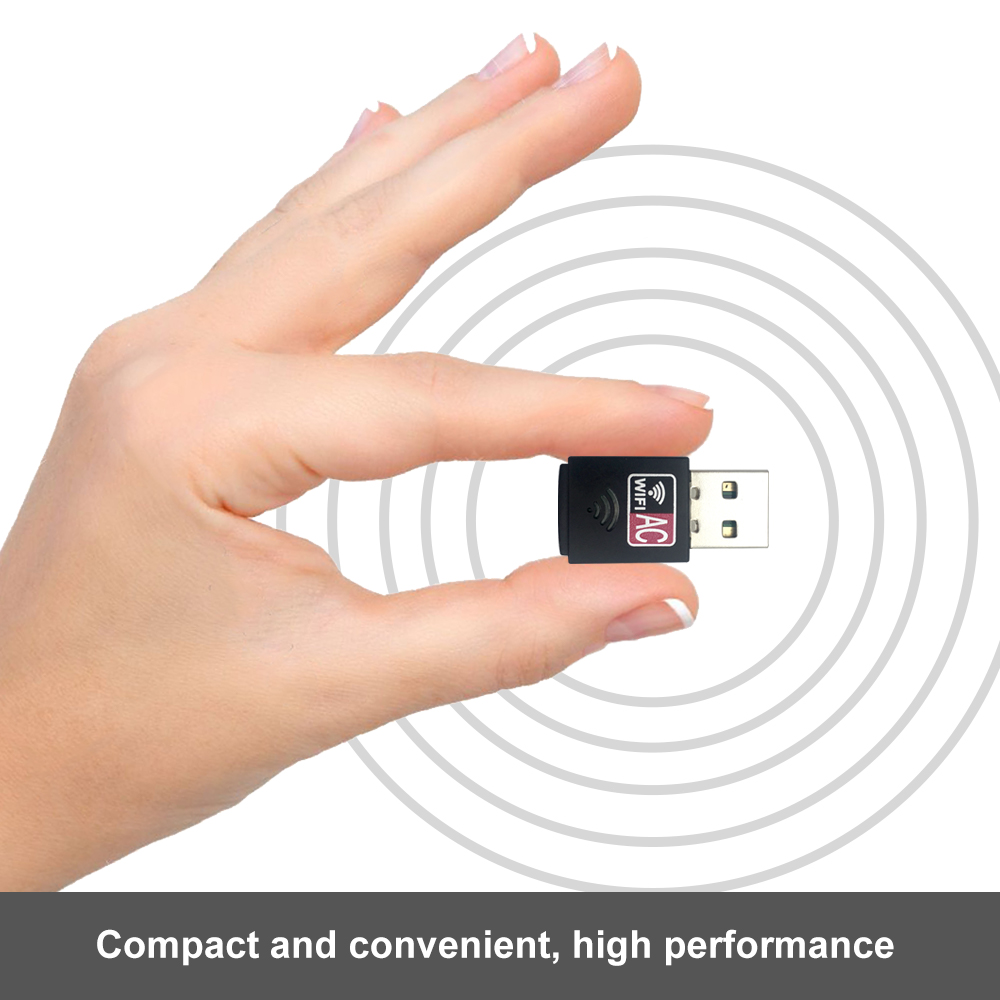

External antenna design, exquisite compact

Click HERE to download Driver and User Manual.

Specifications

Interface: USB 2.0

Antenna: Internal antenna

Transmission distance: Indoors MAX 100m

Working frequency 2.412~2484GHz/5.15~5.825GHz (according to different regions)

Transmitting power

802.11b (CCK) 11Mbps: 17+/-2dBm

802.11g (OFDM) 54Mbps: 14+/-2dBm

802.11n (OFDM) 54Mbps: 14+/-2dBm

802.11ac AC80 MCS9: 12+/-2dBm

EVM

11b 11Mbps:<-15db

11g 54Mbps: <-27db

11g 65/135Mbps: <-27db

11ac MCS9: <-30db

Receiving sensitivity

802.11b: -76+/-1dBm

802.11g: -65+/-1dBm

802.11n (HT20), -70+/-1dBm

802.11n (HT40), -65+/-1dBm

AC80-MCS9: -55+/-1dBm

Wireless transmission rate

11b: Max 11Mbps

11g: Max 54Mbps

11n: Max 150Mbps

AC: Max 433Mbps

Voltage/current: 5VDC ±5%VDC / <220ma max="" br="">
Power dissipation Receiving and transmitting Status: 220mA (max)

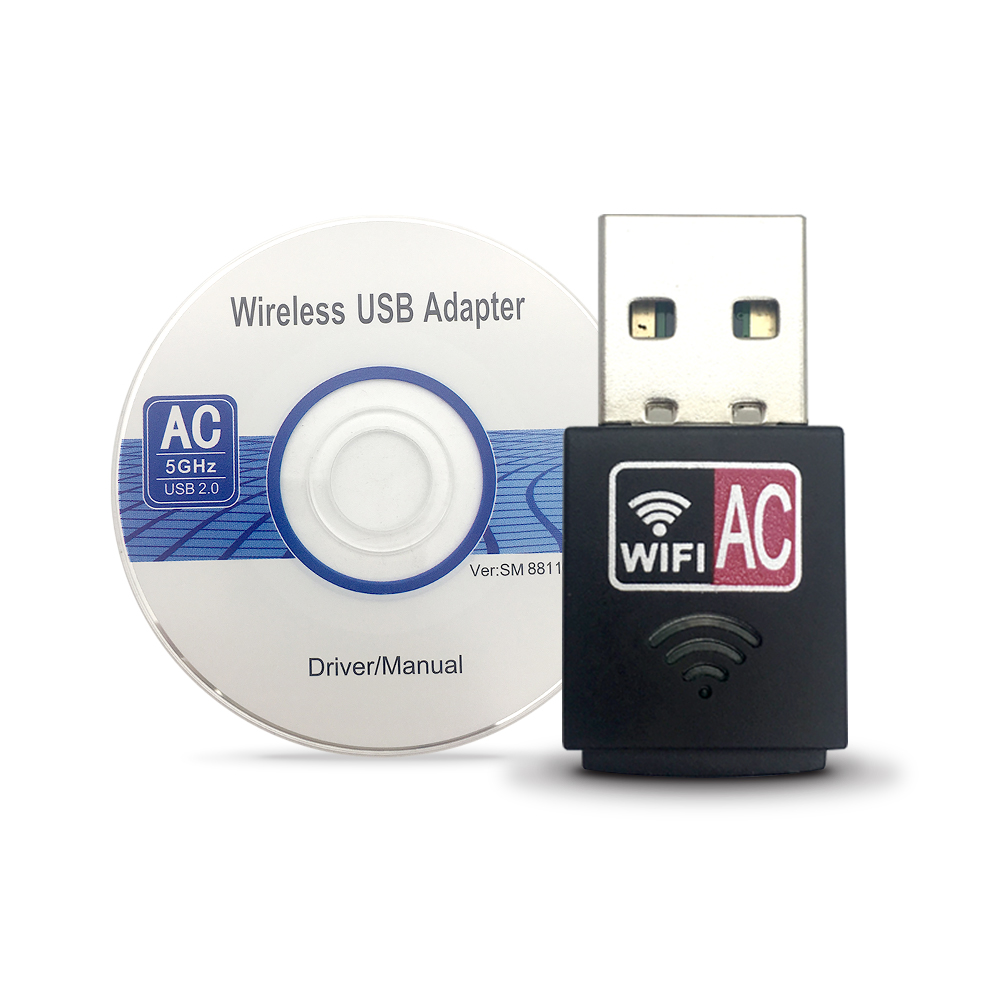

Package

1 x Wireless Wifi USB Adaptor

1 x CD (Drivers + User manual)
