Ducted Vacuum Cleaner Electron Superior Big Suction for Big houses Power Unit

The Supreme series caters for those discerning users that insist on achieving that extra level of Performance in Big homes Without compromising.

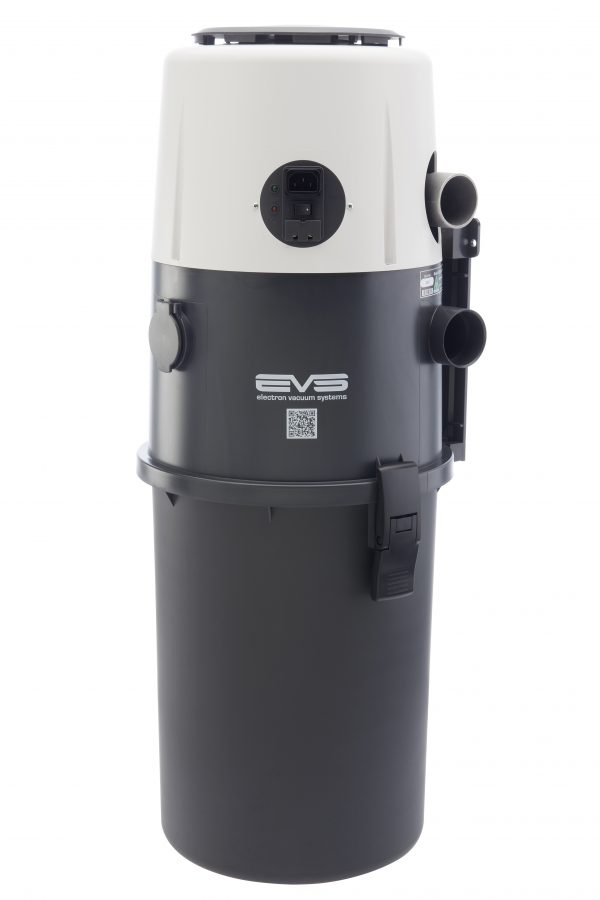

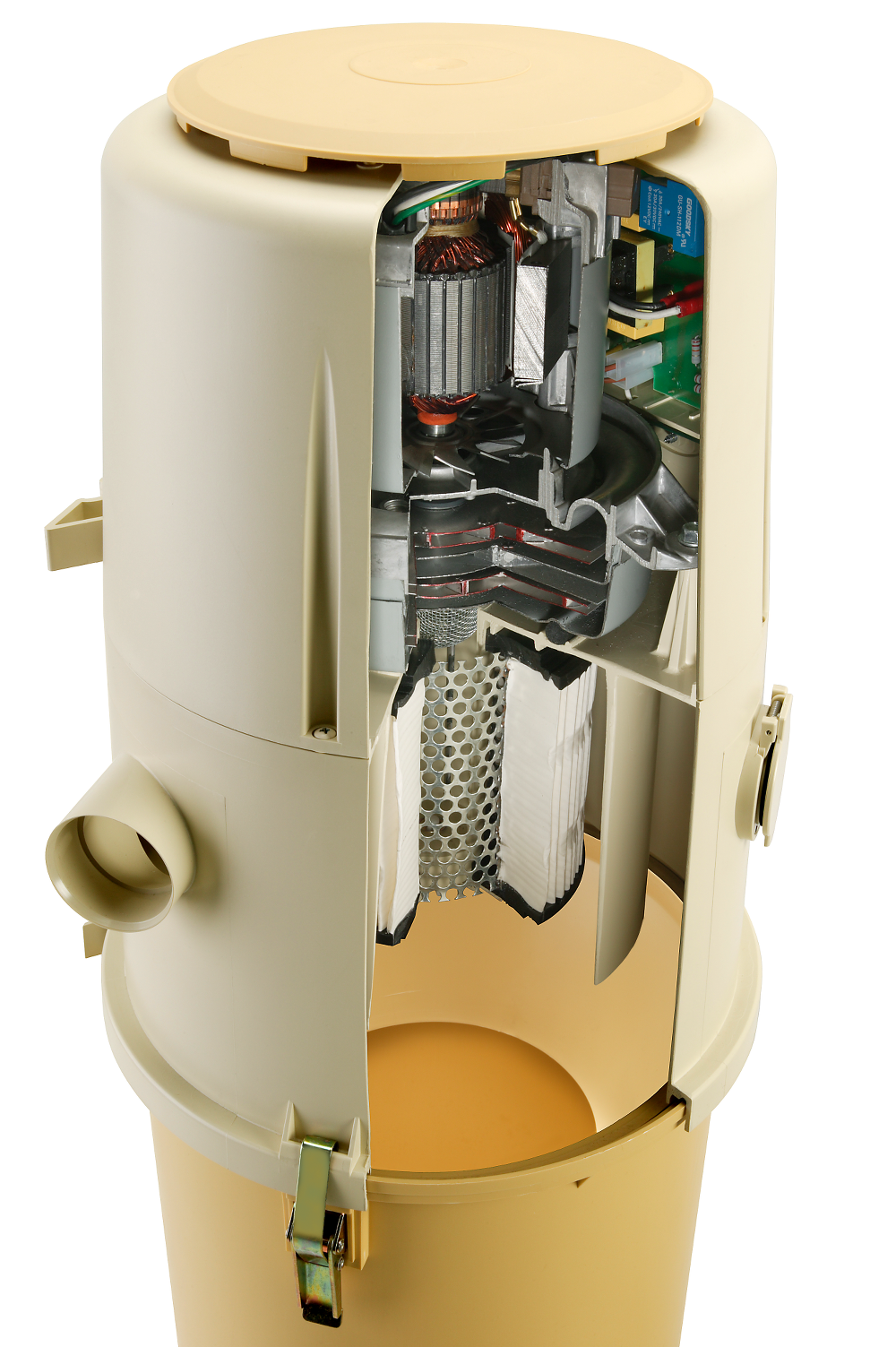

The Power Unit - The heart of the ducted cleaning system is constructed only with Quality Materials and Workmanship, assuring years of trouble free vacuuming.

10 Years Motor Warranty

General Power Unit Features

Body Construction

All power units are Injected moulded from high impact, high temperature ABS polycarbonate and polypropylene plastics. Such material provides greater strength and durability in the overall construction of the housing. It will not dent and will last a house time. Housings are both rust and corrosion proof, excellent for areas where there is excessive humidity and ideal for coastal area installations.

Ametek Power Inside

Ametek is one of the world's largest producers of vacuum/air moving motors for original equipment manufacturers (OEM's) in floor care, outdoor power equipment and household appliance markets. Recognised as the World Leader in Electric Motor Technology, Ametek has continually set the standards for engineering, design, testing and product excellence. It is with such criteria that we continue to choose Ametek to be the power plant for all our range of ducted vacuum systems.

Vacuum Motor Specifications

Tangential By-pass discharge (10 Yr Motor Warranty)
Double ball bearings l
Diameter of Motor mm 183
Air Watts 790
Airflow l/s (max.) 56
Sealed Vacuum mm H2O (max.) 3480
RPM @19mm working orifice 21500
Label Rated Electrical Watts 1800
Noise Level dbA with Silencer @ 3m 72.5
Temperature Sensitive Thermal Protector
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l

Power Unit Physical Specifications

Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 9.0
Dual Filtration Compatible System l
Cyclonic Filtration (Standard) l
HFPC Filter Cartridge l
Filter Bag Filtration
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch l
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 25

Vacuum Pack Including Cleaning Attachments pack :

1 x 12M Switchable Hose

1 x Hard Floor Head

1 x Combi Head

1 x Turbo Head German Design (High performance deep cleaning, Pets hair removal)

1 x Hand Held Turbo Head for furniture and beds

1 x Hose Hanger

3 x Small Attachments Cleaning Tools

Retractable Hose Compatible

Ideal For Hide A Hose
