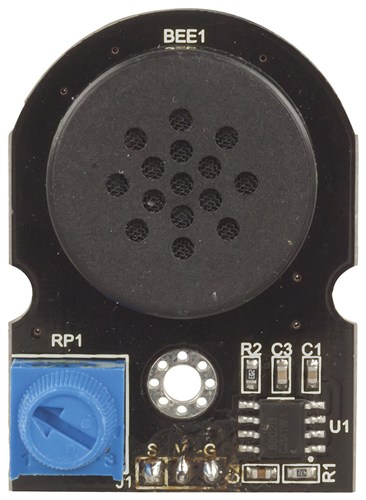

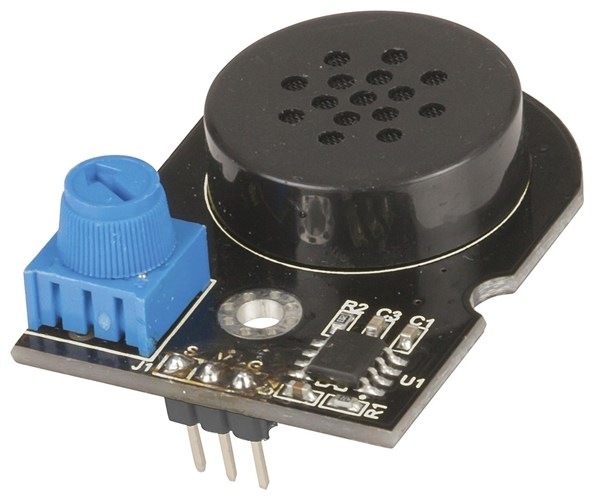

Duinotech Arduino Compatible Audio Amplifier with Speaker Module

Image 1
Image 2
$19.89

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Costcom Australia

An easy way to add audio effects or music to your next project. The compact board measures just 47mmm long

Features:

  • 23mm diameter speaker
  • 2 watt amplifier
  • Volume control trimpot
  • Can use BobaBlox library
  • Powered by 5 volts

Note: Before use, please adjust the sound volume to minimum to avoid damaging the speaker.

Specifications
DC current rating : 500mA
DC Voltage : 5V
Length : 47mm
Width : 30mm
Height : 13mm
Weight : 8.4g
Packaged Volume : 0.13l
Packaged Weight : 0.01kg
Packaged Length : 12.5cm
Packaged Width : 7.4cm
Packaged Height : 1.4cm
Type of Amplifier : IC Module
Number of Channels : 1ch
Power Per Channel into Low Impedence (WRMS) : 2W
Volume Control : true
Speaker Type : Hobby Speaker
Nominal Size : 23mm
RMS Power Rating : 0.15W
Frequency Response : 800Hz, 4000Hz
Sensitivity (SPL@1W, 1m) : 80dBSPL
Availability : Stocked item

SKU: 49.1131.YD3744_KD

Reference ID: 10680338
