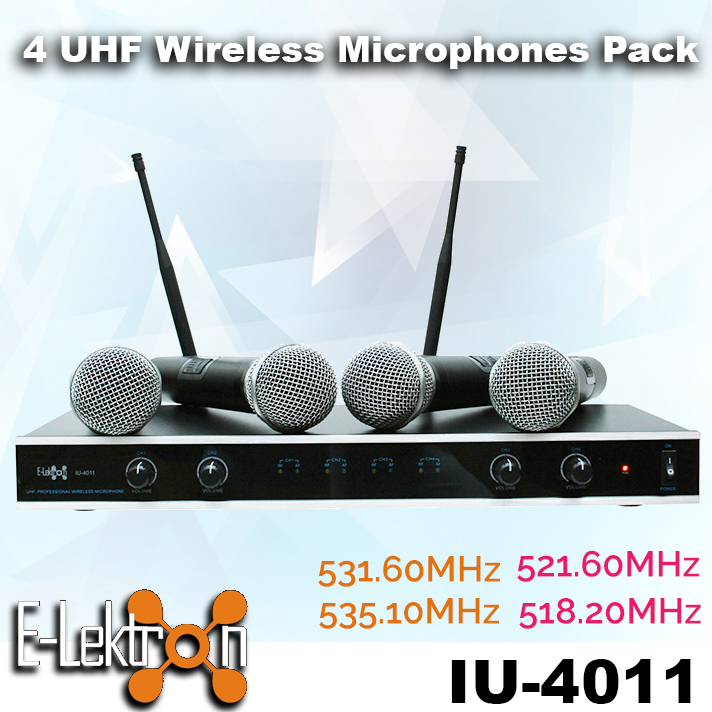

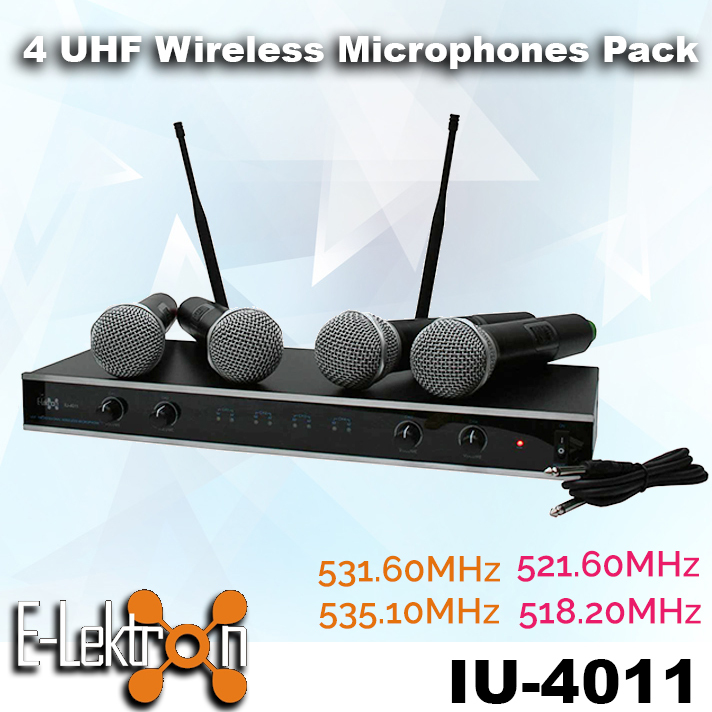

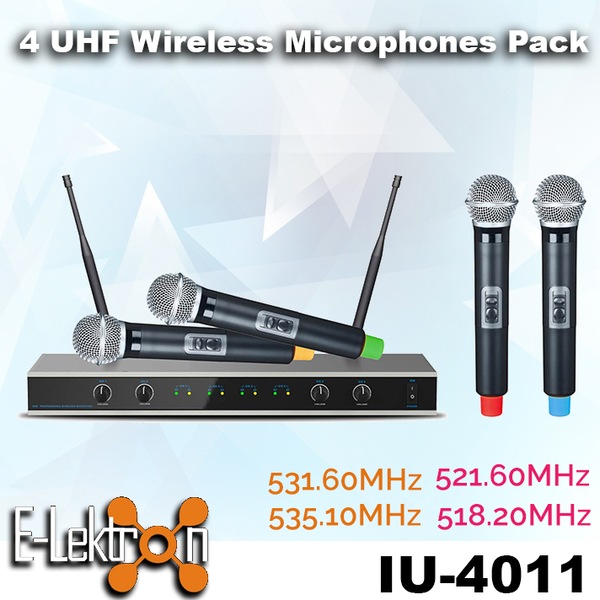

E-Lektron IU-4011 digital UHF wireless microphone system 4x hand microphone

UHF WIRELESS MICROPHONE SET 4-CHANNEL

E-lectron IU-4011 - digital transmission

Professional wireless UHF radio microphone system of the new generation with 4 hand microphones.

The digitally modulated transmission guarantees a trouble-free connection and minimizes dropouts. The digital audio quality is characterized by excellent sound quality, excellent noise performance and very low distortion. The receiver has an advanced digital feedback processor to prevent whistling noises.

Properties:

• Wireless UHF microphone set with 4 hand microphones
• Digital signal transmission, 32-bit signal encryption
• Receiver with digital feedback processor
• Advanced zero-noise technology on mute circuit

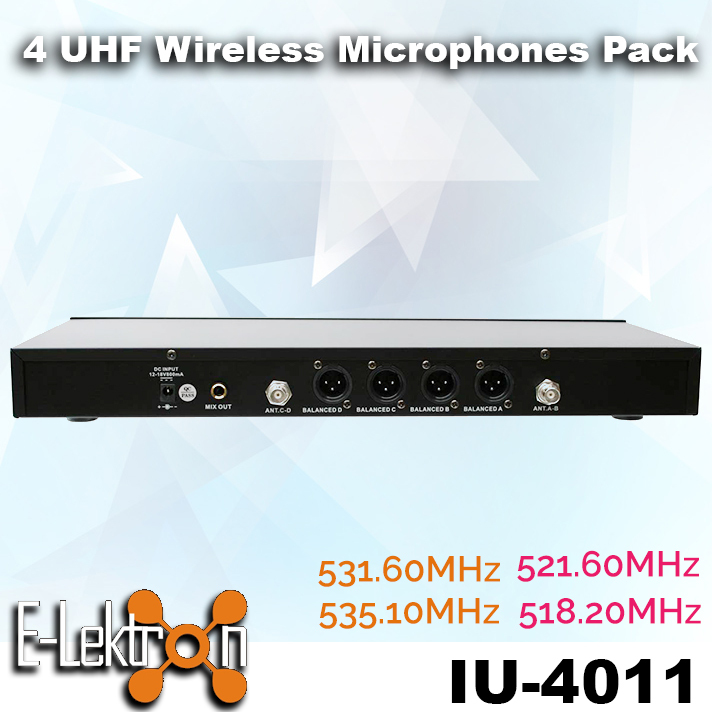

• Output: Balanced XLR output per microphone / unbalanced jack output
• Range up to 60m (line of sight)
• Easy handling and operation
• Pairing is not required, works immediately after switching on
• Optimized for speech and song
• On / off switch on the microphone (with LED display)
• LED indicator on receiver for operation / reception and audio per microphone
• Output level adjustable per microphone

Technical specifications:

• Transmission Frequency: 531.60MHz / 535.10MHz / 521.60MHz / 518.20MHz
• Transmission Power: 13dBm
• Modulation: Digital
• Latency: <5mS
• Frequency Response : 40Hz - 18kHz
• Frequency Stability: 10ppm (PLL controlled)
• Distortion: <0.5% (THD @ 1kHz)
• Noise : <105dB
• Audio Output Level: 0-400mV
• Power Supply: 220-240Vac / 50Hz
• Antenna Jack : 2x BNC (50 Ohm)
• Sensitivity: 6dBuv
• Receiver Dimensions: 20.6 (W) x 13 (D) x 4.1 (H)
