E-Lektron PW-608 Live Power Audio Mixer 6-channel + stereo MP3-channel mixer incl. 2x 250W power
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
- Power mixer with powerful 2x 250W amplifier
- 6 microphone / instrument channels, each with Gain / Pan / 3-band EQ / effect control
- The player with SD slot and USB port incl. Recording
- Very good noise performance and a large dynamic range
- The heart of every appearance
LIVE PA POWER MIXER

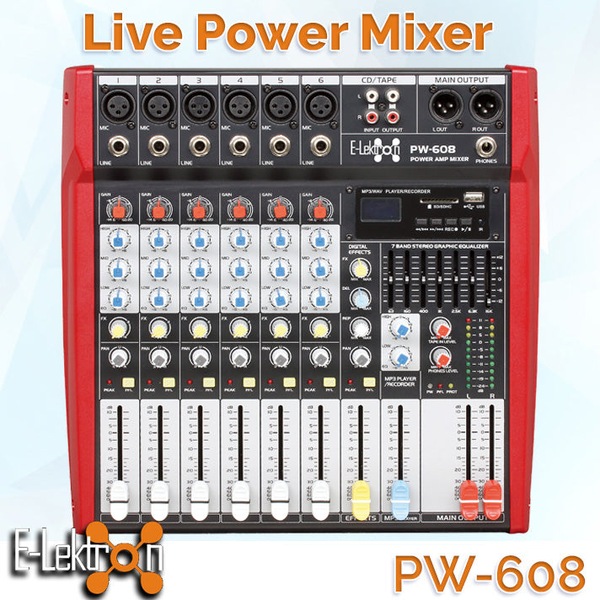

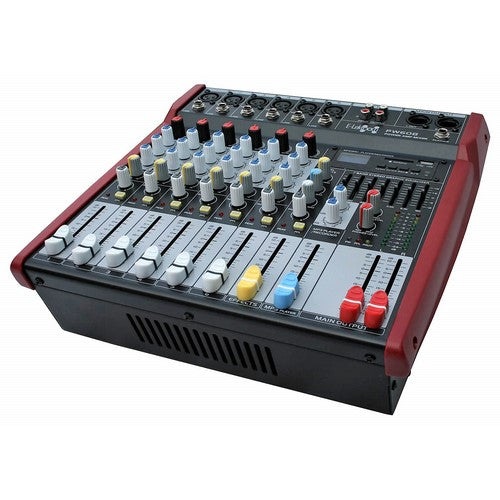

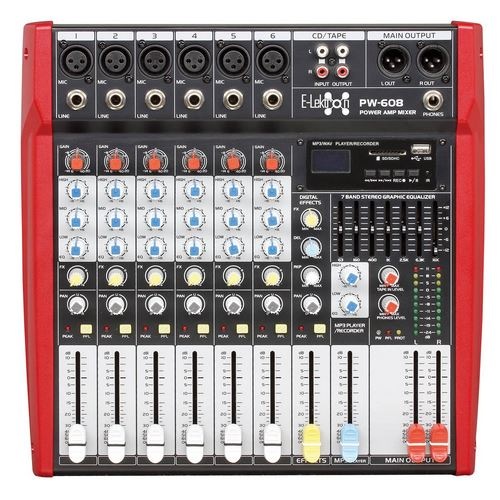

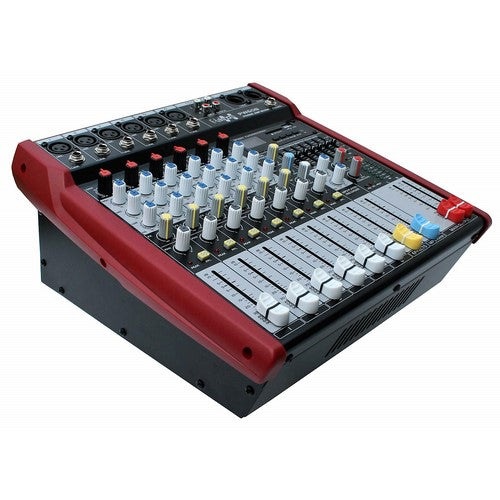

E-Lektron PW-608 - mixing console incl. Power amplifier 2x 250W
Compact mixer with 6 microphone or instrument channels, stereo MP3 channel, and stereo CD / TAPE connection. With the integrated high-performance amplifier, the PW-608 is the heart of every appearance. Fully equipped with an MP3 player/recorder and reverb effect.
Properties:
-
Live power mixer with 6 microphone/instrument channels
-
Stereo MP3 player channel
-
Stereo CD/tape channel
-
Integrated 2x 250-watt stereo power amplifier
-
The preamp is characterized by very good noise performance and great dynamics
-
Pre-listening (PFL) per channel
-
Stereo 7-band equalizer
-
Gain / Pan / 3-band EQ / Effect controls per channel
-
Digital Hall effect channel
-

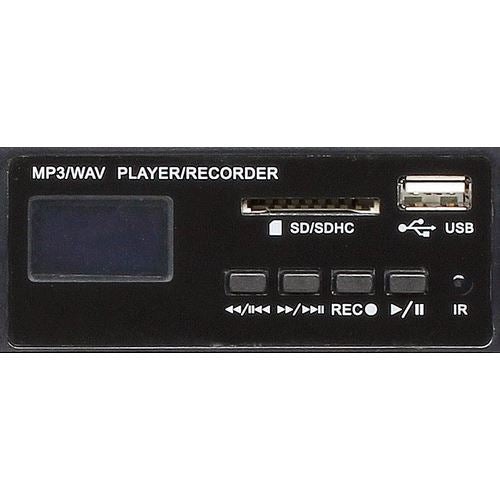

Stereo MP3 player for USB stick or SD card
-
Recording - recording function
-
Remote control for the most important functions of the MP3 player
-
Headphones jack
-

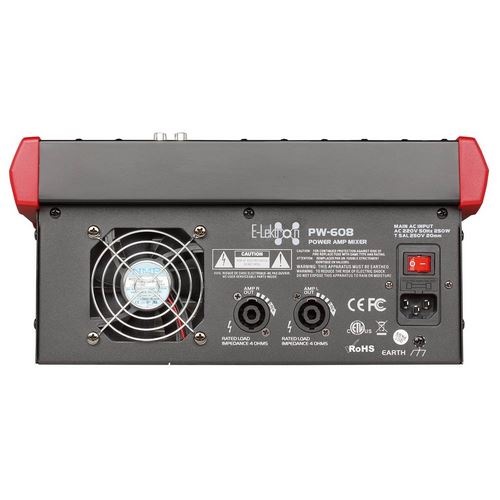

Speaker connection: 2x NL-2 speaker jack

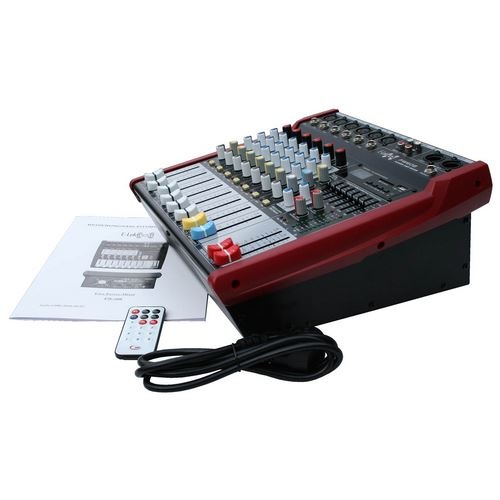

Delivery:
1 pc. PW-608 power mixer
1 pc. IR remote control
1 pc power cable
1 pc user manual (DE language)
1 pc. IR remote control
1 pc power cable
1 pc user manual (DE language)
|
Technical data: |
220 - 240Vac / 50Hz |
|
amplifier power |
2x 250W @ 4 ohms / 2x 160W @ 8 ohms |
|
frequency response |
20Hz - 20kHz (+/- 0.5dB) |
|
Distortion (THD) |
0.01% max |
|
SNR |
96dB min @ 1kHz |
|
Channel 1-6 EQ High |
+/- 15dB @ 12kHz |
|
Channel 1-6 EQ Mid |
+/- 15dB @ 2.5kHz |
|
Channel 1-6 EQ low |
+/- 15dB @ 80Hz |
|
Entrance line |
6dB - 40dB @ 11 kOhm |
|
Input level Kan 1-6 |
-14dB - 20dB @ 2.4 kOhm |
|
Input level XLR MAIN |
2x 28dBu balanced |
|
Headphone output |
300mW @ 32 ohms |
|
Dimensions |
32 (B) x 16.3 (H) x 32.2 (D) cm |
|
Weight |
about 7.2kg |
GTIN: 4260393840836
Reference ID: 1590927
