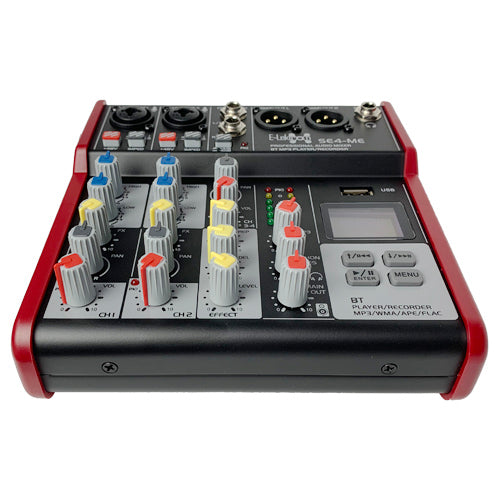

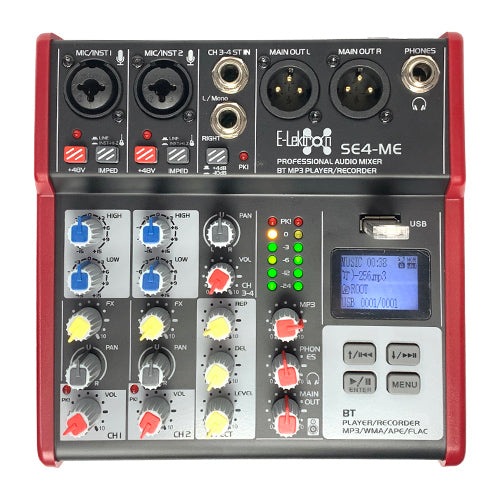

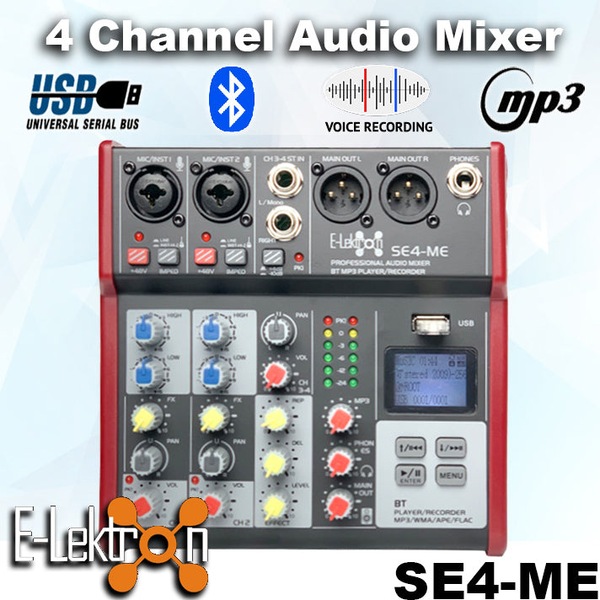

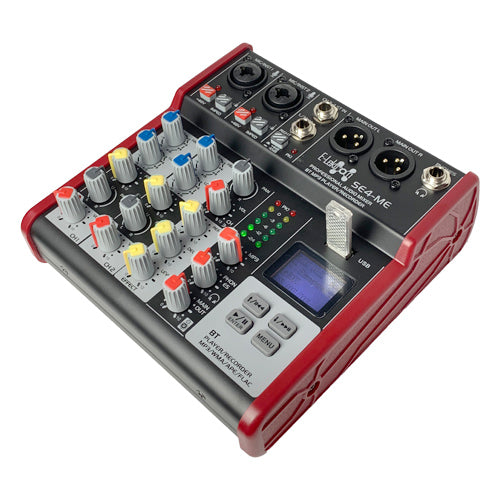

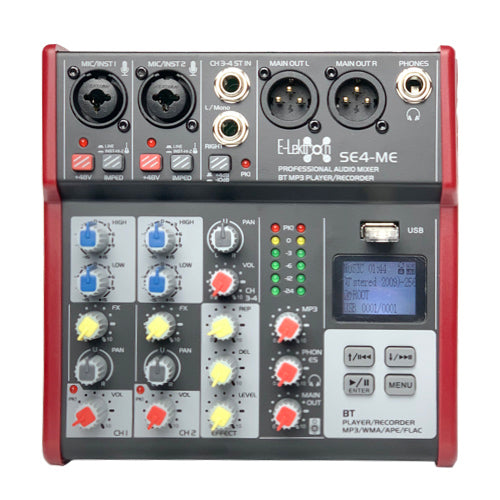

LIVE PA BLUETOOTH AUDIO MIXER 4-CHANNEL

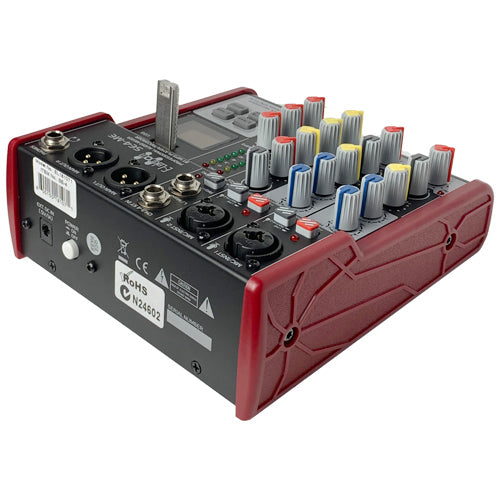

E-Lektron SE-4: mixer for stage, streaming, recording, etc.

Compact mixer with 2 microphones/instrument channels, stereo channel and stereo USB / Bluetooth channel. Fully equipped with an MP3 player/recorder, sound card, Bluetooth, reverb effect, and phantom power.

Features:

• Live mixer with 2 microphone/instrument channels including 48V phantom power
• Mono/stereo channel
• Stereo Bluetooth / USB channel with recording function
• Built-in sound card for streaming via PC
• Volume / pan / 2-band EQ / effect controls each Microphone / Instrument Channel
• Digital Hall Effect Channel-to-Organize
• Combined XLR / Jack Jacks, Level Switchable: Microphone or Line
• Stereo MP3 player for USB flash drive also plays WMA / APE / FLAC
• LCD display / Headphone jack / Output via 2x XLR jack

Specifications:

• Microphone / Instrument Channels: 4
• Gain: -40 - + 40dB adjustable
• Equalizer: 80Hz / 12kHz, +/- 15dB each
• Phantom: + 48V
• Impedance: switchable Line / Microphone
• Combo Input Jack: XLR balanced / Jack (6.3mm) unbalanced
• Stereo Line Channel: 1
• Sensitivity: + 4dB / -10dB switchable
• Input Jacks: 2x Jack (6.3mm)
• Playback: mono with Pan, or stereo
• Stereo USB / Bluetooth Channel: 1
• Capacity Memory Stick: up to 16GB (FAT32)
• Playable Files: MP3 / WAV / APE / FLAC
• ADC / DAC: 16-bit / 48kHz
• File Format Recording: 128Kbs / 48kHz Sampling
• Bluetooth Version: 4.2

Generally:

• Output Level: 3Vrms (75 ohms), + 4dBu, max + 22dBu
• Output Jacks: 2x XLR Balanced
• Frequency Response: 20 - 20,000Hz (+/- 0.5dB)

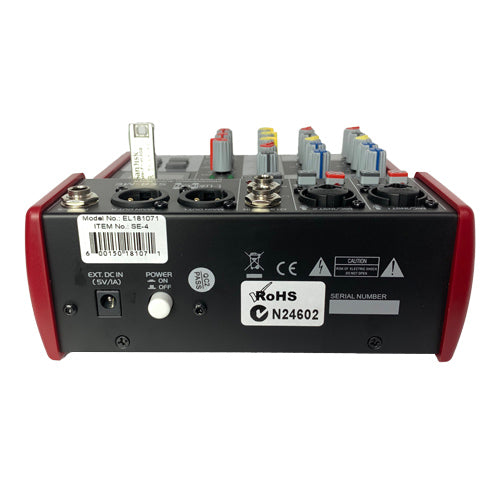

• Power: 5Vdc / 1A (power adapter included)
• Delivery without the illustrated storage media
