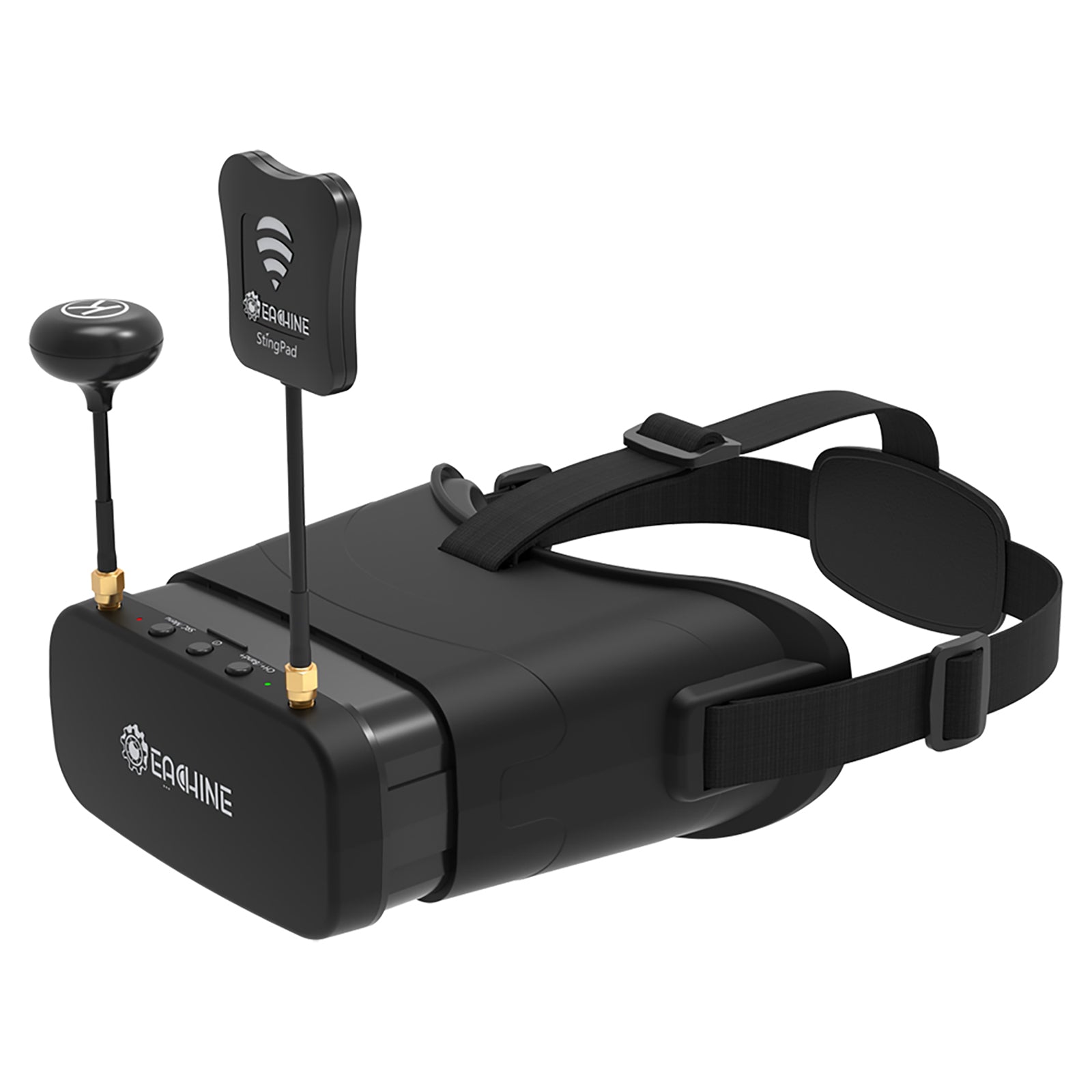

Eachine EV800DM 5.8G 40CH HD DVR RC Camera Racing VR Video FPV Drone Goggles

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Image 15
$298

Collect 298 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Pricedumb
Secure ways to pay at checkout

Features:

Built-in with super HD DVR up to 720*576px resolution.

Diversity RaceBand 40ch Auto-Searching.

Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording).

Work friendly with player-OSD, no blockage on the important flying OSD information.


Focal length adjustable design.
Room for eye glasses.
HD high brightness 3 inch LCD specially tuned for FPV racing.

Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with Race band.

Advanced auto-searching function and the working frequency shows on screen.

Built-in 3.8V 2000mAh battery, each full charge offers 2.2 hours working time.

Wide range re-charge voltage 5-180V.

Accept 2S or 3S batteries as back-up power source.

Nice ergonomic design and fit different faces.

Super-wide visible angle up to 82 degree.

92% transparent lens adopted, no distortion and no blur on the edge of screen.

Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game.

3 Inch 900*600px HD high brightness LCD.



Description :

Brand Name : EACHINE

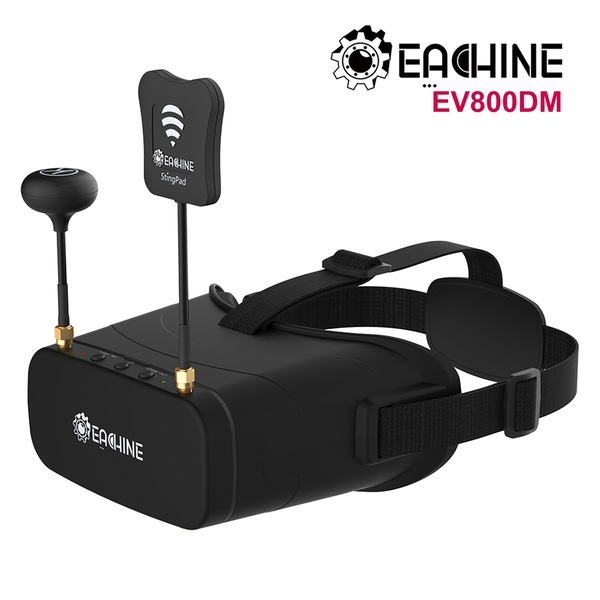

Item Name : EV800DM






















































































Appearance		 Dimension: 150*170*80mm
Weight: 320g without antenna

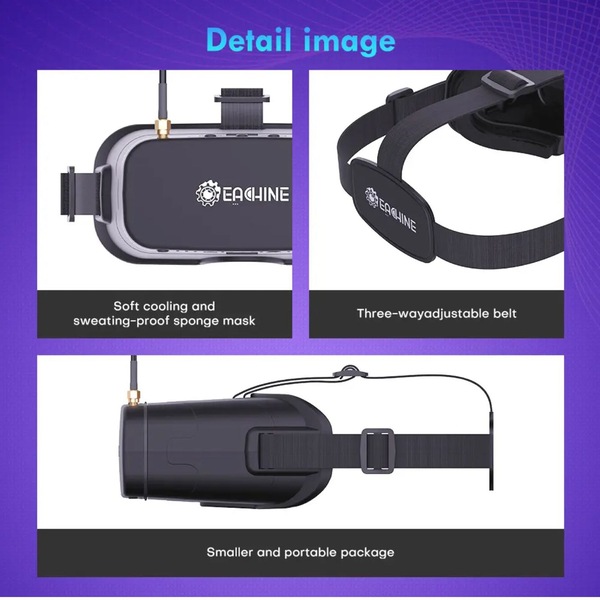

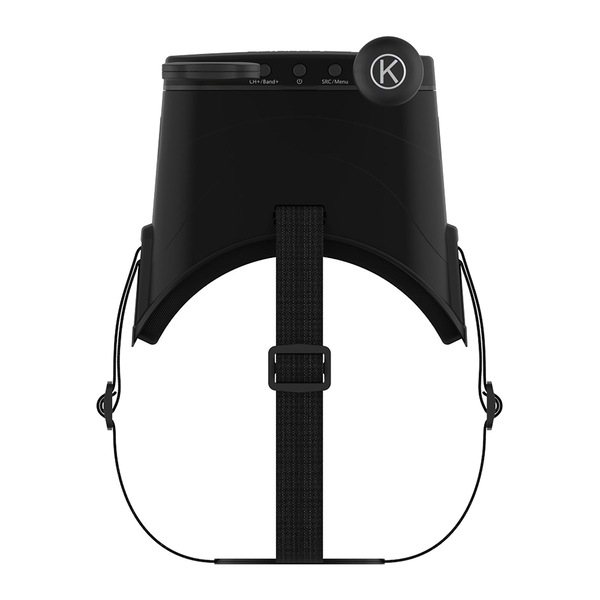

Belt : three-way adjustable belt


Specification		 Build in DVR
Records up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to record full frame rate

Diversity		 -90dB Super sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used


Display		 Screen size: 3.0 inch
Screen resolution: 900*600(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness back light LED for outdoor FPV
Ratio : 4:3
View Angle: 140/120 degree(Horizontal/Vertical)

Lens		 3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;

Varifocal		 20mm focal length adjustable;
Multi stop points design for vertical individual user adjust;
For more users with different eyesight

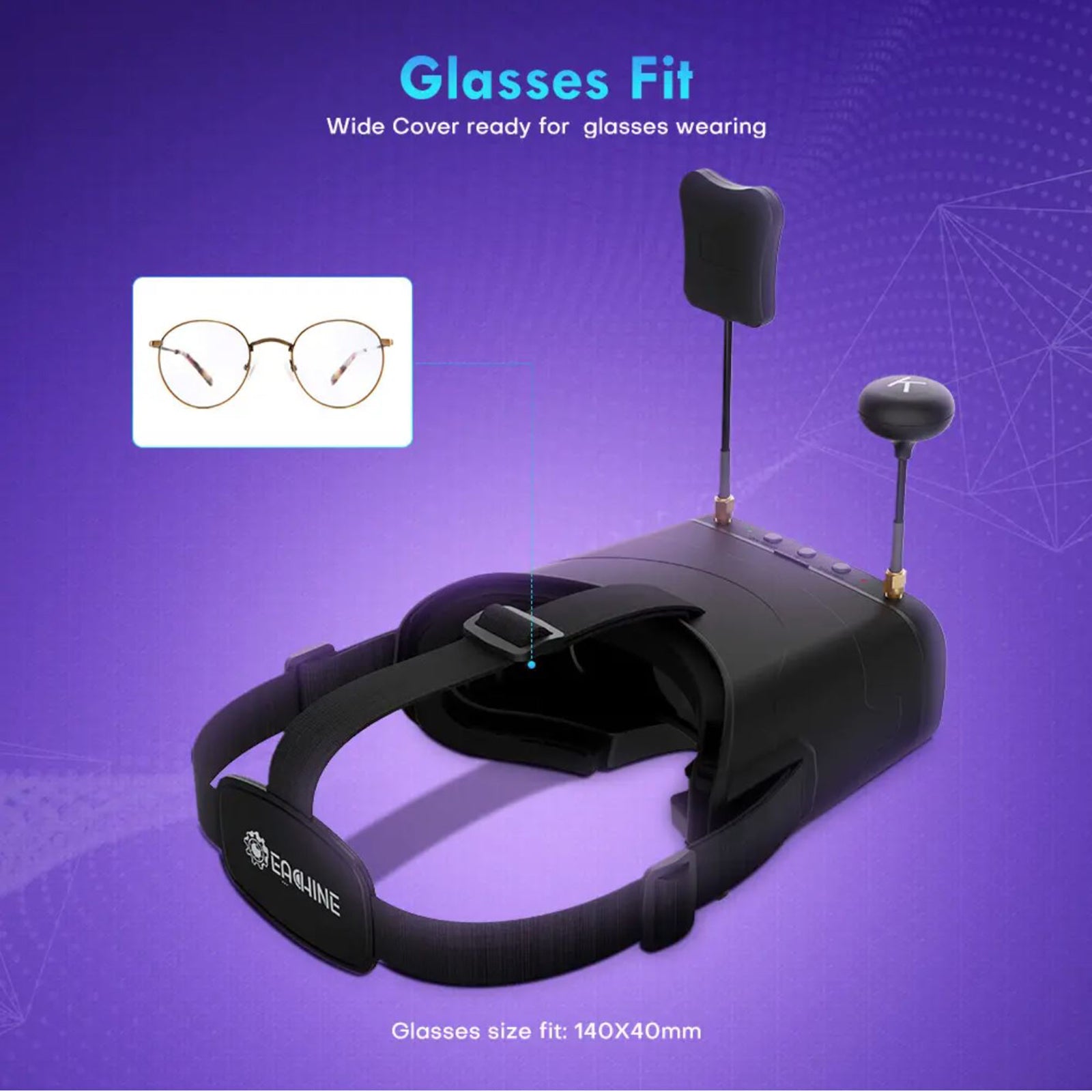

Glasses Fit		 Fit for wear with glasses;
Glasses Fit Size; 140mm*40mm;
Focal length need to be reset when wear glasses



Battery		 Built-in 3.8V/2000mAh battery;
Each battery circle offer around 2.2hr working time;
5-18V wide range recharging voltage range, typical recharging with 5V/2A
Charger : 5V, 2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

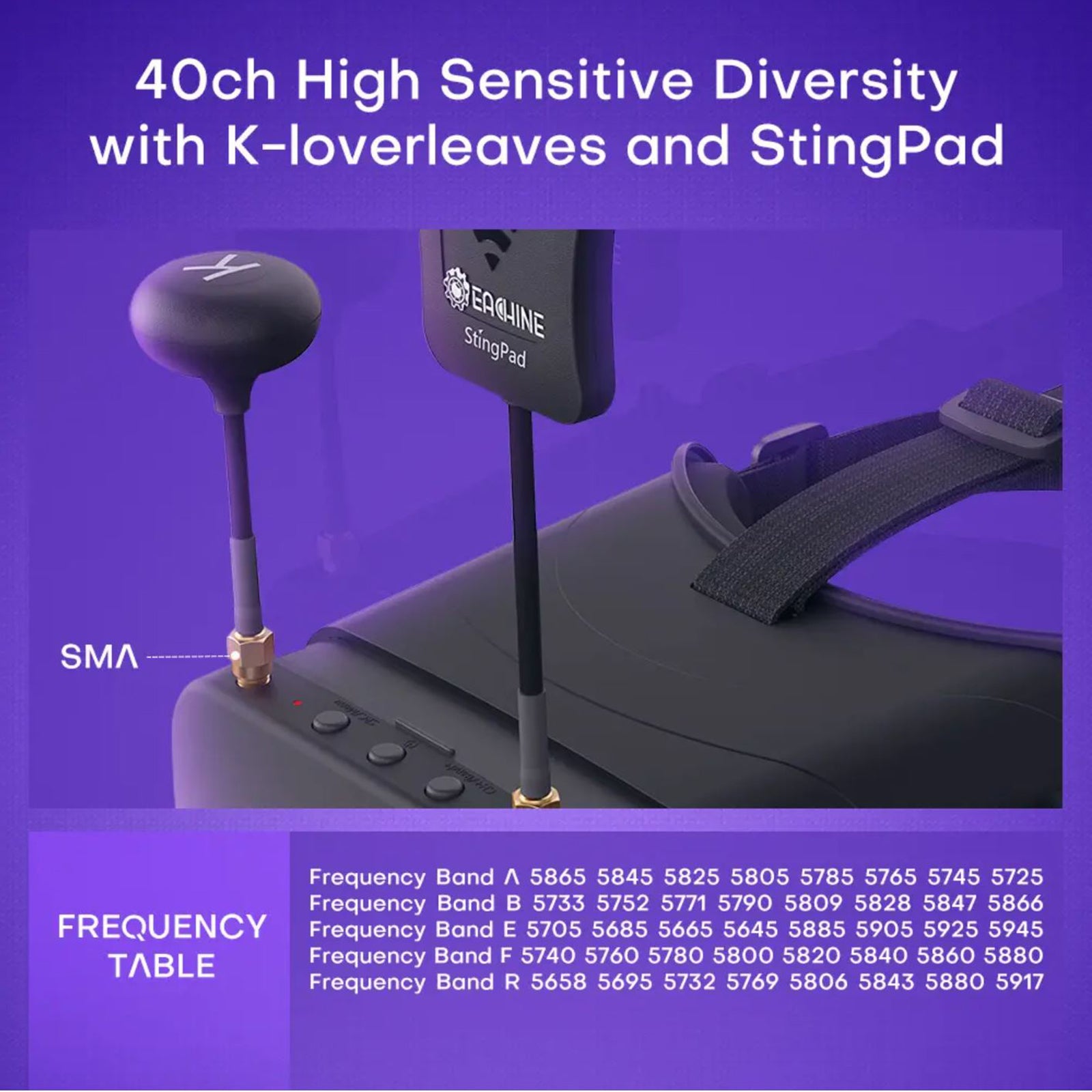

Frequencies (5.8GHz, with RaceBand)




































































































































































CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A or FR1 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B or FR2 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
C or FR3 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
D or FR4 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R or FR5 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ



P...

GTIN: 9360159050341
