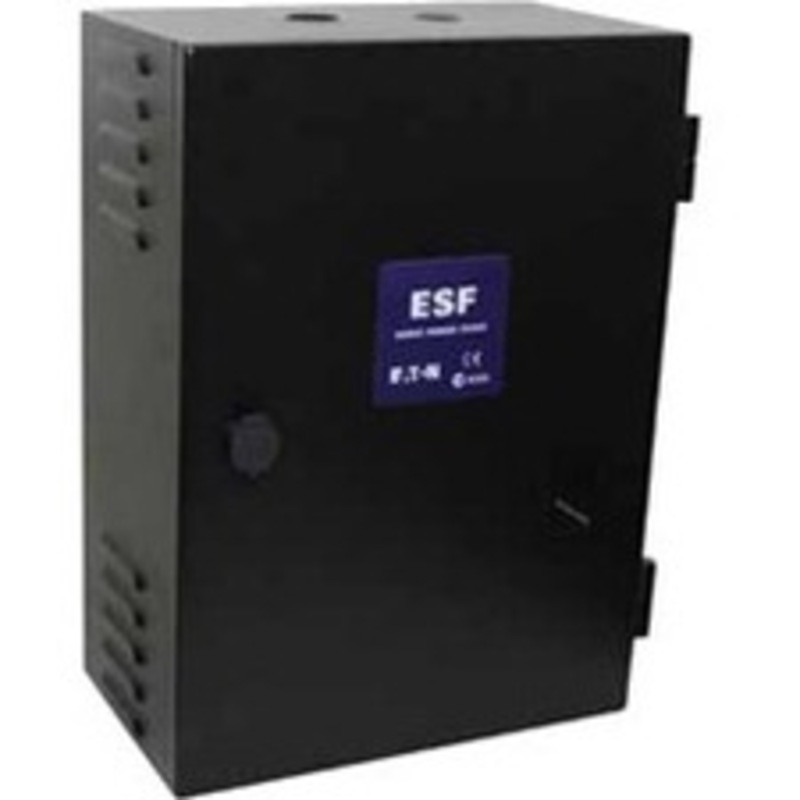

Eaton ESF633-TN-E Surge Suppressor/Protector - 380 V AC

Eaton ESF633-TN-E Surge Suppressor/Protector - 380 V AC

Hurry! 2 items left!

Price	$3691.88
	Collect 3691 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Eaton ESF633-TN-E Surge Suppressor/Protector - 380 V AC

Functional Description

The ESF series surge filters are Class II, single and three phase, 2 port SPDs, designed to provide complete site surge protection in a compact footprint. These models utilize UL1449 ed3 certified thermally-fused MOV devices in conjunction with air-wound inductors to provide a currentlimited output, coordinated to surge levels below 3kA. This means that all downstream power circuits are protected to ANSI/IEEE C62.41 Category B level, the common level that medium power LV loads (UPS, rectifier, industrial machines) are designed to accept. The design results in an exceptionally low let through voltage. ( <600V, 3kA, 8/20us ). In addition, the units also provide filtering of line harmonics, noise and RF transmitters with a cut off frequency of <10KHz and a nominal attenuation of 48dB above 1MHz.

The units can be supplied in gear-tray format for installation into a switchboard, or enclosed in an IP54 enclosure. When installed in compliance with the manufacturer's instructions and applicable standards, this unit provides a high degree of protection to connected loads. Models are offered in 1 or 3 phase for TT or TN-based power systems in the range of 50A to 80A.

Principle of Operation

Excess potentials are captured by the primary protection stage, resulting in a protection level of <600V @ 3kA, (8/20us) and <800V @ 50kA, Inom (8/20us). The filter components reduce rise-time of the remaining surge and control current to the secondary MOVs. A 'Low Q' filter design is utilized to avoid resonance effects. When the secondary MOVs conduct, the unit's output is clamped and the inductor provides current-limiting of the surge into the externally-connected load circuits. TN models use Neutral as the primary and secondary surge return paths and provide Neutral-Earth protection via a high-energy gas arrestor. TT models use Earth as the primary surge return and Neutral as the secondary surge return path. TT models use MOV devices for Neutral-Earth protection. These units are applicable to TT, TN-C, TN-S and TNC-S power systems nominally rated between 380 and 440V.

Features

Available in TN & TT systems versions
5 Year Warranty
Can be configured for 3:1 phase bypass loads
50A to 80A single and three phase models
Fully enclosed and gear tray versions to suit switch boards
High kA rating per phase 100kA, Imax
Exceptionally low let through voltage <600V @ 3kA/8/20us, <800V @ 50kA / 8/20us, Inom
All mode protection L-N, L-E & N-E
Compact solution for Class II / Cat B,C & D, Point of Entry, distribution board and sub board surge protection

GTIN: 743172035882
