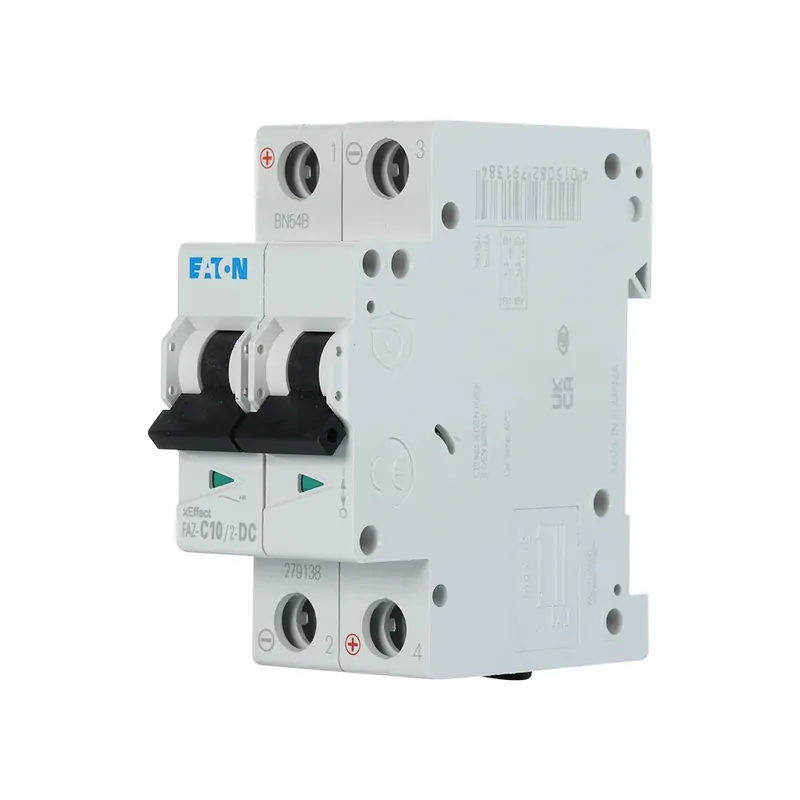

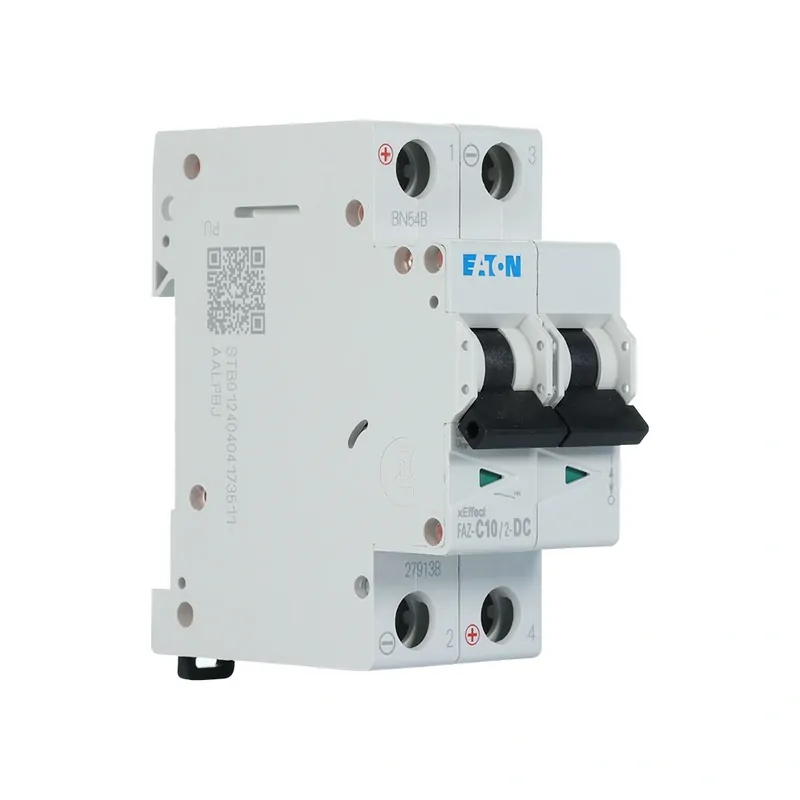

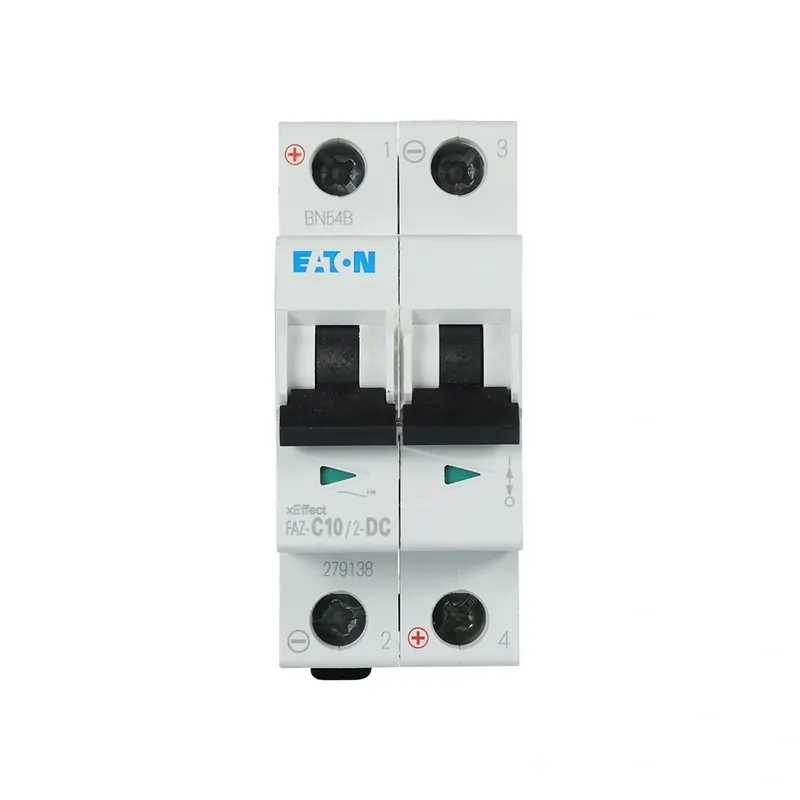

The Eaton FAZ-C10-2-DC circuit breaker is a compact, efficient, and reliable solution for DC applications. Rated for up to 250V DC per pole, this two-pole miniature circuit breaker ensures robust performance with a short-circuit breaking capacity of 10kA. Its "C" tripping characteristic is ideal for applications with moderate inrush currents, offering flexibility across a range of scenarios.

Engineered for durability, the FAZ-C10-2-DC supports up to 10,000 electrical operations and operates in temperatures from -25°C to 75°C. The breaker features twin-purpose terminals, accommodating conductors from 1mm² to 25mm², and is polarity-dependent to ensure correct orientation during installation. Compliant with IEC/EN 60947-2 standards, it provides reliable protection and safety for DC systems.

• Dual Poles: Two-pole configuration for comprehensive DC protection.
• Voltage Rating: Operates at up to 250V DC per pole.
• Rated Current: 10A, suitable for various DC applications.
• High Durability: Supports up to 10,000 electrical operations for long-term use.
• Tripping Characteristic: Type "C," suitable for loads with moderate inrush currents.
• Compact Design: Measures 80mm in depth, 36mm in width, and 75.5mm in height.
• User-Friendly Terminals: Twin-purpose terminals support conductor sizes from 1mm² to 25mm².
• Impulse Withstand Voltage: Rated at 4kV for enhanced safety.
• Environmental Tolerance: Operates efficiently in ambient temperatures from -25°C to 75°C.

Q: What is the rated voltage for this circuit breaker?
A: The breaker is rated for up to 250V DC per pole.

Q: Is this circuit breaker suitable for high short-circuit conditions?
A: Yes, it has a rated short-circuit breaking capacity of 10kA, meeting IEC 60947-2 standards.

Q: What type of tripping characteristic does this model have?
A: It features a "C" tripping characteristic, ideal for applications with moderate inrush currents.

Q: What conductor sizes are compatible with this breaker?
A: The twin-purpose terminals accommodate conductor sizes ranging from 1mm² to 25mm².

Q: How durable is this circuit breaker?
A: It is rated for up to 10,000 electrical operations, ensuring long-lasting performance.
