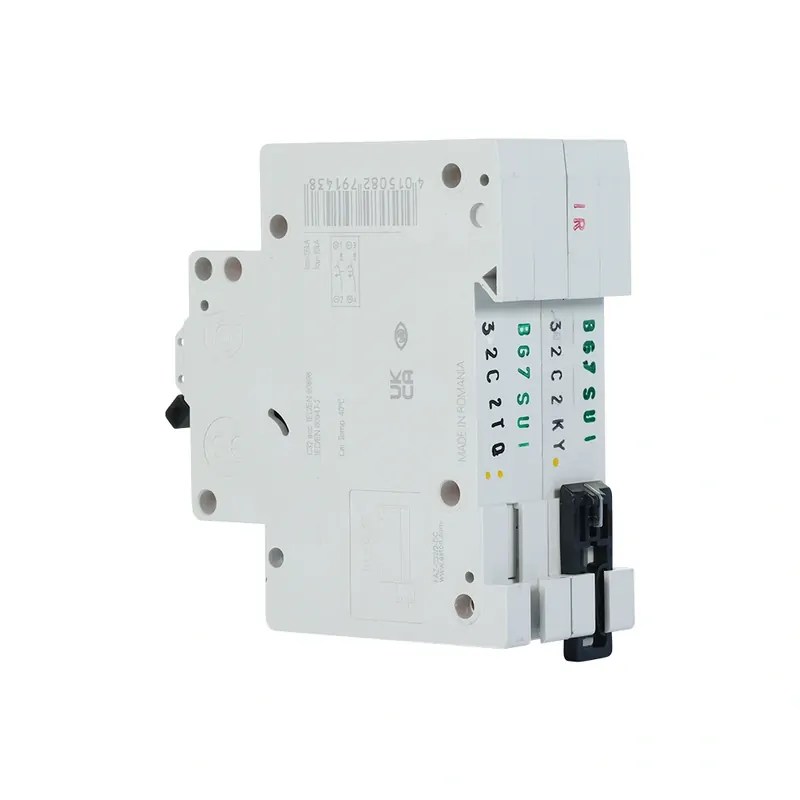

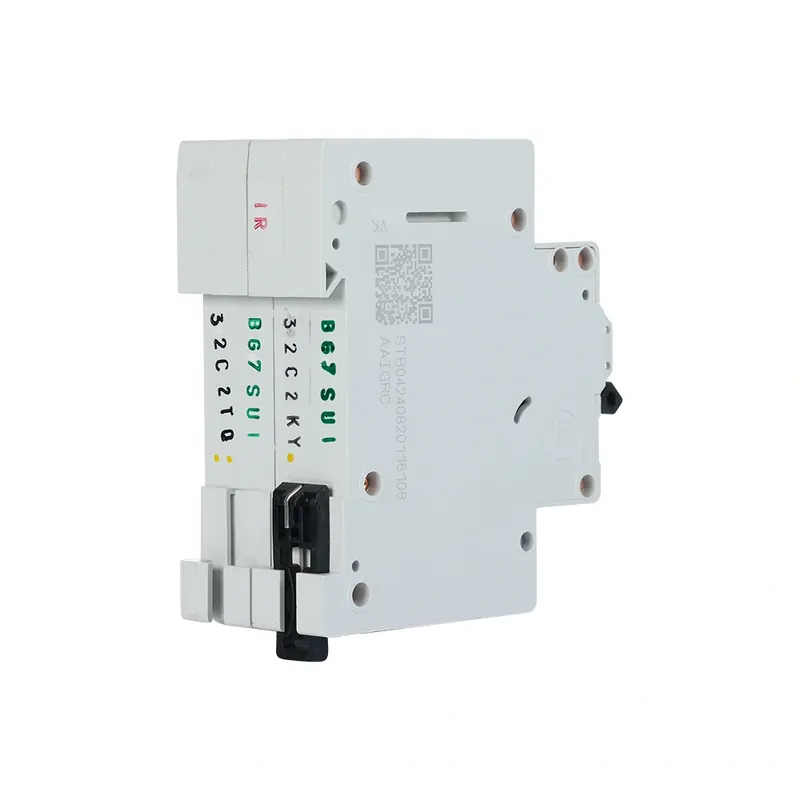

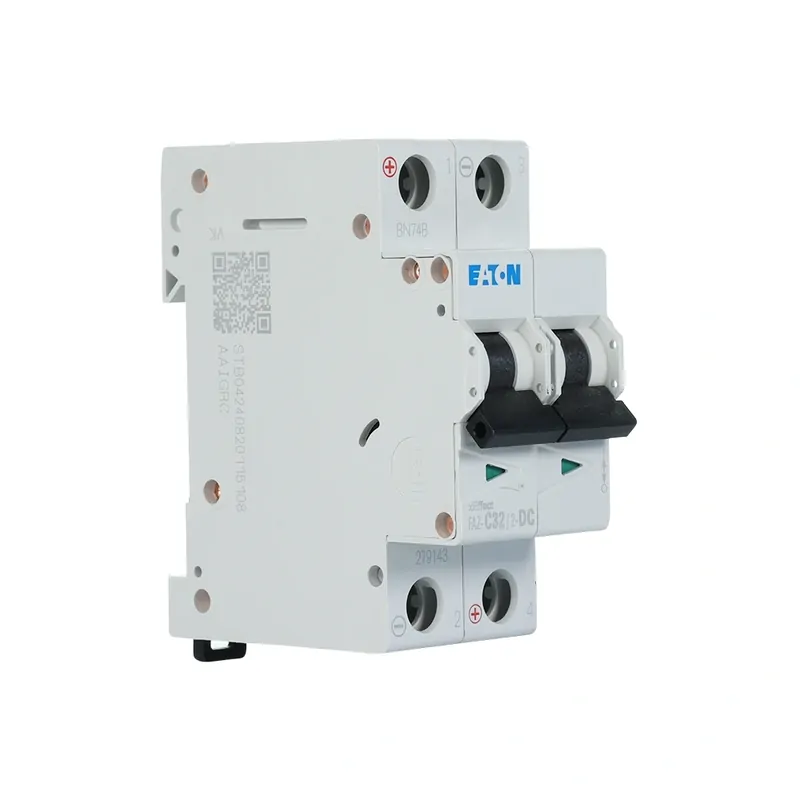

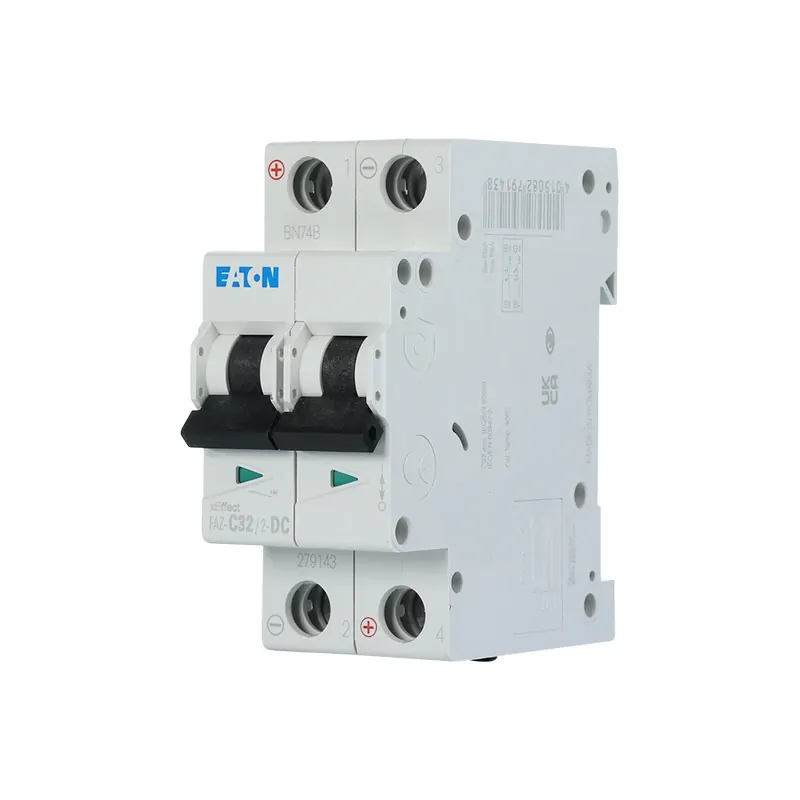

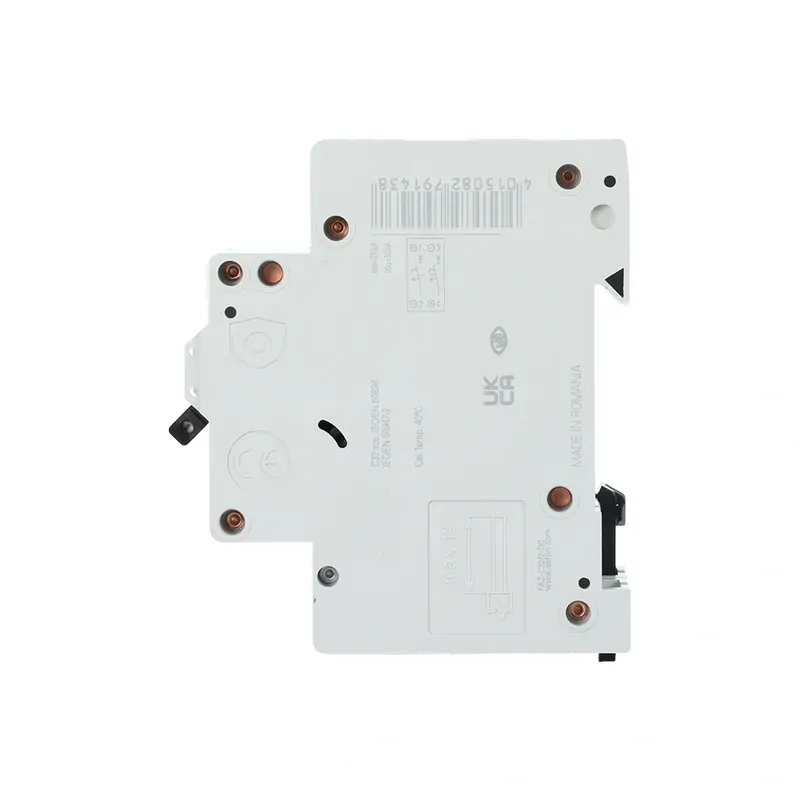

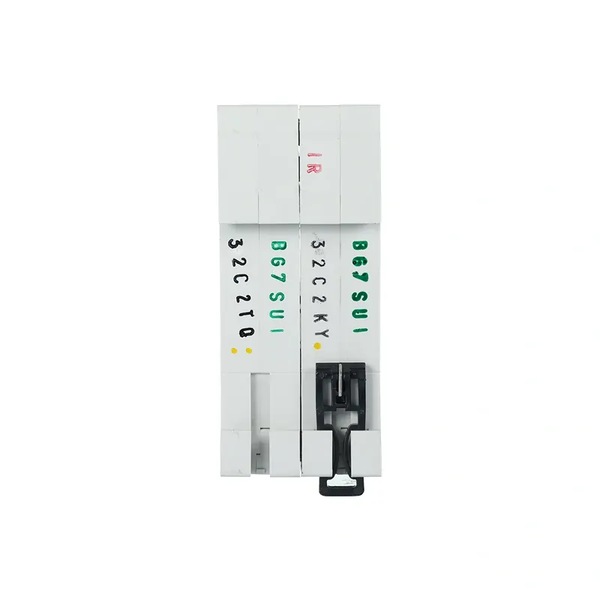

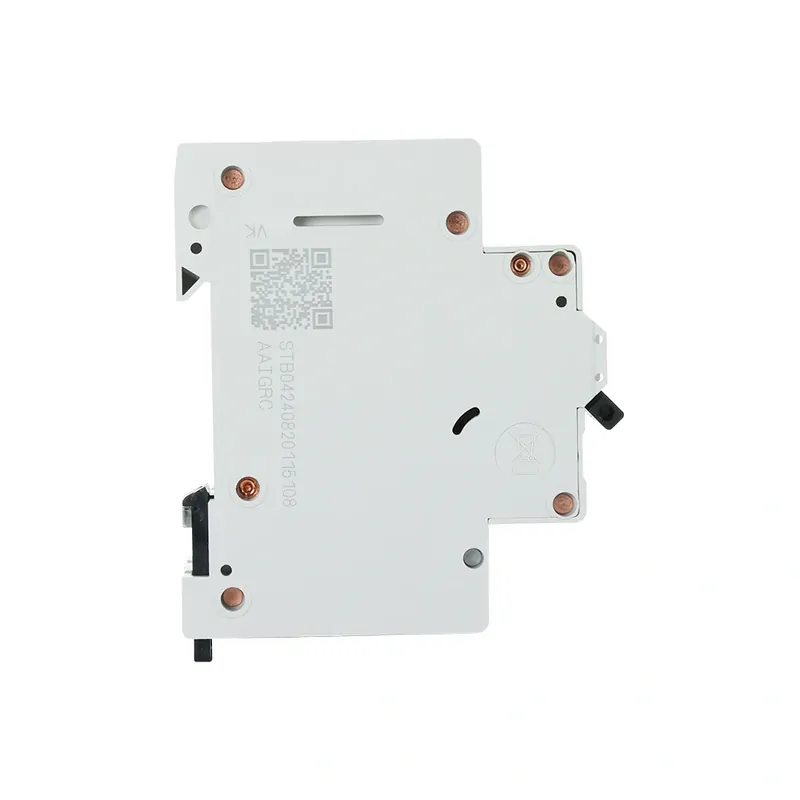

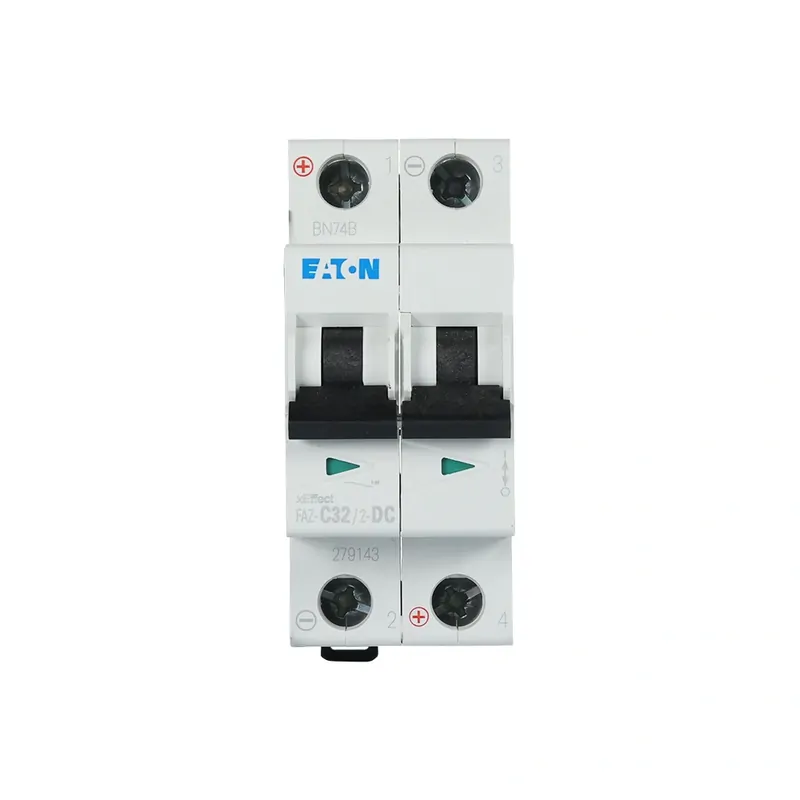

The Eaton FAZ-C32-2-DC is a robust and versatile 32A DC miniature circuit breaker, specifically engineered to provide reliable protection in DC systems. Featuring a compact 2-pole design, it is rated for up to 250V DC per pole and offers a high breaking capacity of 10kA (IEC 60947-2), making it suitable for a wide range of applications. Its C-type tripping characteristic ensures compatibility with various load types, delivering operational flexibility and safety.

With twin-purpose terminals that support conductor sizes from 1mm² to 25mm², installation is straightforward and secure. The FAZ-C32-2-DC is designed for durability, offering a lifespan of up to 10,000 electrical operations. Certified to IEC/EN 60947-2 standards, it ensures compliance with stringent safety and quality requirements.

• Breaking Capacity: 10kA (IEC 60947-2) for robust short-circuit protection.
• Voltage Rating: Up to 250V DC per pole with a 440V maximum insulation voltage.
• Current Rating: 32A with a C-type tripping characteristic for flexible load handling.
• Protection Rating: IP20 for standard use; when fitted, it is IP40 for enhanced dust and contact protection.
• Durability: Rated for up to 10,000 electrical operations, ensuring a long service life.
• Versatile Terminals: Twin-purpose terminals accommodate conductor sizes from 1mm² to 25mm².
• Compact Design: 70.5mm built-in depth and 36mm width for easy integration into modular setups.
• Overvoltage Protection: Rated for 4kV impulse withstand voltage.
• Environmental Resistance: Operates effectively in ambient temperatures from -25°C to +75°C.

Q: What is the rated operational voltage of the FAZ-C32-2-DC?
A: It supports up to 250V DC per pole with a maximum insulation voltage of 440V.

Q: Can it handle high short-circuit currents?
A: Yes, it has a rated short-circuit breaking capacity of 10kA (IEC 60947-2).

Q: Is it suitable for multiple conductor types?
A: Yes, the twin-purpose terminals are compatible with solid-core and multi-wired conductors ranging from 1mm² to 25mm².

Q: What is the durability rating of the circuit breaker?
A: The FAZ-C32-2-DC is rated for up to 10,000 electrical operations.

Q: Can it operate in extreme environmental conditions?
A: Yes, it operates effectively in temperatures ranging from -25°C to +75°C.
