Specification:

• 48V 20AH with 50A BMS
• Apply for: 48V 200-1800W Motor
• Nominal Voltage: 48V
• Rated Capacity: 20Ah
• Watt Hours:960Wh
• Configuration: 13S8P (104 cells)
• Battery Cell: Top A-grade 18650 2500mah

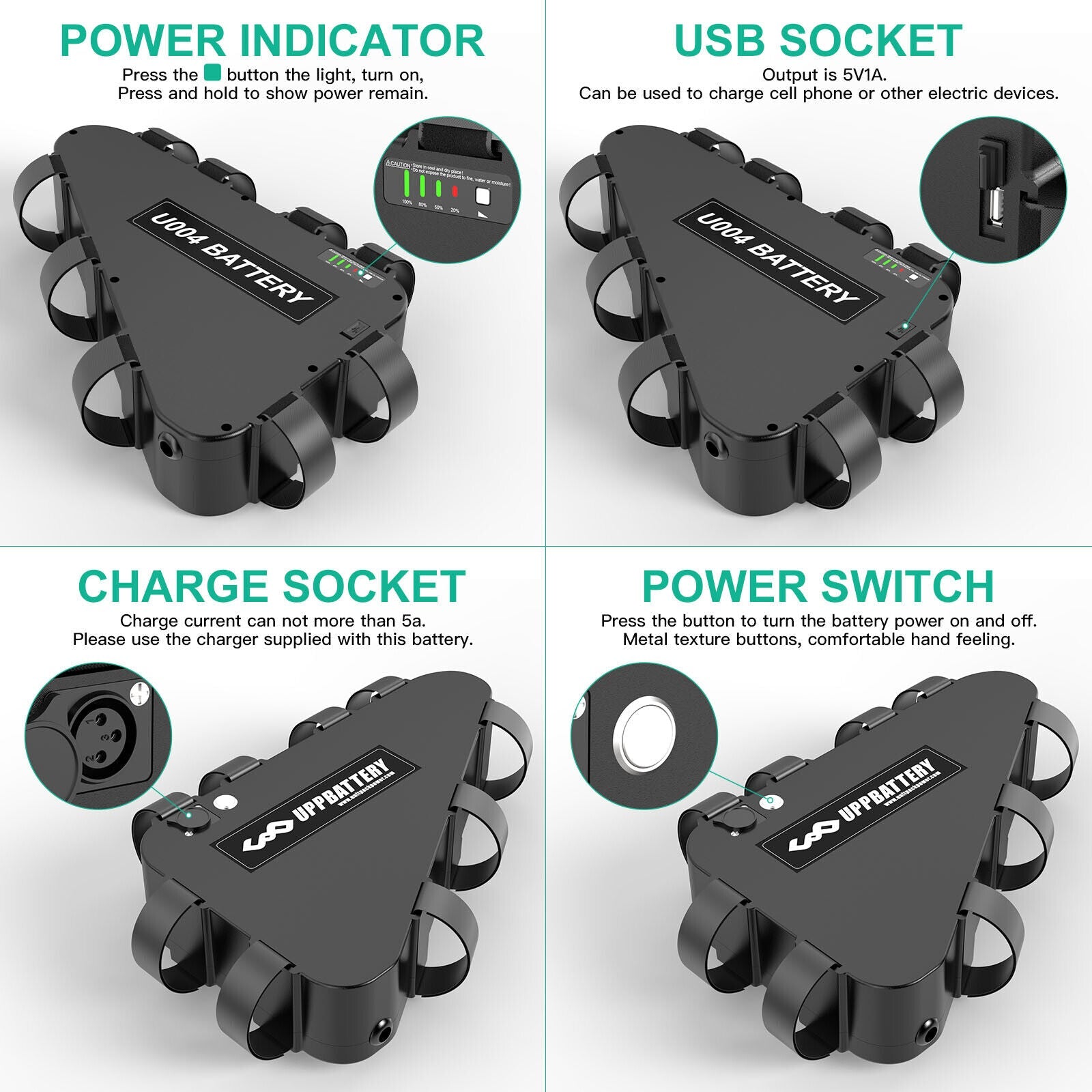

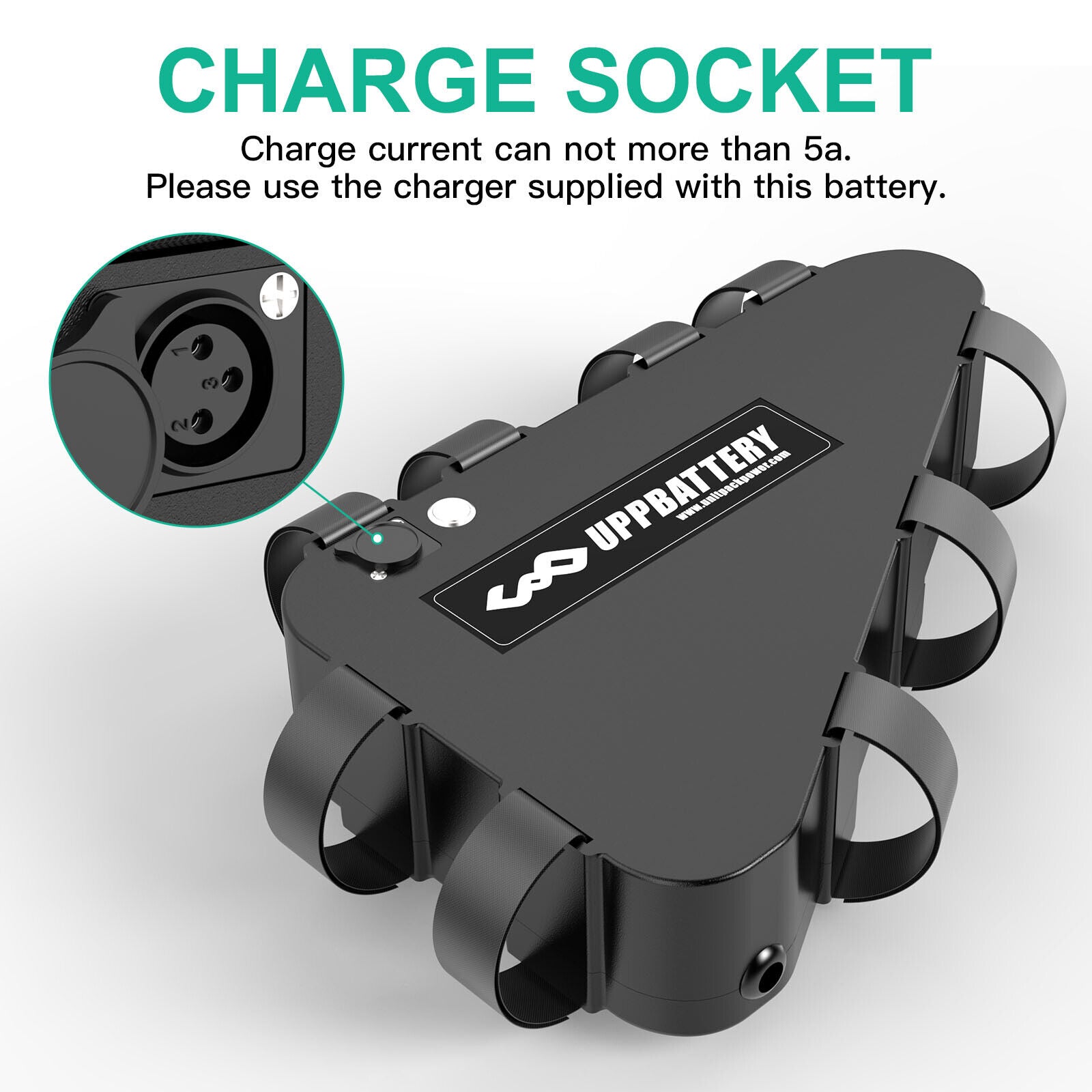

• Max Continuous Charge Current: 5A

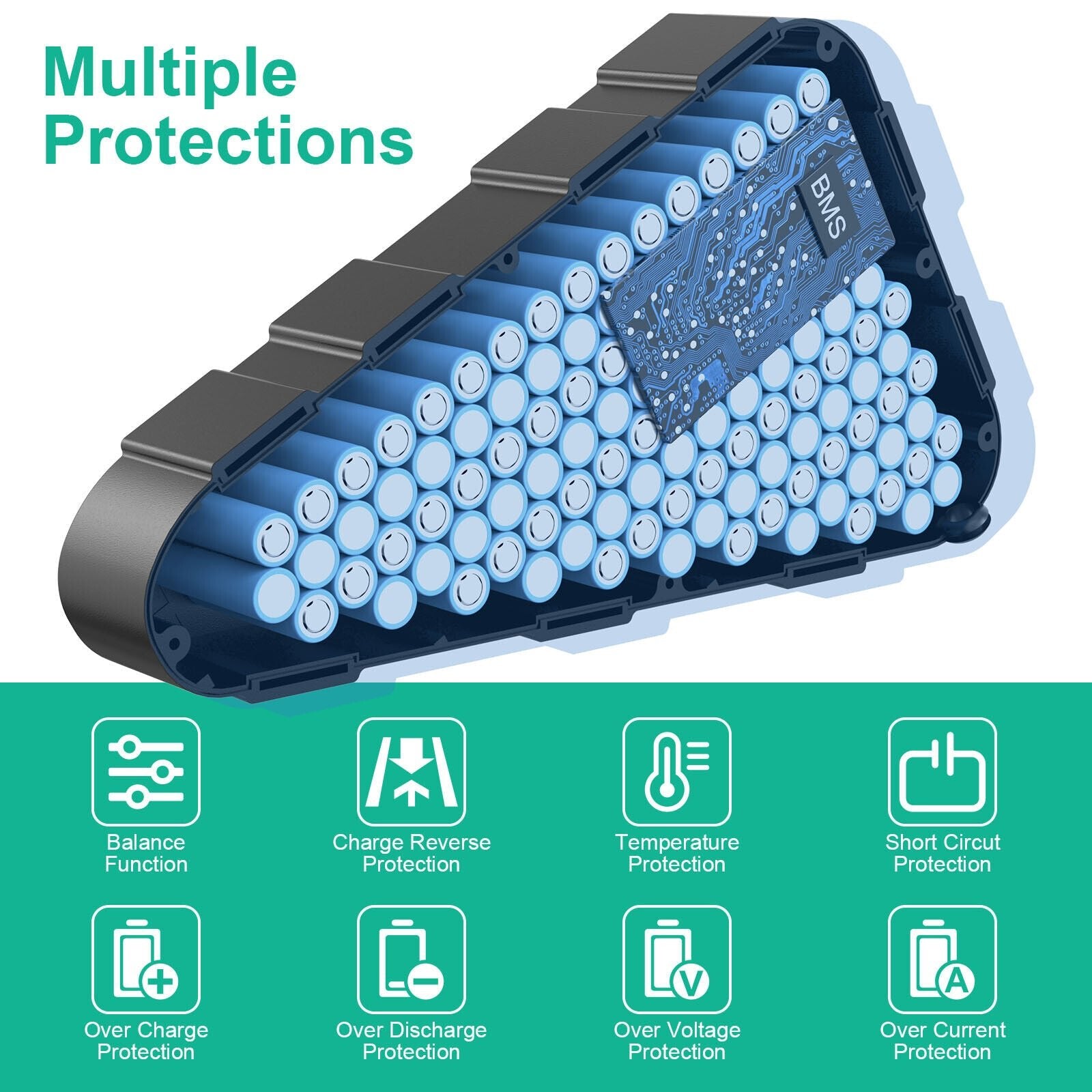

• Max Constant Discharge Current:50A( BMS)
• Peak Discharge Current: 150A
• Charge Cut-off Voltage : 54.6V
• Discharge Cut-off Voltage : 36.4V~39V
• Battery Dimensions : 364*232*64*343*85mm (14.33*9.13*2.52*13.5*3.35inch )
• Battery Weight: 6.3g 13.89 lbs)
• WIth Charger : 54.6V 3A (AU Plug)

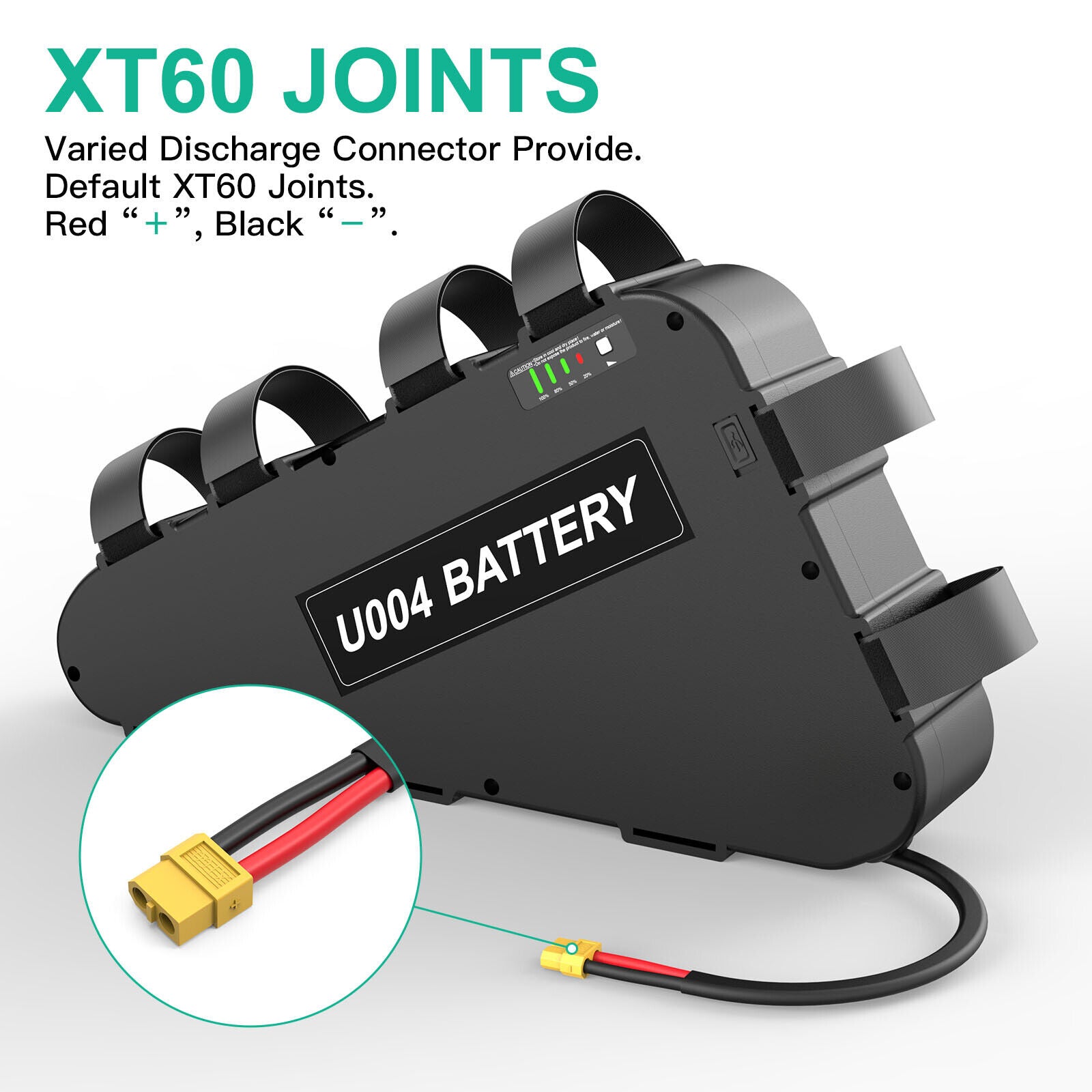

• Discharge:XT60 (Male&Female)

Note : Our battery can fit most motor kit ,for example: Bafang, Voilamart, Tongsheng, but exclude these four : BOSCH , SHIMANO, YAMAHA Panasonic.

DAILY MAINTENANCE (Charge and discharge)

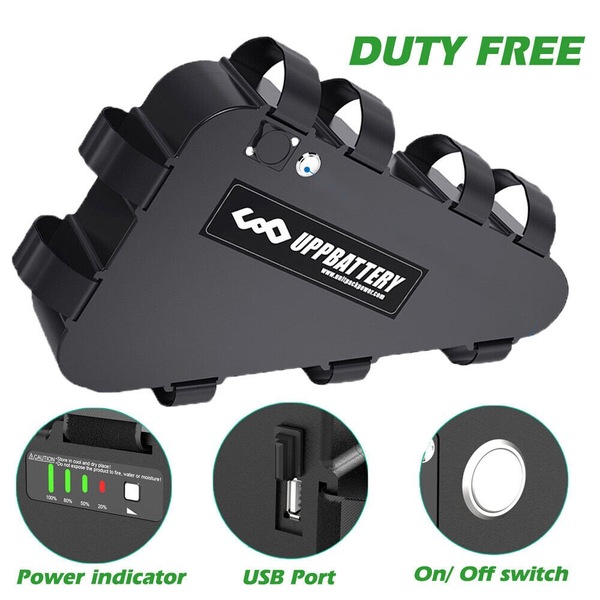

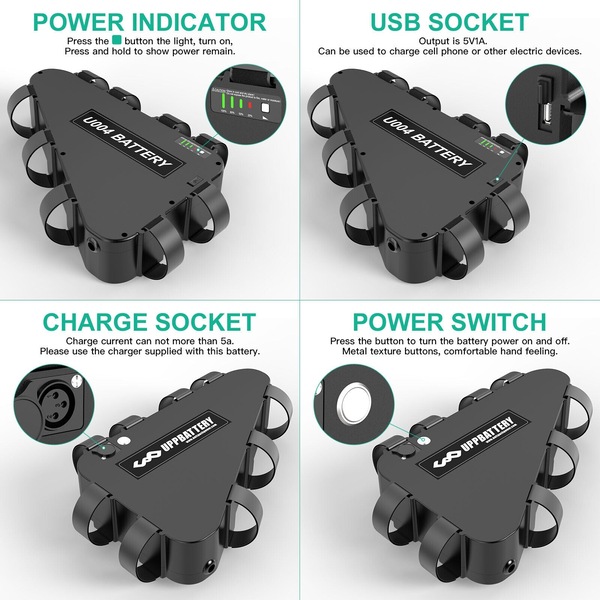

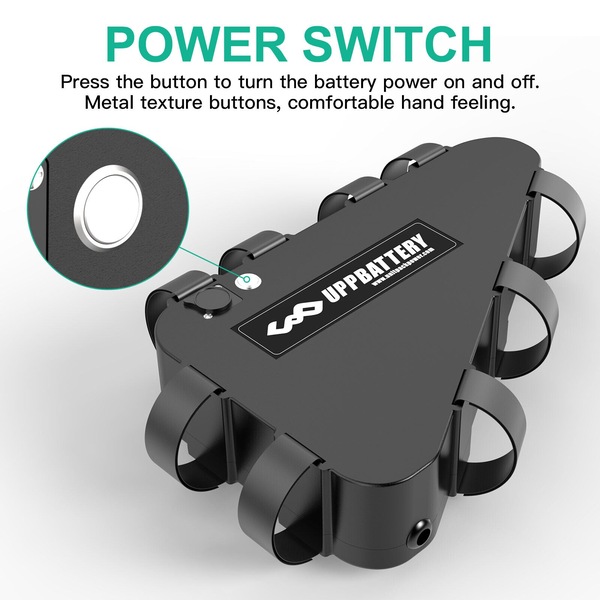

• If the battery has a power switch, please open it during charging , can help to charge more full.
• The lithium battery can be charged at any time, it is not necessary that all energy is exhausted before charging .

WARM TIPS

• Do not immerse the battery in water or seawater. Store the battery in a cool, dry environment.
• The battery should not be used near a heat source as a fire or heater.
• Use the charger specifically for charging.
• Do not interchange the positive and the negative terminals.
• Do not connect the battery electrodes to a power outlet.
• Do not throw the battery in fire or heating.
• Do not short-circuit the battery by connecting the positive and negative poles directly to metal objects.
• Do not carry or store the battery with metal objects such as hairpins, necklaces, etc.
• Do not hit the battery, throw any trampling damage or throw it.
• Do not solder the battery directly and do not pierce it with a nail or other sharp object.
