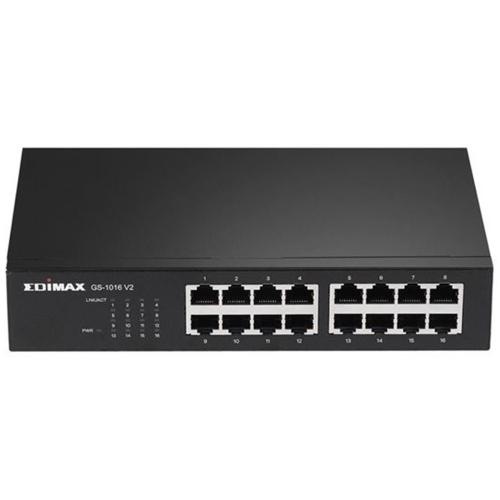

Edimax GS-1016 V2 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. [GS-1016V2]

Image 1
Hurry! 2 items left!
$144.54

Collect 144 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Edimax GS-1016 V2 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking andJumboFrames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.

EDIMAX 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking and Jumbo Frames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
Gigabit High Speed
Equipped 16 Gigabit Ethernet ports with full-duplex and 10K jumbo frames support
QoS for Improved Traffic
Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
High Performance & Reliable Connection
Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
Energy Efficient & Power Saving
Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Plug-and-Play & Flexible Deployment
No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment

Ports
16 x RJ-45 10/100/1000Base-T ports
Transmission Method
Store and forward
LED Indicator
Per-port: Link/Act
Per unit: Power
Power Input
100V~240V AC, 50~60Hz, internal power supply
Mounting
Desktop / wall-mount / rack-mount (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimension
215(W) x 42(H) x 133(D) mm
Weight
0.85kg
PERFORMANCE
Switching Capacity
32Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10K (Bytes)
Filtering / Forwarding Rates
Max. 23.8Mpps
1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy-efficient Ethernet
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
- MPN: GS-1016V2

GTIN: 4717964704283
