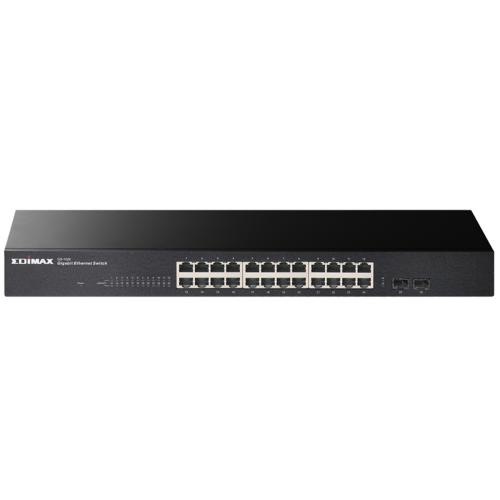

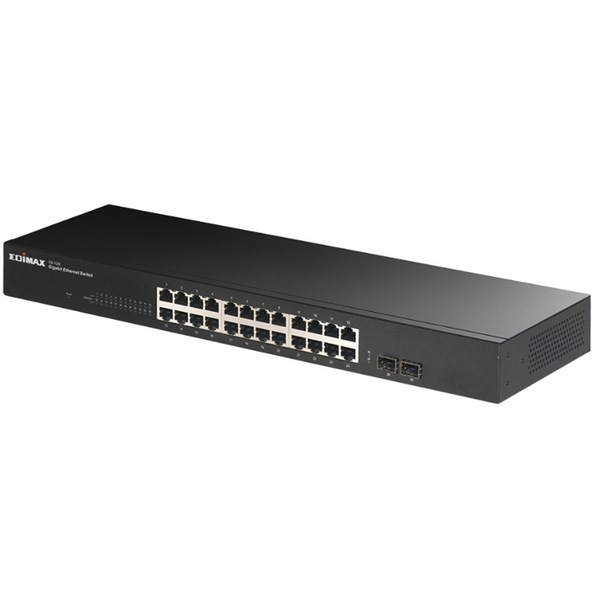

Edimax GS-1026 v3 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets. [GS-1026V3]

Image 1
Image 2
Image 3
Hurry! 1 items left!
$188.37

Collect 188 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Edimax GS-1026 v3 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.

QoS for Improved Traffic
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.

High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.

Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.

Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop or rack-mount for flexible deployment.

HARDWARE ?
Ports
24 x RJ-45 10/100/1000Base-T ports
2 x SFP ports
Transmission Method
Store and forward
LED Indicator
Per port: Link/Act
Per unit: Power
Power Input
100-240V AC, 50-60Hz, internal power supply
Mounting
Desktop / rack-mount (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimension
441(W) x 44(H) x 131(D) mm
Weight
1.83kg
PERFORMANCE
Switching Capacity
52Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10K (Bytes)
Filtering / Forwarding Rates
Max. 38.6Mpps
1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
?IEEE 802.3z 1000BaseSX/LX
IEEE 802.3p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Etherent
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
- MPN: GS-1026V3

GTIN: 4717964704290
