Edimax GS-1008PV2 8 Port 10/100/1000 Gigabit PoE+ Switch with DIP Switch. PoE [GS-1008PV2]

Image 1
Image 2
Image 3
Image 4
Hurry! 1 items left!
$227.14

Collect 227 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Edimax GS-1008PV2 8 Port 10/100/1000 Gigabit PoE+ Switch with DIP Switch. PoE delivery up to 200m. Power budget: 130W. Auto Energy Saving. Functions. Plug and Play. VLAN and Loop Protection. VLAN & QoS.

EDIMAX 8 Port 10/100/1000 Gigabit PoE+ Switch with DIP Switch. PoE delivery up to 200m. Power budget: 130W. Auto Energy Saving. Functions. Plug and Play. VLAN and Loop Protection. VLAN & QoS.

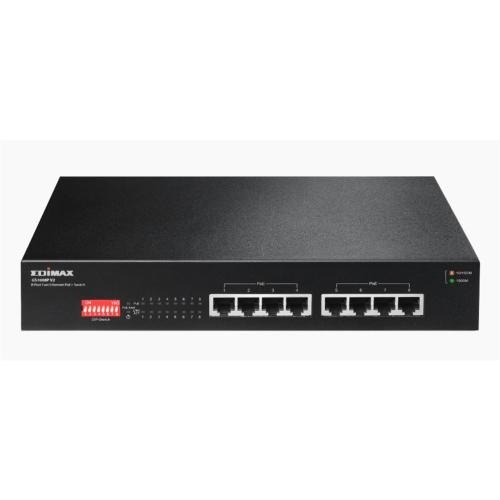

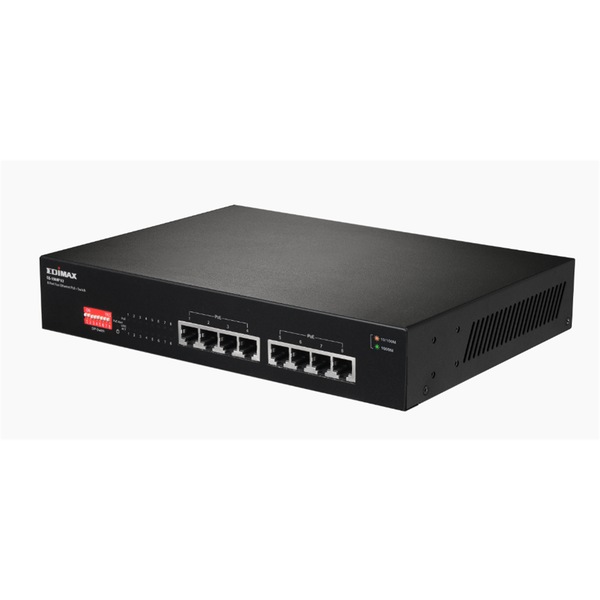

The Edimax GS-1008P V2 is an Eight PoE+ Port Gigabit switch designed for use in home, small or medium-sized network environments. With 8 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance up to 200m and also support port-based NO-OFF for VLAN and QoS functions. It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers and network attached storage (NAS). The device's compact size and fanless design make it an ideal solution for expanding home and small business networks.
- Eight 10/100/1000Mbps Gigabit PoE+ ports
- IEEE 802.3af/at PoE compliant for simplified deployment and installation.
- Up to 30W per PoE port (total power budget: 130W) for powering PoE-enabled devices.
- Auto-detection of powered devices (PD) and power consumption levels.
- Hardware DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30W PoE transmit distance of 200m at speed of 10Mbps
- Port-based VLAN and Loop Protection features
- Supports 802.1p Quality of Service (QoS)
- Includes Rack Ears

Power over Ethernet (PoE+) Auto Detection
Features eight IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100V-240V AC power into low-voltage 50V-57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the GS-1008P V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable - meaning easy setup and management of network devices such as access points and network cameras.

Innovative Port-based VLAN Features
The GS-1008P V2 features port-based VLAN where ports can be isolated from each other via DIP switch port 3 & 8. This can help to prevent IP camera's multicast or broadcast storms from affecting each other.


Hardware QoS for Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.

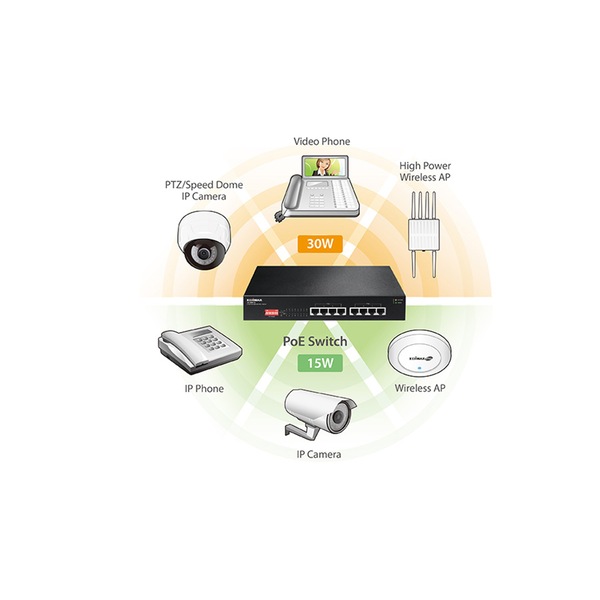

Application Diagram

Hardware
Ports
8x RJ45 10/100/1000Base-T PoE+ ports
Transmission Method
Store and forward
LED Indicators
Power: Green LED
LNK/ACT: Green LED (Port 1 – Port 8)
PoE: Green LED (Port 1 – Port 8)
PoE Alert: Green LED (PoE overload alarm)
Fan
Fanless
DIP Switch
PoE Extend, VLAN, QoS
Power Requirements
Input: 100V-240V AC
Power Supply: 160W
Power Consumption
5W
Dimensions (L x W x H)
215.5mm x 133mm x 42mm
Weight
1609.5g
Performance
Switching Capacity
16G
MAC Address
8K
Buffer Memory
128Kb
Jumbo Frames
9KB
Filtering/Forwarding Rates
1000Mbps port - 1488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Power over Ethernet
Standard
IEEE 802.3af, IEEE 802.3at
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-)
PoE Power Budget
130W
Environment
Temperature
Operating: 0°C ~ 40°C,
Storage: -40°C ~ 70°C
Humidity (Non-condensing)
Operating: 10% ~ 90%,
Storage: 5% ~ 90%
Standards Compliance
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet IEEE802.3ab 1000BASE-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Ethernet
- MPN: GS-1008PV2

GTIN: 4717964701589
