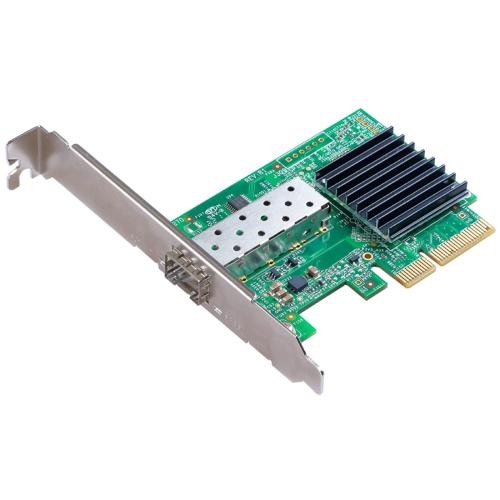

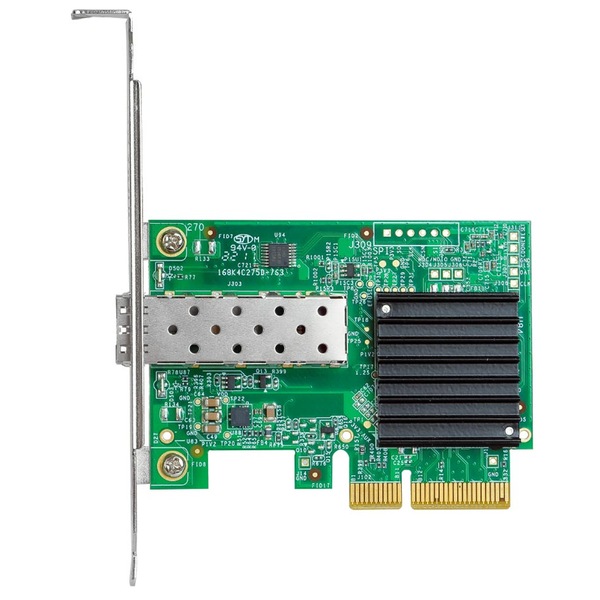

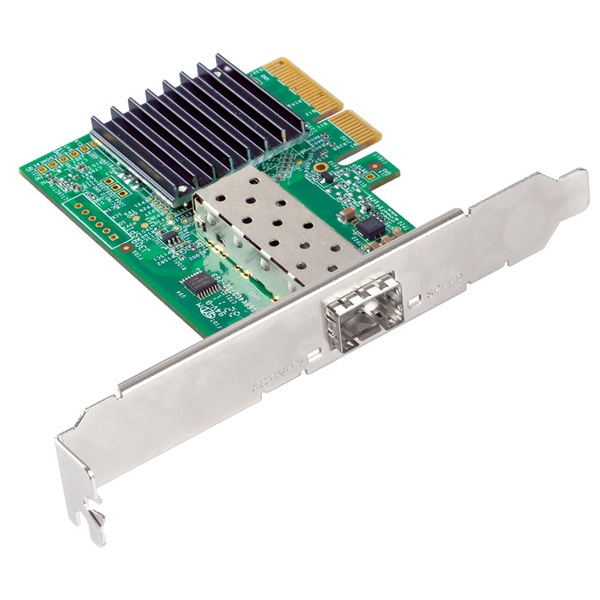

Edimax EN-9320SFP-V2 10GbE SFP+ V2 PCI Express Natwork Adapter. Converts PCIe slot into SFP+ fiber slot.Compatible with standard SFP+ modules. Low profile bracket included. [EN-9320SFP-V2]

Image 1
Image 2
Image 3
Image 4
Image 5
Hurry! 2 items left!
$171.96

Collect 171 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Edimax EN-9320SFP-V2 10GbE SFP+ V2 PCI Express Natwork Adapter. Converts PCIe slot into SFP+ fiber slot.Compatible with standard SFP+ modules. Low profile bracket included.

EDIMAX 10GbE SFP+ V2 PCI Express Network Adapter
Converts PCIe slot into SFP+ fiber slot. Compatible with standard SFP+ modules. Low profile bracket included.
The EN-9320SFP+ V2 10GbE SFP+ PCIe network adapter provides 10X faster data transmission speed than standard Gigabit Ethernet speeds, which can easily handle bandwidth-intensive tasks in Home/SOHO/SMB environments and provides an optimal upgrade solution to the mainboard with fibre optic connectivity. Built-in QoS and VLAN features, the EN-9320SFP+ V2 automatically prioritizes bandwidth for your most critical applications and provides better security, higher performance and less latency network connections. Combining the EN-9320SFP+ V2 with SFP+ modules (EDIMAX MG-10G Series), DAC/AOC cables, your system offers greater flexibility in optional fibre distances, and superior performance with fast and reliable 10Gbps network access.
- 10GbE Faster Transmission: Supports 10Gbps transmission speed for high-speed bandwidth-intensive requirements
- Fiber Optic Further Distance: Fiber optical cables offers many further distances than the copper cables
- Advanced Performance Features: Supports QoS, VLAN, 16K Jumbo Frame and equipped with a large cooling heatsink for improved network performance, in addition to enhanced efficiency, reliability and security
- Enhanced CPU & Network Efficiency: Features IP, TCP and UDP checksum offloading to offload checksum processing, then to the network card and that frees up resources on the CPU
- Flexible Deployment: With a PCIe 3.0 x4 interface and included low-profile bracket for most computers and workstation motherboards
10GbE Faster and Further Fiber Optical Connection
10 Gigabit PCIe SFP+ Network Adapter

10X Faster and Further
With SFP+ standard, the EN-9320SFP+ V2 PCIe card provides 10X faster than standard Gigabit Ethernet which can easily handle the bandwidth-intensive tasks such as large file transferring, 8K streaming, low-latency gaming and video conferencing at Home/SOHO/SMB environment. With the fiber optical cable, it offers much further distances than the copper cable, not only for the high-speed but also for long distance connection.

VLAN for High Performance
Virtual Local Area Network (VLAN) divides the existing network into several logical networks to separate traffic within a business without additional hardware, further saving costs. Connecte the EN-9320SFP+ V2 to an IEEE 802.1Q VLAN supported switch or network device for better security, higher performance and less latency.

QoS for Bandwith Priority
The built-in Quality-of-Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN-9320SFP+ V2, you can enjoy latency-free traffic for big file transferring, gaming, video conferencing, or media streaming with ease.

Enhanced CPU & Network Efficiency
The PCIe card features TCP, UDP, and IP checksum offloading, which offloads checksum processing to the network card to enhance the CPU and network efficiency. With the PCIe Gen 3.0 x4 interface, it is easy to migrate the PCIe card into your existing computes and workstation motherboards. An built-in efficient cooling heatsink keeps the PCIe card cool with non-stop reliable connection while processing high performance tasks.

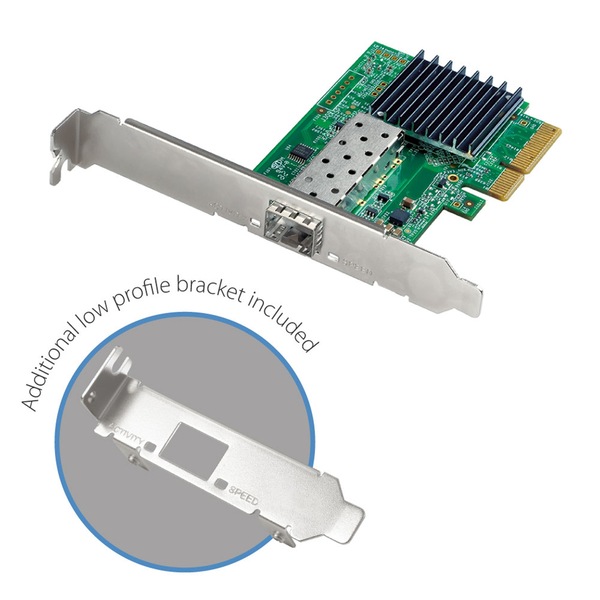

Flexible Low Profile Bracket
The PCIe card comes pre-configured with a standard installation bracket and includes a low-profile/half-height profile bracket for flexible installation in a wide range of computer, workstations, mini computer, regardless of form factor, providing a convenient addition or replacement SFP+ networking interface.

Best Choice for 10GbE High Performance

Hardware
Interface
PCI Express Gen 3 x 4 Host Bus Interface
10 Gigabit Ethernet SFP+ Slot
LED Indicator
SPEED, ACTIVITY
Dimension
82 (W) x 62 (D) x 15 (H) mm (3.23 (W) x 2.44 (D) x 0.59 (H) inches)
Dimension & Weight
48g (1.69 ounces)
Performance & Feature
Jumbo Frame
16KB
Maximum Data Speed
10Gbps
Additional Feature
Quality of Service (QoS)
Low Latency (<4 µs)
Large S end (up to 16KB)
IP, TCP and UDP checksum offloading
Others
Standard
IEEE 802.3ae 10GBase-X 10 Gigabit Ethernet
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
OS Compatibility
Windows 8/8.1/10//11 (32/64-bit)
Environmental Condition
Temperature:
Operating: 0 ~ 40°C (32~104°F)
Storage: -40 ~ 85°C (-40~185°F)
Humidity:
?Operating: 10 ~ 90% (Non-condensing)
Storage: 5 ~ 90% (Non-condensing)

Certification
CE, FCC
Package Content
10 Gigabit Ethernet SFP+ PCI Express Network Adapter
Low Profile Bracket
Quick Installation Guide
- MPN: EN-9320SFP-V2

GTIN: 4717964704634
