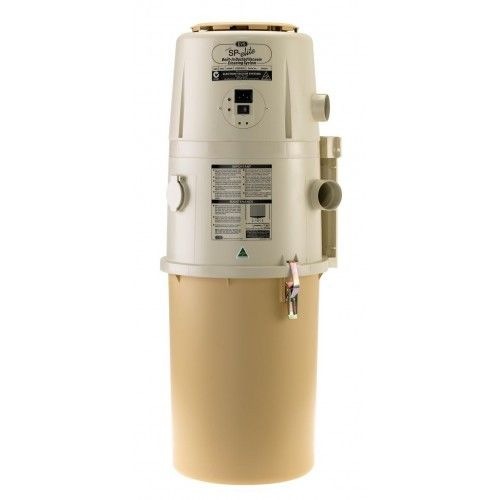

Electron EVS Ducted Vacuum Cleaner System Model SP-ELITE

EVS sp-elite

Description:

The SP series caters for those discerning users that insist on achieveing that extra level of quietness, but not compomising on the overall performance required for all cleaning situations.

Model SP-elite

Vacuum Motor Specifications:

• Flow Through discharge l


• Double ball bearings l


• Diameter of Motor mm 143


• Air Watts 750


• Airflow l/s (max.) 61


• Sealed Vacuum mm H2O (max.) 3550


• RPM @19mm working orifice 26800


• Label Rated Electrical Watts 1700


• Noise Level dbA with Silencer @ 3m 59.0


• Temperature Sensistive Thermal Protector


• Control Circuit 12 V DC l


• Control Current 100mA l


• Nominal Voltage 240 V AC l


• Nominal Frequency 50 Hertz l

Power Unit Physical Specifications:

• Overall Height (mm) 840


• Overall Diameter (mm) 310


• Overall Weight (kg) 7.5


• Dual Filtration Compatible System l


• Cyclonic Filtration (Standard) l


• HFPC Filter Cartridge l


• Filter Bag Filtration


• Silencer for Exhaust l


• Left & Right ducting entry points l


• Direct Inlet point with On/Off switch l


• Wall Mounting of Power Unit l


• Body Housing Construction ABS


• Dirt Capacity litres 25

Authority Approvals / Origin

• "C" Tick Compliance EMC - AS/NZS 1044 l


• Made in Australia l

Installation Recommendations *

• Size of Building up to Squares 70


• Number of Inlet Points 10


• Number of Aux Points 5


• Working Hose length - up to metres 15


• Max distance to furtherest point metres


• Hide-A-Hose Compatible l

Note:-

Instalaltion Recommendations shown is only an approxiate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.

Specifications subject to change without notice. EOR
