Electron EVS Ducted Vacuum Model 2606B + Hose + Attachments
Model 2606B Small To Medium Size Houses
Vacuum Motor Specifications
Tangential By-pass discharge l
Flow Through discharge
Double ball bearings l
Diameter of Motor mm 145
Air Watts 405
Airflow l/s (max.) 50
Sealed Vacuum mm H2O (max.) 2450
RPM @19mm working orifice 21200
Label Rated Electrical Watts 1400
Noise Level dbA with Silencer @ 3m 68.5
Temperature Sensistive Thermal Protector l
Control Circuit 12 V DC l
Control Current 100mA l
Nominal Voltage 240 V AC l
Nominal Frequency 50 Hertz l
Power Unit Physical Specifications
Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 6.9
Dual Filtration Compatible System l
Cyclonic Filtration (Standard) l
HFPC Filter Cartridge l
Filter Bag Filtration
Silencer for Exhaust l
Left & Right ducting entry points l
Direct Inlet point with On/Off switch l
Wall Mounting of Power Unit l
Body Housing Construction ABS
Dirt Capacity litres 25
Authority Approvals / Origin
"C" Tick Compliance EMC - AS/NZS 1044 l
Made in Australia l
Installation Recommendations *
Size of Building up to Squares 30
Number of Inlet Points 4
Number of Aux Points 2
Working Hose length - up to metres 12
Max distance to furthest point metres

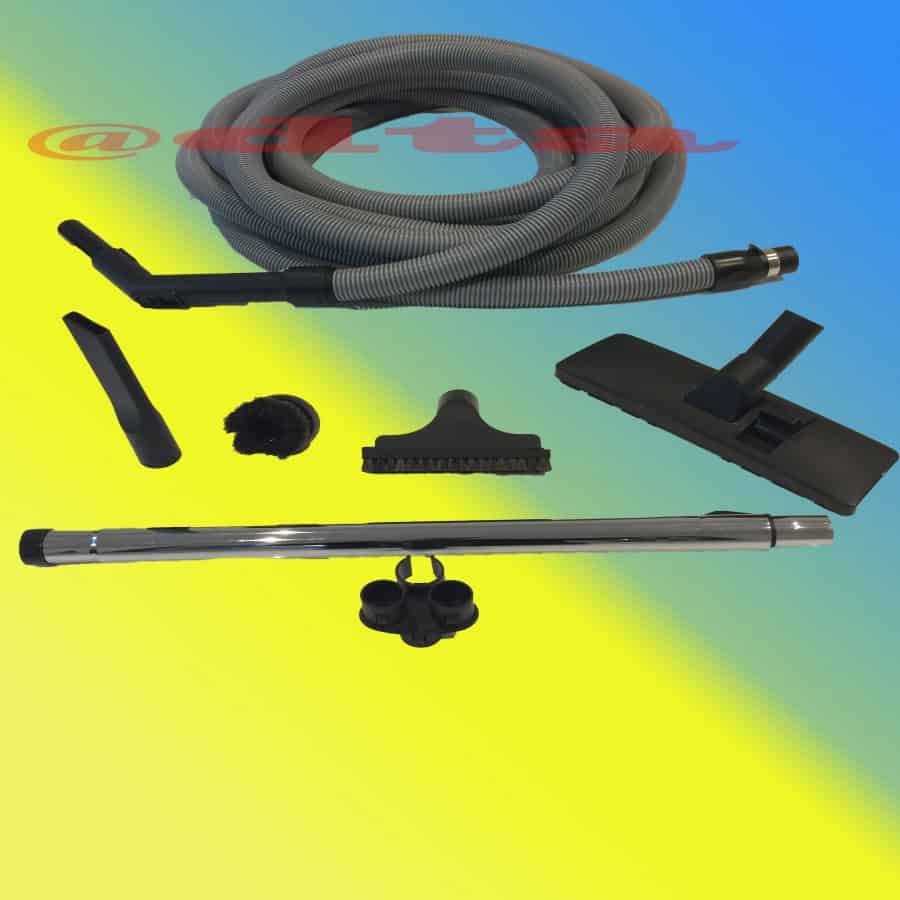

You GeT with The Vacuum:
Hose 9M
Telescopic Rod
Attachments including : Floor head, Crevice - Dusting - upholstery - tools and Caddy To Hold The tools
Notes:-
Installation Recommendations shown is only an approximate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.
