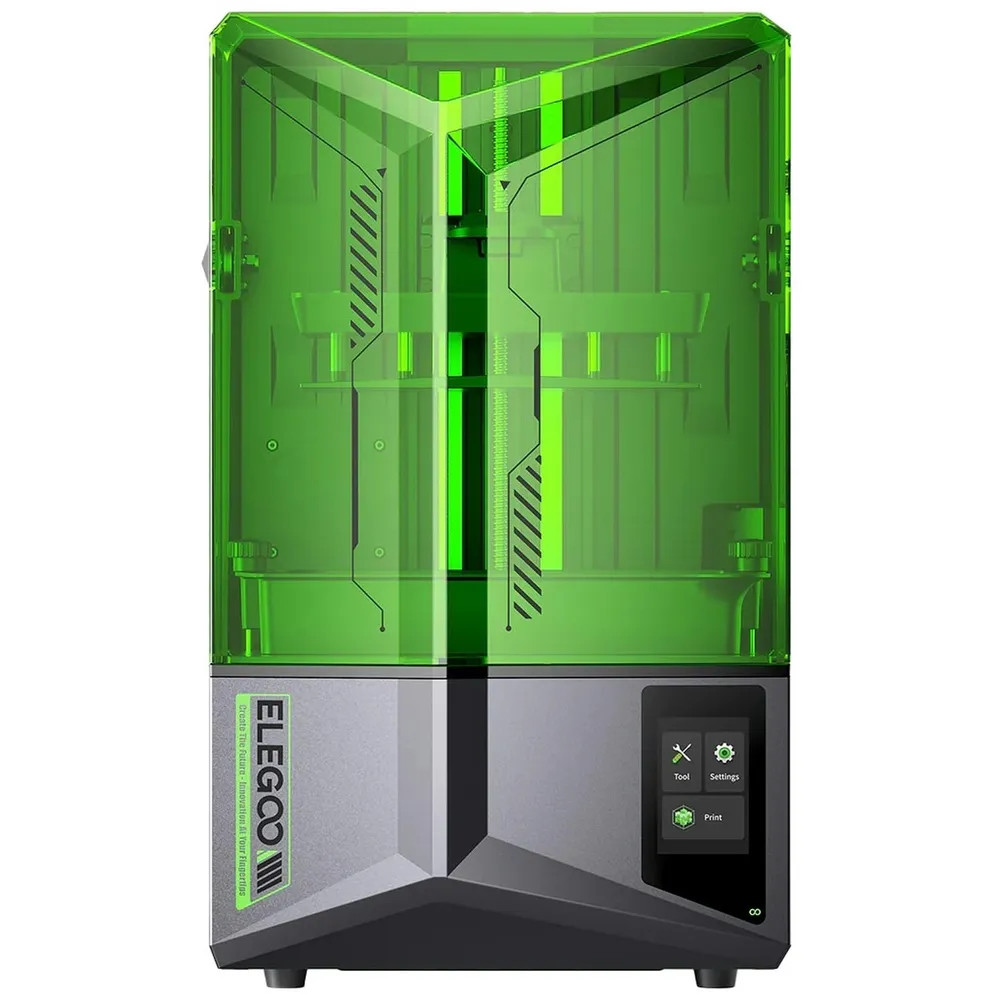

Elegoo Saturn 4 Resin Printer

Elegoo Saturn 4 Resin Printer

Hurry! 9 items left!

$1099

Collect 1099 Everyday Rewards points

Free Shipping

Sold & shipped by MAD Electronics Australia

Secure ways to pay at checkout

(0)

12K Mono LCD For Excellent Details Reproduction: With a 10-inch 12K mono LCD, the Saturn 4
boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24um, presenting you
exquisite models with stunning clarity and precision. The LCD screen is equipped with a durable and
anti-scratch protector made of 9h tempered glass, effectively protecting the screen from scratches and
damage.
COB & Fresnel Collimating Lens For Precise Surface: When the COB light source emits light at
405nm with the combination of a Fresnel collimating lens, it can achieve an ultra-low astigmatism
coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below
5o on the forming surface, realising accurate and even printing results with delicate finishing and
intricate details.
Automatic Levelling, Print Right Out Of The Box: With its intelligent self-check and auto-levelling
features, the Saturn 4 delivers a worry-free experience. Unbox, power on, and print - the
printing experience has never been this effortless.
One-Click Self-Check: With one single click, the Saturn 4 will perform a quick self-check to ensure all
its components are working properly before your printing starts.
One-Click Automatic Levelling: Thanks to its intelligent mechanical sensor, levelling the build plate has
become a breeze every time once you click the button, saving your time and efforts.
Smart Mechanical Sensor, Enjoy Worry-Free Printing: Equipped with a mechanical sensor, the
Saturn 4 supports residue detection to
prevent damage to the LCD screen, as
well as resin shortage and levelling failure
alarm to further enhance the safety and
reliability during printing.

* 10" 12K Mono LCD
* COB + Fresnel Collimating Lens
* Auto Levelling & Intelligent Mechanical Sensor
* User-Friendly Structure & Advanced Cooling System

Specs:

LCD: 10-Inch 12K Mono LCD
SYSTEM :EL3D-3.0.1
SLICER SOFTWARE :Voxeldance Tango & ChituBox & Elegoo SatelLite
TECHNOLOGY :MSLA Stereolithography
LAYER THICKNESS:0.01-0.2mm
PRINTING SPEED :MAX 70mm/h
Z AXIS ACCURACY: 0.02mm
XY RESOLUTION:19*24um (11520*5120)
BUILD VOLUME:218.88mm(L)*122.88mm(W)*220mm(H)
LIGHT SOURCE:COB Light Source + Fresnel Collimating Lens(wavelength 405nm)
LANGUAGES: Chinese, English
CONNECTIVITY: USB Interface
WEIGHT:13.5kg
OPERATION: 3.5-inch Resistive Touch Screen
POWER REQUIREMENTS:100-240V 50/60 Hz 24V 6A
PRINTER DIMENSIONS:327.4mm(L)*329.2mm(W)*548mm(H)

Specifications

Filament/Resin Type : ResinPLAPLA+PLA PROABSWashable Resin

Layer Thickness : 0.01mm

Touchscreen Screen Size : 3.5 inch

XY axis Resolution : 19mm

Z Axis Resolution : 0.02mm

3D Printer Type : Resin

Light Source : COB Light Source + Fresnel Collimating Lens (wavelength 405nm)

Contains Button Cell : false

Length : 327.4mm

Width : 329.2mm

Height : 548mm

Diameter : 329.2mm

Weight : 13.5kg

Packaged Volume : 107.08l

Packaged Weight : 16.73kg

Packaged Length : 63.7cm

Packaged Width : 41cm

Packaged Height : 41cm

Length : 218.88mm

Width : 122.88mm

Height : 220mm

Availability : Special Order
