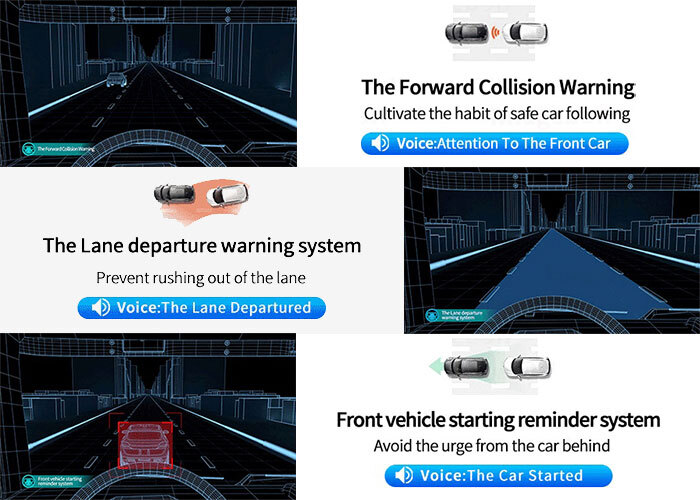

Advanced Driver-Assistance System (ADAS)

• This With Advanced Driver-Assistance System this offers you real-time alerts to promote a safer driving experience
• Forward Collision Warning (FCW) promotes driving awareness when you get very close to the vehicle in front of you. "Attention to the front car"
• Lane Departure Warning (LDW) alerts you when your vehicle drifts out of lane. "The lane departure"
• Front Car Start Notification alerts you when the vehicle in front begins to move. "The car started"

1080P AHD Rear Camera

Capture readable license plates with its 1080P AHD Rear camera at 25 frames per second, it also comes with a 10-metre video cable so you can install it on any car and utes.

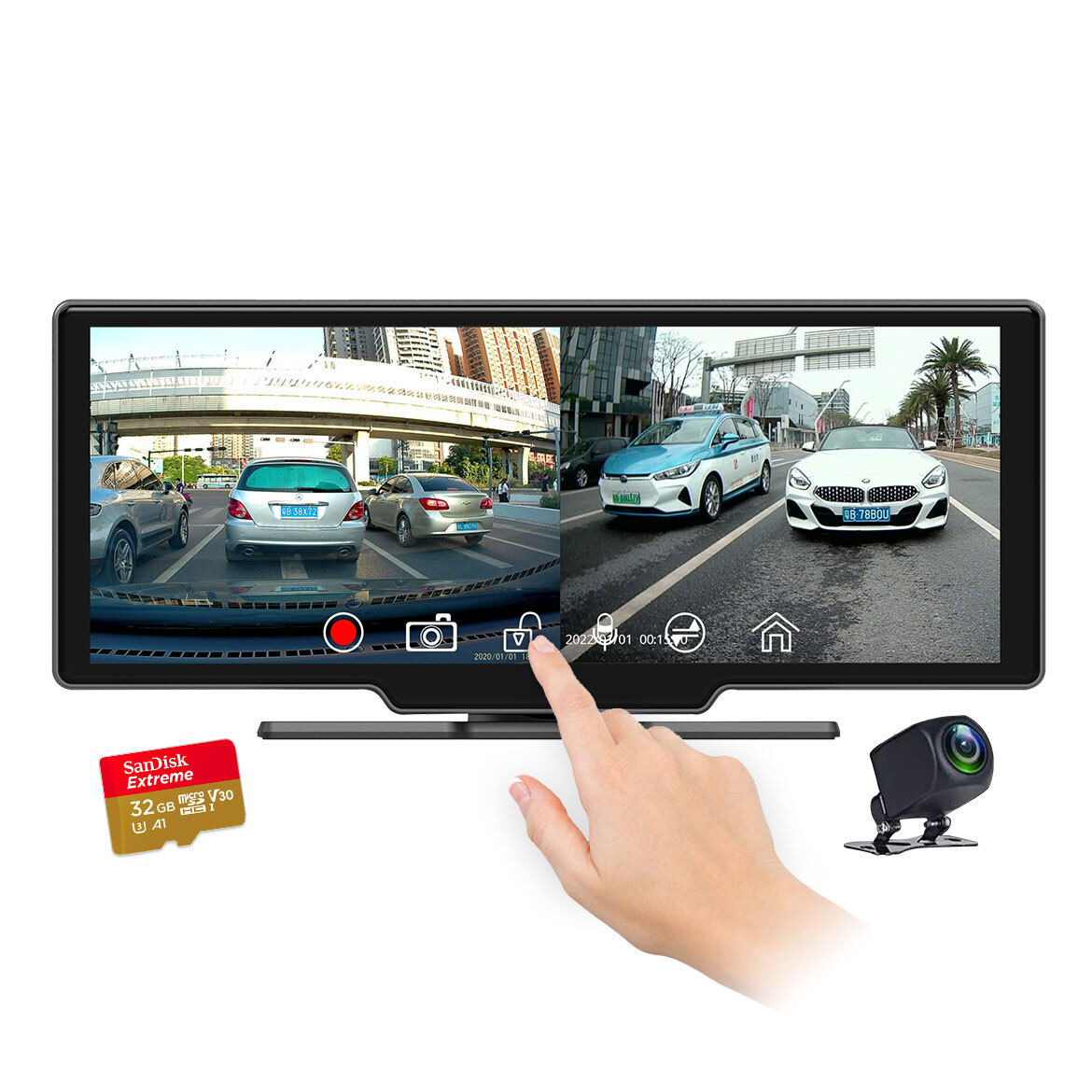

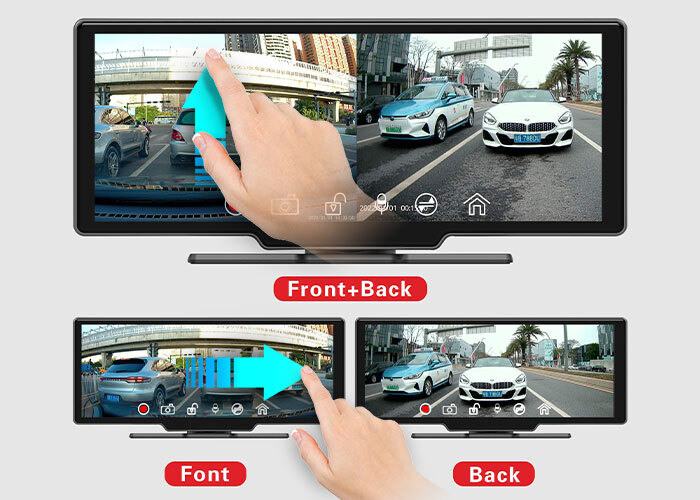

Adjustable Display Modes

Easily tilt the camera angle by sliding up and down on the left half of the screen to reach the best field of view, and select the front image, rear image, or front & rear split-screen image by swiping left.

Reverse Assist

When reversing, it will automatically switch to a full rear camera screen with parking line assist. You can also adjust the viewing angle by sliding up and down on the middle screen.

Video Lock Button

You can press the video lock button anytime to save important footage of both the front and rear cameras. Locking videos will prevent them from getting overwritten.

Seamless Loop Recording

Automatically overwrites the oldest front and rear footage when the card is full. Ensuring that you never miss any important videos.

Built-in Wi-Fi

Get faster access to your dash cam footage without removing the memory card. With high-speed Wi-Fi transmission, you could view and download your footage through the Roadcam App.

Supercapacitor

Equipped with a supercapacitor making this ideal, especially in our Australian climate. Built to withstand extreme weather conditions from - 10°C~ 60°C. Effectively eliminating the risks of overheating, and explosion, unlike other dash cameras with traditional lithium batteries.

4 Audio Options

• Native Audio, play audio through the built-in speakers.
• Aux Audio, play music through your car's audio system using the included Aux cable to enjoy perfect sound quality.
• FM Audio, transmit sound to your car's audio system by tuning into the same FM channel (please avoid using channels used by radio stations).

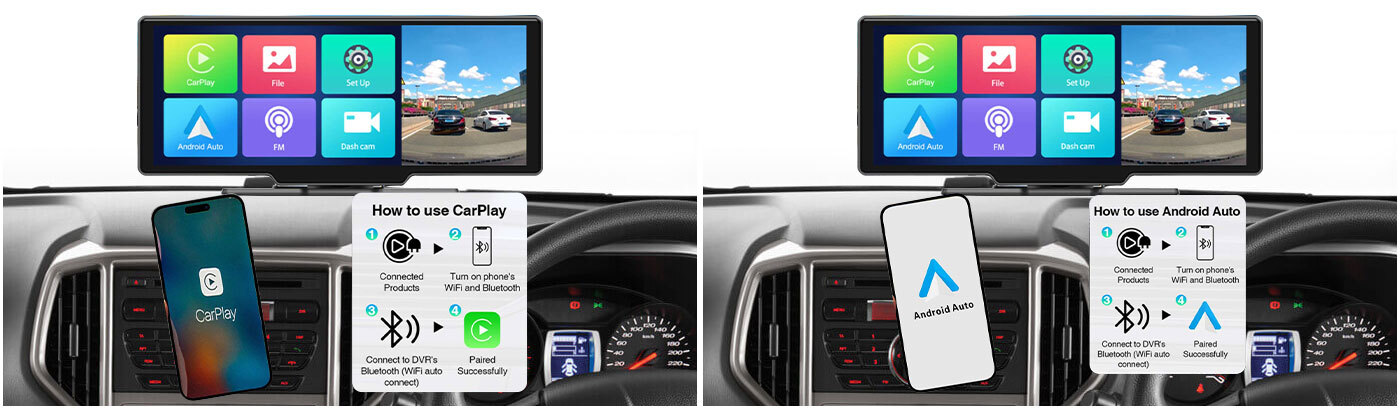

• BT Audio, connect your phone directly to the head unit via Bluetooth while using Carplay or Android Auto.

Plug & Play

No need for complex procedures, install this monitor onto your dashboard or windscreen, install the rear camera in place and connect the red wire of the rear camera into the positive reverse light wire then connect the power cable to cigarette lighter power outlet to complete the installation.

Sandisk 32GB MicroSD Card Included

• Brand: Elinz
• Model: DCCARPLAY-32U3
• Screen Size: 10.26" Capacitive Touch Screen
• Chipset: Rockchip RV1126
• Image Sensor: GC4653 CMOS
• WiFi/BT: FG6222BSRC/FG6221BSRC 2.4G/5G WIFI+BT4.24.2
• Microphone: Built-in
• Audio: Built-in Speaker/Aux Audio/FM Audio/Bluetooth Audio
• Video Resolution: 3840x2160 front & 1920x1080P rear
• Frame Rate: 22 FPS & 25 FPS Viewing Angle: Front Camera 170°, Rear Camera 140°
• Languages: Multi-language
• File Format: TS file
• Channel: 2CH
• Backup Assist: Automatic
• Auto Switch On: Support
• Loop Recording: Support
• Rear Camera Rating: IP66 Waterproof
• Display Modes: Front/Split/Rear Camera Display
• Night Vision: Support
• Microphone: Built-in
• Storage capacity: Supports up to 128GB MicroSD Card
• Operating voltage: 12~24V
• Power interface: Type C
• Power: Supercapacitor
• Waterproof Rating IP67
  • This rear camera is totally protected against dust and can withstand temporary water immersion.

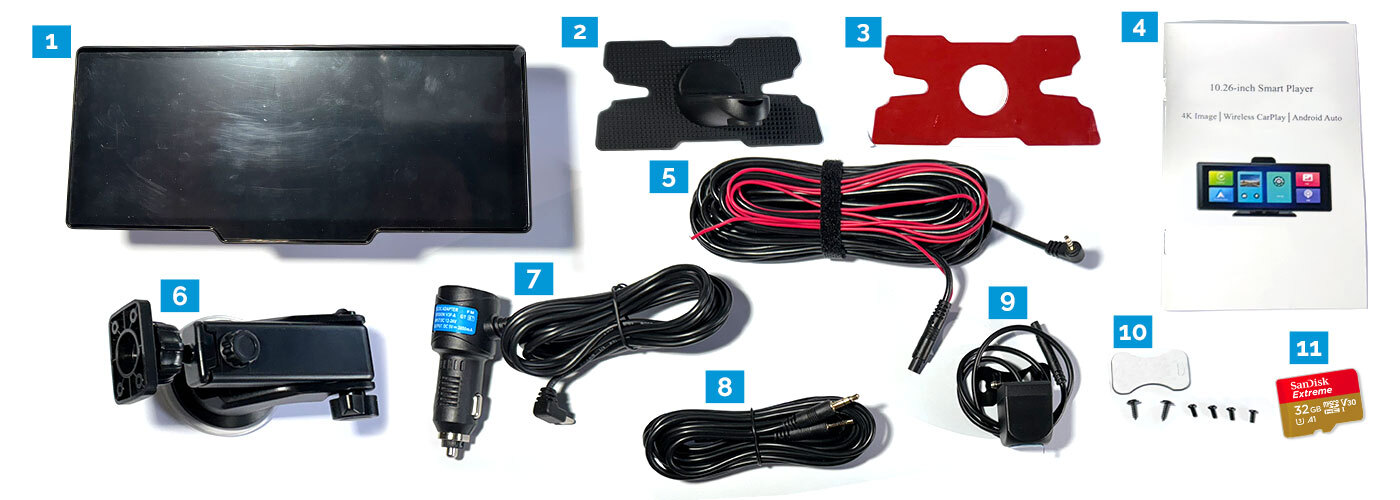

1. 1x Dashboard Monitor DVR

2. 1x Monitor Base

3. 1x Mount Adhesive Tape

4. 1x User Manual

5. 1x Rear Camera Cable (10 metres)

6. 1x Suction Cup Mount

7. 1x 12V Power Adapter (3.5 metres)

8. 1xAux Cable (3 metres)

9. 1x 1080P Rear Camera

10. 1x Rear Cam Adhesive Tape & Set of Screws

11. 1x 32GB U3 MicroSD Card
