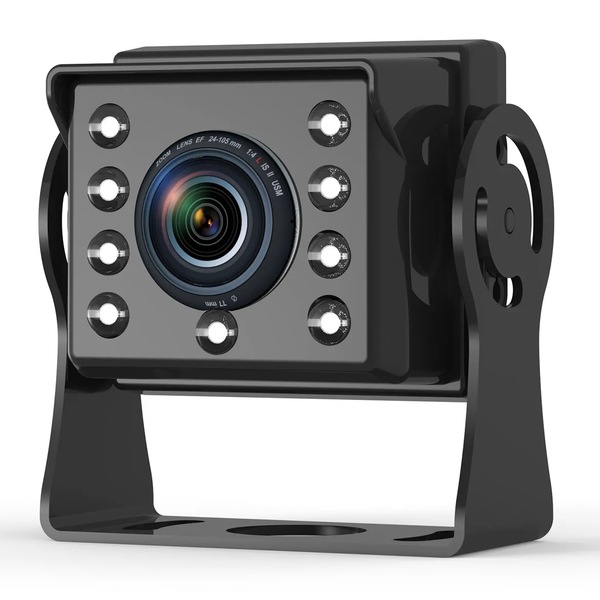

The Elinz 1080P AHD Reversing Rear View Camera is a high-performance solution designed for enhanced safety and clarity while reversing. Equipped with 1080P Full HD resolution, a Starvis sensor for low-light visibility, and IP68 waterproof protection, this camera ensures reliable performance in all conditions.

• AHD Camera
  • This new AHD Analog High Definition reversing camera has a higher image resolution than the standard CVBS cameras in the market today.
• 1080P Full HD
  • This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in a real 1080P Full High Definition.
• Starvis Sensor
  • The Starvis sensor has a higher sensitivity to recognize colours that delivers sharper, clearer, and more detailed images during daytime.
• Perfect Field of View
  • With a 1/2.8 sensor that provides you with a 120° field of view, reducing blind spots for reversing and a more realistic viewing angle. It's perfect for monitoring and reversing as it reduces distortions and fisheye effects, unlike other camera brands
• Night vision
  • The night vision effect is enhanced with 8pcs IR LEDs to help you see black and white images at night using infrared technology.
• 4PIN Connector
  • The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
• IP68 Waterproof
  • This camera is completely protected against dust and can withstand fresh water immersion of up to 1 meter.

• Technology: AHD
• Image sensor: Starvis 1/2.8" 1080P CMOS Sensor
• TV system: PAL/NTSC
• Effective Pixel: 1920(H)*1080(V)
• Pixels Size: 2.8μm*2.8μm
• Resolution: 2.0 Mega Pixels
• Minimum illumination: 0.01Lux/F1.8 (0 Lux With LED)
• Night Vision: IR
• Image: Mirror image
• View Angle: 120°
• Waterproof Level: IP68
• Working Voltage: DC12V
• Current Consumption: <150mA
• Waterproof Rating: IP68
• Gamma Factor: 0.45
• Vertical Sync Frequency: 50Hz / 60Hz
• Horizontal Sync Frequency: 15.625KHz / 15.734KHz
• Internal Sync Definition: 1000 TVL
• Connector: 4PIN
• Compatible Monitors: M7AHD, M500AHD, M525AHD, M725AHD, M1025AHD

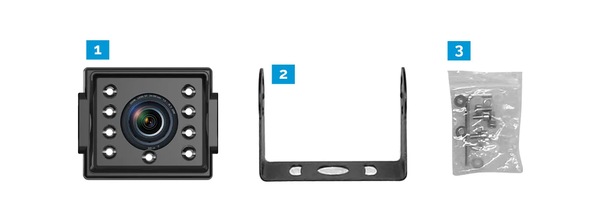

1. 1x AHD Reversing Camera

2. 1x Bracket

3. 1x Screws
