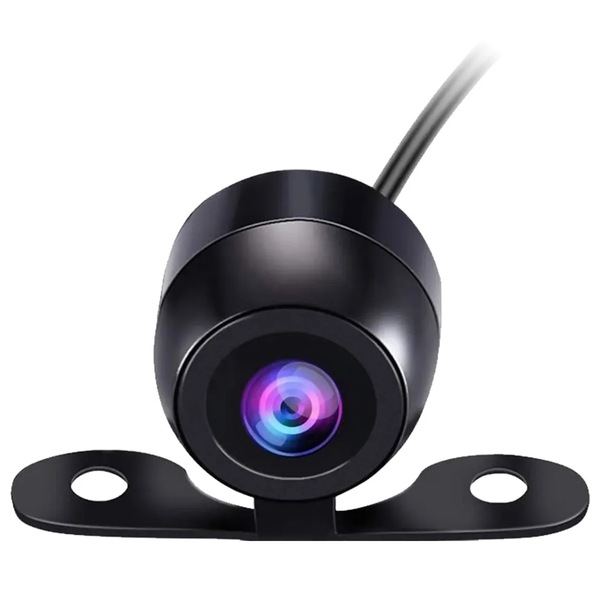

The Elinz 1080P AHD Reversing Rear View Camera combines cutting-edge technology with versatile installation options, making it an essential accessory for safer and more convenient driving. This camera delivers superior performance in all conditions, featuring 1080P Full HD resolution, a Starvis sensor for low-light clarity, and an IP68 waterproof rating.

• AHD Camera
  • This new AHD Analog High Definition reversing camera has a higher image resolution than the standard CVBS cameras in the market today.
• 1080P Full HD
  • This camera offers you a more vivid colour and a clearer view of what's behind your vehicle in a real 1080P Full High Definition.
• Two Ways to Install
  • This small 1080P AHD camera can be installed on the rear bumper of your vehicle for an unobtrusive camera with only the lens visible or can be hung near your license plate if you wish to install it without drilling.
• Starvis Sensor
  • The Starvis sensor has a higher sensitivity to recognize colours that delivers sharper, clearer, and more detailed images during daytime.
• Perfect Field of View
  • With a 1/2.8 sensor that provides you with a 120° field of view, reducing blind spots for reversing and a more realistic viewing angle. It's perfect for monitoring and reversing as it reduces distortions and fisheye effects, unlike other camera brands
• 4PIN Connector
  • The 4-pin aviation connector is considered to be one of the best connectors for reversing cameras. This robust and waterproof connector helps prevent accidental or unintended disconnection.
• IP68 Waterproof
  • This camera is completely protected against dust and can withstand fresh water immersion of up to 1 meter.

• Technology: AHD
• Image sensor: Starvis 1/2.8" 1080P CMOS Sensor
• TV system: PAL/NTSC
• Effective Pixel: 1920(H)*1080(V)
• Pixels Size: 2.8μm*2.8μm
• Resolution: 2.0 Mega Pixels
• Minimum illumination: 0.01Lux/F1.8 (0 Lux With LED)
• Night Vision: n/a
• Image: Mirror image
• View Angle: 120°
• Waterproof Level: IP68
• Working Voltage: DC12V
• Current Consumption: <150mA
• Waterproof Rating: IP68
• Gamma Factor: 0.45
• Vertical Sync Frequency: 50Hz / 60Hz
• Horizontal Sync Frequency: 15.625KHz / 15.734KHz
• Internal Sync Definition: 1000 TVL
• Connector: 4PIN
• Compatible Monitors: M7AHD, M500AHD, M525AHD, M725AHD, M1025AHD

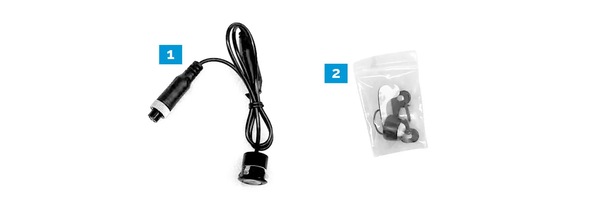

1. 1x AHD Reversing Camera
2. 1x Mounting Bracket & Screws
