Elinz 4CH Digital Wireless 7" Quad Monitor Splitscreen DVR 12V 24V 2.4GHz

Elinz 4CH Digital Wireless 7" Quad Monitor Splitscreen DVR 12V 24V 2.4GHz

Be the first to review this product

Limited Stock!

Price	$209.95
	Earn 5x points and collect 1045 Everyday Rewards points. Promotion ends 25/04/2024. Create a MyDeal Account or Login to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

4CH Digital Wireless 7" Quad Monitor Splitscreen DVR 12V 24V 2.4GHz

SKU: M7DG

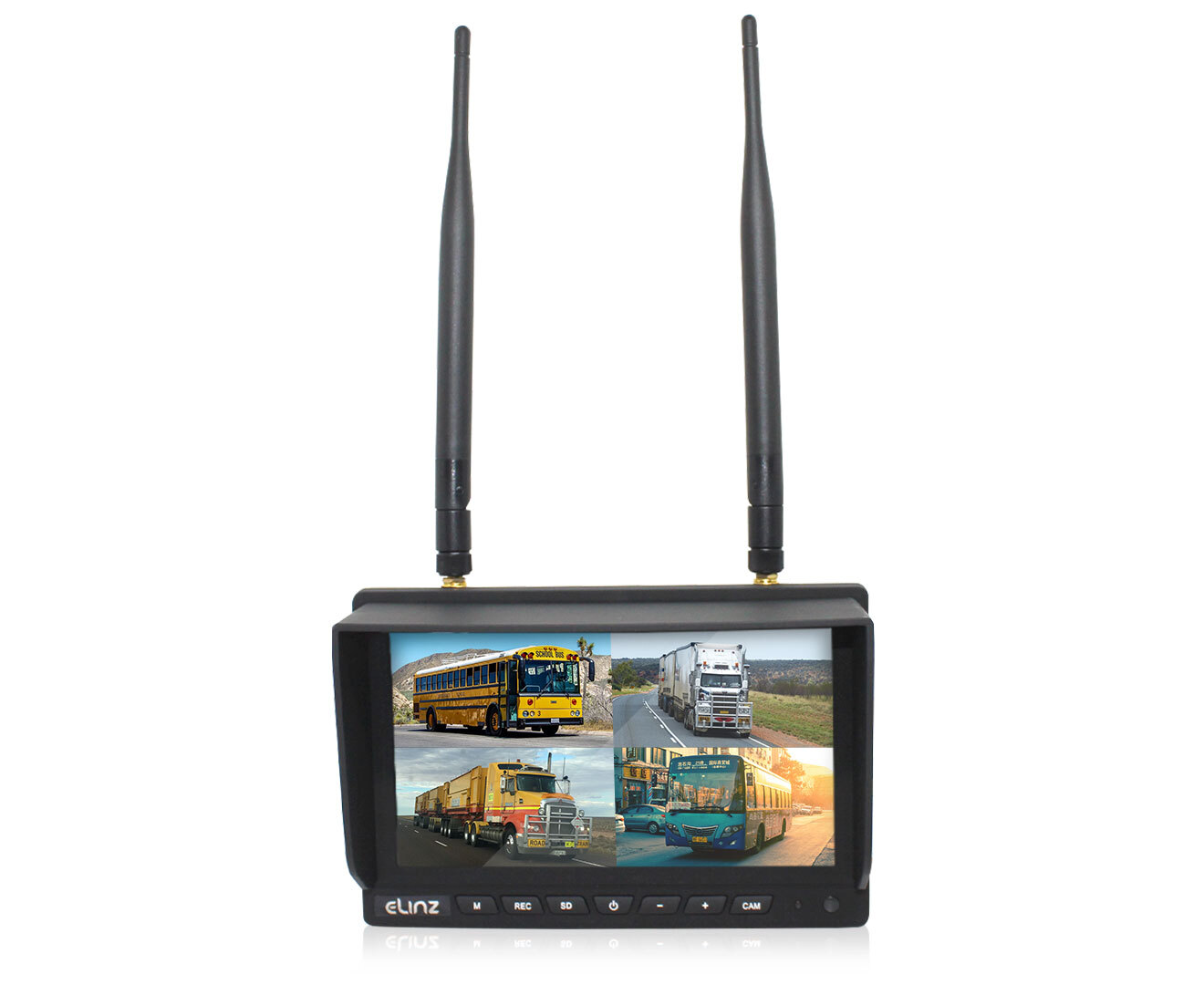

7" TFT-LCD Quad Screen Monitor

800 x 480 resolution
Audio recording for all 4 channels wireless cameras
The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting

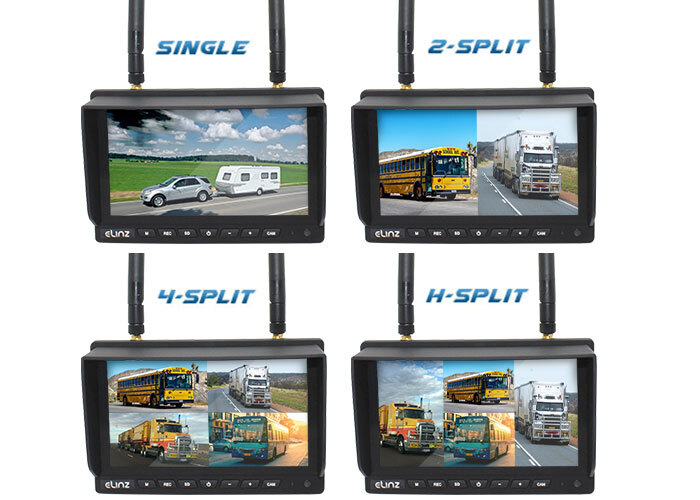

Split Screen Monitor

It can be single screen, Split screen, quad screen or H-split screen

DVR Recording Function

Can support up to 128GB SD card (SD card not included, available to be purchased separately)

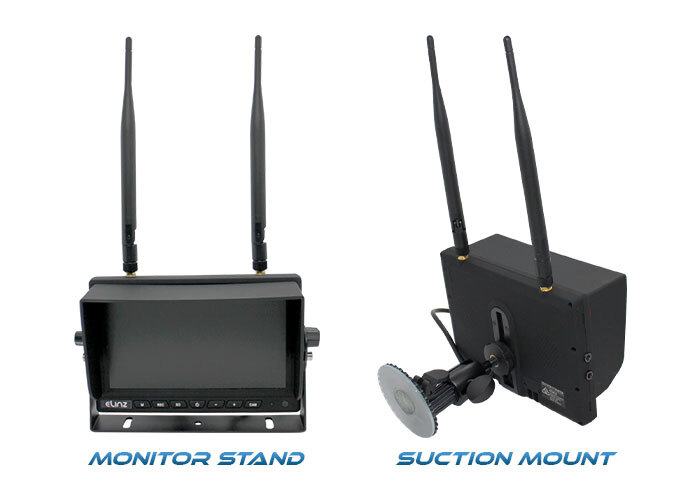

2 Ways to Install Monitor

Using monitor stand
Using suction mount

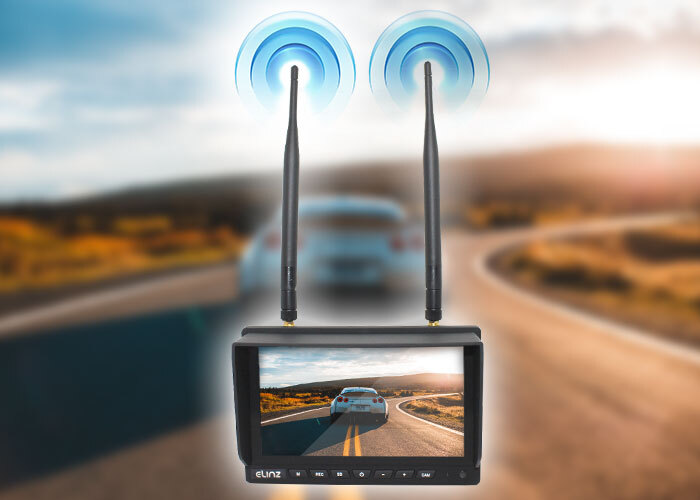

2.4GHz Digital Wireless Transmission Up to 200m

2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
Stable signal and HD image
Improved wireless module to provide longer transmission distance of 30m-200m
Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
Stable transmission up to 100km/h

Universal Fit

It is ideal for wide variety of vehicles like Cars, SUV, UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
Suitable with 12V/24V power supply

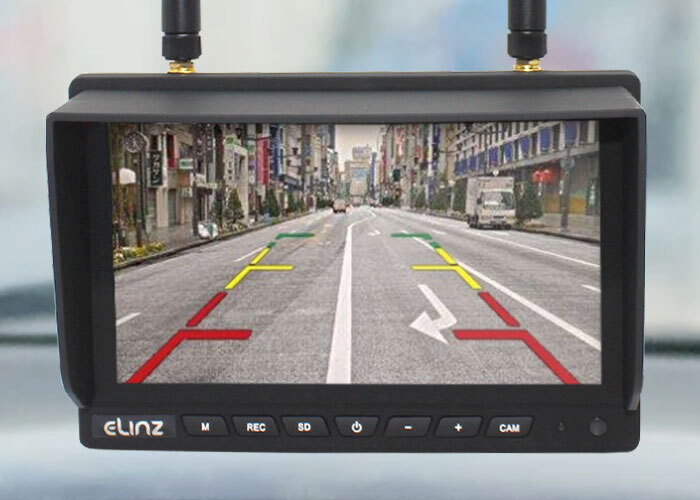

Parking guideline can be turned On / Off

Monitor Labels

Monitor Dimensions

Wiring Labels

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

Remote

* No Batteries Included

MORE INFORMATION

4CH Digital Wireless 7" Quad Monitor Splitscreen Monitor DVR 12V 24V 2.4GHz 800x480

7" TFT-LCD Quad Screen Monitor that has 4 channels to support audio recording up to 4x cameras.The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting. It has 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference.

It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more. Suitable with 12V/24V power supply. You have 2 Ways to Install Monitor (1)Using monitor stand and (2) Using suction mount.

What is the difference between Wireless Analogue Transmission and Wireless Digital Transmission?

Analogue systems use the same technology /frequency as Bluetooth/wireless networks therefore analogue monitors can pick up interference from Bluetooth phones/headsets etc. Digital systems are paired and only 'see' the digital signals, therefore there is no interference.

*Note: Cameras not included

PRODUCT HIGHLIGHTS

7" TFT-LCD Quad Screen Monitor
- 800 x 480 resolution
- Audio recording for all 4 channels wireless cameras
- The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting
Split Screen Monitor
- It can be single screen, Split screen, quad screen or H-split screen
DVR Recording Function
Can support up to 128GB SD card (SD card not included, available to be purchased separately)
Wireless Rear View System
- You do not need to run wires to connect the camera and monitor.
2.4GHz Digital Wireless Transmission Up to 200m
- 2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
- Stable signal and HD image
- Improved wireless module to provide longer transmission distance of 30m-200m
- Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
- Stable transmission up to 100km/h
Universal Fit
- It is ideal for wide variety of vehicles like Cars, SUV ,UTEs, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more
- Suitable with 12V/24V power supply
Parking guideline can be turned on / off
2 Ways to Install Monitor
- Using monitor stand
- Using suction mount

ITEM DESCRIPTION

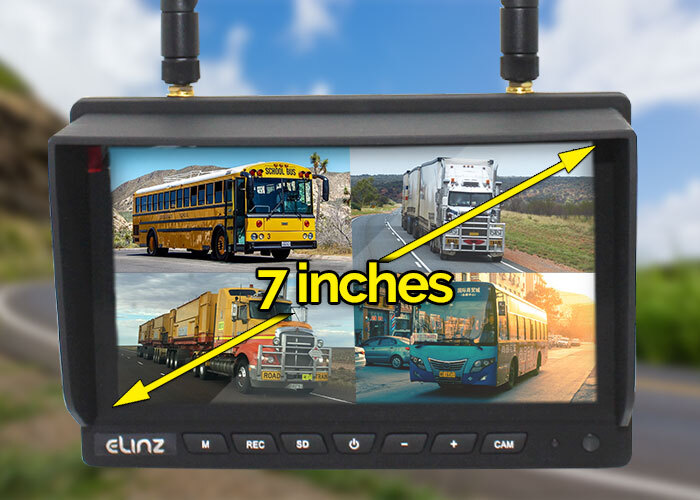

LCD size: 7"
Resolution: 800 x 3 (RGB) x 480
Contrast: 500 | 1
Brightness: 400cd/m²
Aspect Ratio: 16 | 9
Channel: 4 channels
Operating Frequency: 2400 - 2483.5 MHz
Receiving Sensitivity: -89 dBm
Decompression Form: MPEG4
Transmit Output Power: 17 dBm
Modulation: 2.4G FSK/GFSK
Time Delay: 120ms
Transmitting Distance: 30-200M
Micro-SD /TF Card: Max. 128GB(not included)
System Format: PAL / NTSC
Power Supply: DC 10-32V
Power Consumption: Max. 6W
Loudspeaker: 1.5W/8Ω
Operating temperature: -20~+70ºC, RH90%
Storage temperature: -30~+80ºC,RH90%

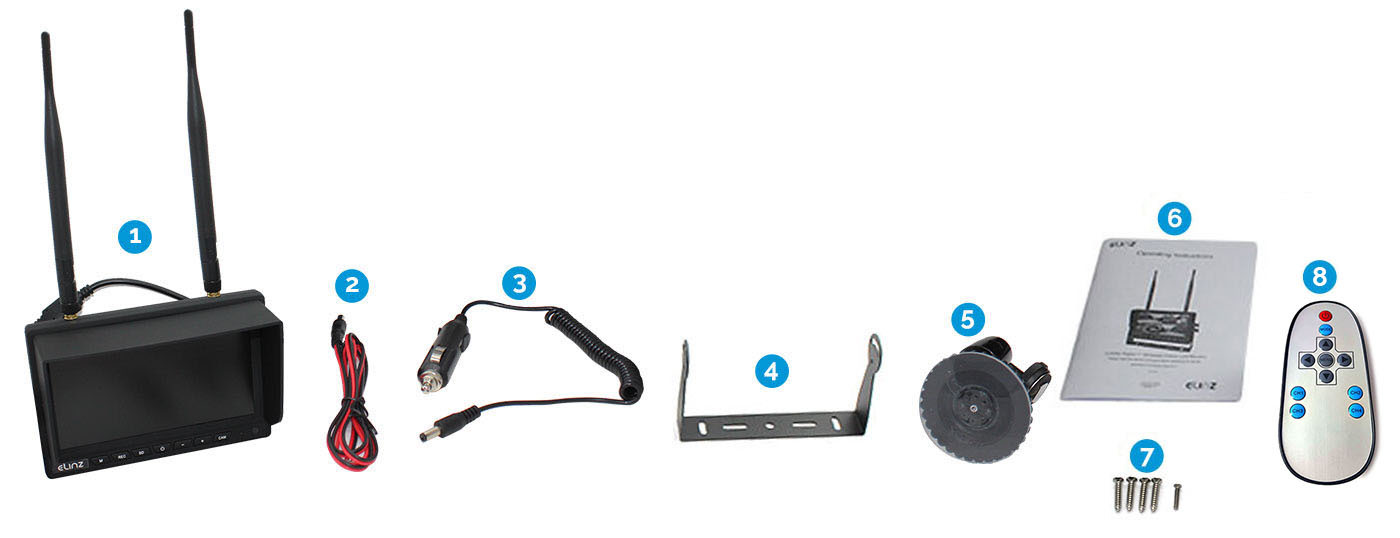

WHAT'S INCLUDED

1. 1x 7" TFT LCD Wireless Monitor

2. 1x Hard Wiring Power Cord

3. 1x Car Charger

4. 1x Monitor Stand

5. 1x Monitor Suction Mount

6. User Manual

7. Screws

8. Remote ( * No Batteries included )
