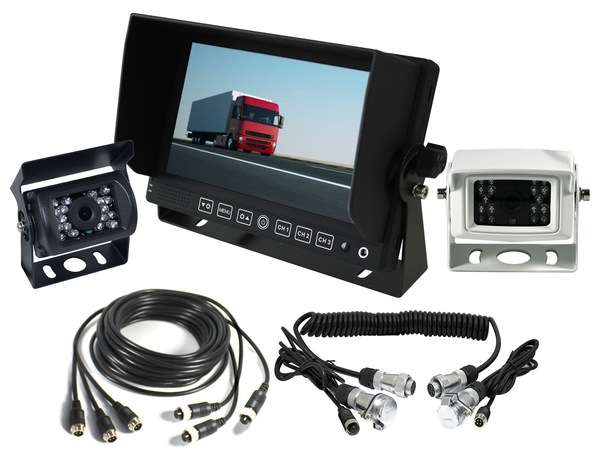

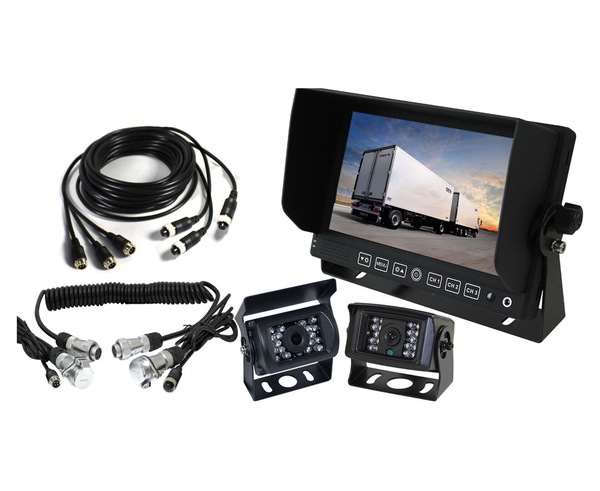

Elinz 7" Monitor Caravan 2 Reversing Camera 4PIN 3AV MIC 12V 24V Trailer Cable Coil

MORE INFORMATION

Get an added safety and convenience with this reversing camera kit that uses 7" TFT monitor with high definition colour LCD panel which offers almost 4 times more pixels than the other standard 7" screens. The monitor has 3 AV inputs, 2 of which are sound enabled, which means that you can hook up the monitor to a DVD player., mp4 player etc. , to play video or hook it up to a reverse camera with microphone for better security.

It uses standard 4PIN connectors to connect to the cameras which will provide power to each camera attached. There are trigger wires with adjustable time delays on the inputs to enable indicators to be used to trigger an AV channel.

This 7" monitor reverse camera kit is suitable for 12V or 24V vehicle. It has voltage overload protection and reverse polarity protection to ensure the monitor and cameras are not damaged by fitting errors. It is mounted by a substantial U-bracket and sunshade to keep the sun off the monitor.

It has stylish touch button control on the front panel of monitor. It has built-in light sensor with automatic adjustment, the monitor will dim itself automatically at night to avoid glare.

Package with 2x heavy duty reverse camera with high-resolution 120° wide field of view camera with in-built infrared LED night vision capability plus CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness. 1 camera has built-in MIC which you can also choose from white or black colour camera depending on preference and the other camera has no built-in MIC.

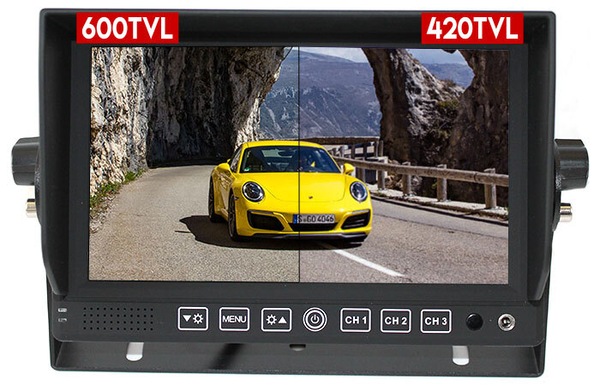

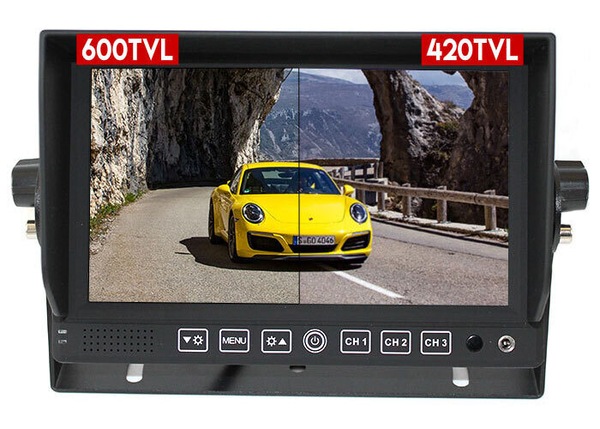

Monitor

• Screen Size: 7" Digital TFT panel with Sunvisor
• Resolution: 800x480
• Aspect Ratio: 16:9 image
• Video Input: 3 way video input- 2 way audio input, with AV-IN
• Power Supply: DC9V-32V
• Recording time: 70 Min
• System: PAL/NTSC Auto –Switching
• Menu: OSD
• Speaker: Built-in Loud speaker
• Varying languages display
• Bracket: with stand and U-shape bracket
• Light Sensor: Automatic adjustment

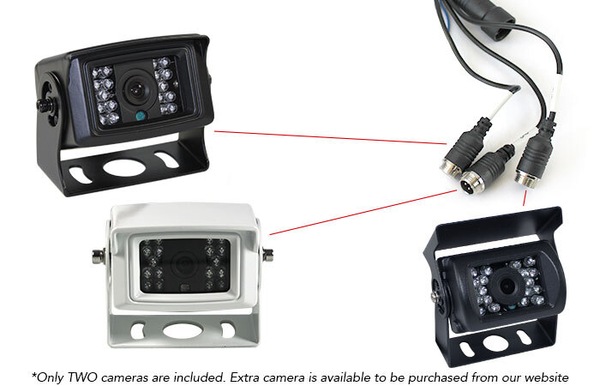

2x Camera

• 1x Camera with built-in mic and 1x camera without mic
• Day and night colour CCD camera
• 1/4 CCD sharp sensor
• 18 LEDs infrared night vision
• System: PAL:752(H)*582(V) and NTSC:768(H)*494(V)
• Resolution: 600 TV Lines
• Minimum Light: 0 Lux(LED ON)
• Electron shutter: 1/100,000 ,ON/OFF
• S/N ratio; More than 48 Db
• Video output: 1Vp-p 75Ω
• Voltage: 12V/24V
• Vibration resistant, especially designed for mobile usage

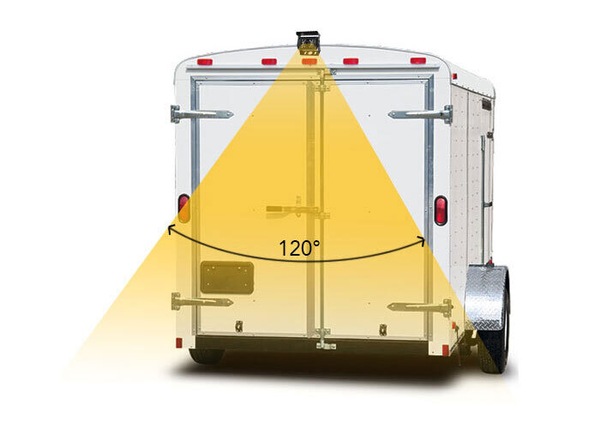

• 120 degree angle

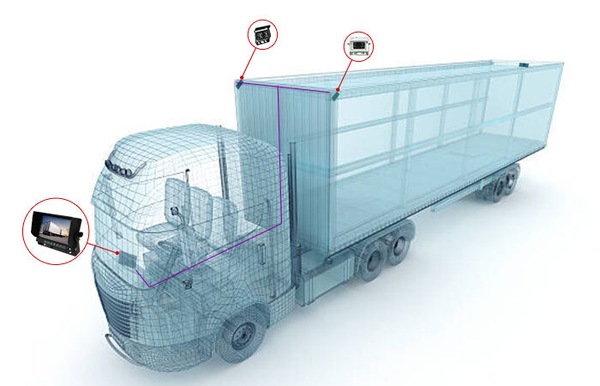

Trailer Cable

• 5 PIN AP-TP20 metal connector with male and female connector
• Waterproof function
• 4 PIN metal connector for CCD Camera
• Length selectable
• With elasticity length from 2 000mm to 4 000mm
• Very tight connection durable and reliable
• Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
• Cast alloy connector can be mounted adjacent on same bracket
• Suitable for truck trailer semitrailer or caravan applications

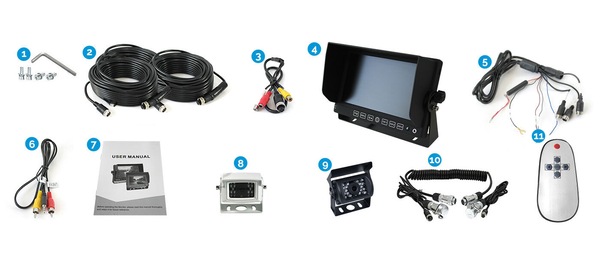

WHAT'S INCLUDED
