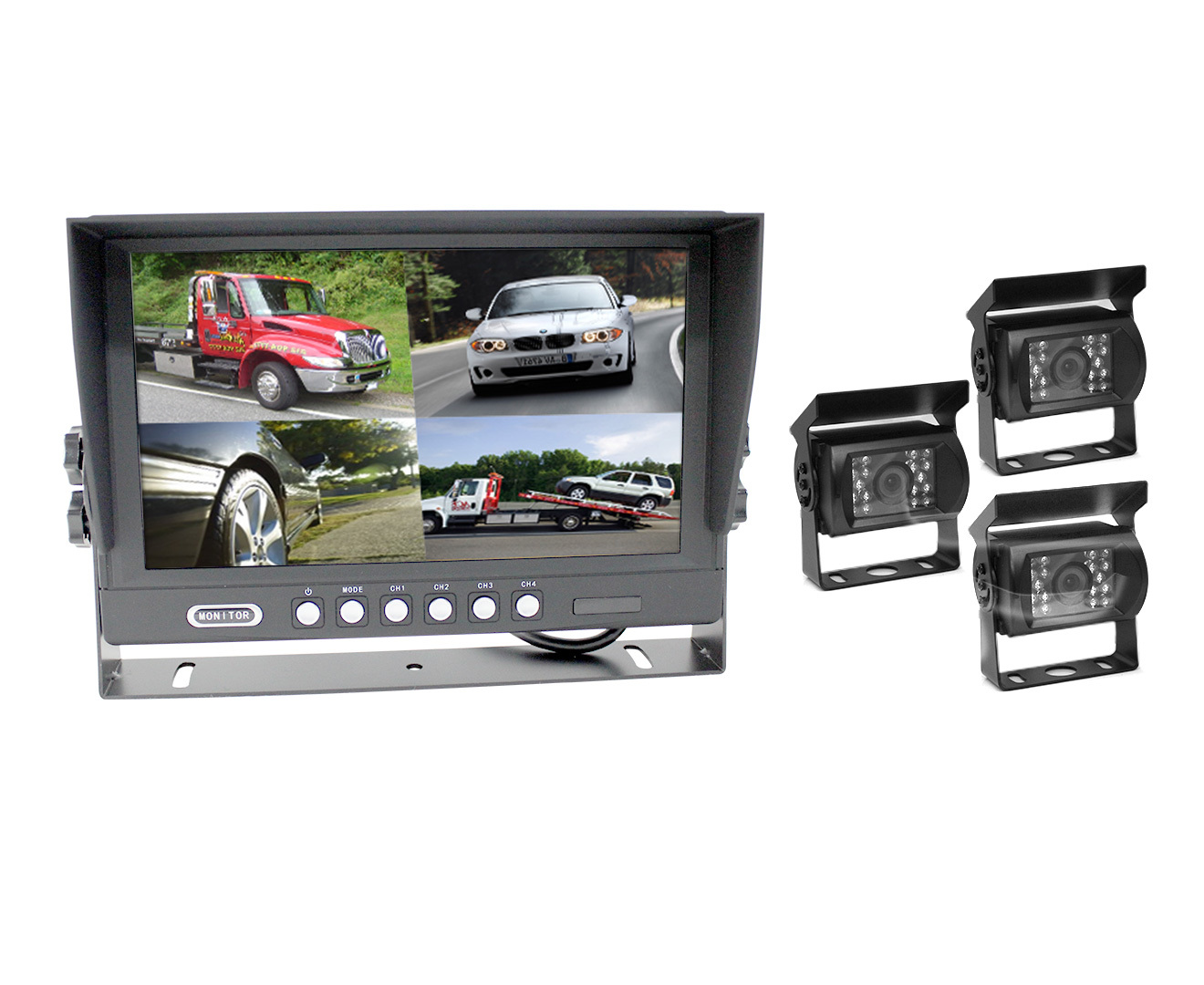

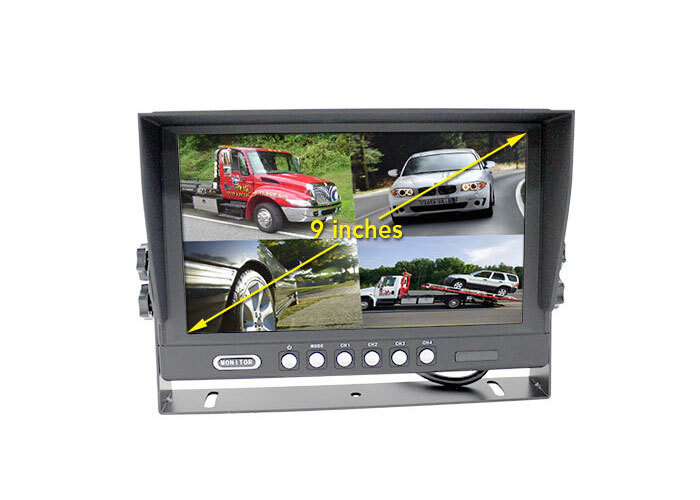

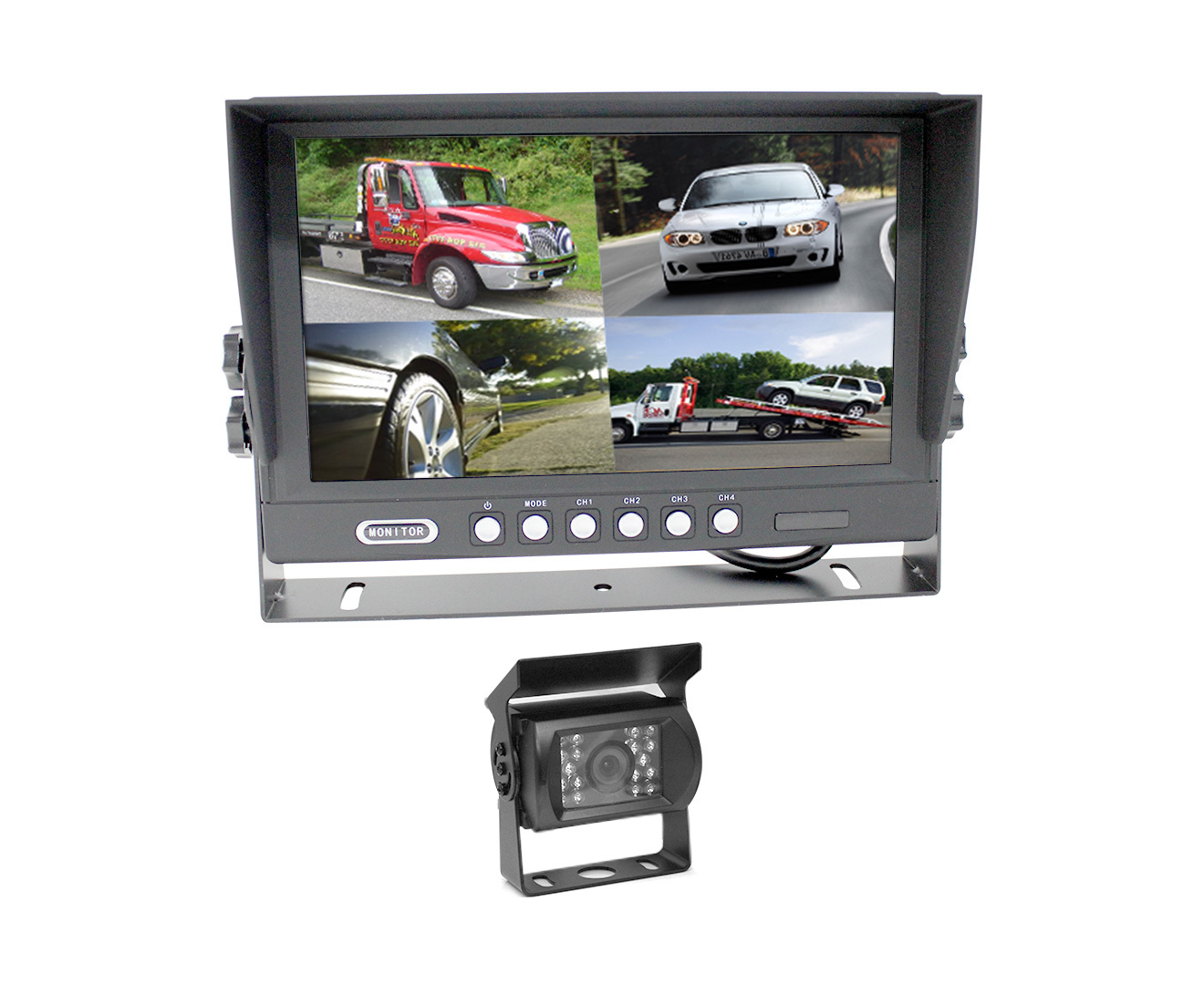

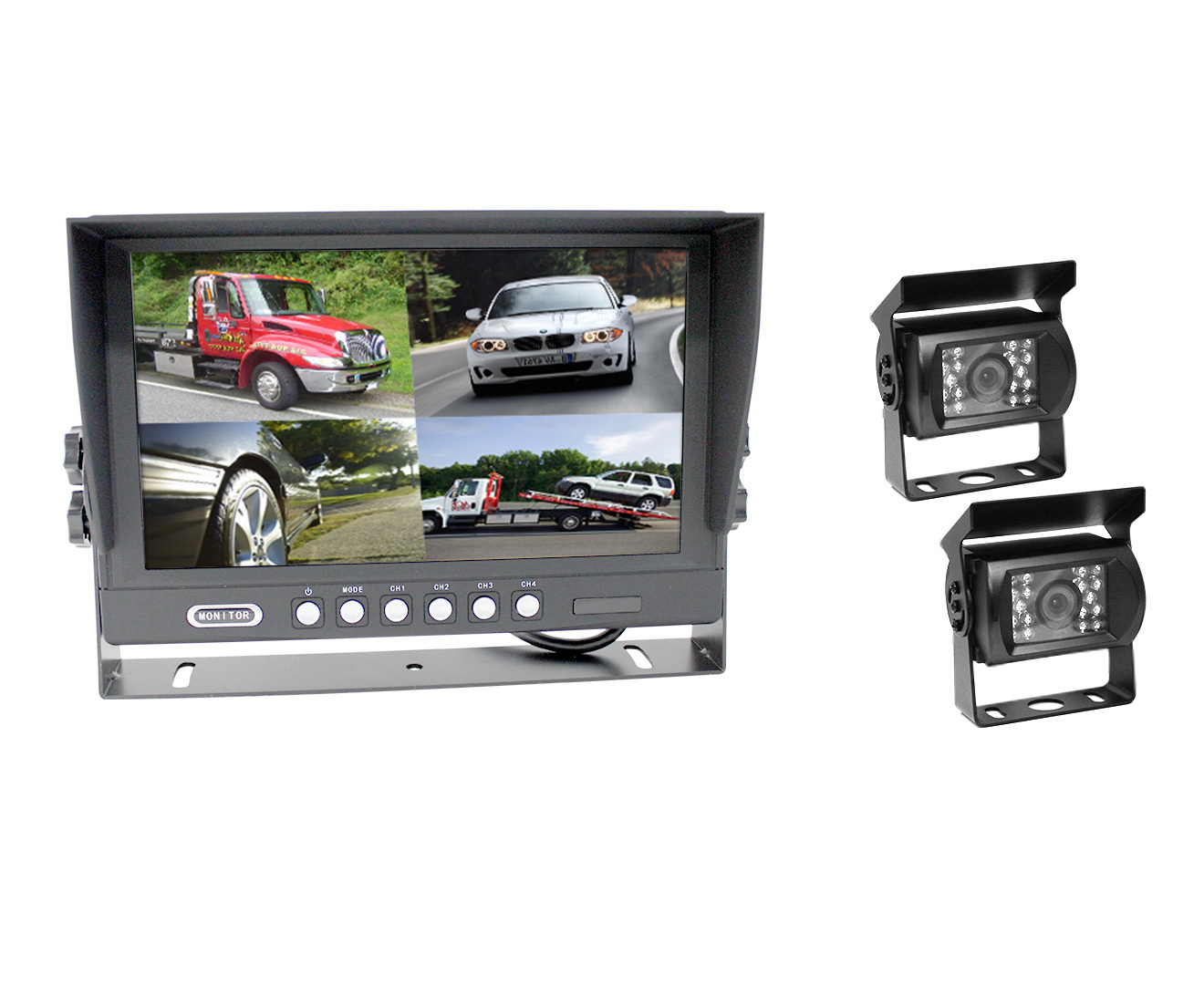

Large Quad Screen Monitor

• 9" Quad screen that can be divided into 1, 2 or 4 demo screen

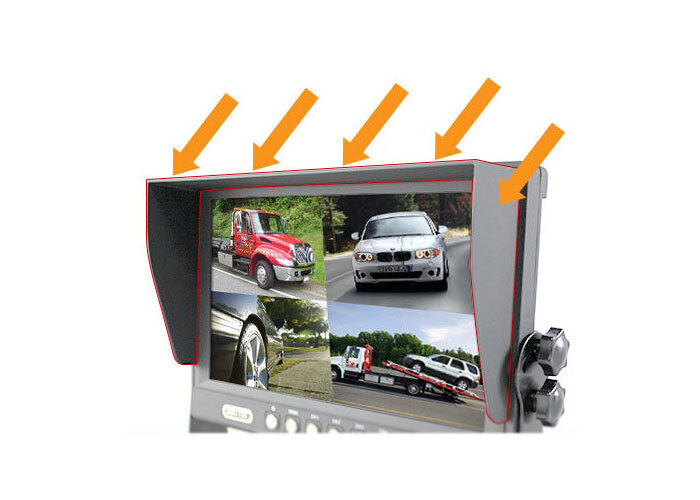

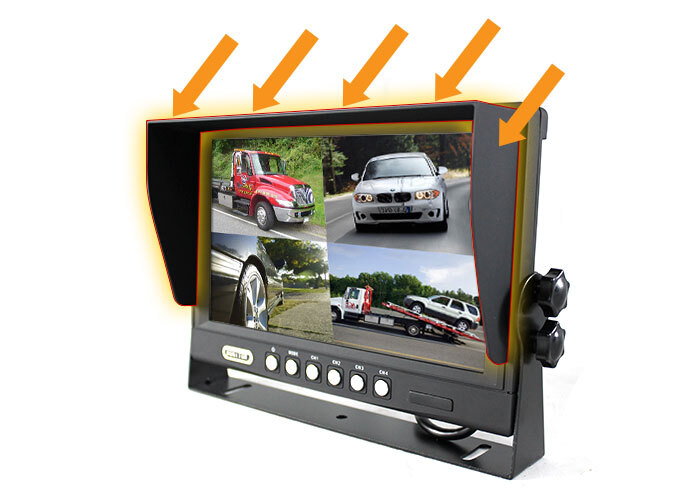

Sunshade Design

• Protection from sun raises to be able to view video clearly.

Heavy Duty Camera

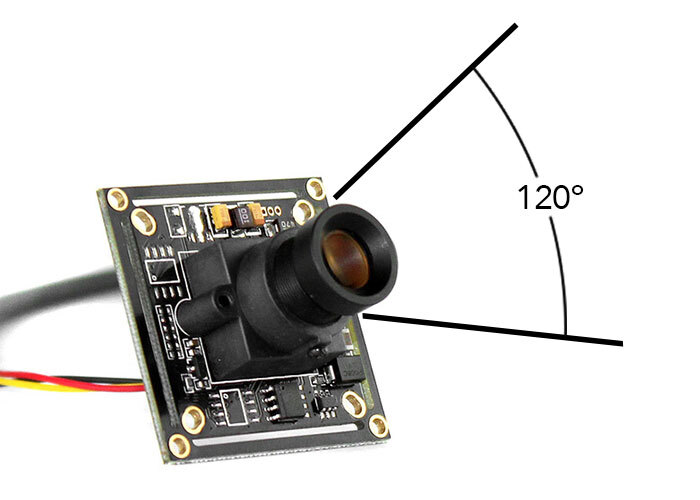

• 120° CCD image sensor made by SHARP company

600TVL Camera

• Higher Resolution & Clearer Images
• 18 Built-in IR LED

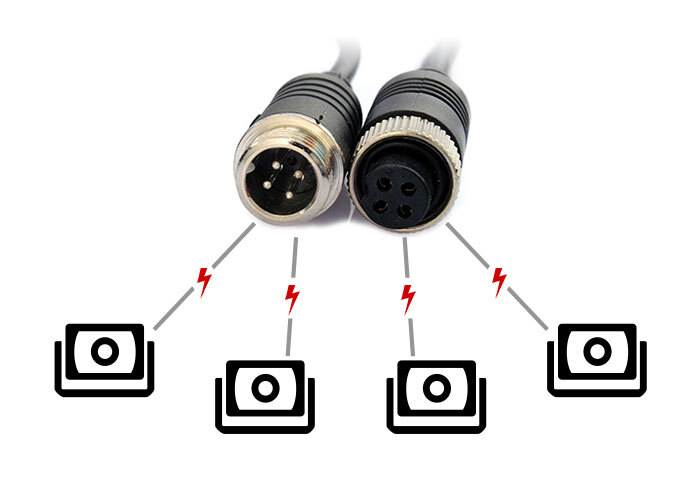

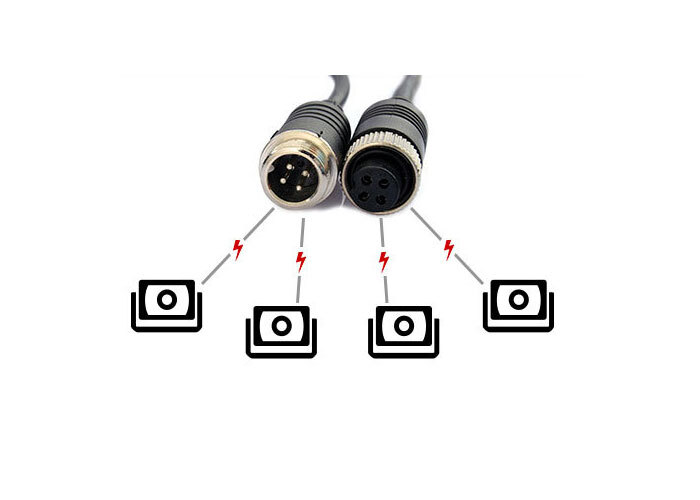

No need to connect power cable to camera

• 4 PIN connector allowing the monitor to power up cameras.

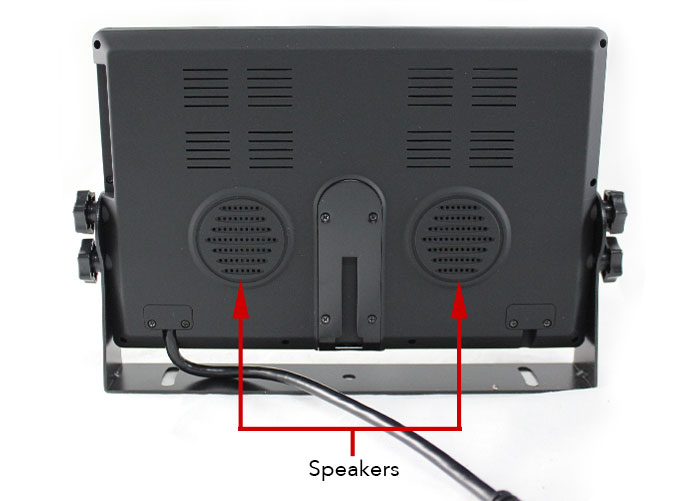

Built-in Speaker

• Audio can be heard on monitor speaker

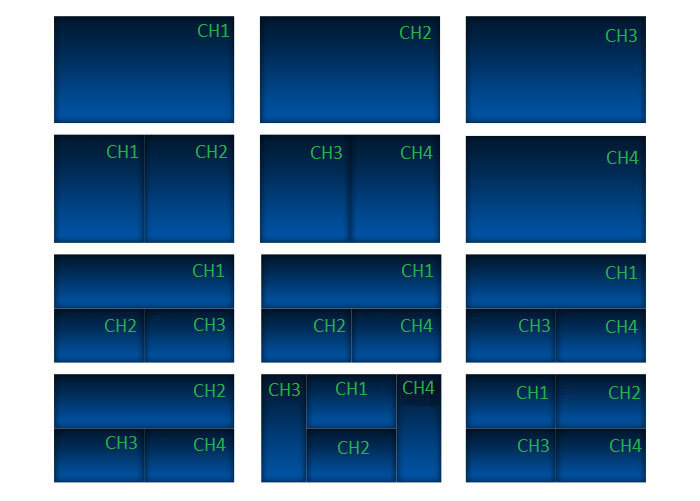

Quad or Splitscreen

• Different demo screens can be displayed at the same time

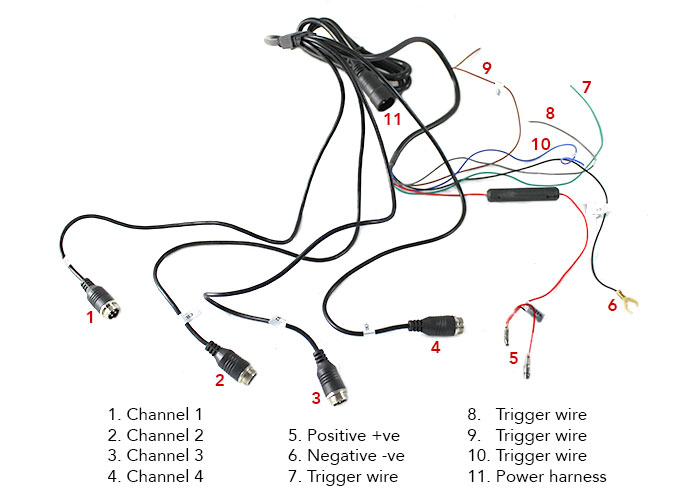

Wiring Labels

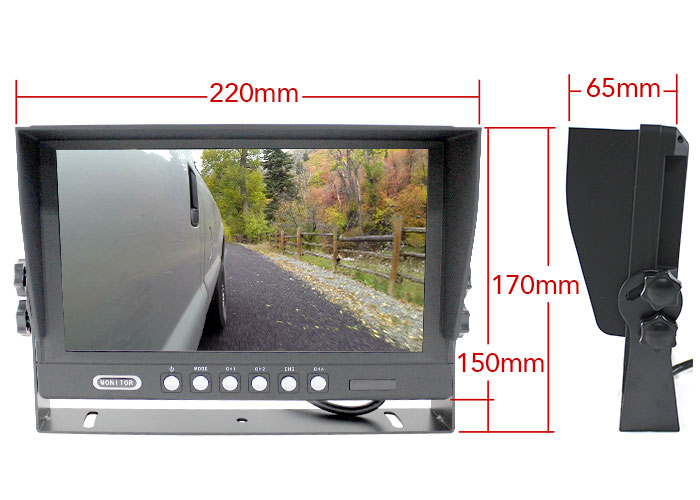

Product Dimensions

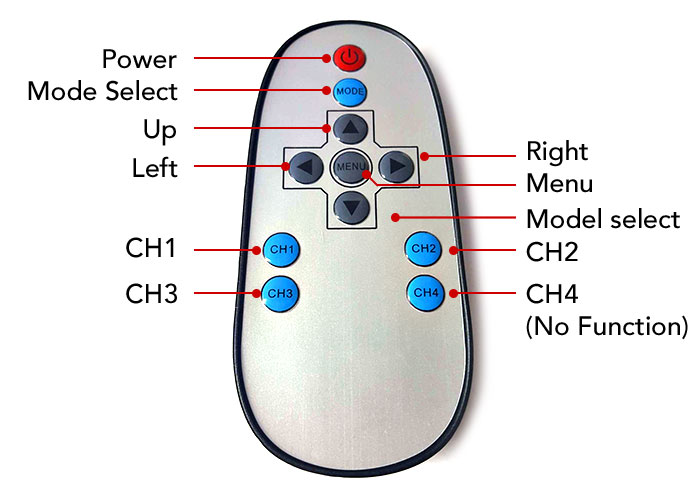

Remote

• * No Batteries Included

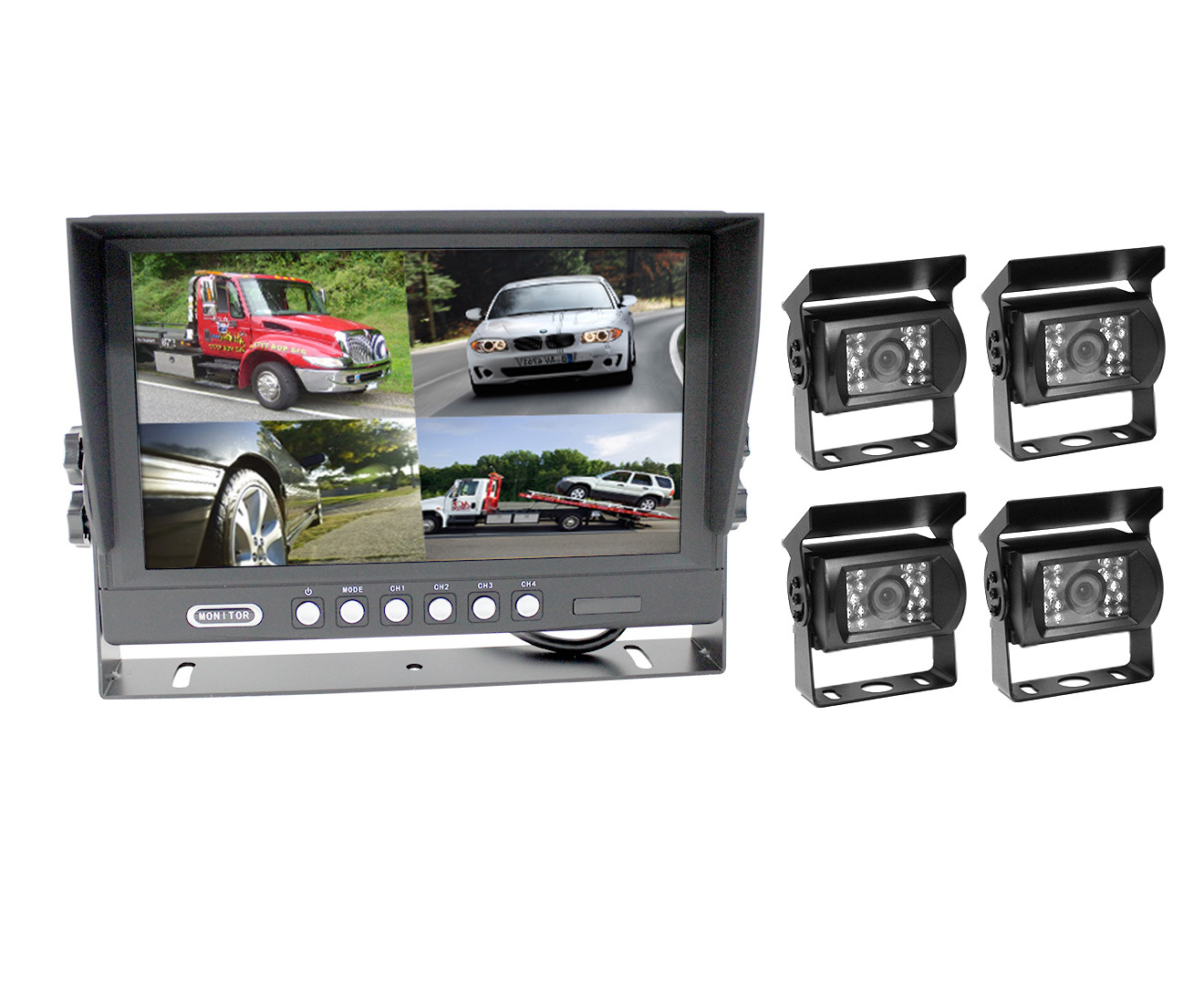

• Built-in quad control box function, support up to four cameras (this package comes with 1 camera only)

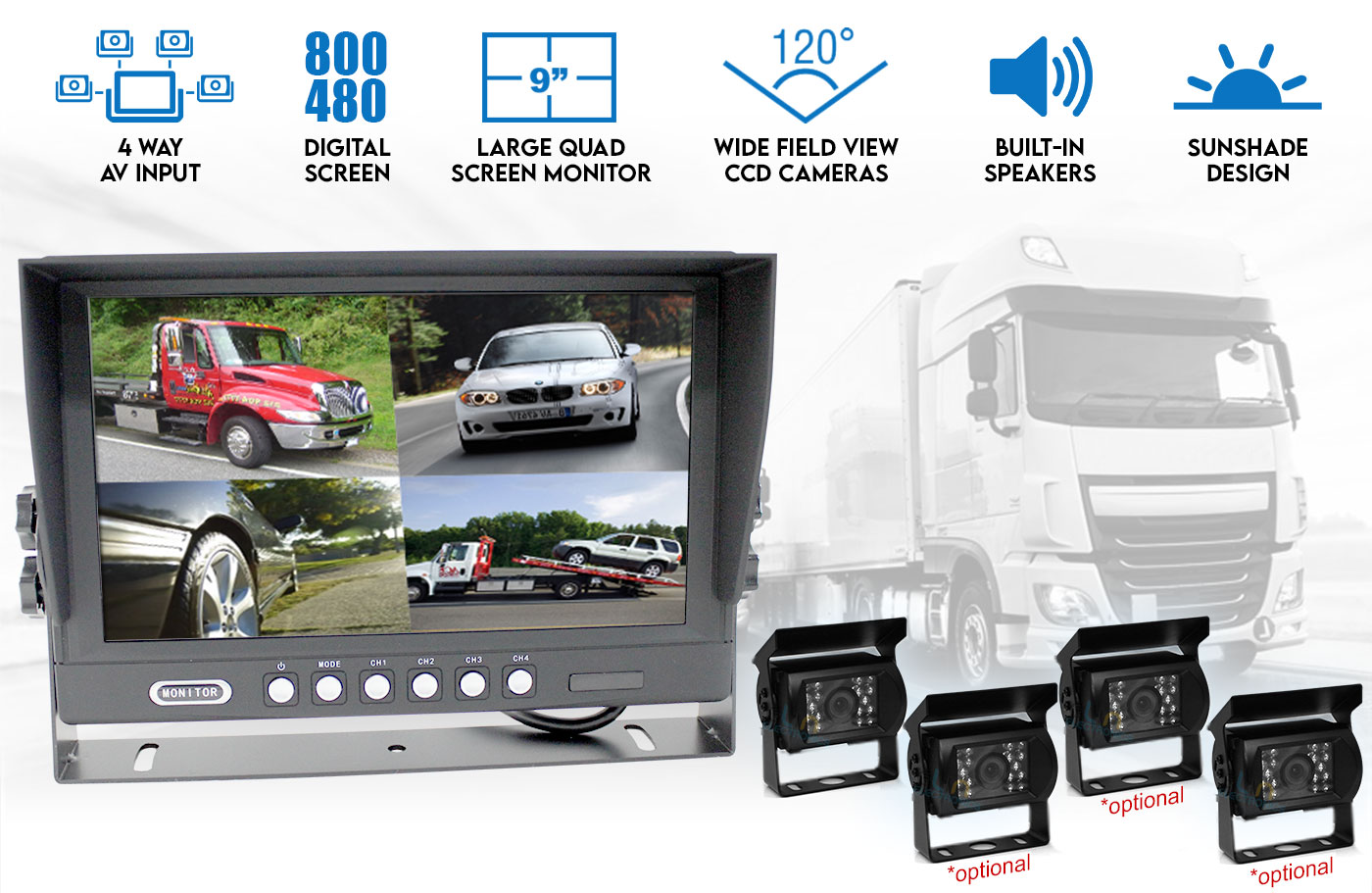

• 4 Ways AV input
  • The camera can be applied at the front, corner and /or back of the vehicle you can view one camera while driving and a second camera will turn on automatically when reversing , or have all 4 camera's showing at the same time, can be divided into 1, 2, 3 or 4 demo screen.
  • The display with 4 video frequency input (CH1, CH2, CH3, CH4)
  • Can be divided into 1, 2, 3 or 4 demo screen
  • Can supply wide view angle of right, left and behind area
  • 4 way video input
  • 1 way audio input for V1
  • 4 video display for reversing (front, rear,left, right)

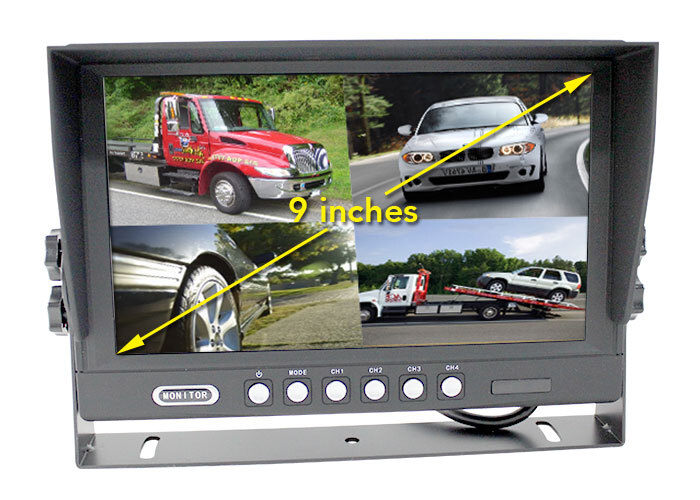

• 9" Colour TFT-LCD wide screen
• Resolution: 800x480 pixels high definition
• Professional advanced 2x10m 4 Pin Cable with connector
  • No need another power wire for camera
  • Advanced 4PIN cable allowing monitor to power up camera
• Built-in speaker
  • Can hear sound from DVD/MP3/MP4
• Suitable with 12V/24V power supply
  • Ideal for regular 12V car battery or heavy duty 24V truck
• Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera
• High resolution image

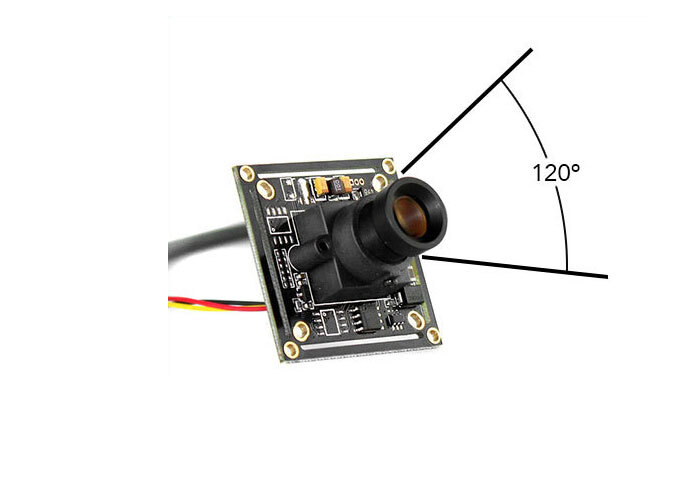

  • 120 degree wide field of view CCD cameras
  • 18 built in IR LED
  • CCD image sensor made by SHARP company
• Automatic night vision distance at 10 metres
• Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
• Weather, shock and water resistant rated IP67/IP68
  • High rating making it very durable and suitable in all environments
  • Hard metal cased, waterproof and mudproof
  • Heavy duty adjustable mounting bracket
• The image can be rotated up and down , left and right
• This is very handy so you can mount monitor up side and down or even sideways and still see the image the right way around.
• Sunshade design around

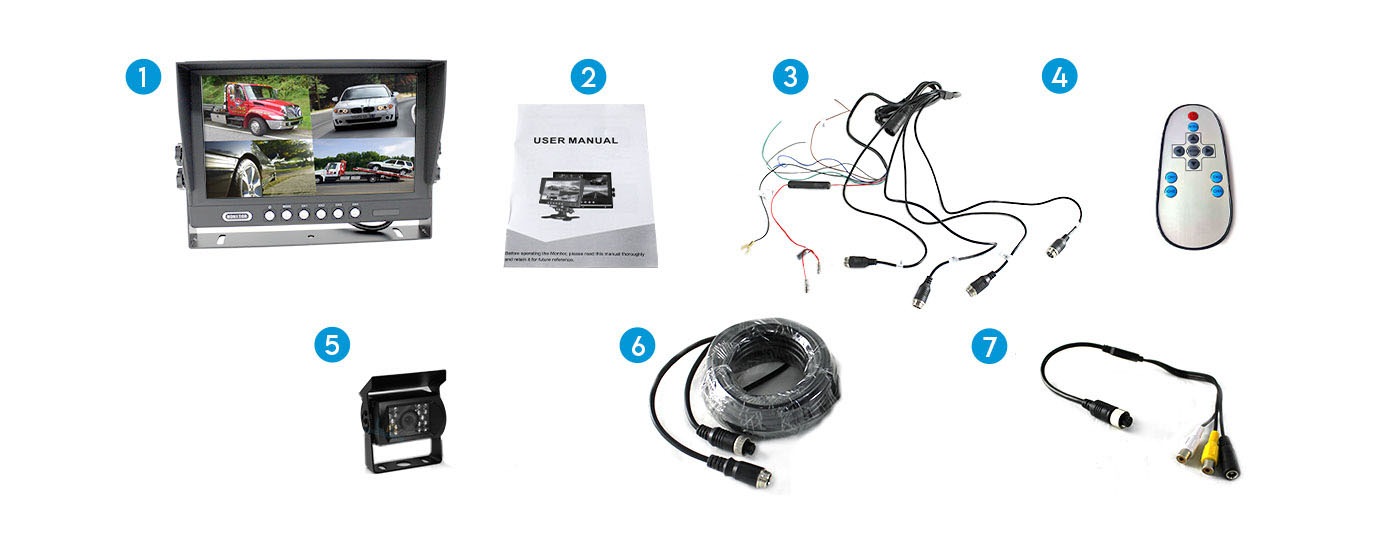

ITEM DESCRIPTION

1. 1x 9" Monitor with Sunshade

2. 1x User Manual

3. 1x Power Harness

4. 1x Remote Controller * Batteries not included

5. 1x Reversing camera

6. 1x 10M 4PIN cables

7. 1x RCA to 4PIN Plug
