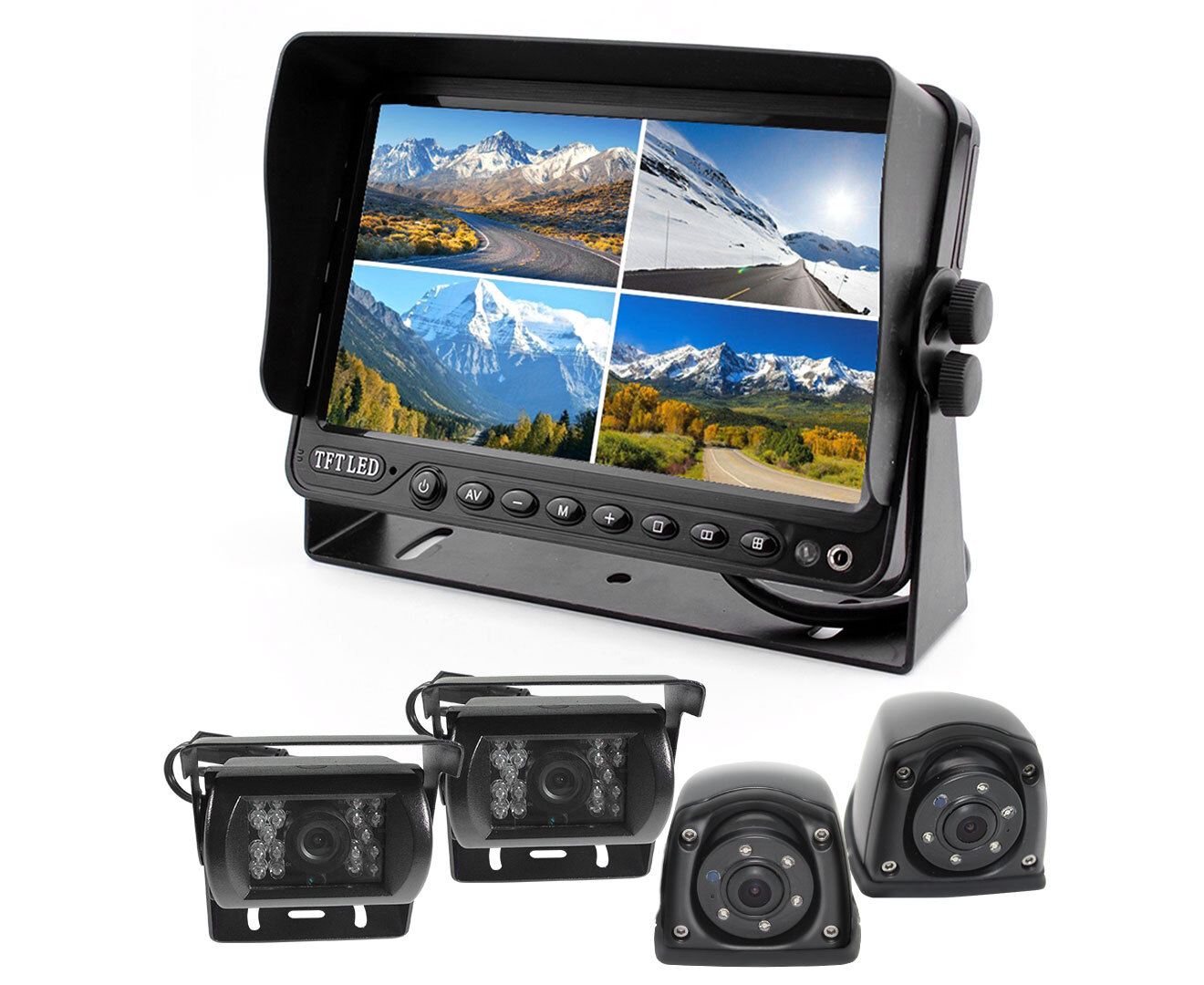

Elinz Quadscreen 7" DVR 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V 800TVL

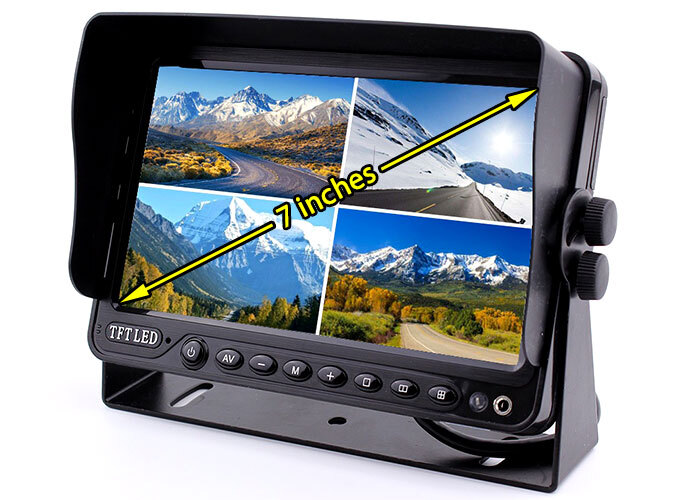

7 Inch Quadscreen Digital TFT Panel

• 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.

3 Video Input + 1 Audio Video Input

• V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
• Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
• All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
• Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work

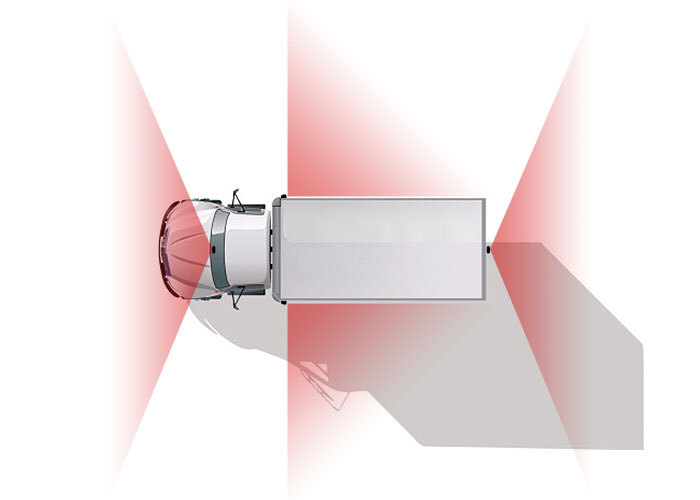

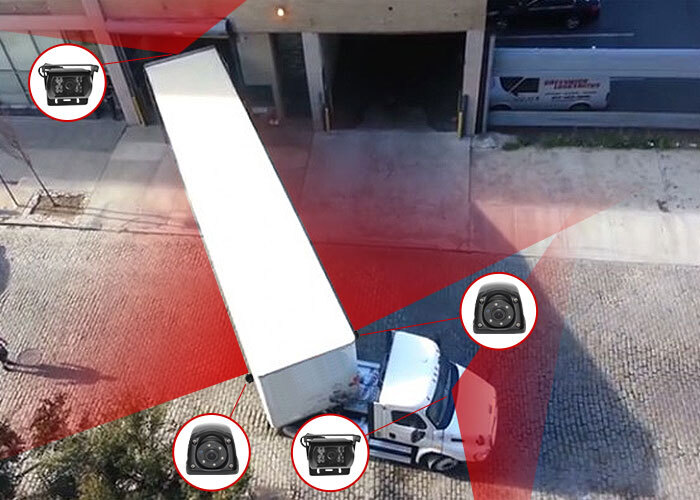

360° View for the Driver

Compact & Smartly Designed

• Prevent accidents while parking or reversing.

Mounting Bracket Included

• No matter what the location aluminium of side camera it can be mounted easily.

Heavy Duty Make

• Metal cased, mudproof, and shock resistant

CCD Image Sensor by Sharp

• To see clear images, even at night or in low light conditions.

10M 4PIN Advance Cable

• Allows the monitor to power up the camera, no need to connect another power cable to camera.

Real-time Recording

• It allow you to record real-time and can see objects in their original places or position.

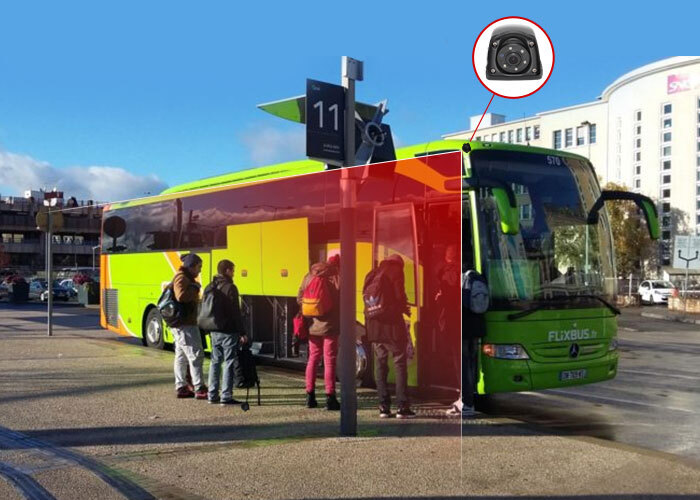

Side View Camera

• Camera can capture passengers going up and down the bus for added safety

Local Playback

• Locally playback in channel 1 or 4 channels

Monitor Parts

Image Modes

• The monitor can show single, dual, triple and quad images if you switch over AV button(when connectiong with 4 cameras)

120 degree Wide angle

• Features 120 degrees viewing angle to show side view of vehicle.

IP68 Waterproof

• This camera is completely waterproof with an IP68 rating.

800 TV Lines Side View Camera

• With high quality CCD Sensor this camera provides better picture's clarity, colour contrasting and sharpness than Normal CMOS camera

5 IR LED

• It has 5pcs IR LEDs to provide better night vision and clear images in low light especially at night circumstances.

Extruded Aluminum Housing

• Made of extruded aluminum case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions.

Suitable with 12V/24V power supply

• It can be used with trucks/ bus/ caravans/ cars etc.

Save Recordings in SD Card

• Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
• It can support up to 256GB SD card. (SD card not included)

  Note: Monitor do not have built-in speakers

Remote

• * Powered by AAA battery
• * No Batteries included

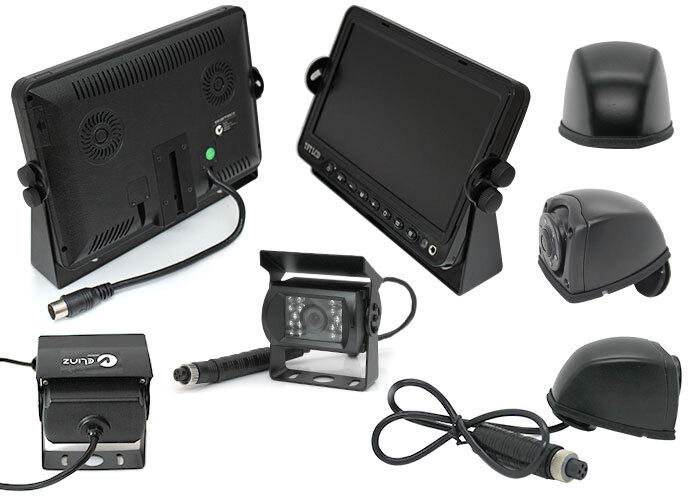

Product Views

Product Dimensions

• 7 inch Quadscreen Digital TFT Panel
  • Monitor has Resolution 800*RGB*480 and 4 Channels that can simultaneously record live full time.
• Real Time Recording
  • It allows you to record real time and can see objects on their original places or position and You may easily control DVR using the remote control.
• 3 Video Input + 1 Audio Video Input
  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
• 600TVL Heavy Duty, Night Vision and Waterproof Forward Camera
  • High resolution 120° wide angle camera that can deliver clear images day and night with 18 IR LEDs
  • Colour infrared night vision waterproof reverse camera with CCD image sensor (made by SHARP company)
  • Can last for longer use without heating up, so you can show the clear view at all time

ITEM DESCRIPTION

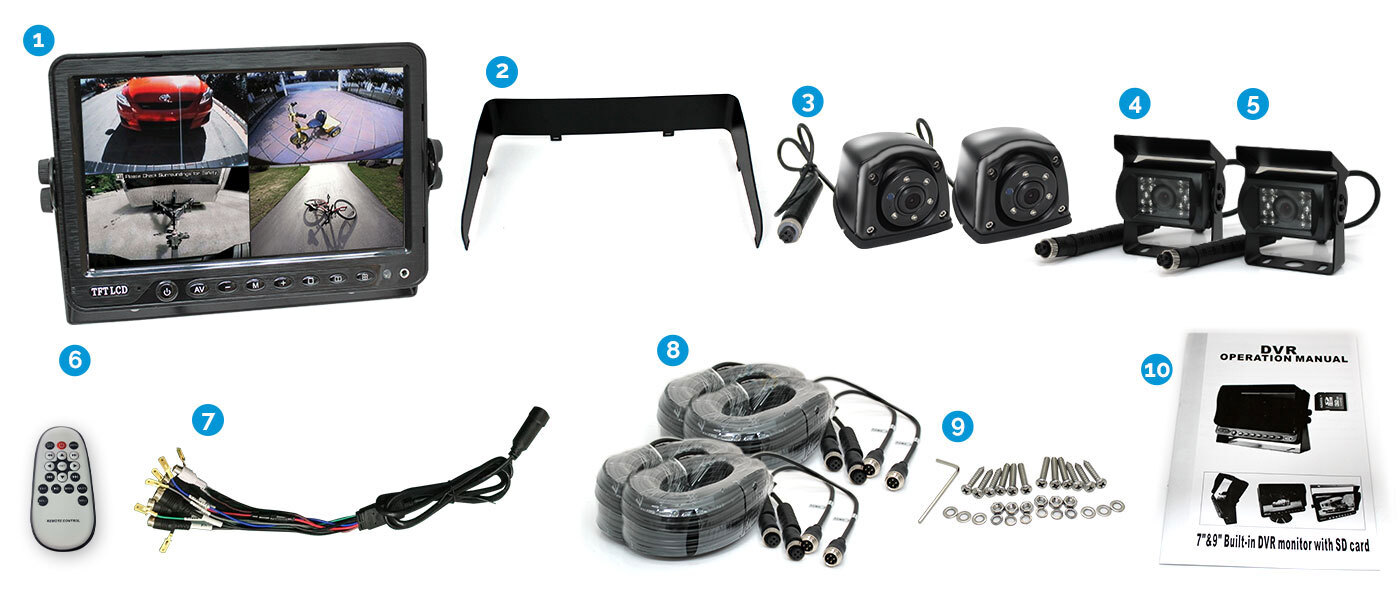

WHAT'S INCLUDED

1. 1x 7" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 2x 4PIN Side View Reversing Cameras 800TVL

5. 1x 4PIN Forward View Camera 600TVL

5. 1x 4PIN Reversing Camera 600TVL

6. 1x Remote Control (* No Batteries included)

7. 1x Power Cable

8. 4x 10M 4PIN Cables

9. Screws

10. 1x User Manual
