Technical Specifications:

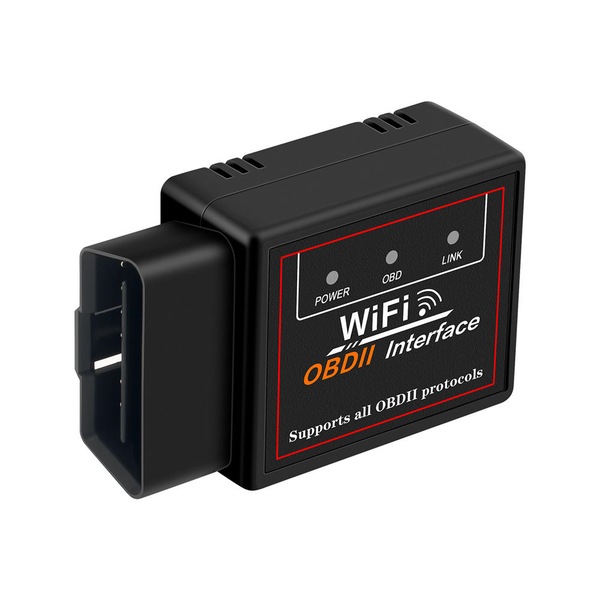

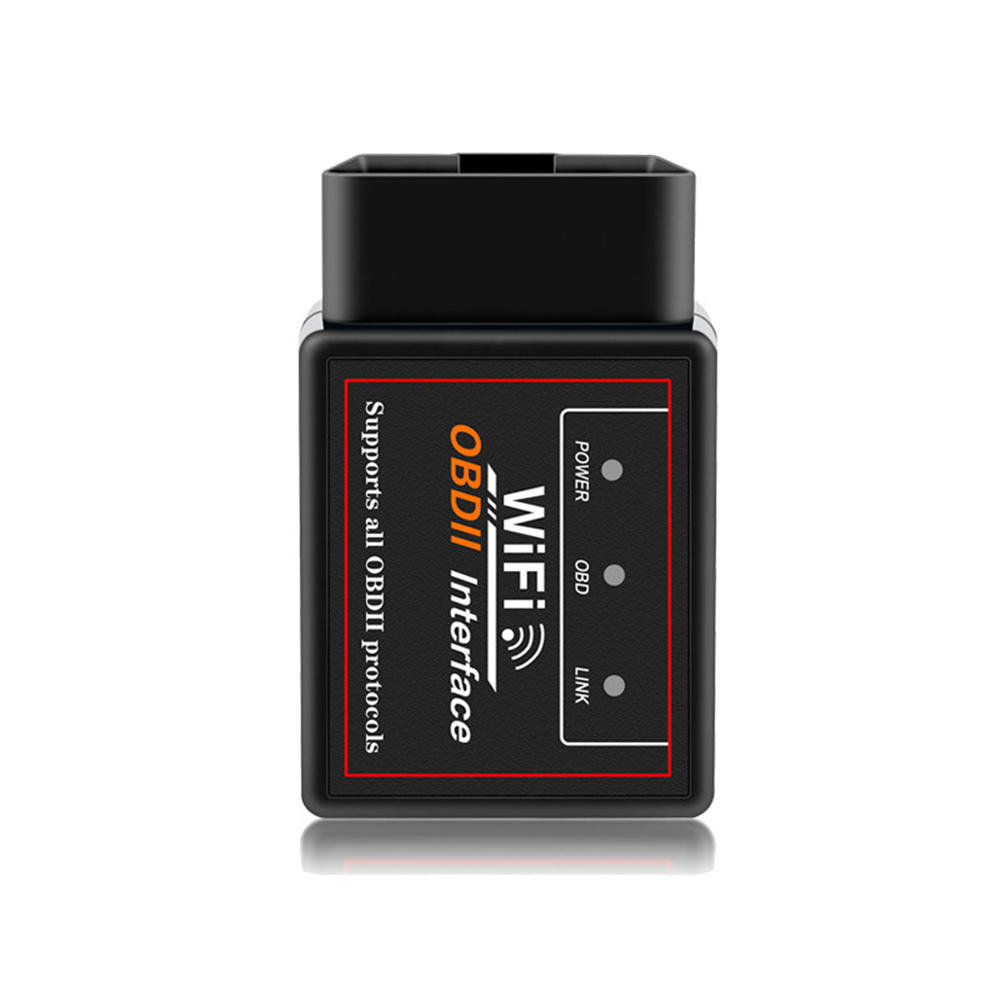

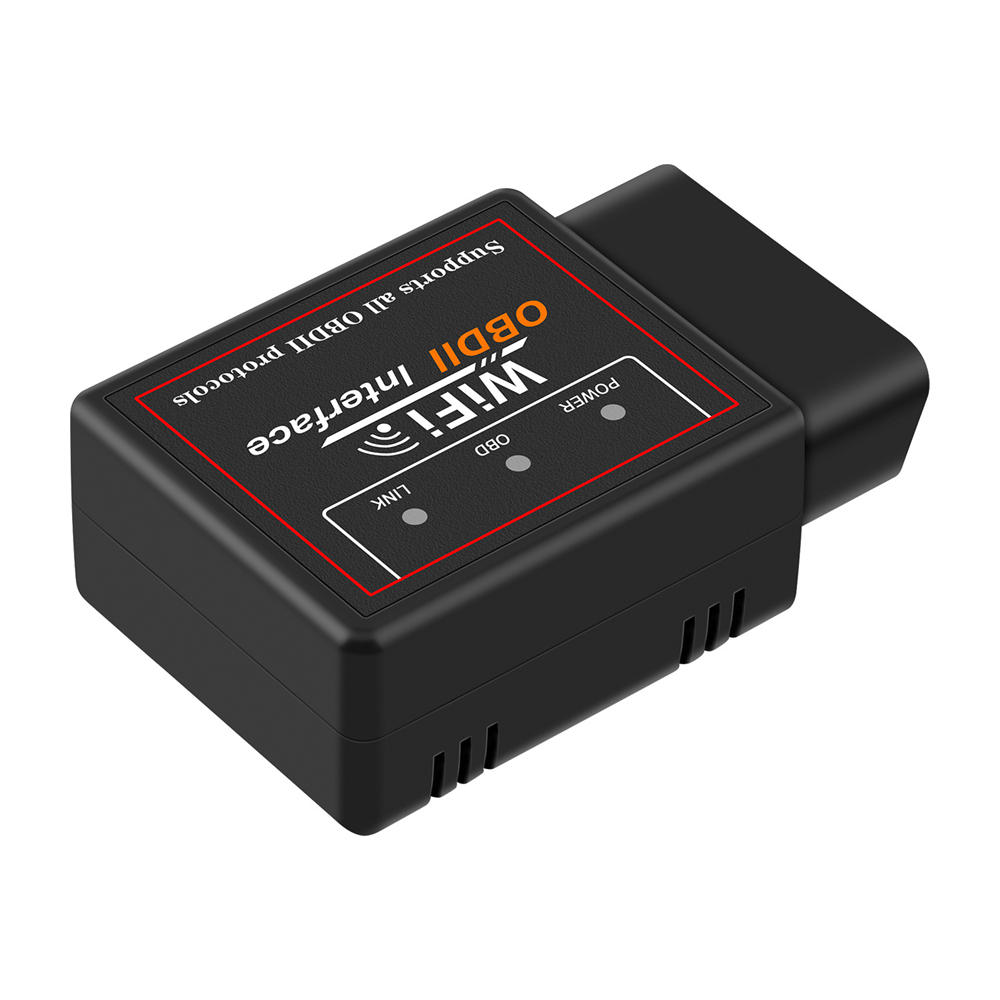

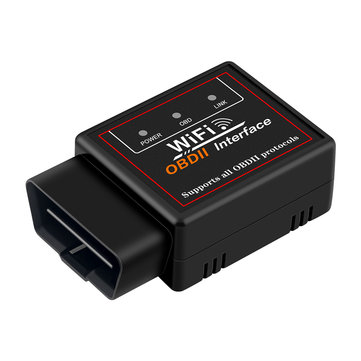

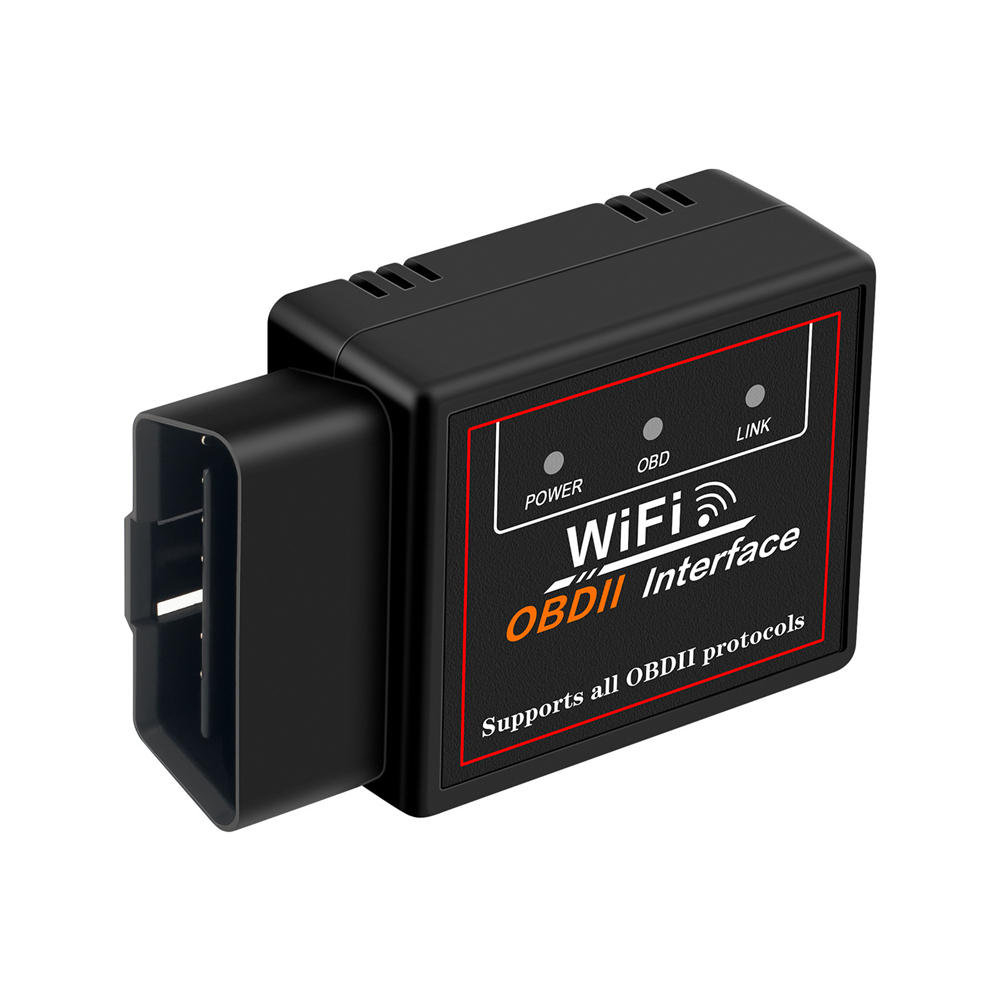

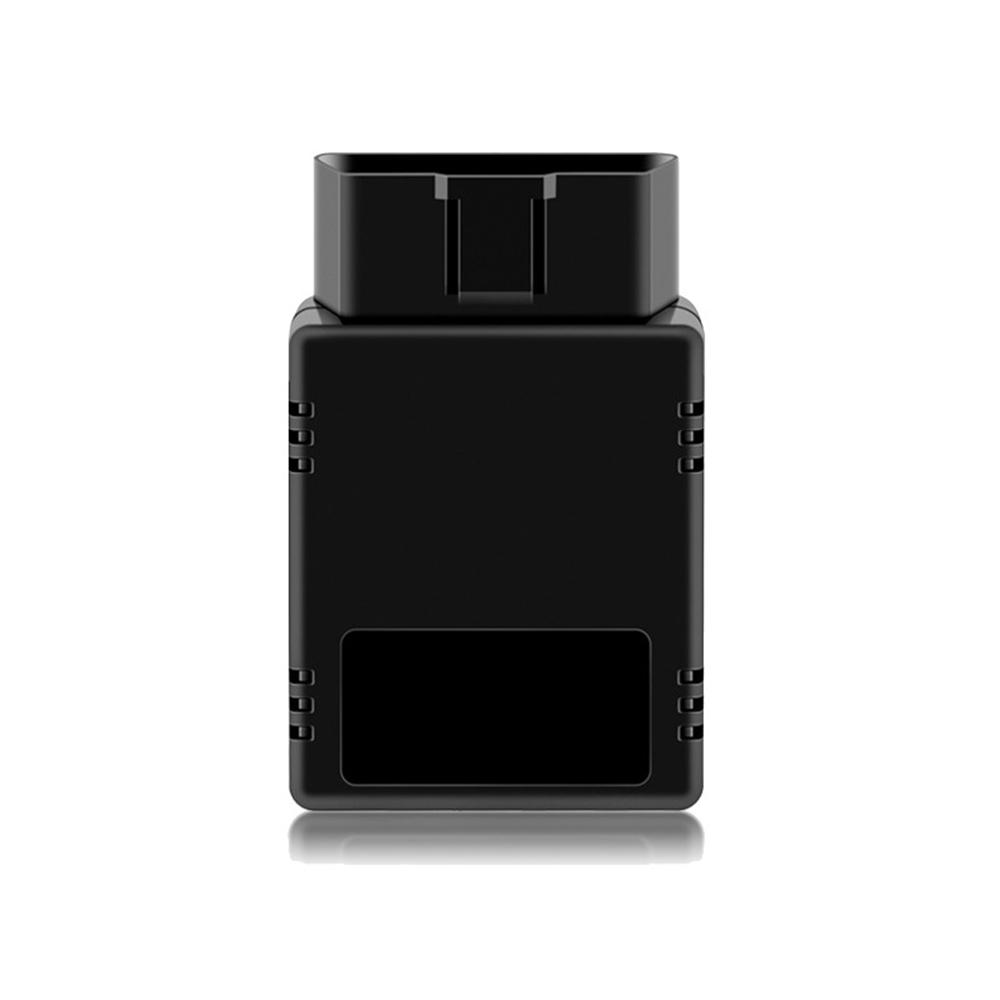

Product: OBD2 Diagnostic Interface

Type: ELM327 V1.5

Chip: PIC18F25K80

Socket: 16 pin

SSID: WiFi OBD2

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Voltage: DC 12V

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Support APP:

?System Method Support Software

?Android WIFI/BT Torque, OBD CAR Doctor

?IOS WIFI Dash Command, OBD CAR Doctor, EOBD Facile

?For PC WIFI/BT ScanMaster-ELM

Support OBDII protocols:

SAE J1850 PWM(41.6K baud)

SAE J1850 VPW(10.4K baud)

ISO9141 - 2(5 baud, 10.4K baud)

ISO14230 - 4 KWP(5 baud, 10.4 baud)

ISO14230 - 4 KWP(10.4 baud)

ISO15765 - 4(11bit, 500K baud)

ISO15765 - 4(29bit, 500 baud)

ISO15765 - 4(11bit, 250 baud)

ISO15765 - 4(250 baud, 29bit)

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13. Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18.Fuel Pressure

Package list:

1 x WIFI ELM327
