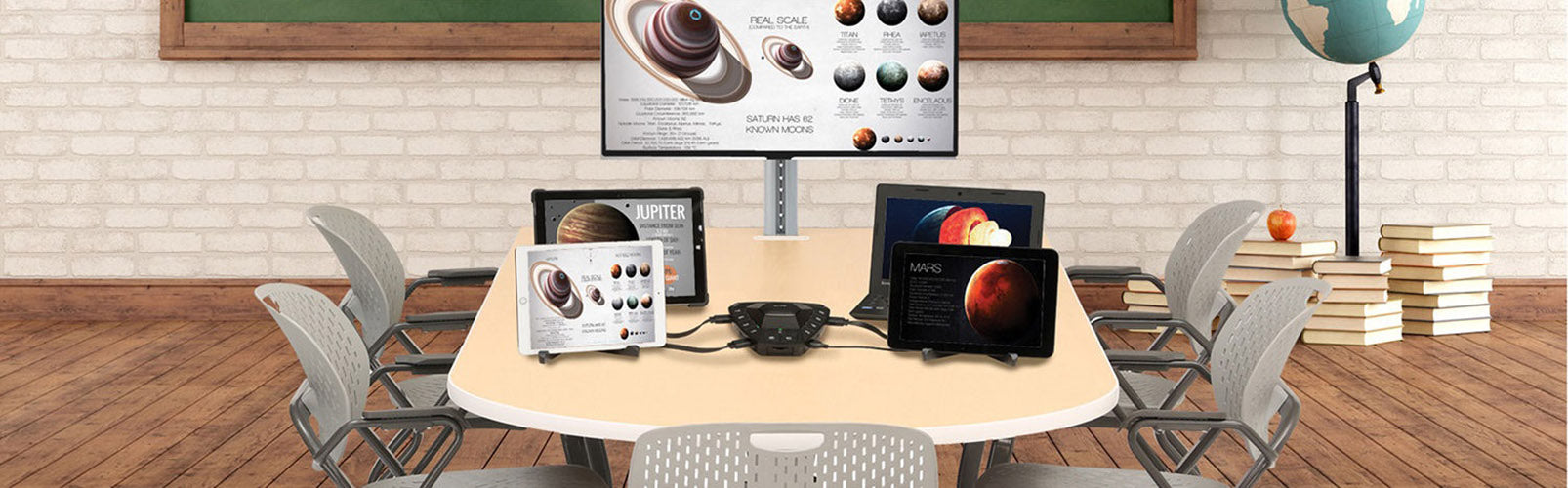

COMPATIBLE WITH ANY DEVICE

The Huddle Space can accommodate any type of device; iPad, Chromebook, Windows, Mac, Android etc.

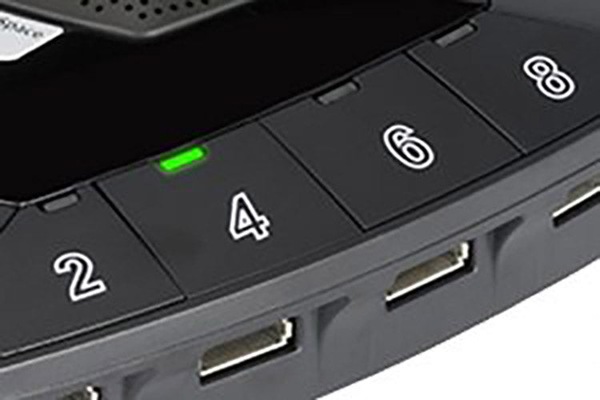

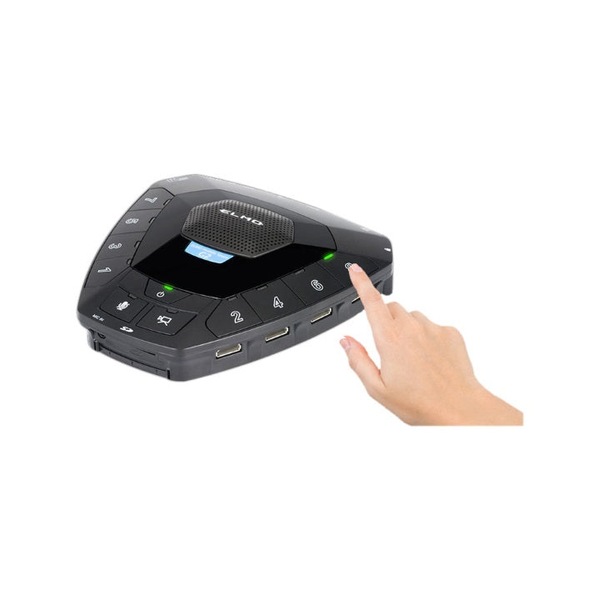

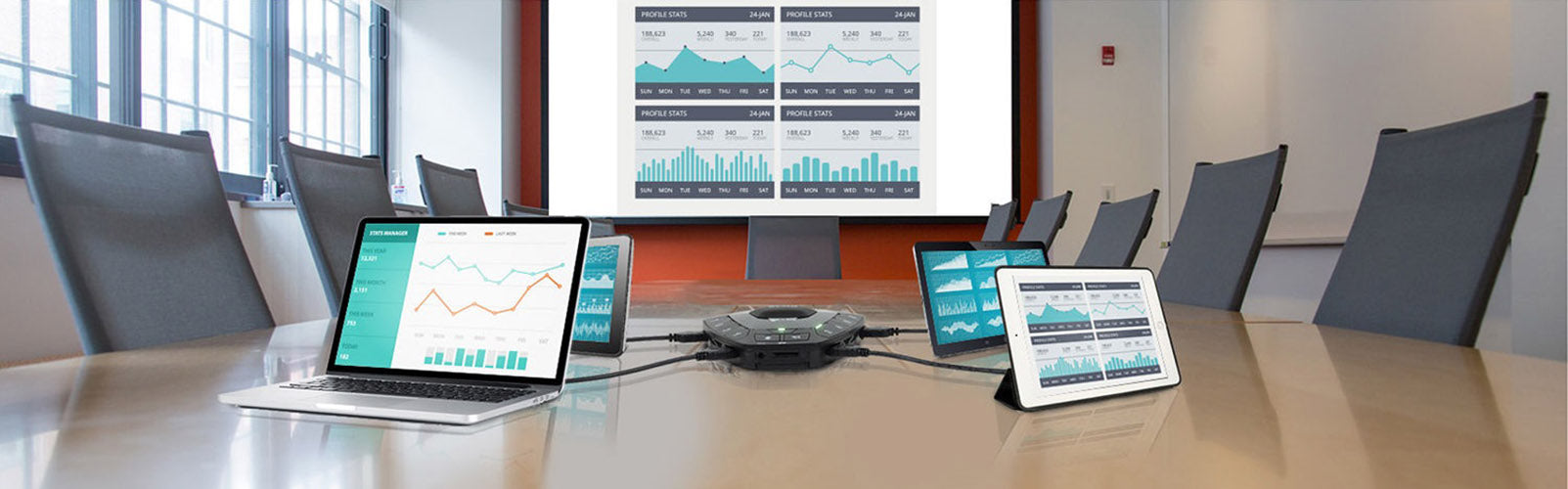

SEAMLESS SWITCHING FROM ONE DEVICE TO ANOTHER

Switching from one presentation to another is as simple as pressing a button; each input has a corresponding button, and when a button is pressed, that student's screen is broadcast to a shared display.

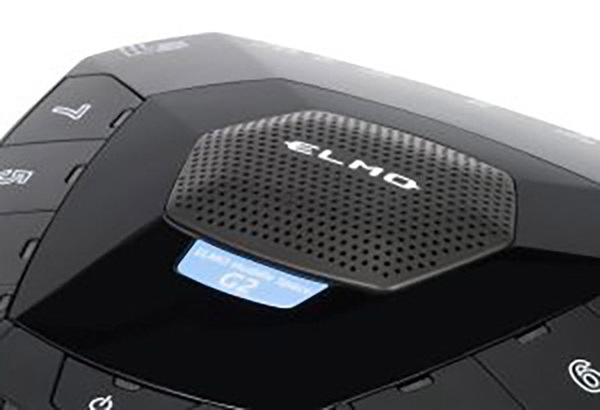

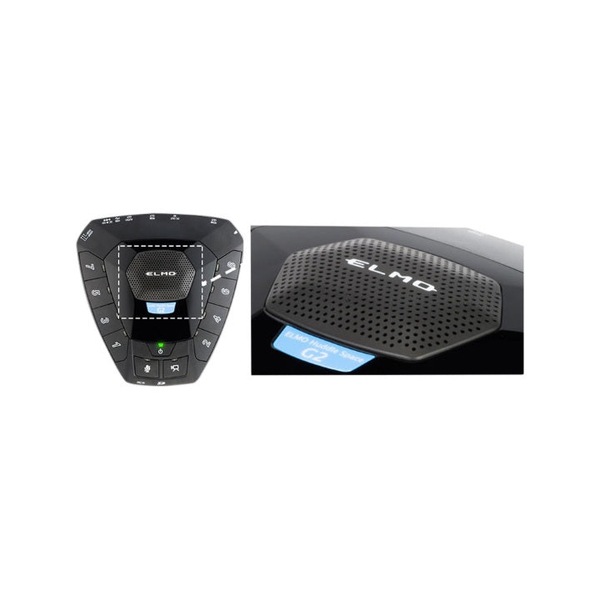

BUILT-IN MIC

A conferencing microphone on top of the unit captures the conversation happening as students are presenting and collaborating. This gives teachers additional insight into how the students are working together and the ability to review the work process later.

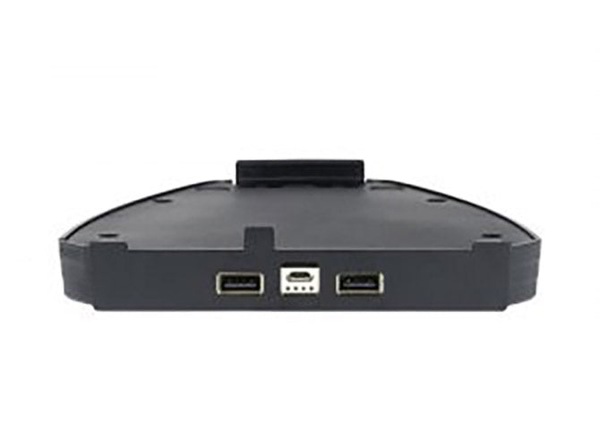

OPTIONAL BATTERY PACK

Make it Wireless Pair your Huddle Space with a battery attachment for extra portability. Also compatible with third party HDMI wireless transmitters to make your Huddle Space completely portable. Battery not included.

Specs:

- Power Source: DC12V AC adapter AC100 240V

- Power consumption: 7.0W

- Outside dimensions: W 166.1 x D 179.1 x H 44.7 mm

- Weight: Approx. 1.0kg Main body only

- Compatible input devices:

AV devices with HDMI output port such as a computer

Compatible output devices: AV devices with various input ports such as a monitor, TV and computer

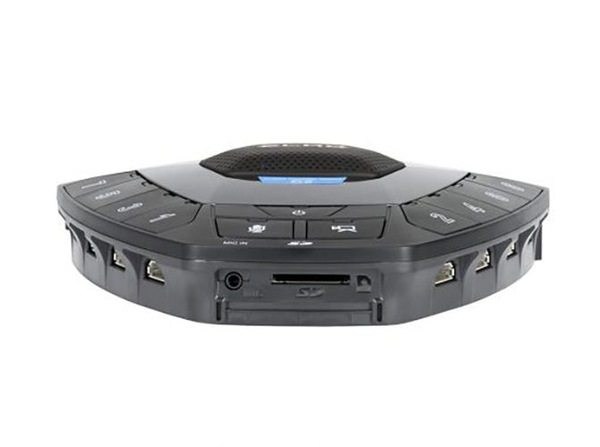

- Input terminal:

Mic In terminal3.5mm jackx 1 Monaural electret Condenser microphone

HDMI input terminal Type Ax 8

DC jack x 1

- Output terminal:

RGB output Mini Dsub 15P connector, female x 1

Power terminal for WHDI module Type A x 1

HDMI output terminal Type A x 1

Line Out terminal 3.5 mm stereo minijack x 1

HDBaseT output terminal (RJ45) x 1

- External control: USB device (2.0 compliant) Type B receptacle x 1

- Memory interface: SD card slot x1

- USB:

Type: USB 2.0 compliant

Transfer speed: High Speed (480 Mbps) / Full Speed (12 Mbps) The actual transfer speed may vary depending on the performance of your computer and the status of the USB bus.

Power supply: Self-power No power supply from the USB bus.

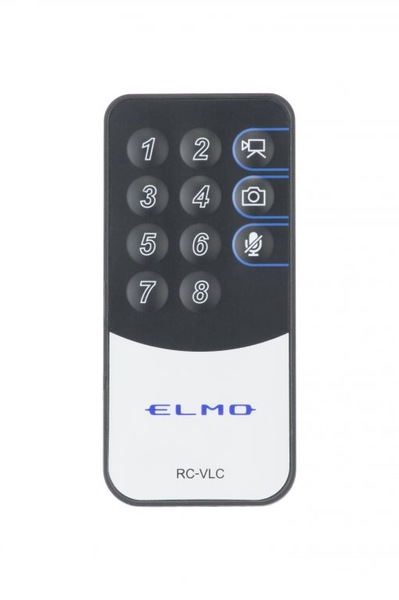

- Remote control: (IR) pulse-position modulation method

- Slide switch (Output mode selection switch): Selectable between HDMI, RGB and HDBaseT. For HS-G1 and HS-G2, selectable between HDMI and RGB.

- Video recording format: H.264/mp4

- Still image recording format: JPEG

- Operating temperature: 0 40

- Humidity: 30 85% (No condensation)

In the Box:

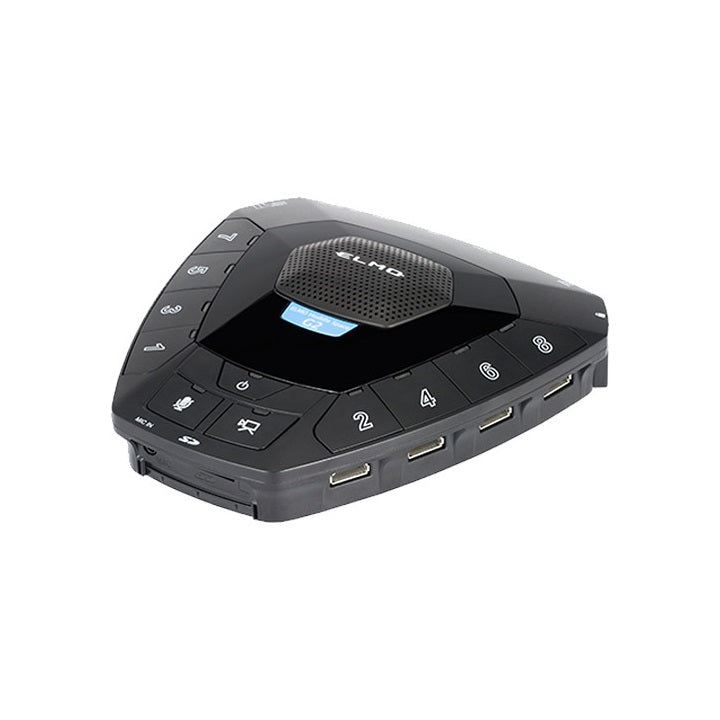

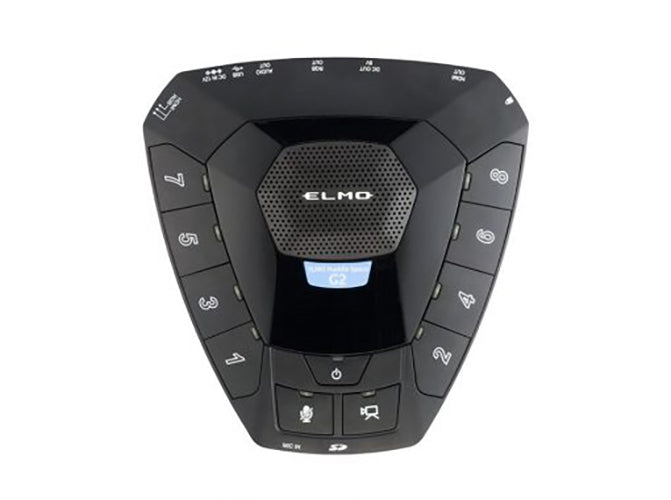

- Elmo HS-G2 Huddle Space Collaboration Hub with 8 HDMI Inputs

- AC Adapter

- AC Power Cord

- 1m HDMI Type-A Cable

- 1m HDMI Type-A to Micro-HDMI Cable
