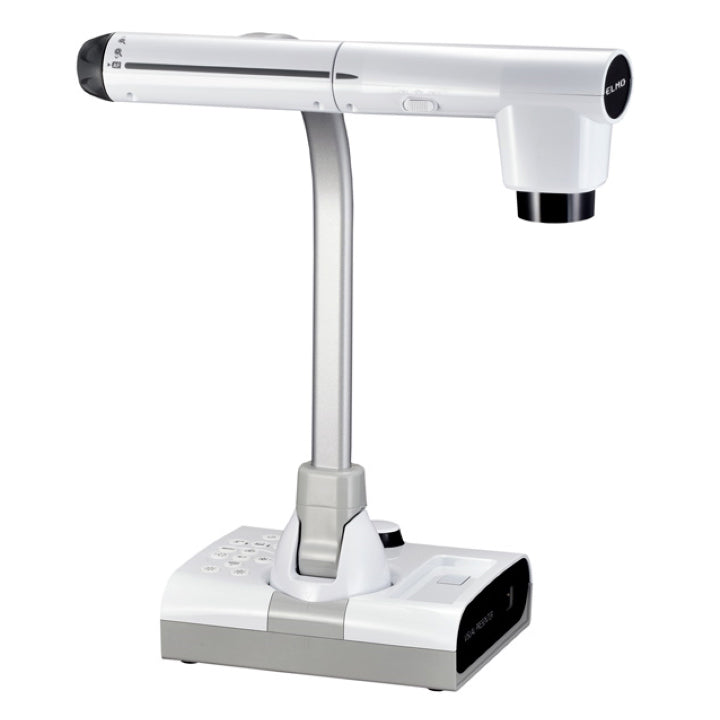

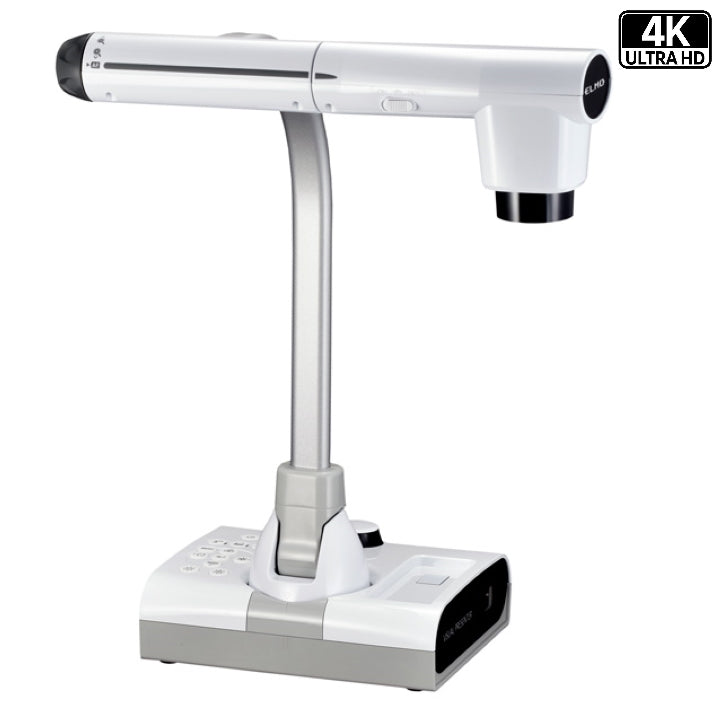

Elmo L-12F Visual Presenter 12MP 4K UHD 60fps 12x Zoom HDMI Document Camera

Realism 4K quality & 60fps smooth video

Live and recording create overwhelming realism 4K quality & 60fps smooth video playback With a 12 million pixel CMOS sensor, high-definition video up to 4K. Fine details that could not be expressed in full HD can be expressed in high definition, and textures and details are realistically reproduced. Smooth video playback at a frame rate of 30 fps at 4K output and 60 fps at full HD output is available. * 30fps during recording

Equipped with SD slot and USB interface, still images and videos can be saved in 4K quality. The shooting range can also be displayed up to A3 horizontal full size.

Optical zoom 12 times + sensor zoom 2 times + digital zoom: 12 times

The 12x optical zoom approaching the realistic texture of details and the high-definition digital zoom 16x (including 2x sensor zoom) enable zooming with little degradation in image quality

Convenience to use

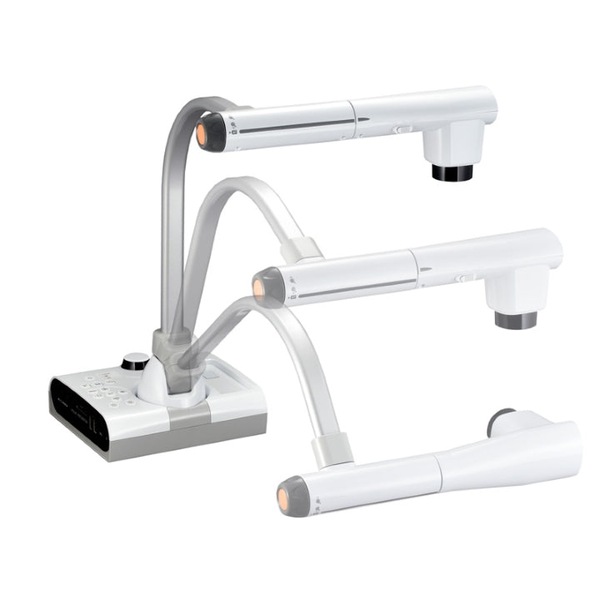

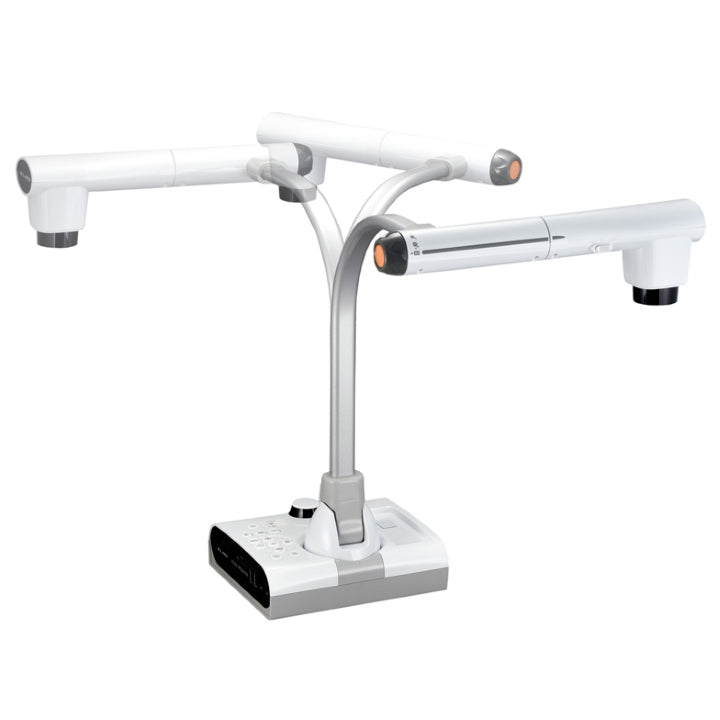

With "Zoom Dial & One Push Auto Focus" that can be operated easily with one hand, and rotate 300 degrees arm (swing), all angles can show on how you want. It is easy to use for beginners with no technician required.

Class Support Function

Compare picture function that can be used as a simple comparison function that can split up to 4 screens. One of the 4 screens can capture live video from the camera. You can also use the mask function to hide part of the existing video and the highlight function to highlight part of the video.

Better Built and Organiser

HDMI drop prevention bracket & equipped with a remote-control storage position helps prevent accidental cable disconnection, an accessory for the HDMI connector has been added. The unit is equipped with a storage space for storing the remote control in the L-12F.

The L-12F is equipped with a change-over switch that allows you to switch between document camera and PC (HDM

I input) with a single touch.

Specs:

- Power supply: DC5V (AC adapter AC100- 240V/ 20W)

- Imaging element: 1 / 3.2-inch CMOS

- Effective pixel count:

3,840x 2,160 (16:9)

3,520x 2,640 (4:3)

- Imaging speed: 60fps (At 1080p output)

- Shooting lens: F= 4.53-54.3(12X Zoom lens) F=3.2-3.8

- Zoom: Optical 12X, sensor 2X and Digital 12X

- Imaging area: 4:3: Max 430mm x 319mm, Min 53.6mmx 40.3mm 16:9 Max 469mmx 259mm, Min 58.5mmx 33.0mm

- Focus adjustable range (Possible range):

50mm to (wide)

200mm to (tele)

- Focus: Automatic (one push)

- Resolution: Horizontal/ Vertical 1600 TV or more

- Image rotation: 0o/ 90 o / 180 o/ 270o

- Lighting lamp: White LED

- Flicker correction: 60Hz/ 50Hz

- Still image and video recording: available

- Split screen display: 2 screen/ 4 screen (camera image, still image on memory)

- Input selection: Body/ External (RGBx1, HDMIx1)

- USB camera function: Available (USB Video Class compatible)

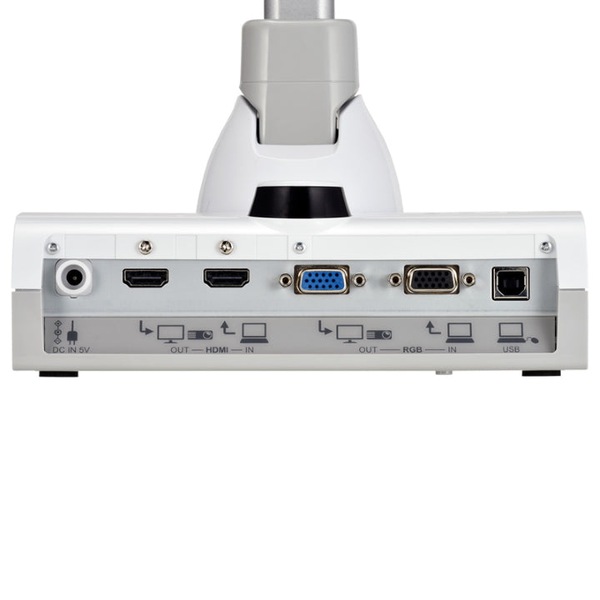

- Output Terminal:

RGB output Mini D sub 15P connector female x1

HDMI output terminal x1

Line output terminal 3.5mm stereo mini jack x1

- Input Terminal:

RGB input Mini D sub 15P connector female x1

HDMI input terminal x1

Microphone input terminal 3.5mm stereo mini jack x1

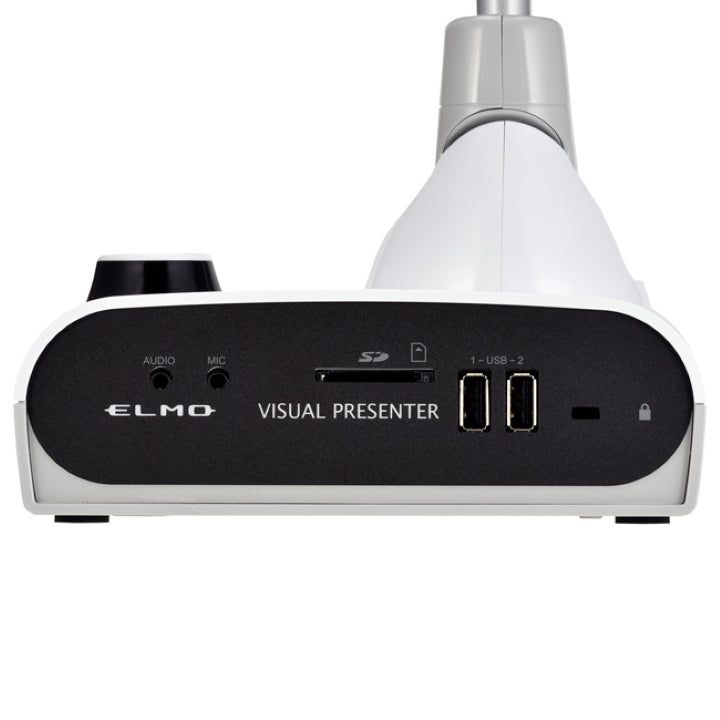

- Interface:

USB2.0 host type B receptacle x1

USB2.0 host type A receptacle x1

SD card slot x1

- External dimensions: Width: 349mm Depth: 377mm Height: 432mm (set-up) Width: 195mm Depth: 294mm Height: 475mm (fold)

- Weight: Approximately 3.0 kg. (main unit only)

In the Box:

- Elmo L-12F Visual Presenter

- AC adapter 12V2A

- USB 3.0 cable A-B

- power plug

- quick start guide

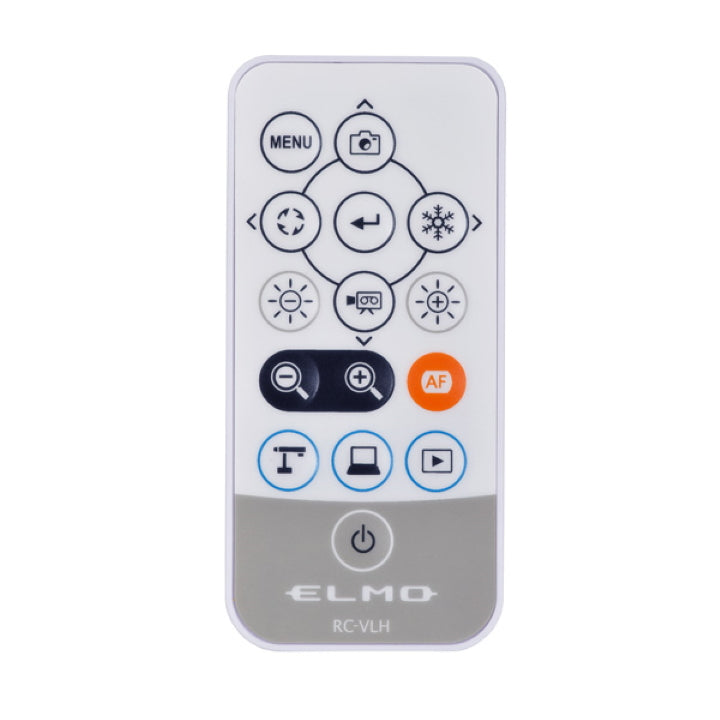

- infrared card remote control

- button battery (for remote control)

- Cool Guarantee (label registration form and manual)

- operation support sticker

- warranty card

- HDMI cable fixture

- Cable tie
