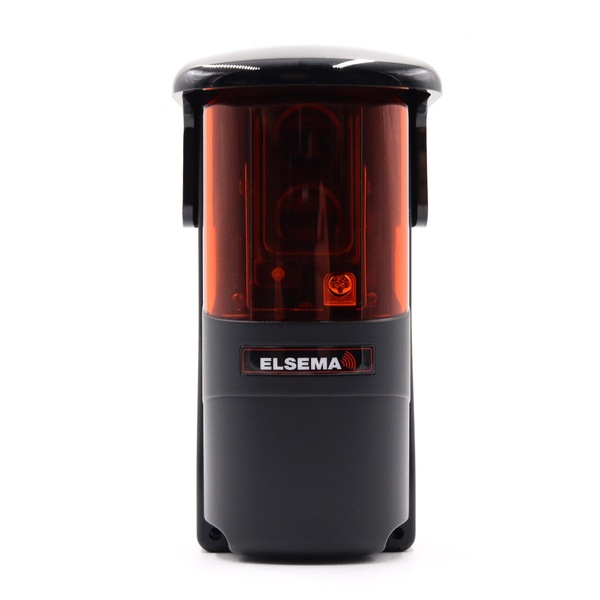

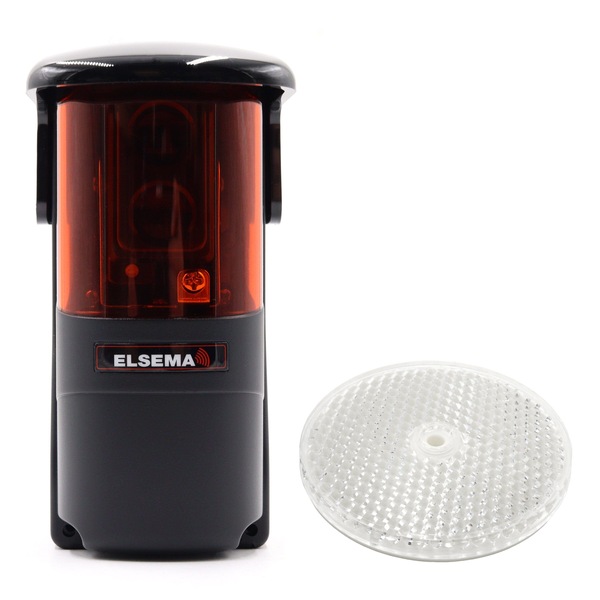

Elsema Long Range Retro-Reflective Photoelectric Beam To Suit PE1500

The PE1500 represents a polarised, highly sensitive, and long-range retro-reflective photoelectric beam. Employing a modulated beam, the sensor module effectively mitigates interference from the sun, making it suitable for outdoor use up to 12 meters. Compatible with any Elsema automatic gate or door controller cards designed for sliding, swing, or roller doors, the PE1500 serves as a safety device to regulate such automated entrances. Featuring an IP66 rated case, it is well-suited for outdoor installations. The polycarbonate casing ensures resilience against sun damage and enables reliable operation in diverse weather conditions, including rain, fog, or dust. An optional HD-15 hood for the reflector is also available.

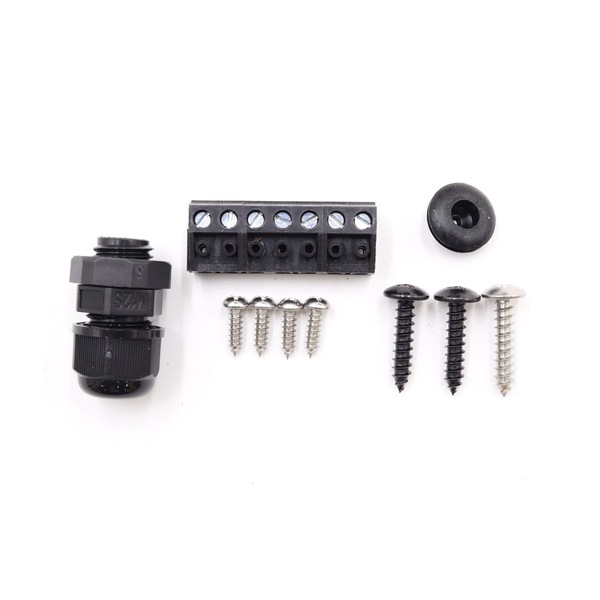

Includes:

• 1x Beam
• 1x Hood Sensor

• 1x Mounting Bracket
• 1x Terminal Block
• 1x Gland
• Mounting Hardware
• 1x Instruction Manual

Technical Specifications:

• Long range beam, 12 metres outdoor
• Input Voltage 12 – 250V AC/DC
• Polarised retro reflective type
• Polycarbonate weatherproof casing, anti fog/rain/dew
• Optional cover for reflector, HD-15
• Rugged all weather design (IP-66)
• LED indicator beam alignment
• Tamper switch

Compatibility List:

• Sliding Gates, Swing Gates or Garage Doors
• Overhead Doors, Conveyors or Door Entrance
• Boom Gates, Alarm System or Warehouse Monitoring
