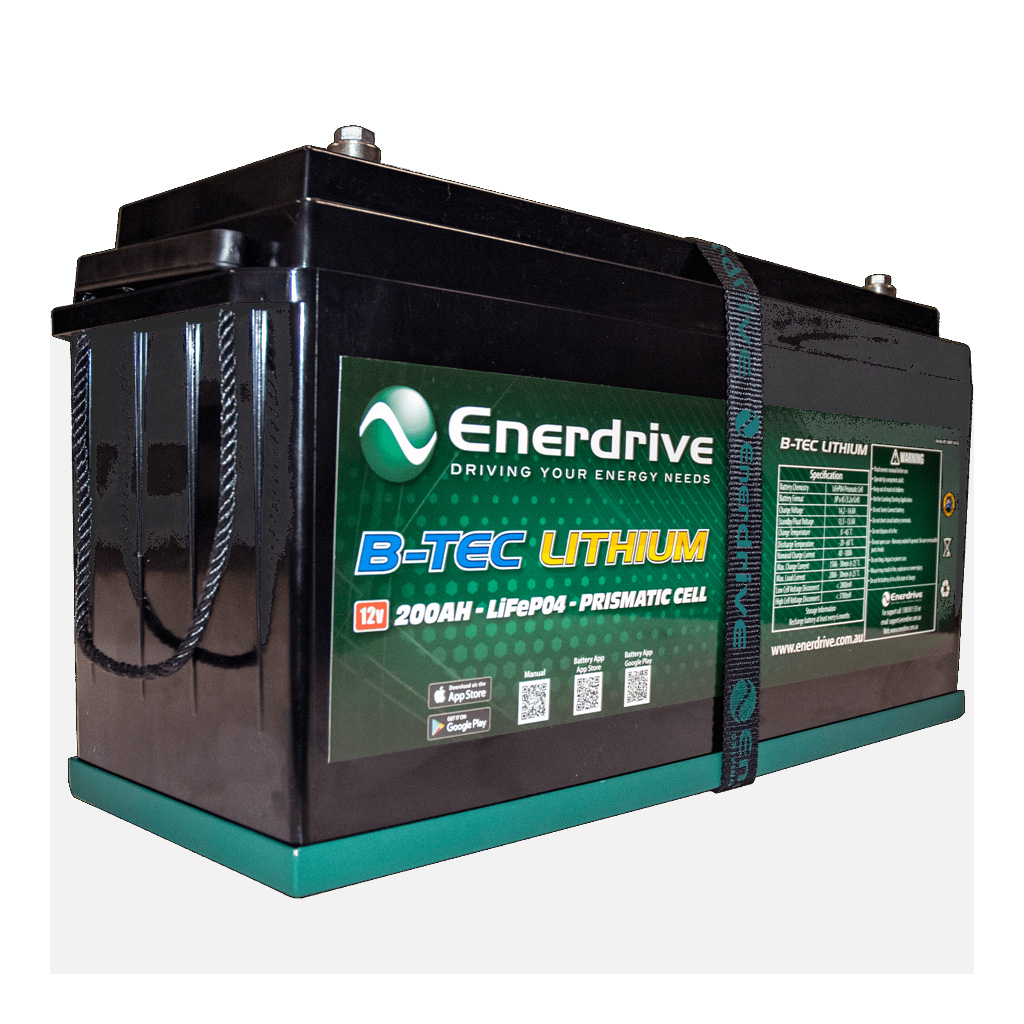

Enerdrive 12V 200amp B-TEC LifePo4 Lithium Battery

Nominal Capacity: 200 amp hr

Cycle Life (DOD - 80% under controlled conditions) >_ 2000 cycles

Maximum Charge Current: 150a @ 25 degree C for 30 min

Recommended Charge Current: 40 - 100 amp

Normal Charge Voltage CV/CC: 14.20 - 14.60V

Standby (Float) Voltage: 13.50 - 13.80V

Maximum Charge Current: 150amp @ 25 degree C for 30 mins

Battery Output Voltage Range: 11.00 - 14.60V

Maximum Discharge/Pulse Current: 200 amp @ 25 degree C +_5 degrees C for 30 mins

Pulse Discharge Current: 450 amp for 1.0s

Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

Dimensions: 505mm (L) x 172.5mm (W) x 265mm (H)

Weight: Approx 25kgs

Case Construction: Hi Impact ABS Plastic

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android(TM) or Apple(R) app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

5 Year Warranty

Enerdrive 12V 200amp B-TEC LifePo4 Lithium Battery

Nominal Capacity: 200 amp hr

Cycle Life (DOD - 80% under controlled conditions) >_ 2000 cycles

Maximum Charge Current: 150a @ 25 degree C for 30 min

Recommended Charge Current: 40 - 100 amp

Normal Charge Voltage CV/CC: 14.20 - 14.60V

Standby (Float) Voltage: 13.50 - 13.80V

Maximum Charge Current: 150amp @ 25 degree C for 30 mins

Battery Output Voltage Range: 11.00 - 14.60V

Maximum Discharge/Pulse Current: 200 amp @ 25 degree C +_5 degrees C for 30 mins

Pulse Discharge Current: 450 amp for 1.0s

Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

Dimensions: 505mm (L) x 172.5mm (W) x 265mm (H)

Weight: Approx 25kgs

Case Construction: Hi Impact ABS Plastic

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android(TM) or Apple(R) app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

5 Year Warranty

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

The increase in height allows for full 360o connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a "Built-In Reset Button" making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This p...
