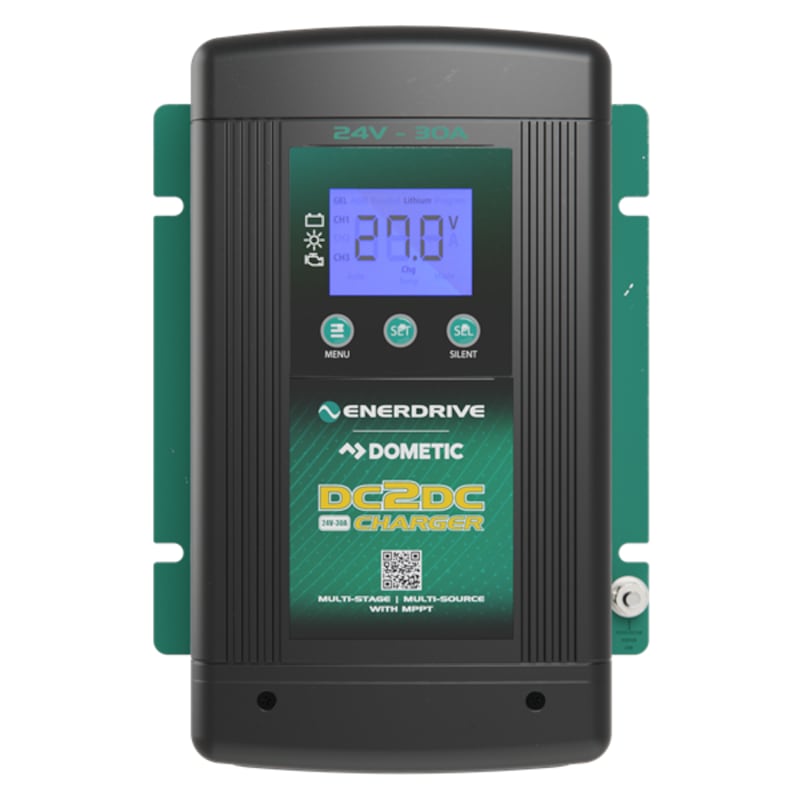

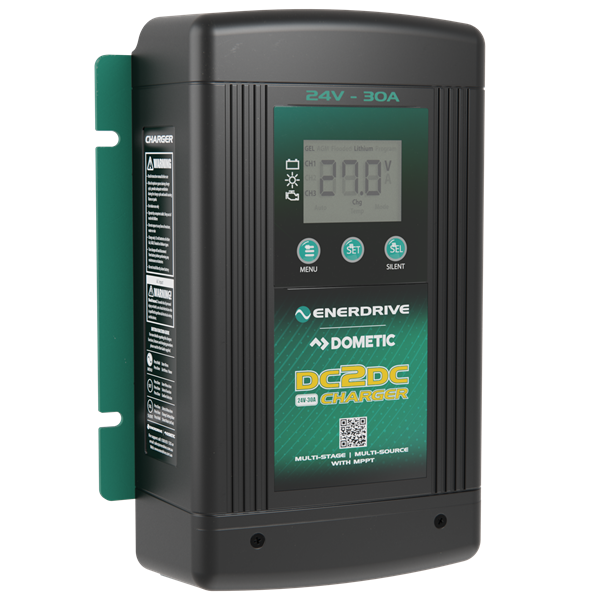

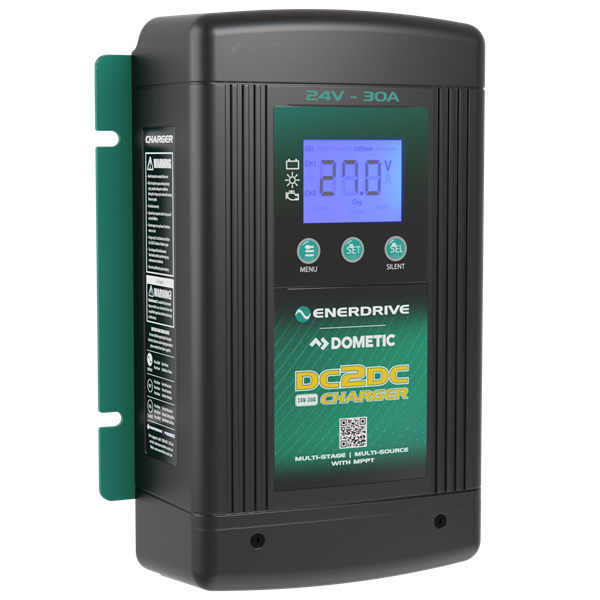

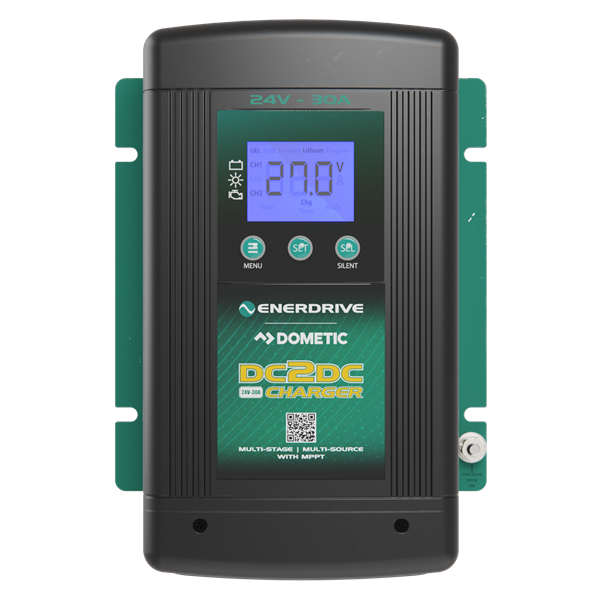

Enerdrive DC2DC Battery Charger - 24V 30A MPPT Reg
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 536 Everyday Rewards points
Collect 536 Everyday Rewards points

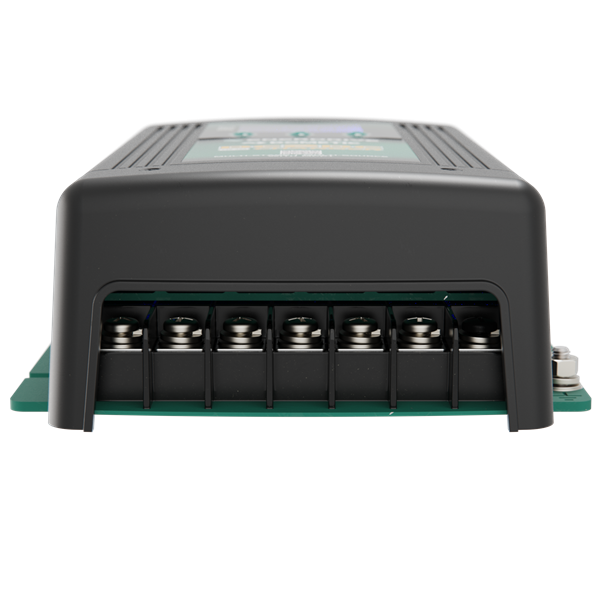

Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output DC M6 screw terminals that will allow for large battery cable connection between all sources A dedicated Maximum Power Point (MPPT) solar regulator The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile 30A output up to 40+°C with thermo controlled fan cooling Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage Temperature sensor included in charger for more accurate battery charging,
SKU | EN3DC30-24 |
---|---|
Brand | Enerdrive |
Product Type | 24V 30A DC2DC Battery Charger |
Charger Mode Output Voltage | 27.6V – 31.0V |
Float | 26.0V – 27.6V |
Equalize | 31.0V |
Charging Control | 2 stage / 3 stage selectable (Default 3 Stage) |
DC Output | Single |
Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
Charger Efficiency | 95% |
Temperature Setting | Low/ Normal/ High (Battery Temperature Sensor Standard) |
Dimensions (LxWxH mm) | 74 x 172 x 242 mm |
GTIN: 9342616003503
