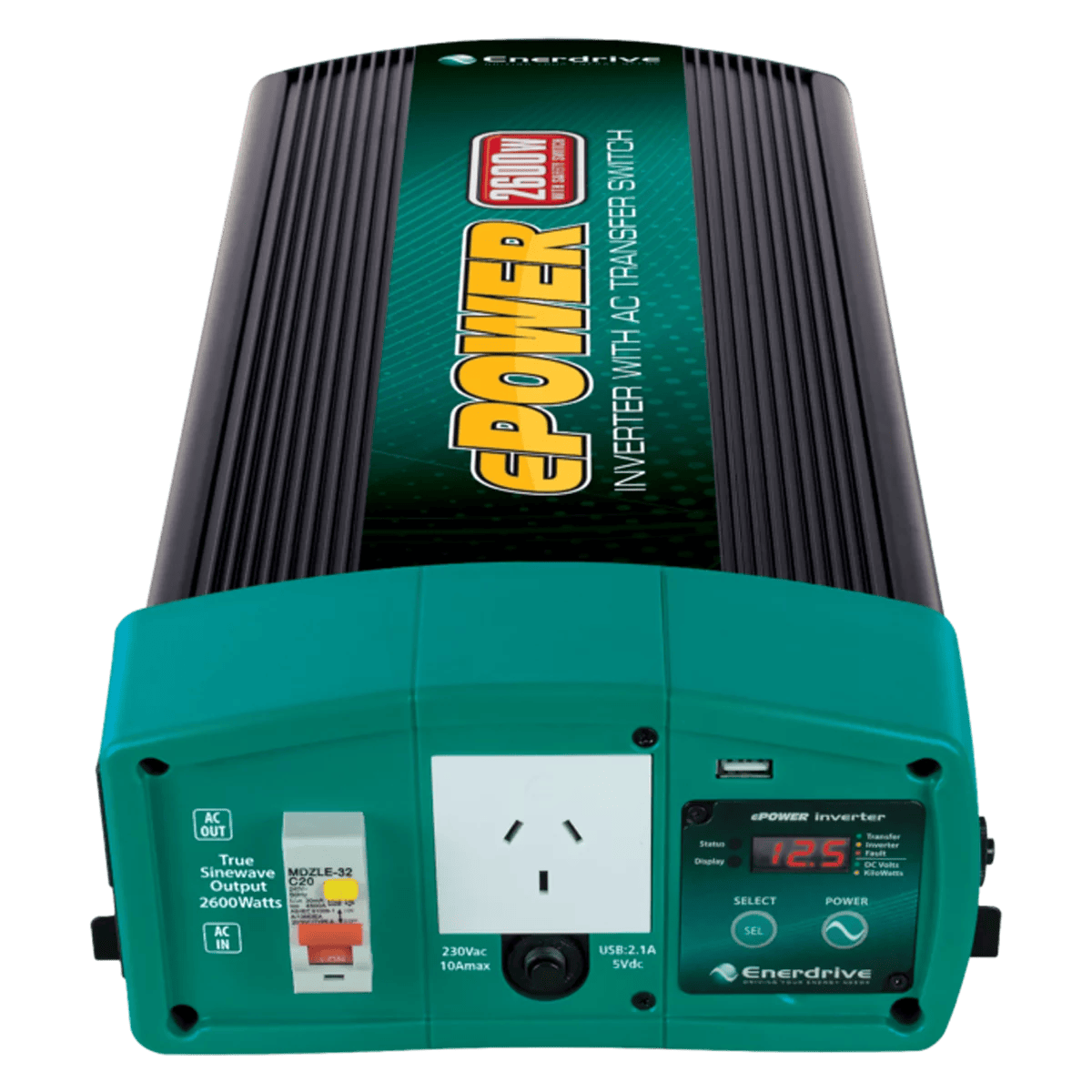

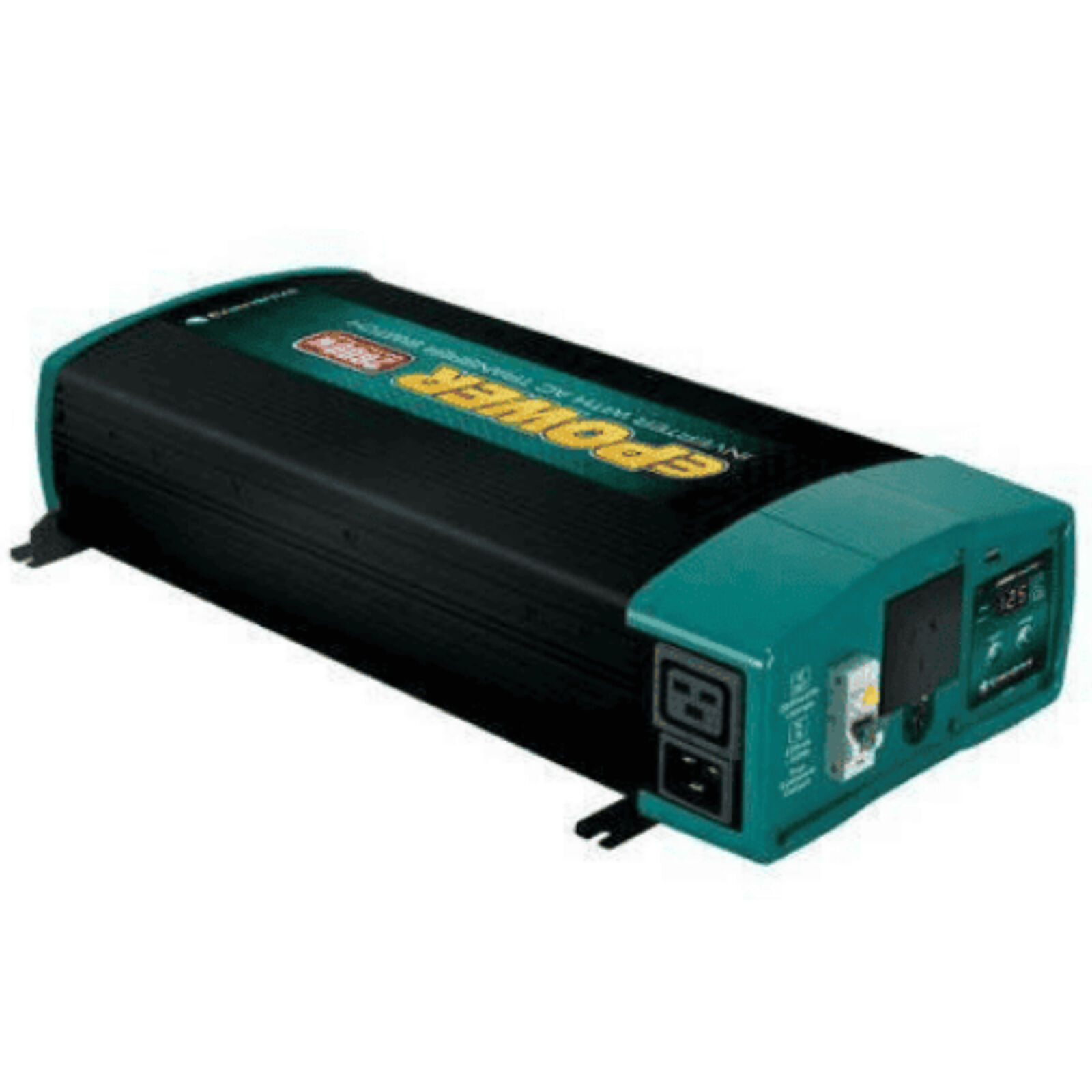

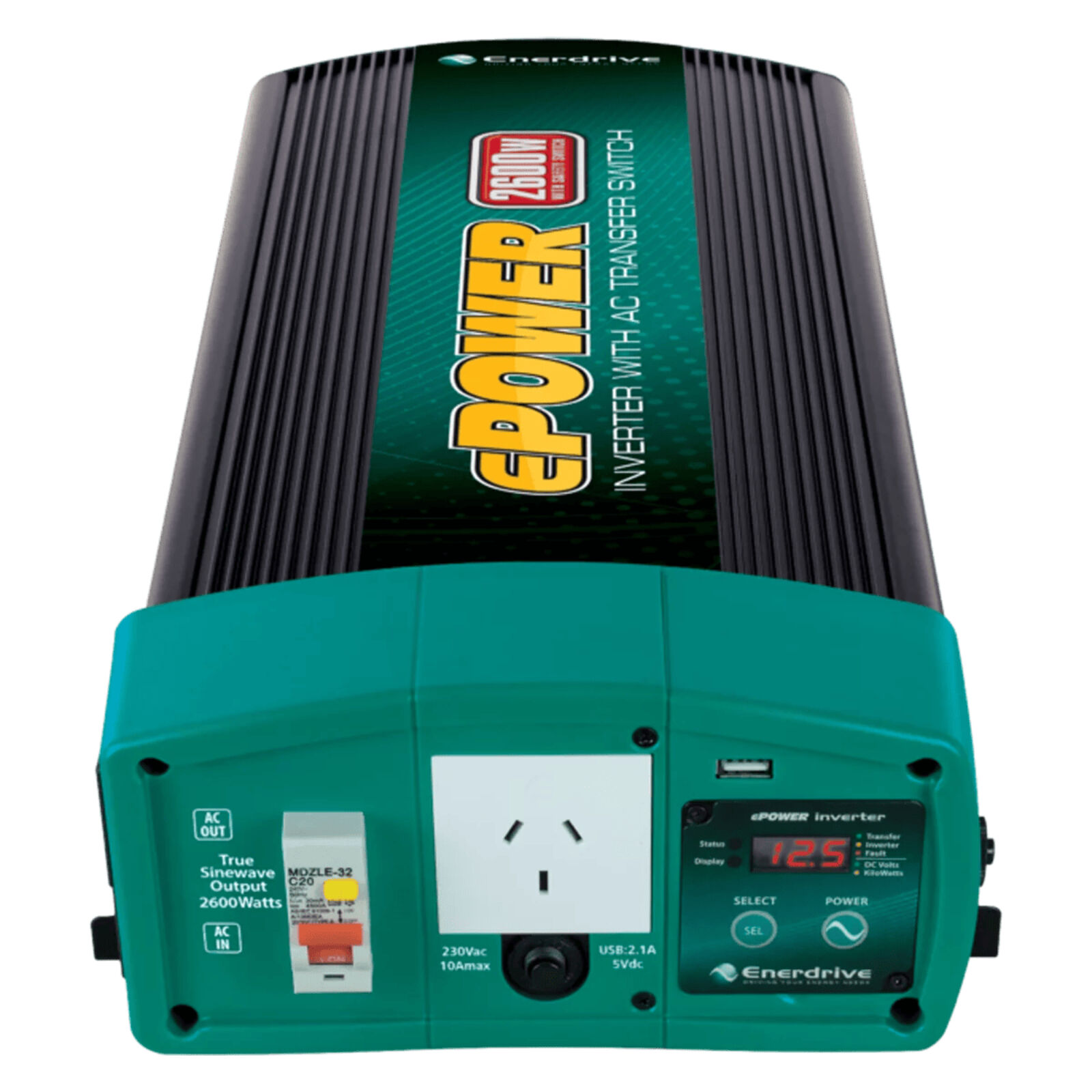

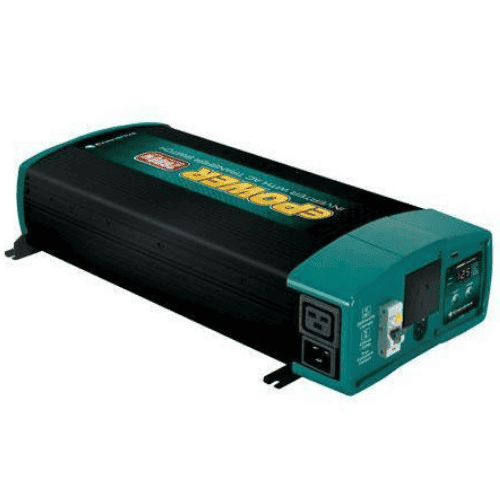

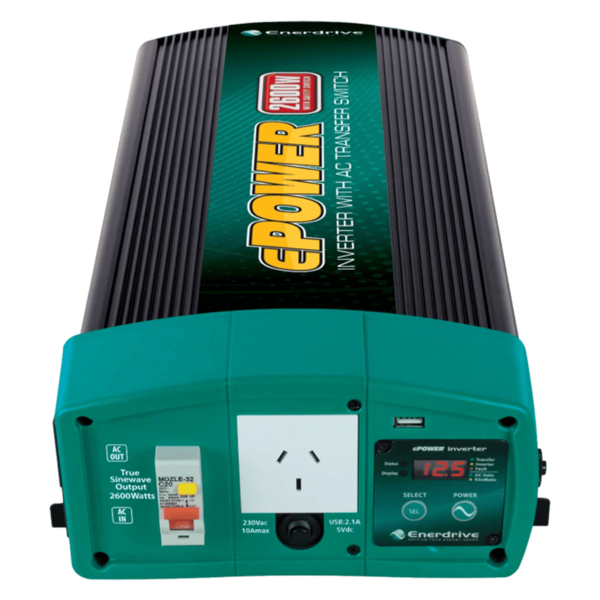

The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.
This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5-Year warranty.
This inverter is your go-to power solution, whether you're exploring off-road in your 4x4, enjoying the tranquility of caravan life, navigating the seas in your boat, or managing commercial vehicles. Its robust design and versatile features make it suitable for a wide range of outdoor and professional uses.
Experience uninterrupted, reliable power with the Enerdrive 12V 2600W ePower Pure Sine Wave Inverter. It's not just an inverter; it's your reliable partner in power for every adventure and professional need.

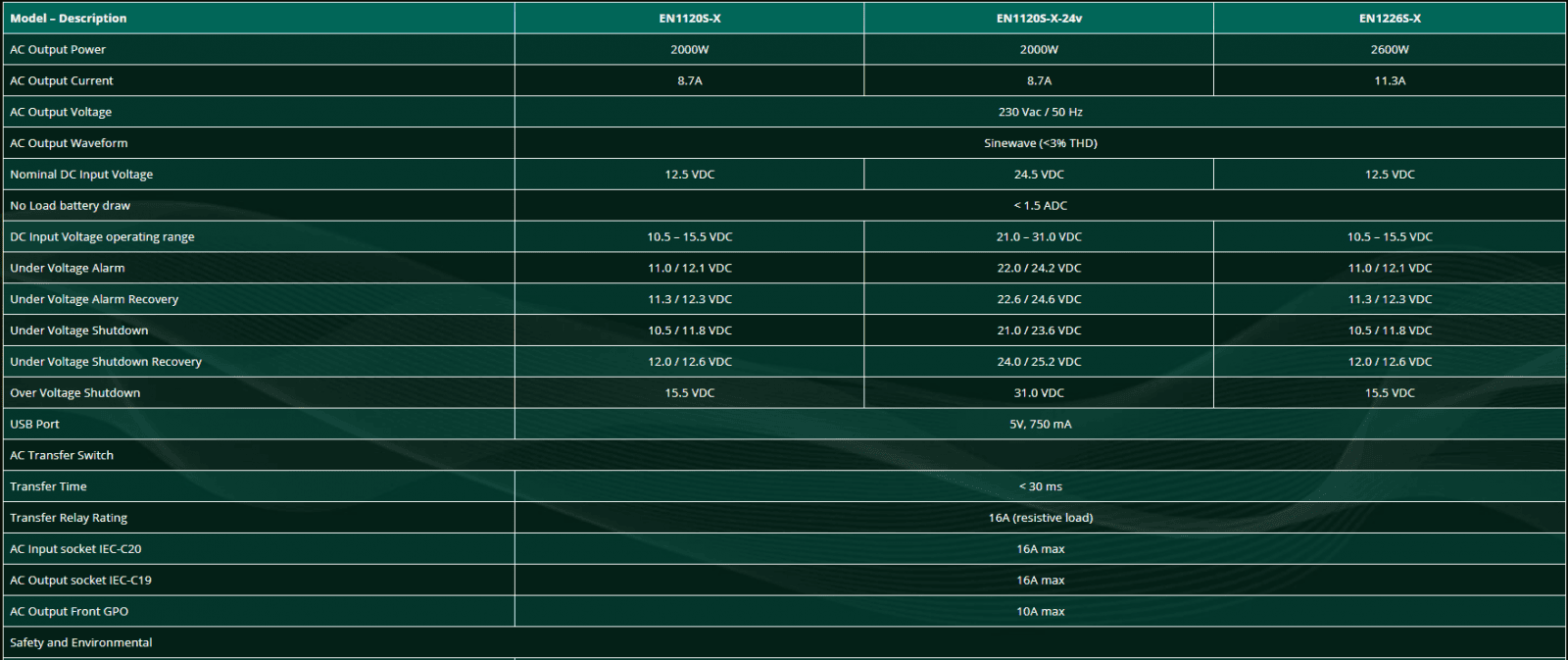

Model No. | EN1226S-X |
AC Output Power | 2600W |
AC Output Current | 11.3A |
AC Output Voltage | 230 Vac / 50 Hz |
AC Output Waveform | Pure Sinewave (<3% THD) |
Nominal DC Input Voltage | 12.5 VDC |
No Load battery draw | < 1.5 ADC |
DC Input Voltage operating range | 10.5 – 15.5 VDC |
Under Voltage Alarm | 11.0 / 12.1 VDC |
Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
Under Voltage Shutdown | 10.5 / 11.8 VDC |
Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
Over Voltage Shutdown | 15.5 VDC |
USB Port | 5V, 2.1A |
AC Transfer Switch | |
Transfer Time | < 30 ms |
Transfer Relay Rating | 16A (resistive load) |
AC Input socket IEC-C20 | 16A max |
AC Output socket IEC-C19 | 16A max |
AC Output Front GPO | 10A max |
Safety and Environmental | |
Conformance | All required Australian Standards, CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
EMI / EMC | CE EMC: EN/IEC 62040-2 category C1 |
Agency Markings | RCM, CE |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Relative Humidity | 5-90% non-condensing |
Operating Altitude | Up to 3000 meters above sea level |
Weights and Dimensions | |
Weight | 7.0 kg |
Dimensions (W x L x H) | 560x230x115 mm |
Warranty | 5 Years |
*5 Year Warranty
See Enerdrive warranty statement for full details.
