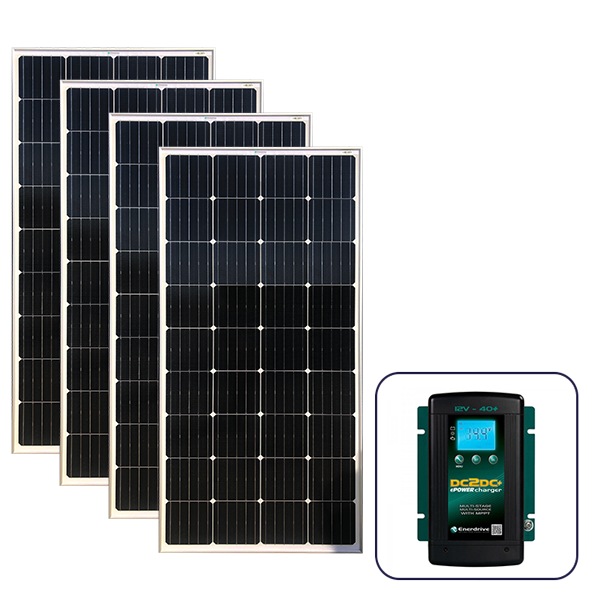

Included:

• Enerdrive 12V 40A DC to DC Battery Charger - EN3DC40+
• Enerdrive 4 x 190W Mono Crystalline Fixed Solar Panel, Silver - SP-EN190W

Specifications:

• Output Current Rating (Amps) 40.0
• Float 13.0V - 13.8V (Battery Charger)
• Equalize 15.5V (Battery Charger)
• Charging Control Three Stages (Battery Charger)
• DC Output Single (Battery Charger)
• Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
• Charger Efficency 95% (Battery Charger)
• Temperature Setting Low/Normal/High (Battery Temperature Sensor Standard) (Battery Charger)
• Wattage 190W Per Panel - 720W All Tgether (Solar Panels)
• Open Circuit Voltage 24.2 Voc(V) (Solar Panel)
• Short Circuit Current 9.98 Isc(A) (Solar Panel)
• Maximum System Voltage 1000 (VDC) (Solar Panel)
• Test Conditions Cell Temperature 25 Deg     C,Irradiance 1kW/m2      Air Mass 1.5 (Solar Panel)
• Cell Type Monocrystalline - 72 Cells Per Panel (Solar Panel)
• Weight 48.6 kg
• Warranty 5 Years

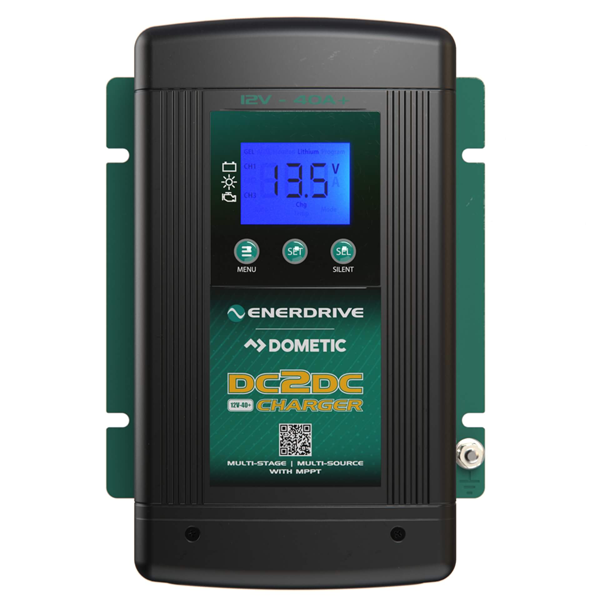

Enerdrive ePOWER 12V 40A DC to DC Battery Charger:

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

EXPERT TIP: The Enerdrive 60Amp & 70Amp breakers are common accessories suitable for the Enerdrive EN3DC40+ 40A DC to DC charger. All the accessories are available in the Accessory List above as optional extras.

Features:

• Two totally independent DC Inputs
• DC M6 screw terminals that will allow for large battery cable connection between all sources
• A dedicated Maximum Power Point (MPPT) solar regulator
• The same battery algorithms as included in our AC mains ePOWER battery charger
• 40A output up to 40+°C with thermo controlled fan cooling
• Fully programmable LCD display
• Displays charger status, voltage and amperage
• Temperature sensor

In Vehicle & Marine Wiring Diagram

Towed Vehicle Wiring Diagram

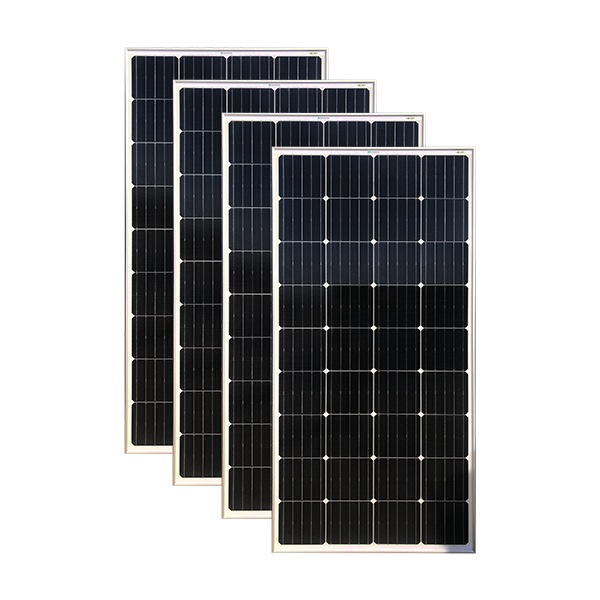

Enerdrive solar panels are typically around 20+vdc open circuit.

Features:

• Suited to 12v installations (or 24v by series connections of panels)
• A fly lead cable is provided for easy connection of the 10 & 20w panels
• The larger panels have MC4 compatible solar cable connectors included
• 5 Year Warranty
