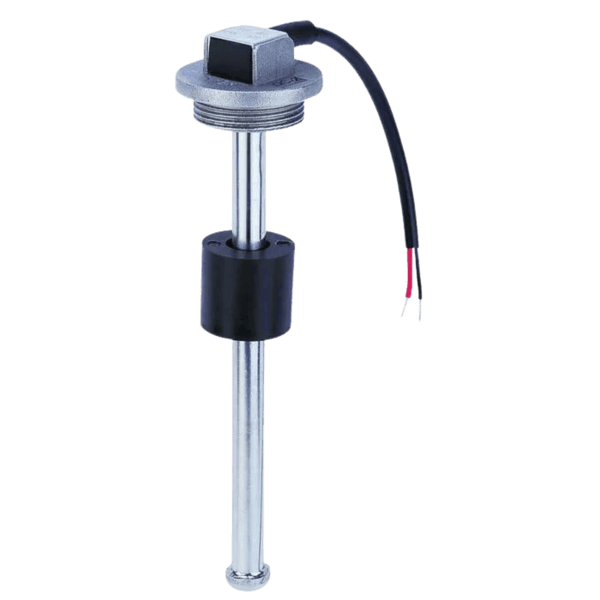

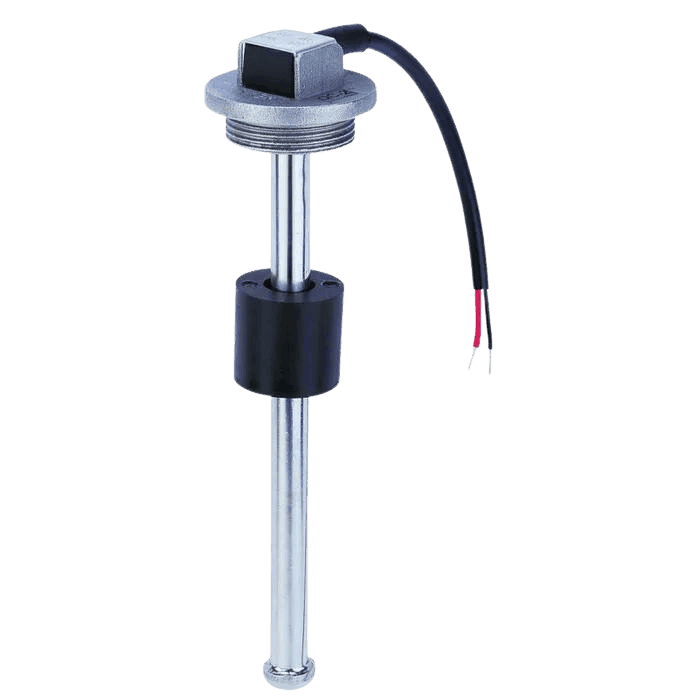

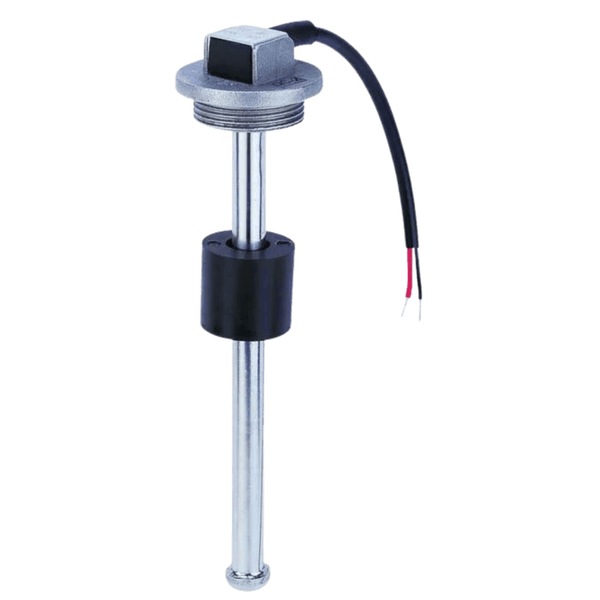

The Enerdrive fuel & liquid gauge sender is designed to work with gauges using the 240-33Ohm resistance system. The sender uses a magnetic reed switch, which guarantees a steady output signal.
The small number of moving parts, and the solid stainless construction gives this sender a long working life, as well as making this fuel gauge sender anti-resistant and anti-explosion. This sender is rated for IP67, and is suitable for all applications.
Mounts via a 1 1/4? BSP pipe fitting and can be simply screwed into the top of a matching tank. The connection cable has a sealed entry into the top of the sender for water resistance. A 5 hole mounting flange adapter is available for thin wall tanks that are not suitable for screw threads.
| EN-TS-# Rod Style Senders | Description |
| Lengths | 150 - 500mm (25mm Increments) |
| Output | 240-33 Ohms |
| Wire Connection | Blue: Input/Common Negative Black: Signal Output |
| Housing Material | Stainless Steel 316 |
| Ingress Protection | IP67 |
| Mounting Position | Mounted in top of the Tank. |
| Mounting Type | 1-1/4 BSP Thread. |
| Mounting Adapter Accessory (Sold Separately) | 1 ¼" BSP thread to Dual 5 Hole Pattern Adapter. Converts to SAE 5 hole or VDO 5 hole pattern for retro-fitting |
MPN: EN-TS450
