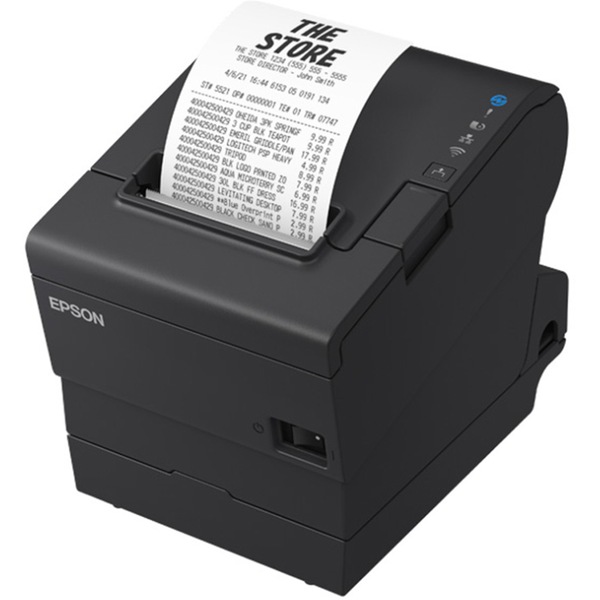

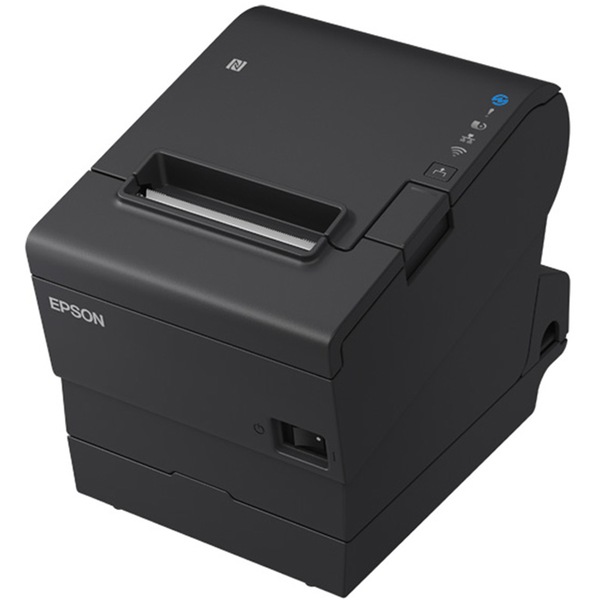

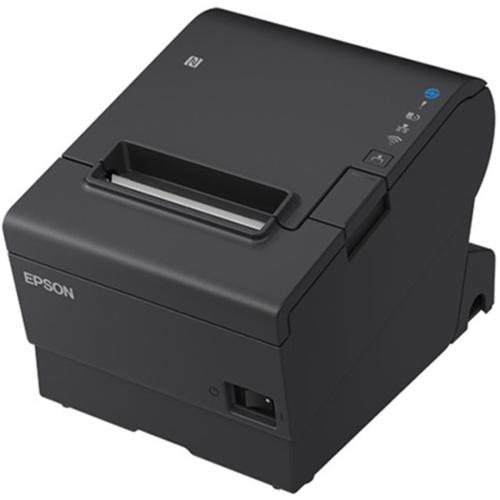

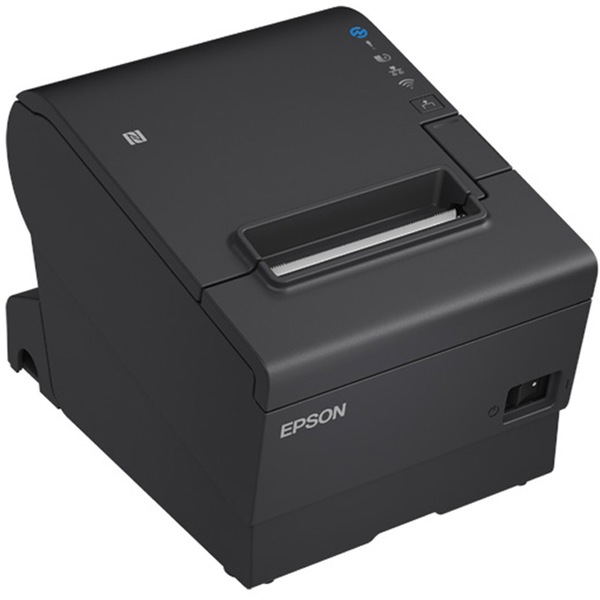

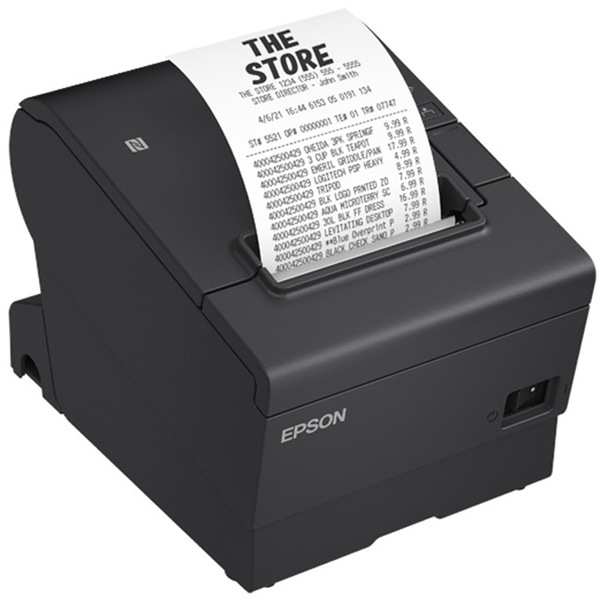

Epson C31CJ57622 TMT88VII ETH/PAR/USB PSU - Black
The fastest POS receipt printer[1] with advanced connectivity and online ordering capability
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
State-of-the-art PC, tablet and web-based POS receipt printer
The TM-T88VII can print receipts directly from the web, tablets, smartphones and other mobile devices using XML commands, and offers internal storage for database and web content uploads. It coexists with traditional PC-based applications and works on several platforms so it's simple to integrate with your existing network. All models come with Ethernet connectivity, with optional Bluetooth and Wi-Fi connectivity available.
Easy to integrate
The TM-T88VII offers a variety of tools for configuration, operation, installation support and development, as well as TM-Utility for easy set-up. SDKs are available for software developers to create native apps for Android, iOS and Windows devices or web applications.
BENEFITS
- Ultra-fast transaction times -industry-leading print speeds up to 500 mm/sec[1] and high-speed auto cutter
- Reliability you can count on - 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life[2]
- Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
- Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
- Secure wireless connection - supports the latest Wi-Fi® security standard (WPA3)
- Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
- POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
- Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
- Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
- Backwards compatible - fully compatible with the existing T88V and T88VI software and same footprint
- Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent[3]
For more information: https://www.epson.com.au/shoponline/shop/DisplayProduct.asp?id=tmt88vii.
1. Compared to single station thermal receipt printers available in the Australia & New Zealand as of August 2021, based on manufacturers' published specifications. Speed based on using 80 mm wide media only and Epson's PS-190 or PS-180 power supply. Configurations not including the PS-190 or PS-180 will have a default print speed of 450 mm/sec.
2. Rated printhead and cutter lives are only estimates based on normal use of the printer with the following media only, with printer operated at room temperature and normal humidity: Model KT55FA: Papierfabrik August Koehler SE; Model PD160R: Oji Imaging Media Co., Ltd.; Model TF50KS-EY: NIPPON Paper Industries Co., Ltd. Epson's statements about reliability levels are not warranties of the media or Epson's printers, and the only warranties for printers are the limited warranty statements for each printer. See www.epson.com/testedmedia for more information on Tested Media.
3. Paper savings depend on the text and graphics printed on the receipt.
THERMAL RECEIPT PRINTER
PRODUCT NAME
TM-T88VII
PRINTER
PRINTING TECHNOLOGY
Thermal line printing
PRINT RESOLUTION
180 dpi
PRINT SPEED
500 mm/sec (max)
PRINT FONTS
Font A (default): 12 x 24
Font B: 9 x 17
COLUMN CAPACITY
80mm: 42/48/56 columns
58mm model: 30/36/40 columns
CHARACTER SIZE (mm)
Font A (default): 12 x 24
Font B: 9 x 17
CHARACTER SET
95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page).
Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean
BARCODE UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded
MEDIA HANDLING
THICKNESS
48 – 80 µm
MEDIA DIMENSIONS
80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27")
58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27")
STANDARD CONNECTIVITY
Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB)
Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n)
Beacon dongle (Epson-approved dongle: Laird model BT820)
PRINTER DISCOVERY
NFC (Near Field Communication), Simple AP (wireless network)
COMMUNICATION PROTOCOLS
ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
PRINTING FROM A MOBILE DEVICE
WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows
GENERAL
OPERATING SYSTEMS
Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Mac OS X®
Linux (CUPS, JavaPOS)
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)
DIMENSIONS
145 x 195 x 148mm (W x D x H)
WEIGHT
1.6kg
SECURITY
Security: WEP, WPA-PSK, WPA2-PSK/EAP
WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS
Port open/close setting
IP address filtering
SAFETY APPROVALS
RCM: AS/NZS CISPR 32 Class A
CASE COLOUR
Epson Black (EBCK)
RELIABILITY
MTBF
360,000 hours
MCBF
70,000,000 lines
THERMAL HEAD LIFE
200 km
AUTO CUTTER LIFE
3 million cuts
WARRANTY
48 months
DATA BUFFER
RECEIVE
45 bytes or 4KB, selectable
USER-DEFINED
12KB
MACRO
2KB
NV GRAPHICS
384KB
NV USER
1KB
SOFTWARE INCLUDED
ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)
OPTIONS

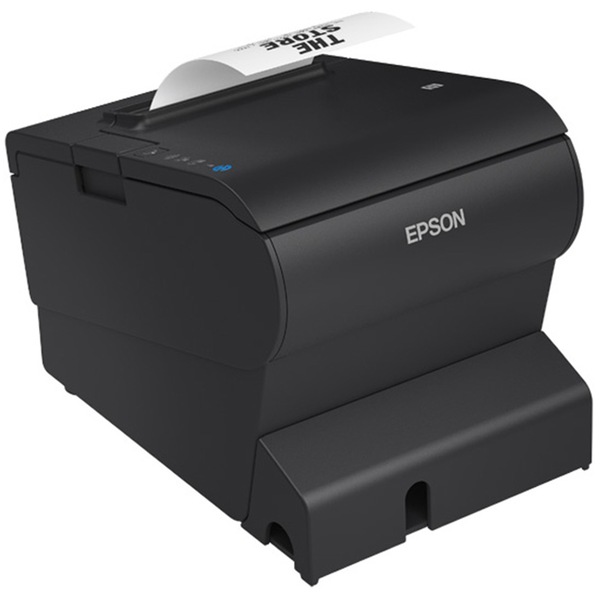

Power supply cover
PS-190 AC adapter
one wall hanging bracket
affixing tape and Connect-It interfaces
POWER
POWER SUPPLY VOLTAGE
24VDC ± 7%
POWER CONSUMPTION
Operating: 27.6W
Stand-by: 0.5W
POWER SOURCE
24VDC ± 7%
CONFIG BUILDS
TM-T88VII -612
Built-in Ethernet, USB, Serial (Part Number : C31CJ57612)
TM-T88VII -622
Built-in Ethernet, USB, Parallel (Part Number : C31CJ57622)
TM-T88VII -632
Built-in Ethernet, USB, PUSB (Part Number : C31CJ57632)
TM-T88VII -652
Built-in Ethernet, Non UIB Slot (Part Number : C31CJ57652)
OPTIONS
C32C891324
Wireless LAN adapter 2.4GHz for TM-T88VII
C32C845040
Wall Hanging Bracket - use with TM-T88VI, TM-T88V, TM-T88IV, TM-T90, TM-L90, TM-U220 & TM-U230
C32C814596
ower supply cover for TM-T88VII
COVERPLUS SERVICE PACK (OPTIONAL)
1YWT88VII
Coverplus 1yr Service Pack TM-T88VII
